Descripción
- Se adapta a todos los productos de refrigeración Dometic de 12/24 DC (hasta 135 W)
- Instale fácilmente su adaptador en cualquier frigorífico Dometic de 12/24 V DC
- Con unas dimensiones de solo 110x11x32 cm, este adaptador es compacto y ocultable

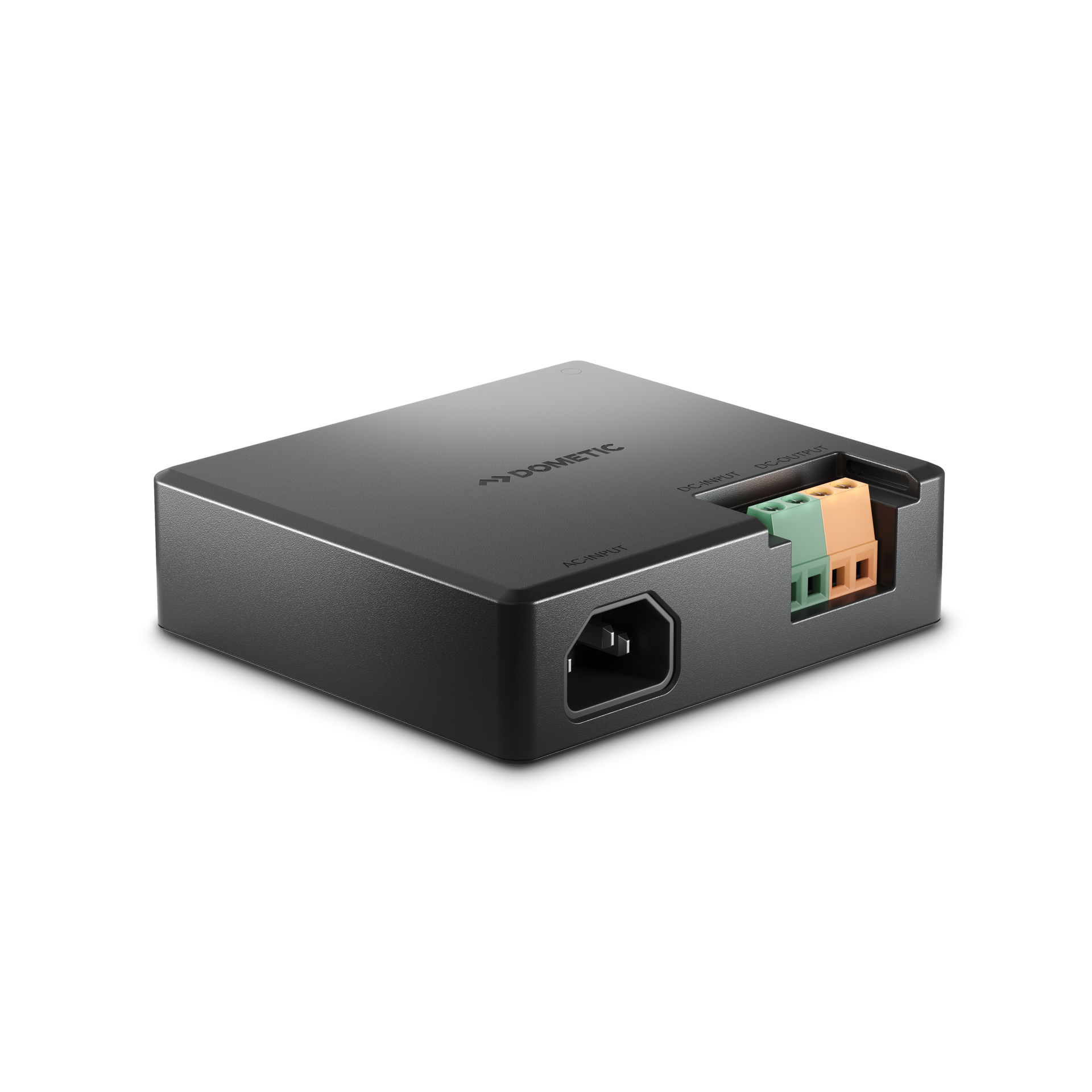

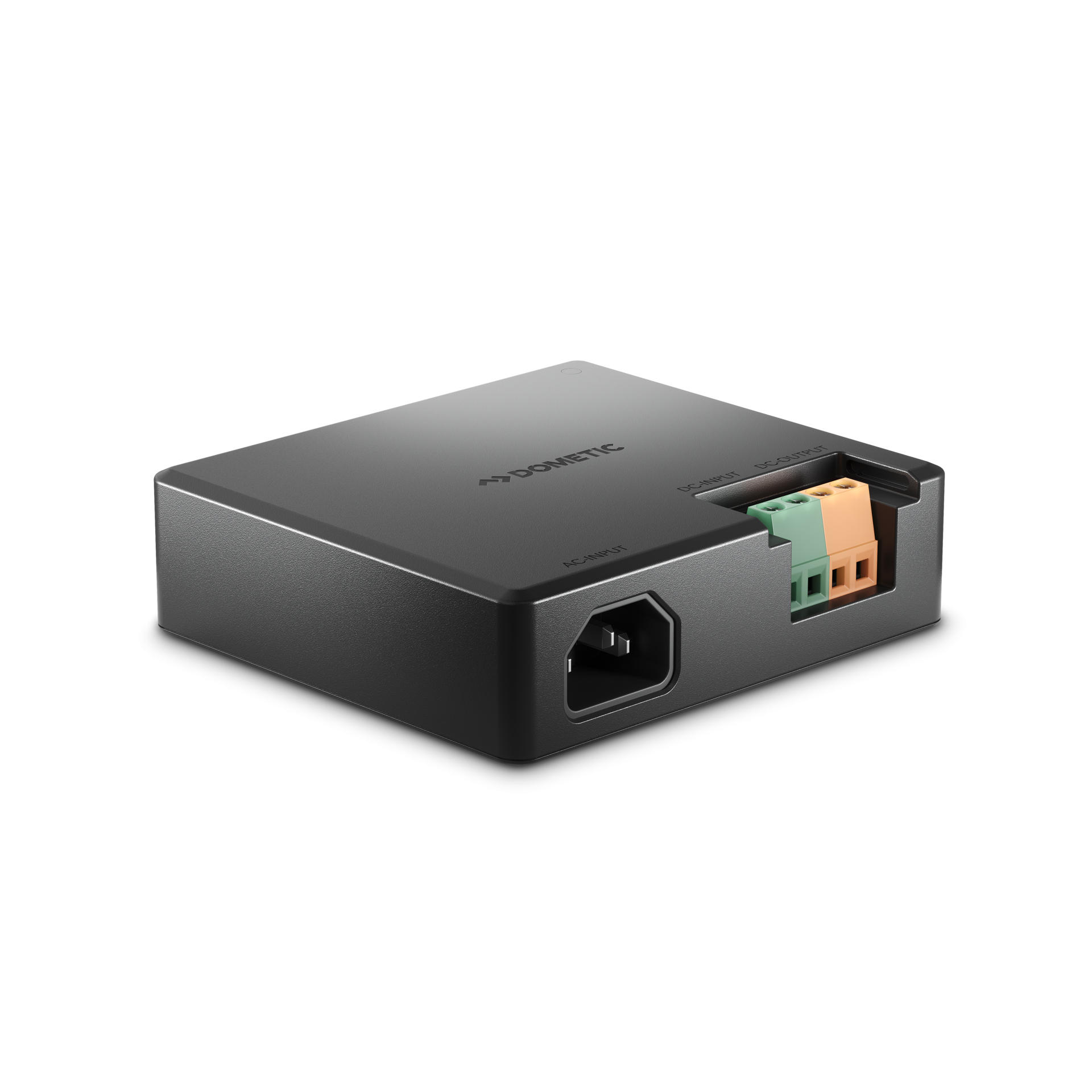

Este adaptador de red compacto se utiliza para conectar frigoríficos de 12/24 V a tomas de corriente de 100-240 V.
Especificaciones
SKU: 9620013449
| Model | DPSR |
|---|---|
| Scope of delivery | 1x adapter, 1 x DC magnetic cable, 1x AC plug, 1 x mounting bracket, 2 x screws, 1 x manual |
| Product Description | Adaptador de red para frigoríficos, 135 W |
| Dimensions product depth, [mm] | 110 |
|---|---|
| Dimensions product height, [mm] | 100 |
| Dimensions product width, [mm] | 32 |
| Net weight, [kg] | 0.50 |
| Input voltage (AC), [V] | 100-240 |
|---|---|
| Input voltage (DC), [V] | 12/24 |
| Rated input current (AC), [A] | AC100V:1.53A; AC240V:0.64A (88% energy efficiency) |
| Rated input current (DC), [A] | DC12V:10A; DC24V:5A |
| Climate class (EN 62552) | T |
|---|
| Dimensions parcel depth, [mm] | 113 |
|---|---|
| Dimensions parcel height, [mm] | 326 |
| Dimensions parcel width, [mm] | 113 |
| Parcel weight, [kg] | 0.95 |
Dometic DPSR-135 - Installation and Operating Manual EMEA24 (en, de, fr, es, pt, it, nl)
Installation And Operating Manual
Dometic DPSR-135 - Installation and Operating Manual EMEA24 (da, sv, no, fi, pl, sk, cs)
Installation And Operating Manual
Dometic DPSR-135 - Installation and Operating Manual EMEA24 (hu, hr, tr, sl, ro, bg, et)
Installation And Operating Manual
115,00 €
