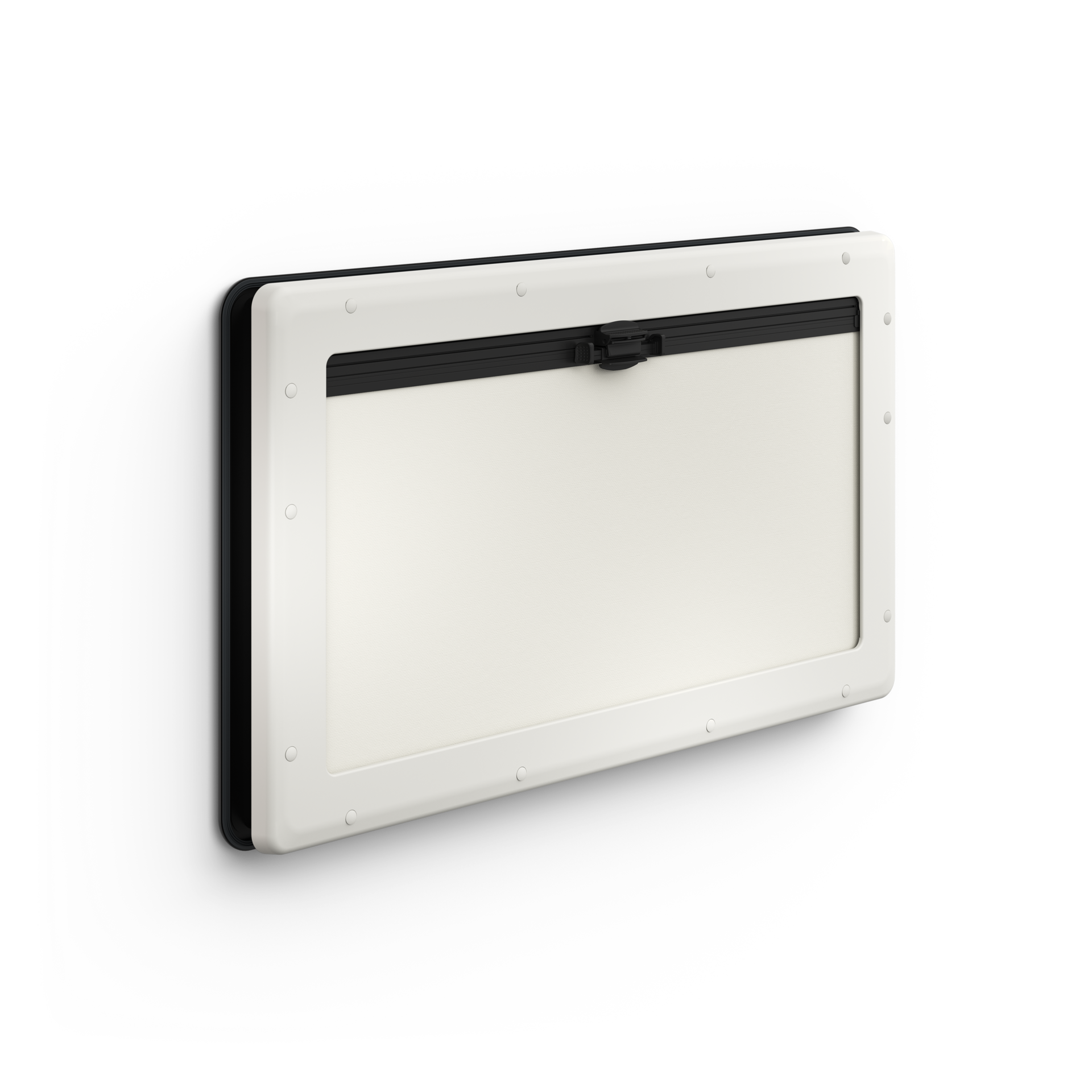

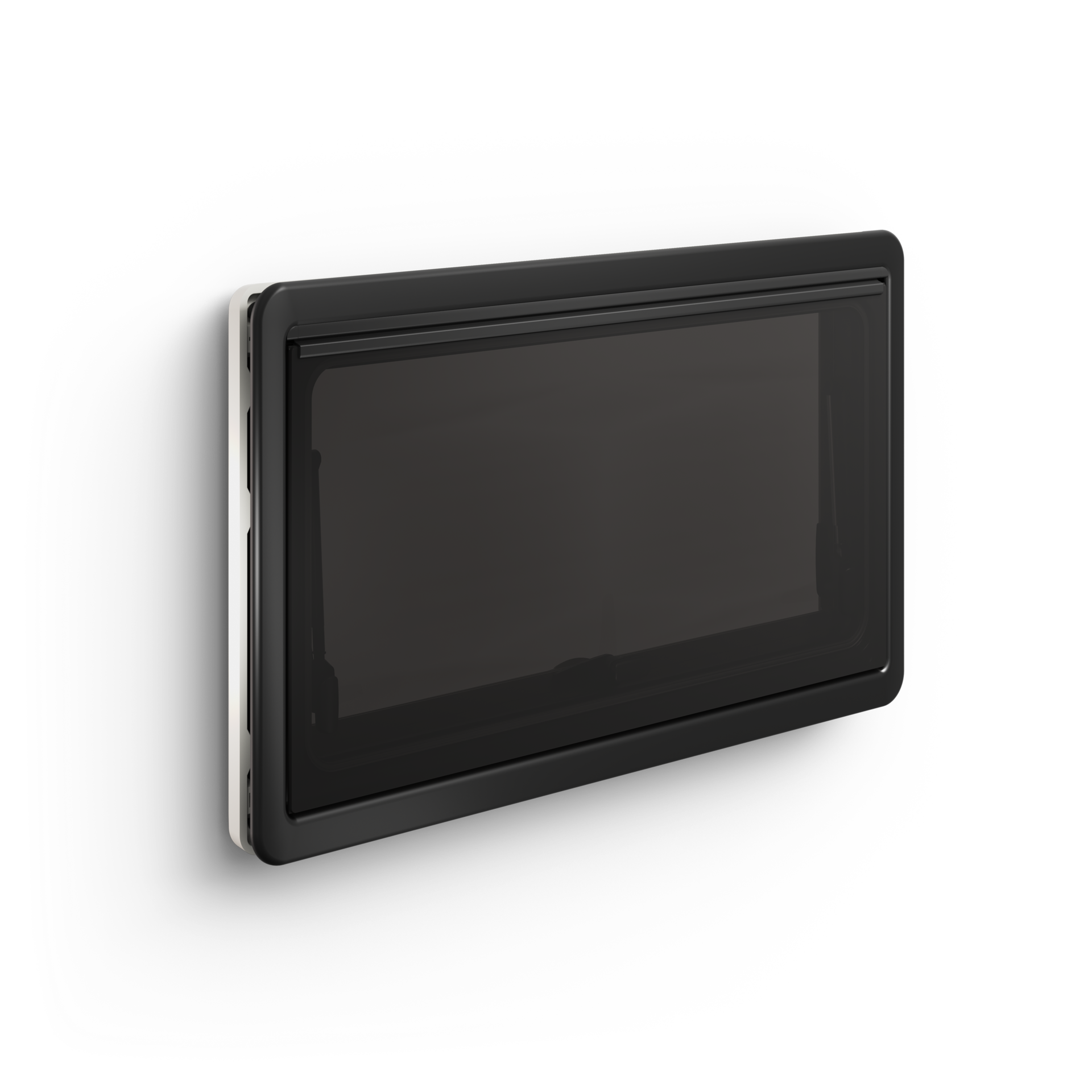

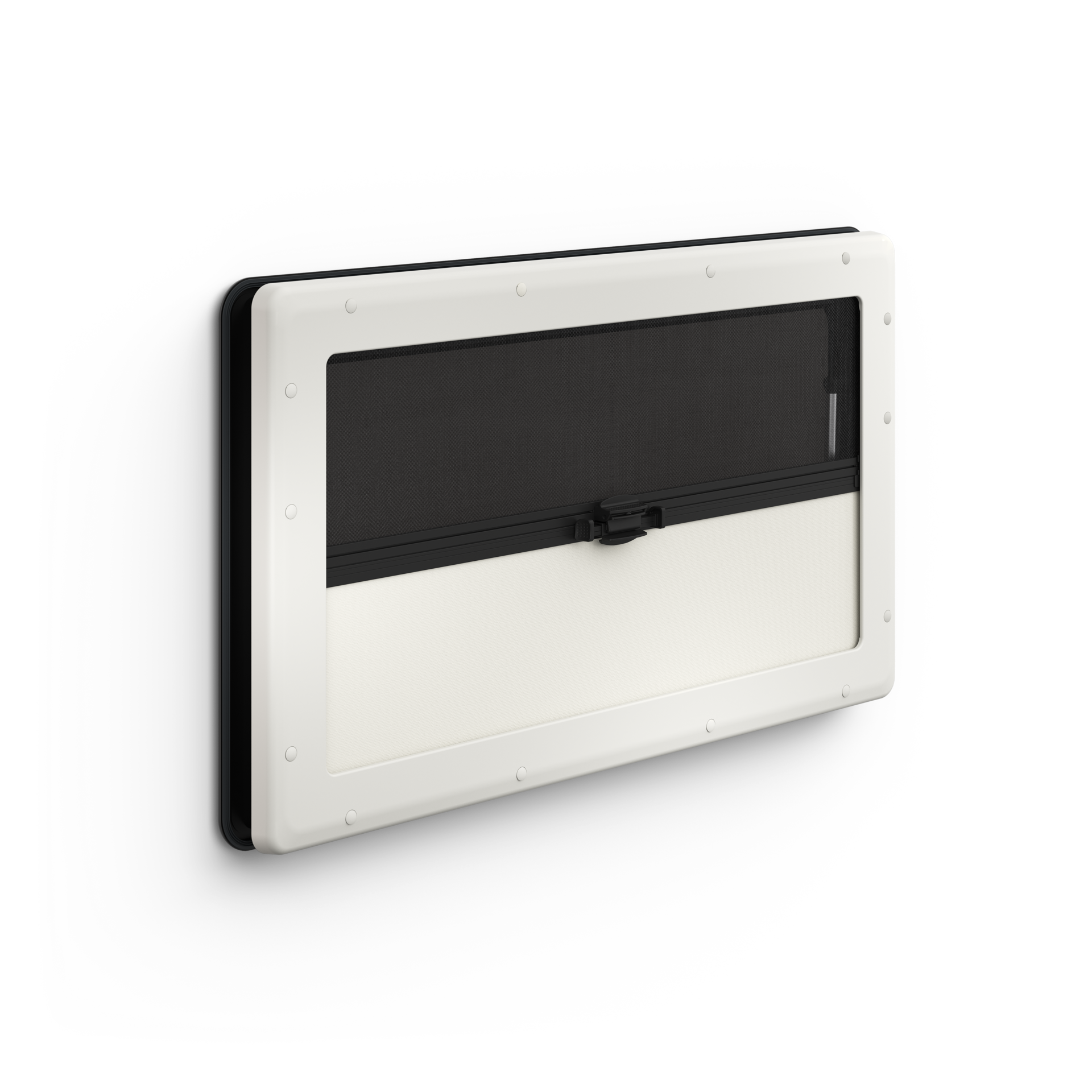

Dometic PUR-Win S10

Spécifications

Général

Scope of delivery

S10.4 Window with manual in box

SKUCertificates

ECE R43

Product Description

Baie murale à charnière projetable, 700 x 450 mm, noir/blanc

Dimensions

Dimensions product height, [mm]

481

Dimensions product width, [mm]

745

Dimensions product width, ["] - Display

29.33

Dimensions ordered height, [mm]

450

Dimensions ordered width, [mm]

700

Net weight, [kg]

6.50

Net weight, [lbs]

14.33

Standard mount. material thickness 1 min, [mm]

26

Standard mount. material thickness 1 max, [mm]

26

Possible material thickness 1 min, [mm]

27

Possible material thickness 1 max, [mm]

41

Cut out height, [mm]

448.000000

Cut out width, [mm]

702.000000

Propriétés

Hinge type

Projetable

Positions variable

Variable

Logistique

Dimensions parcel depth, [mm]

570

Dimensions parcel height, [mm]

180

Dimensions parcel width, [mm]

840

Parcel weight, [kg]

8.07

Parcel weight, [lbs]

17.81
