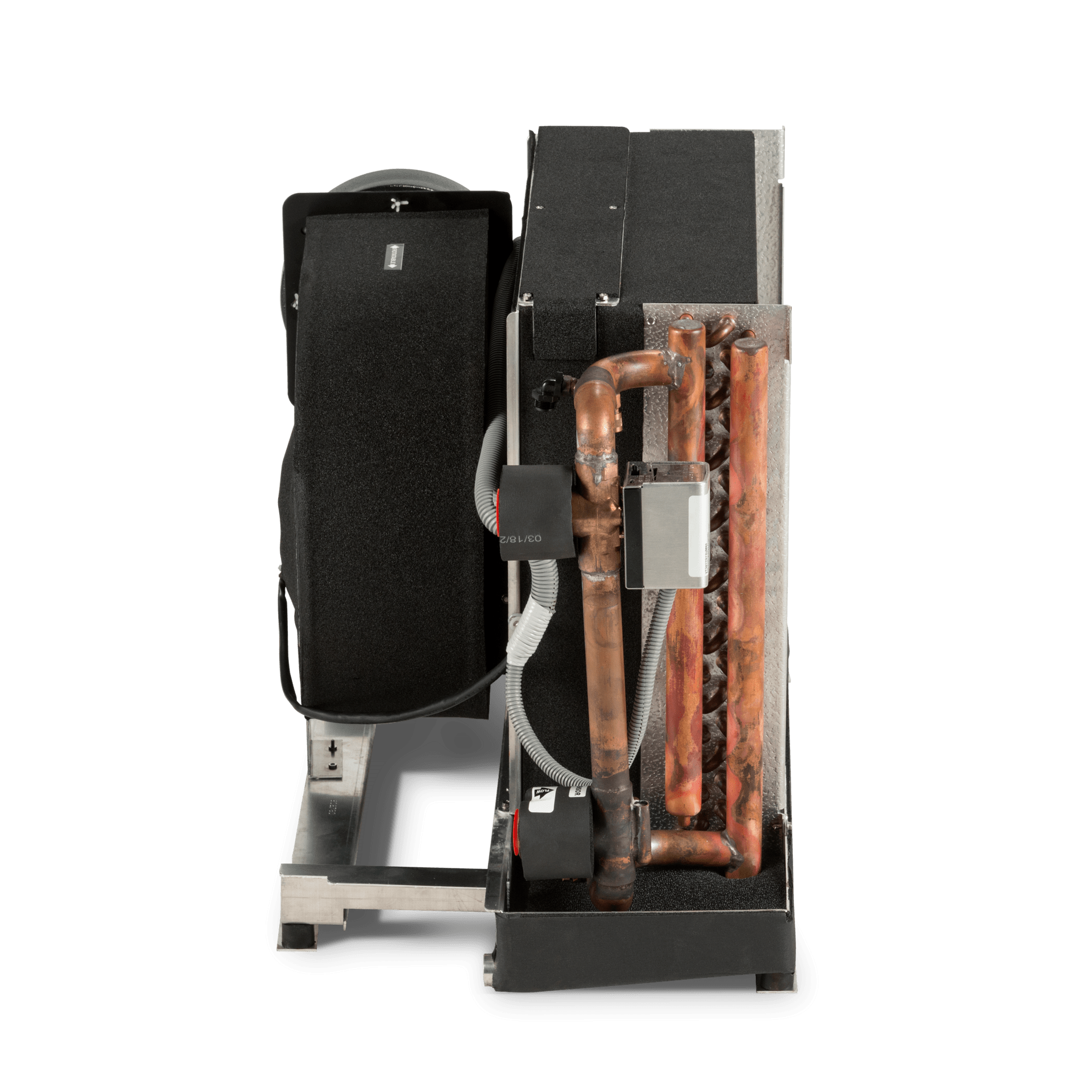

Dometic AU-HV

Air Handler

The AT-HV series of air handlers feature powerful, rotatable blowers for superb air distribution. The AT-HV series replaces Flex-Duct and Draw-Through series air handlers, and has many improvements compared to these older units. Easy to install and quiet operation.

Description

  1. Powerful fully-insulated blowers are rotatable for effective air distribution
  2. Vibration-isolation mounts reduce noise and vibration.
  3. Improved cooling performance includes dehumidification
  4. Remote air bleeder on 6 ft. (1.8 m) of flexible tubing with ball valve
  5. Corrosion-resistant coating on evaporator coil, blower, and drain pan
  6. Compact design

Specifications

SKU: 9108551515

Dometic AU-HV — General specifications
ModelChillers Air Handlers AT
Product DescriptionAir Handler

Dometic AU-HV — Dimensions specifications
Dimensions product depth, [mm]477.77
Dimensions product height, [mm]501.65
Dimensions product width, [mm]678.18
Net weight, [kg]24.95

Dometic AU-HV — Electrical specifications
Input voltage (AC), [V]230
Input frequency, [Hz]50/60
Required AC circuit protection min, [A]16
Required AC circuit protection max, [A]20

Dometic AU-HV — Performance specifications
Cooling Capacity ISO5151 Display10550.56
Cooling Capacity Display36000
Current consumption min cooling, [A]1.6
Current consumption max cooling, [A]1.6

Dometic AU-HV — Logistics specifications
Dimensions parcel depth, [mm]914.40
Dimensions parcel height, [mm]660.40
Dimensions parcel width, [mm]652.78
Parcel weight, [kg]32.28

Dometic Fan Coils and Controls - Declaration of Conformity EMEA24
Declaration Of Conformity
Dometic Airhandler - Installation and Operating Manual APAC/AMER/EMEA(en)
Installation And Operating Manual
Dometic Climate Parts Guide.pdf
Buying Guide

Product size & weight

W 678.18 x H 501.65 x D 477.77 mm

Weight: 24.95 kg
