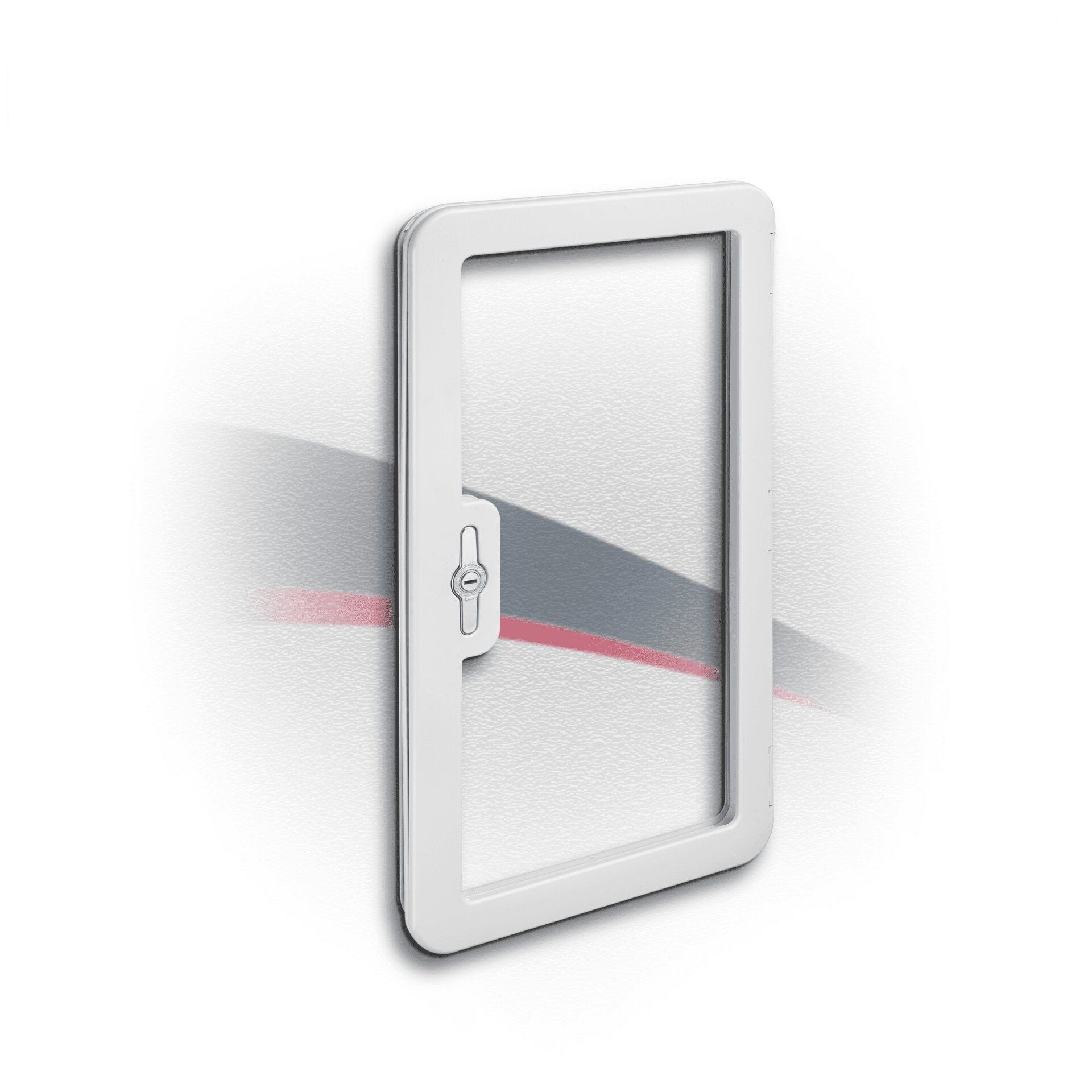

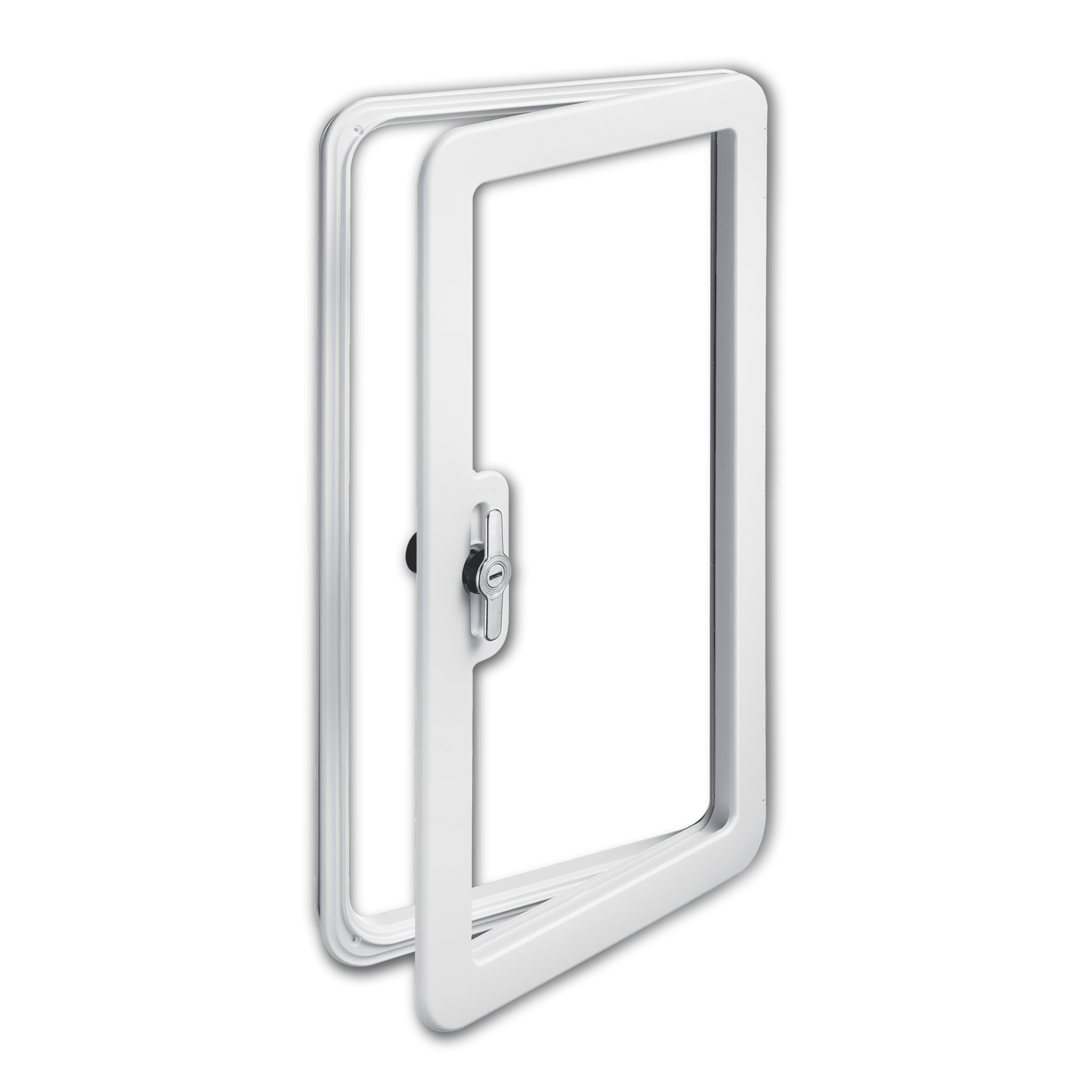

Dometic SK 5

Specifications

General

Scope of delivery

Service hatch with manual in box

Product Description

Service Hatch, 650 x 350 mm

Dimensions

Dimensions product height, [mm]

373

Dimensions product width, [mm]

673

Dimensions product width, ["] - Display

26.5

Dimensions ordered height, [mm]

350

Dimensions ordered width, [mm]

650

Net weight, [kg]

1.30

Net weight, [lbs]

2.87

Standard mount. material thickness 1 min, [mm]

23

Standard mount. material thickness 1 max, [mm]

36

Possible material thickness 1 min, [mm]

23

Possible material thickness 1 max, [mm]

36

Cut out height, [mm]

348.000000

Cut out width, [mm]

648.000000

Logistics

Dimensions parcel depth, [mm]

710

Dimensions parcel height, [mm]

126

Dimensions parcel width, [mm]

430

Parcel weight, [kg]

2.19

Parcel weight, [lbs]

4.83
