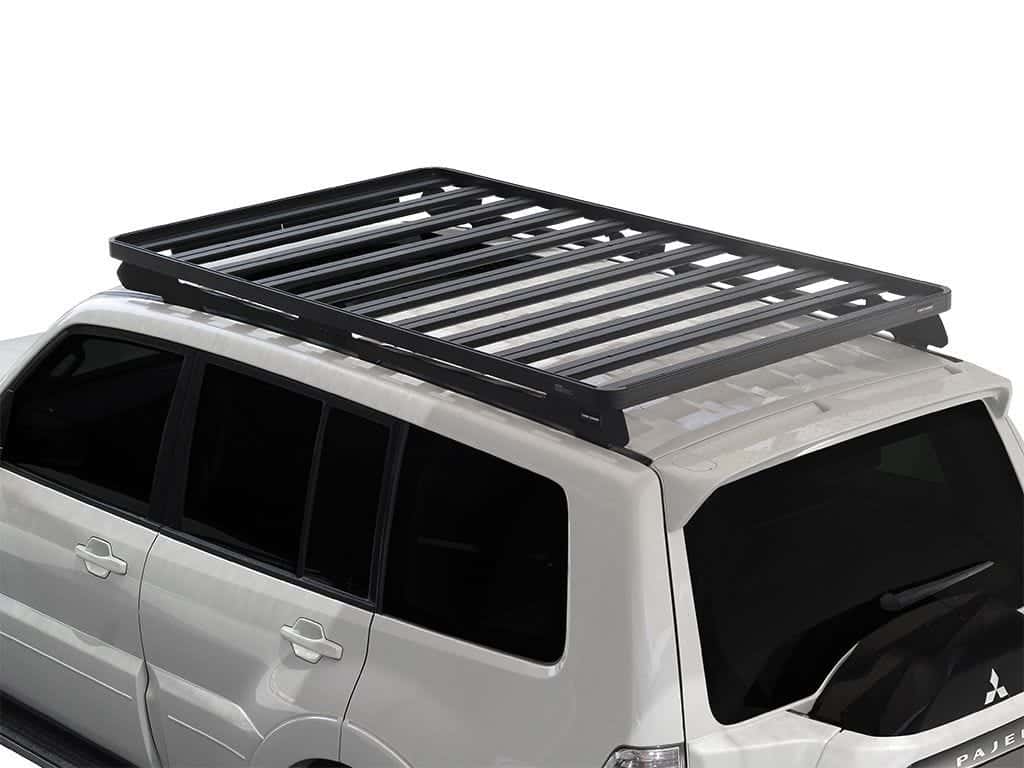

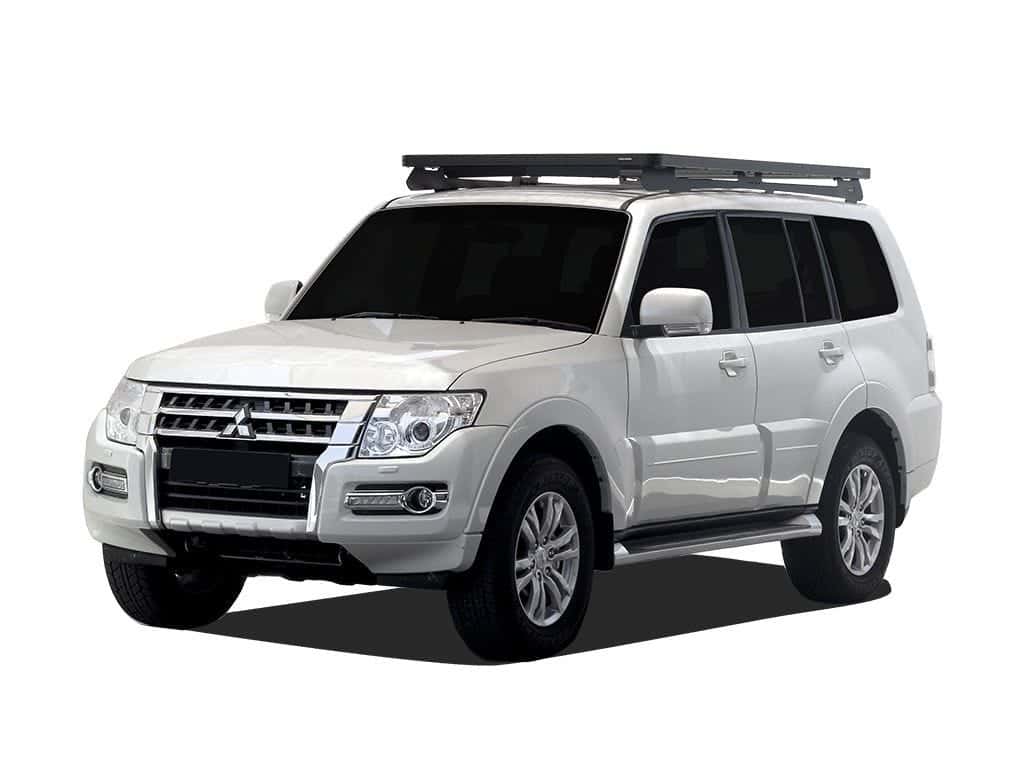

Front Runner Series Mitsubishi Pajero CK/BK LWB Slimline II Roof Rack Kit

21 033 kr

Inkl. 25% moms.Exkl. Frakt

Laddar...

This 2166mm/85.3" long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Foot Rails to mount the Slimline II Tray to your Mitsubishi Pajero CK/BK LWB. It easily installs using the existing factory mounting points. No drilling required.

Beskrivning

This 2166mm/85.3" long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Foot Rails to mount the Slimline II Tray to your Mitsubishi Pajero CK/BK LWB. It easily installs using the existing factory mounting points. No drilling required.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

These Foot Rails contain 1 opening to access Front Runner under rack mount tables (1 smaller prep or 1 larger camp size table).

All Dometic Front Runner Series racks are backed by a 5‑year warranty*

NOTE: Factory holes are used for installation, requires factory rails to be removed.

Specifikationer

SKU: KRMP018T

KRMP018T - Mitsubish Pajero2006-Curr SlimlineII Roof Rack Kit

Consisting of:

1 x FAMP001 - Mitsubishi Pajero CK (3 Gen) LWB Foot Rails - by Front Runner
1 x RRSTD11 - Slimline II Tray - 1255mm(W) X 2166mm(L) - by Front Runner


Material used:

Black epoxy powder-coated T6 aluminium
High strength steel

Approximate Installed Weight 34kg (74lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.


Shipping Dimensions:

Width 630mm (25")
Length 1640mm (65")
Height 160mm (6")



Shipping Weight:

Weight 39.4kg (86.6lbs)



FAMP001 - Fitting Instruction
Fitting Instruction
RRSTD11 - Fitting Instruction
Fitting Instruction
RRSTD11 - Fitting Instruction
Fitting Instruction
RRSTD11 - Fitting Instruction
Fitting Instruction
