Beskrivning

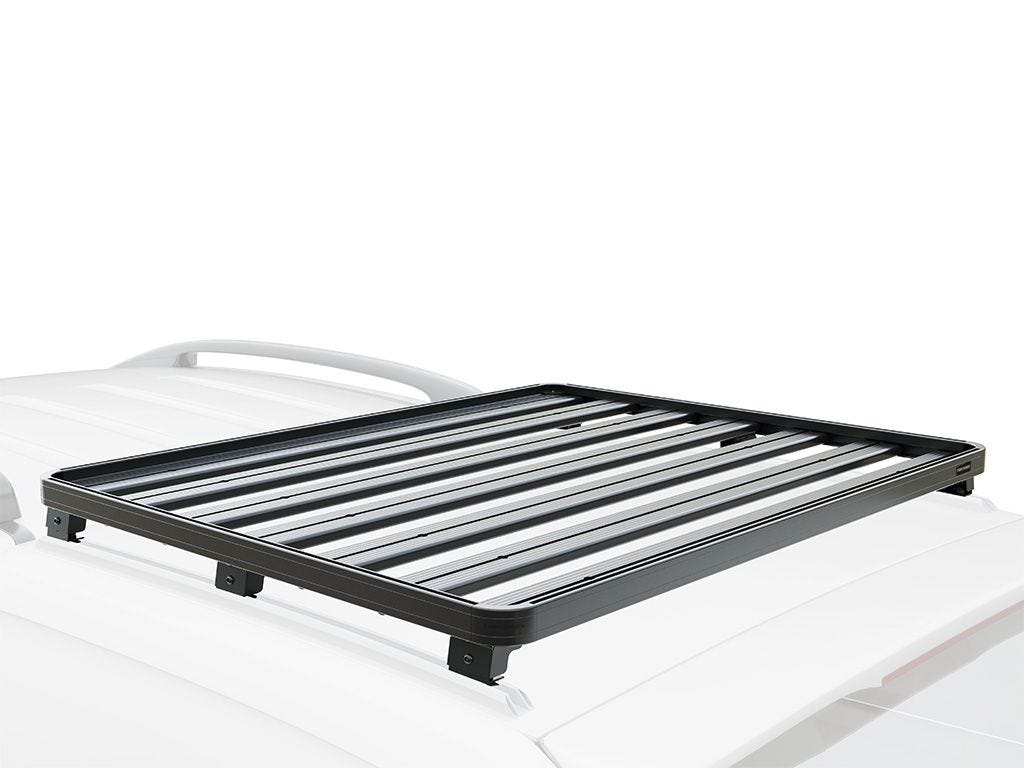

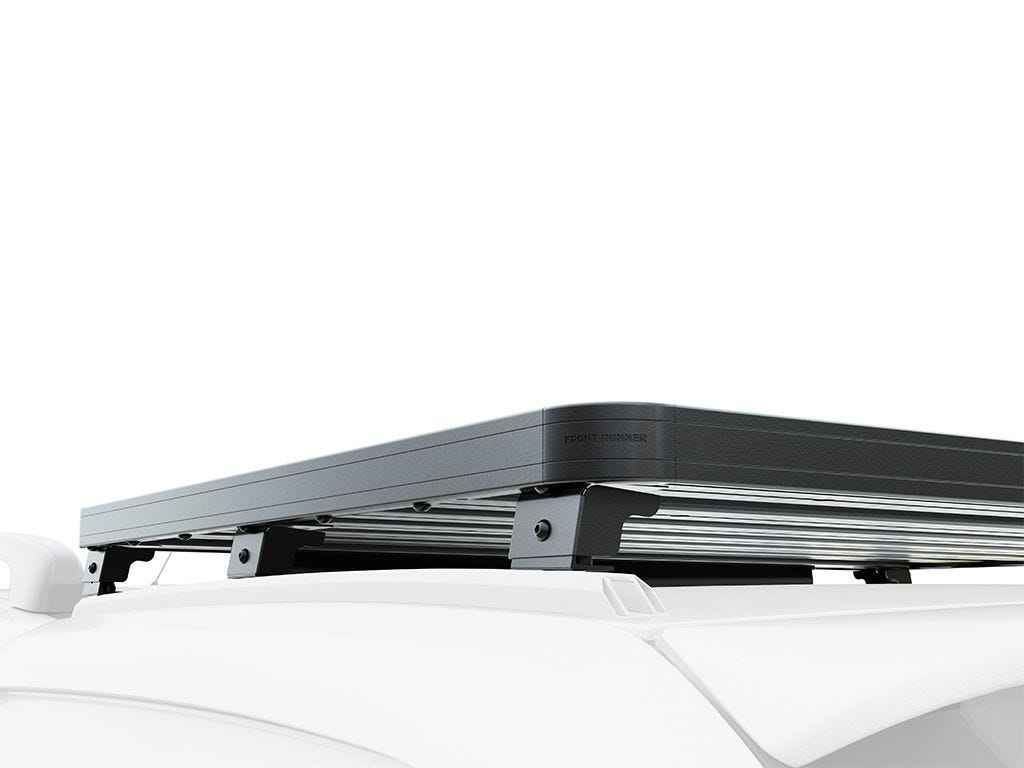

This Rack Kit is for truck canopies/camper shells/caps and trailers that have roof top sizes no larger than approximately 1165mm/45.9" (W) x 1358mm/53.5" (L). The Slimline II Tray mounts to four (6) supplied Feet that slide in to the supplied Track. The 3 x 140mm/5.5" long tracks can be easily mounted to your canopy/shell or trailer.See the Track installation instructions in the INSTALL tab for further details.
All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.
All Dometic Front Runner Series racks are backed by a 5‑year warranty*
Specifikationer
SKU: KRCA005T
Consisting of:
3 x FASS024 - Foot Set / 50mm-60mm - by Front Runner

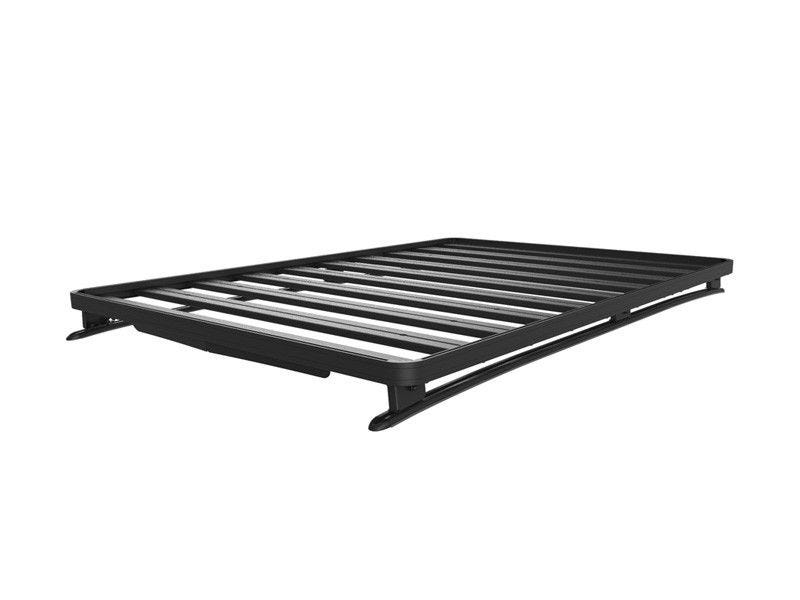

1 x RRSTA07 - Slimline II Tray - 1165mm(W) X 1358mm(L) - by Front Runner
3 x TRCA008 - Universal 140mm Tracks - by Front Runner

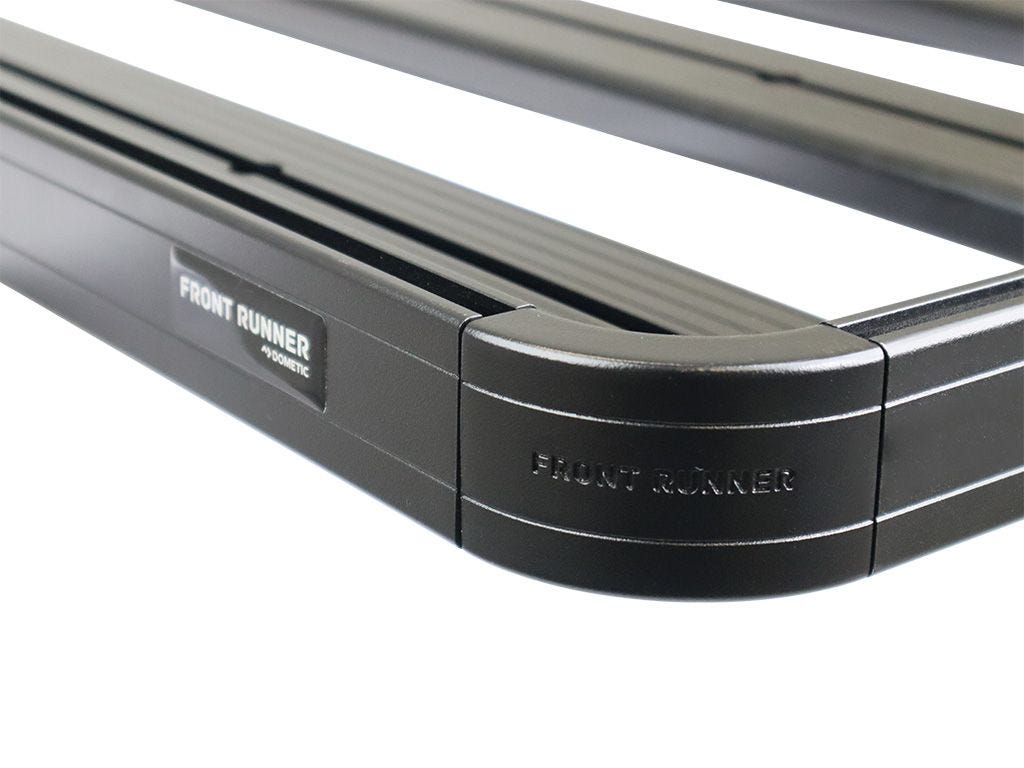

Black epoxy powder-coated T6 aluminium
High strength steel
Approximate Installed Weight 21kg (46lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Width 450mm (18")
Length 1615mm (64")
Height 140mm (6")
Shipping Weight:
Weight 24.4kg (53.7lbs)
