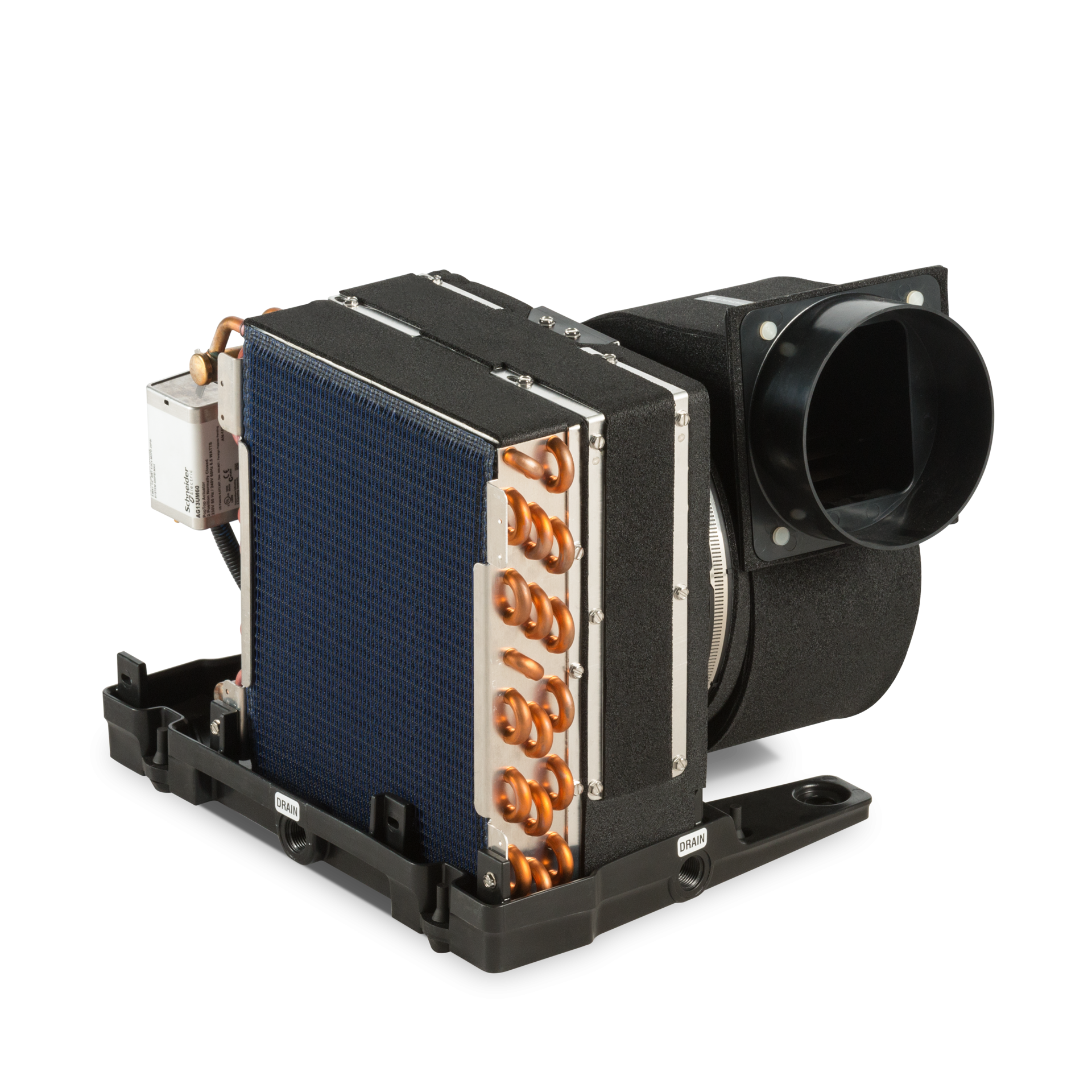

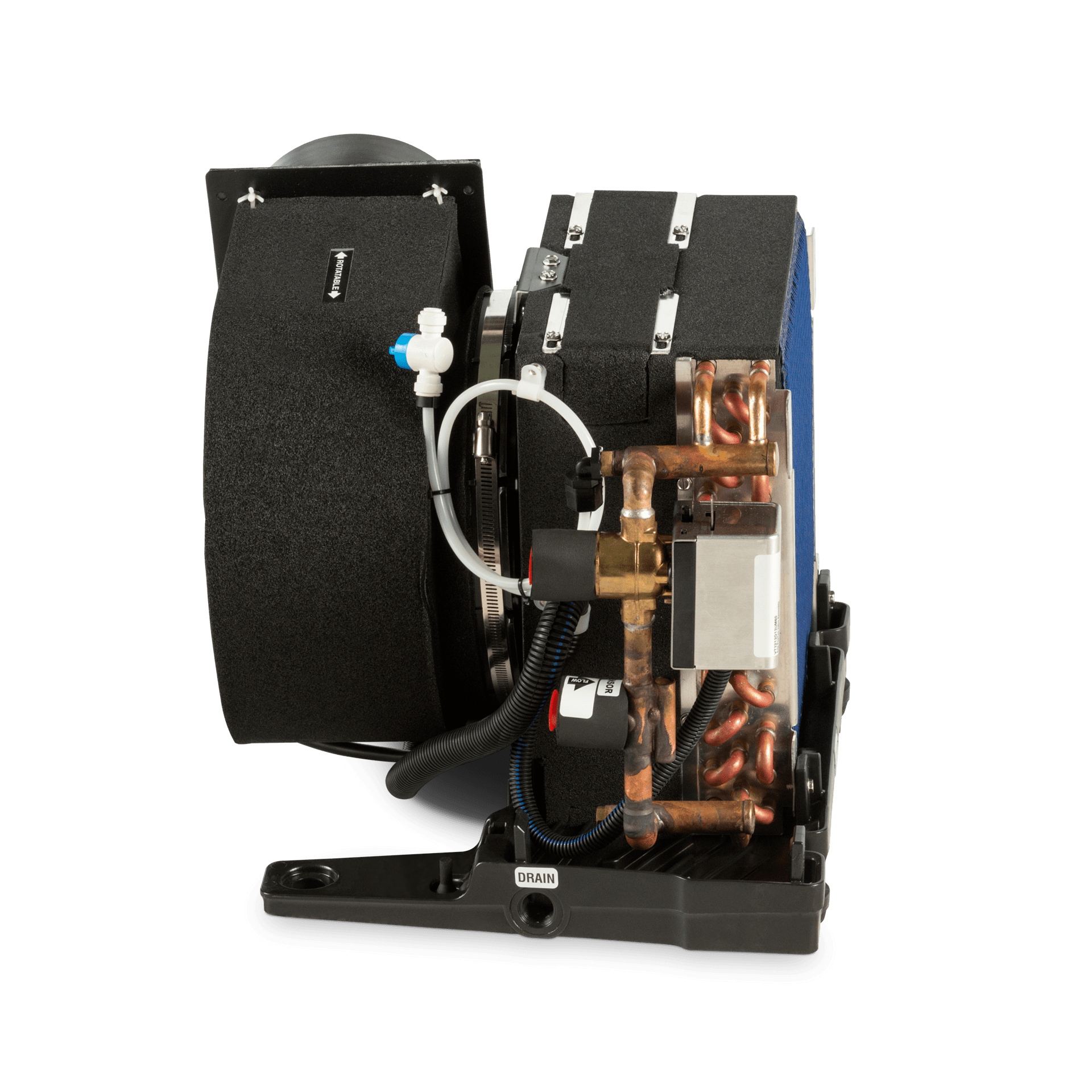

Dometic AU

Chilled Water Air Handler

Cooling Capacity Display: 6000
Input voltage (AC), [V]: 230
Input frequency, [Hz]: 50/60
Item Description: AU6HVZ 5"MR 230V
  • Optional EU package upgrades
  • Optional DC "WhisperCool" blowers
  • Optional integrated Breathe Easy™ air purifier

Redesigned for easier installation and improved performance. Featuring a rust-free composite drain pan, high-velocity blowers and flexible mounting options, this air handler incorporates innovative features for quiet, powerful performance.

Description

  1. Rust-free composite drain pan
  2. Vibration-isolation mounts reduce noise and vibration
  3. Powerful blower can be rotated to straight-down position for overhead applications
  4. Drain pan features anti-slosh, "positive flow" drain channels for no spills and rapid removal on condensates
  5. Single adjustment screw for 270 degrees of rotation
  6. Easy access to water heater overload reset button

Specifications

SKU: 9108786176

Dometic AU-HV — General specifications
ModelChillers Air Handlers AU
Product DescriptionChilled Water Air Handler

Dometic AU-HV — Dimensions specifications
Dimensions product depth, [mm]431.80
Dimensions product height, [mm]469.90
Dimensions product width, [mm]609.60
Net weight, [kg]9.21

Dometic AU-HV — Electrical specifications
Input voltage (AC), [V]230
Input frequency, [Hz]50/60
Required AC circuit protection min, [A]2
Required AC circuit protection max, [A]5

Dometic AU-HV — Performance specifications
Cooling Capacity ISO5151 Display1758.43
Cooling Capacity Display6000
Current consumption min cooling, [A]0.83
Current consumption max cooling, [A]0.83

Dometic AU-HV — Logistics specifications
Dimensions parcel depth, [mm]609.6
Dimensions parcel height, [mm]469.9
Dimensions parcel width, [mm]431.8
Parcel weight, [kg]12.64

Dometic Fan Coils and Controls - Declaration of Conformity EMEA24
Declaration Of Conformity
Dometic Airhandler - Installation and Operating Manual APAC/AMER/EMEA(en)
Installation And Operating Manual
Dometic Climate Parts Guide.pdf
Buying Guide

Product size & weight

W 609.60 x H 469.90 x D 431.80 mm

Weight: 9.21 kg

Highlights

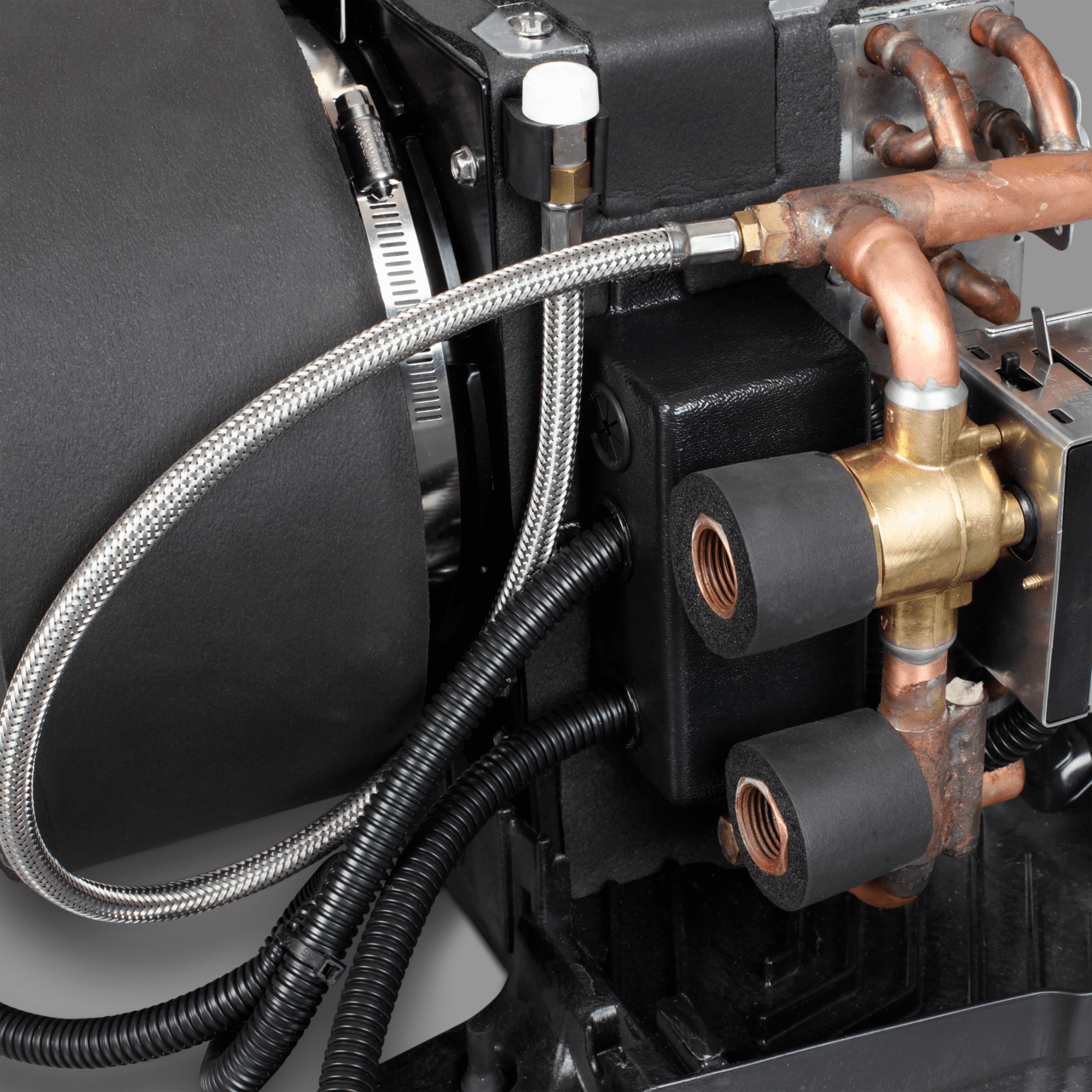

Optional EU package upgrades

Upgrades include improved insulation and wire loom, protective cover for water-tube hairpins, and more.

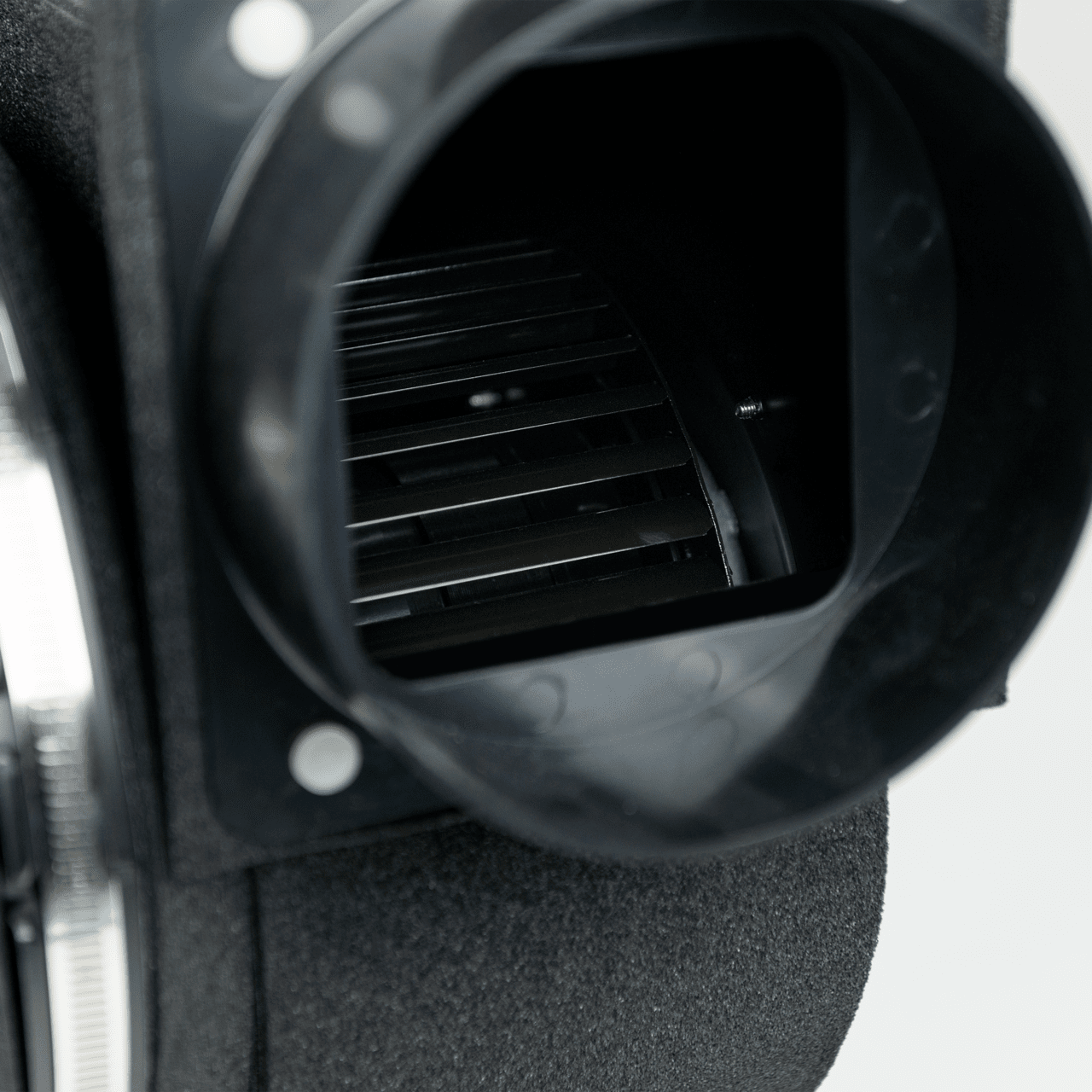

Optional DC "WhisperCool" blowers

Extremely quiet yet powerful.

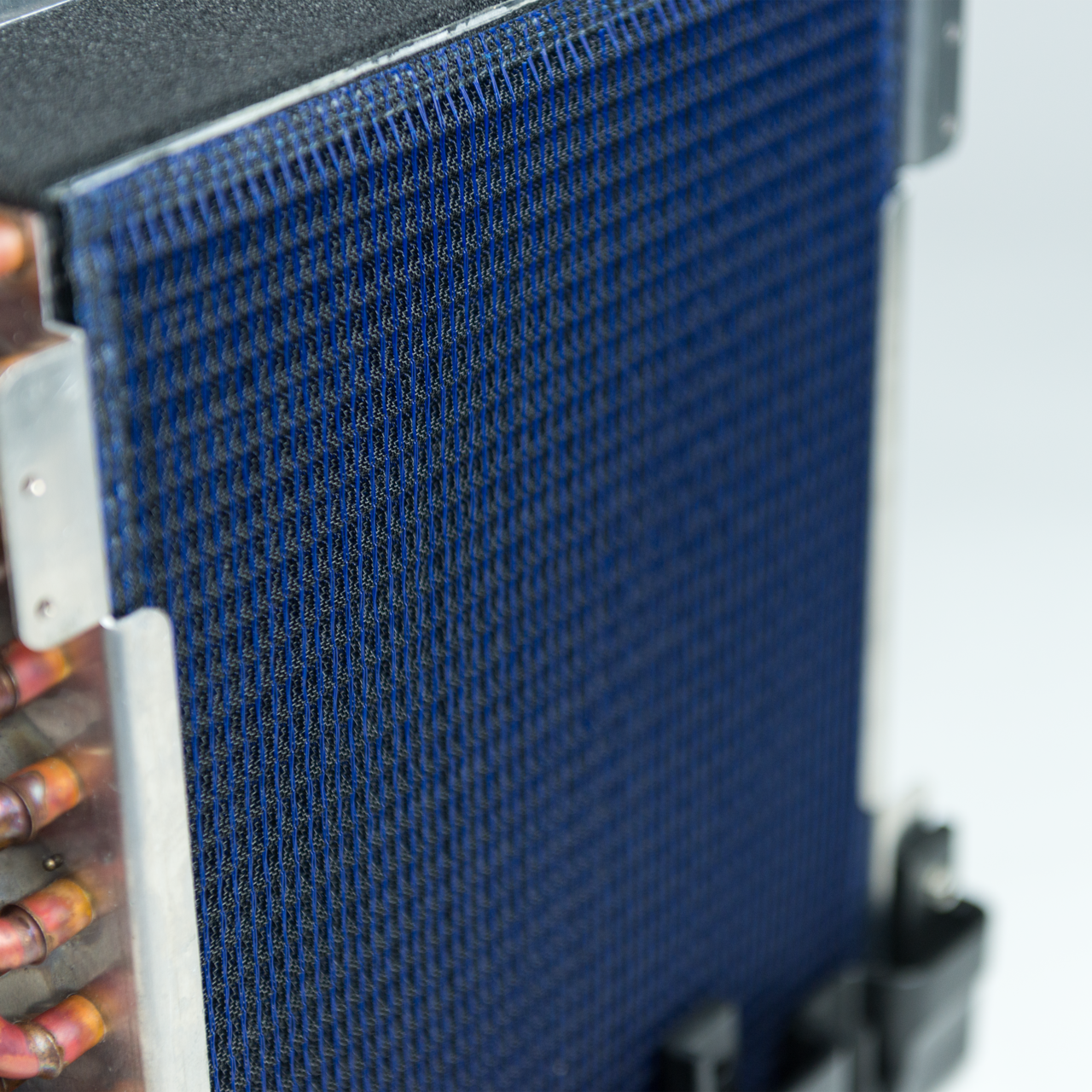

Optional integrated Breathe Easy™ air purifier

Stops odors and is up to 99.9 % effective in neutralizing contaminants in the air.

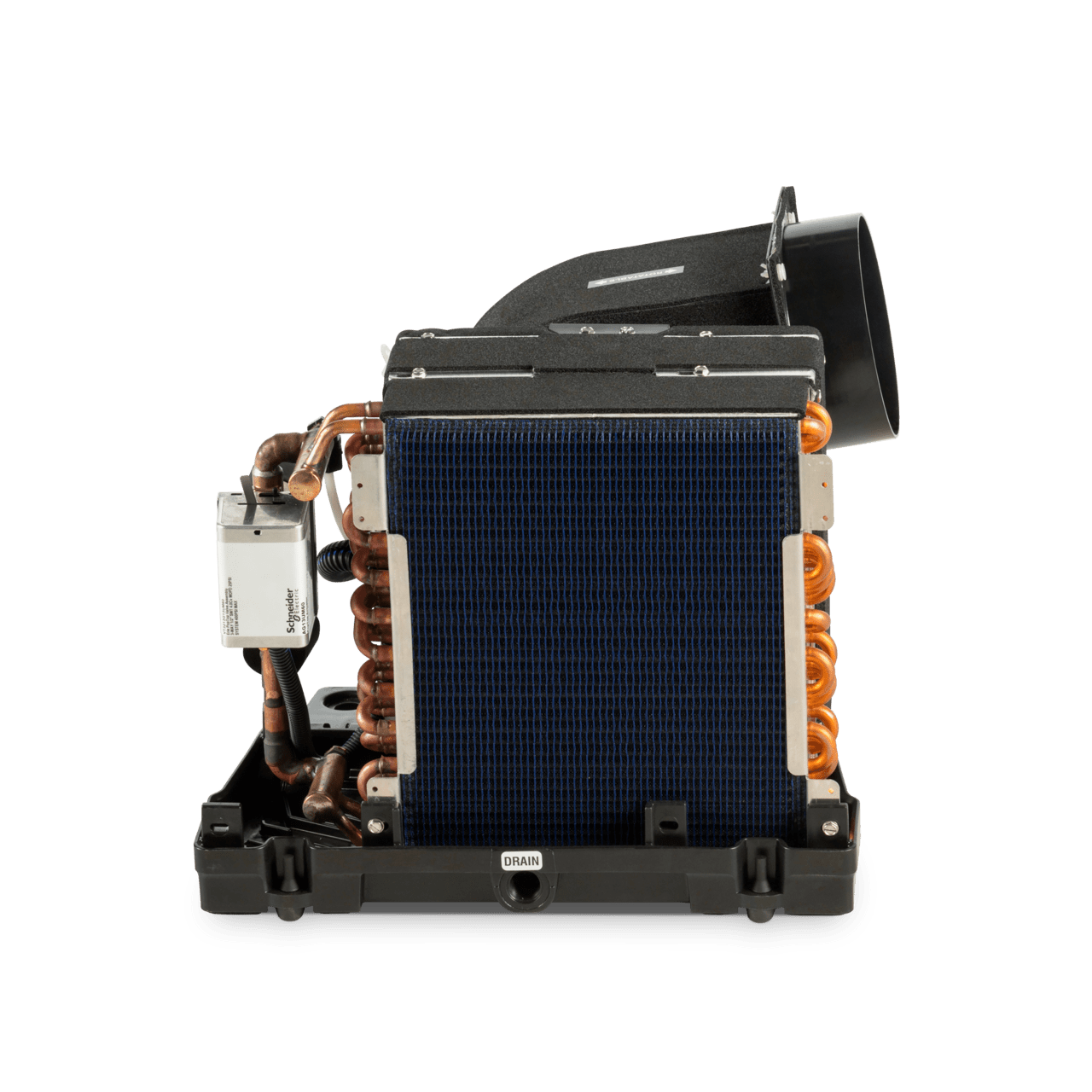

A sea-worthy product

A sea-worthy product

Completely redesigned for easier installation and improved performance, the chilled water air handler, recipient of an Honorable Mention at the 2012 International Boatbuilders Exhibition and Conference (IBEX), incorporates many innovative features, including an optional Breathe Easy™ air purifier. Its rust-free, anti-slosh, positive-flow drain pan quickly removes condensate water and a third drain hole can be employed to further increase drainage. Each drain hole is reinforced and has an external stop to prevent over tightening of the screw-in hose barb. For complete flexibility, each drain hole can accept either a straight or 90-degree hose barb. In addition, the vibration-isolation mounting hardware can be attached at a variety of locations along the perimeter of the drain pan and ensures a quieter performance.
