Description
- Dedicated deep-freeze evaporator for specialist frozen storage
- Designed to maintain lower temperatures for long run deep-freezer applications
- Integrated digital temperature control
- Optimised for freezer compartments requiring stable sub-zero performance
- 2.2 m refrigerant pipe length allows flexible compressor positioning
- Precision digital control compatibility with NTC temperature sensor for stable onboard cooling performance

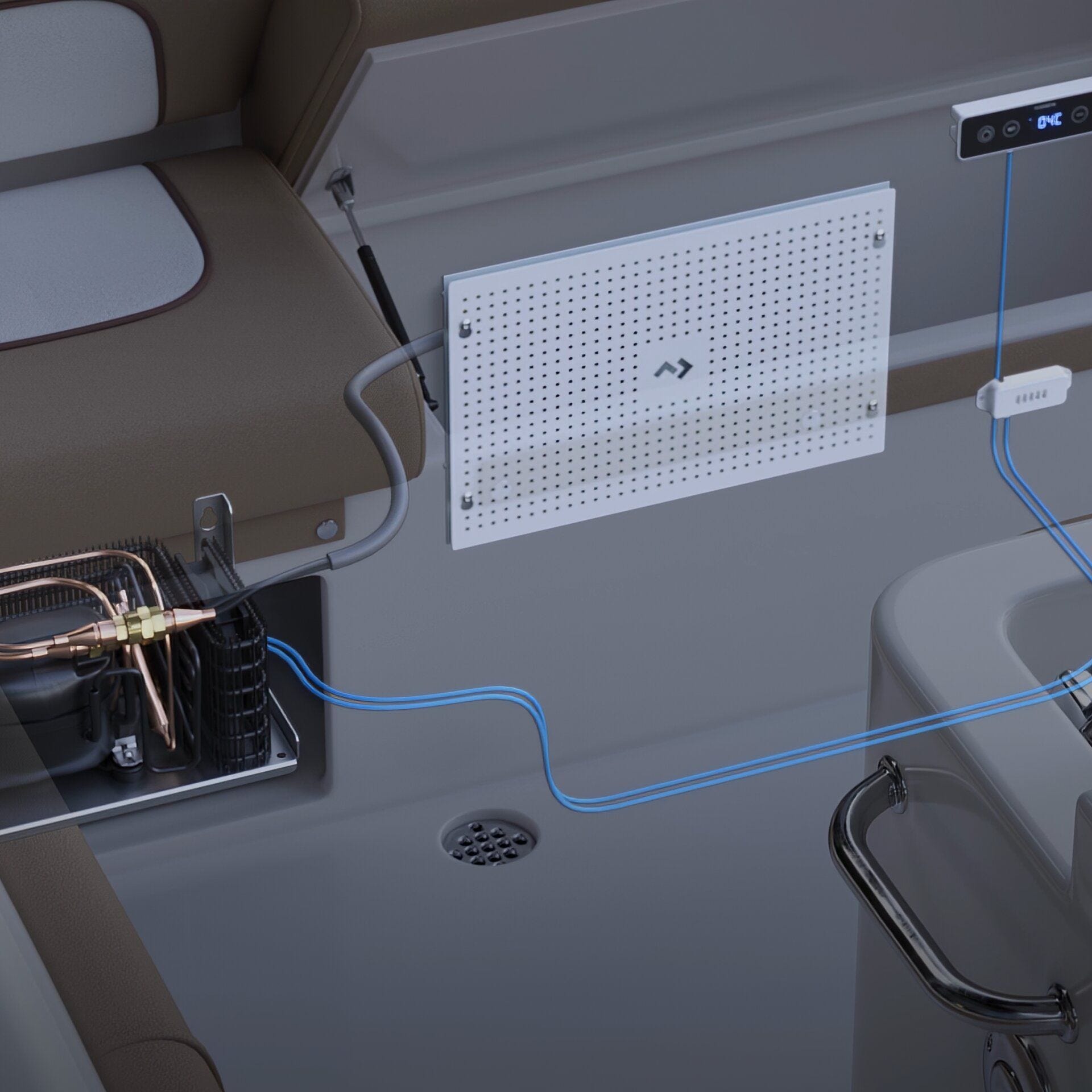

Designed for flexibility and performance, the Dometic VX series evaporators bring precise, even cooling to any custom box configuration. Available in flat, O-box, and fan-cooled formats, each plate integrates cleanly into your design and connects easily to CX condensing units for a perfectly balanced refrigeration system.
Specifications
SKU: 9630000229
| Model | VX150FZ |
|---|---|
| Scope of delivery | 1 coldmachine, 1 manual |
| SKUCertificates | CE;EMC;eMark |
| Product Description | Freezer evaporator for volumes up to 150L |
| Dimensions product depth, [mm] | 143 |
|---|---|
| Dimensions product height, [mm] | 380 |
| Dimensions product width, [mm] | 379 |
| Input voltage (DC), [V] | 12/24 |
|---|---|
| Battery type | Not Applicable (NA) |
| Refrigerant, type | R1234yf |
|---|---|
| GWP | 0.5 |
| Climate class (EN 62552) | T |
| Connectivity Type | None |
|---|---|
| Thermostat control | Electronic Thermostat |
| Interior light | Yes, LED |
| Dimensions parcel depth, [mm] | 610 |
|---|---|
| Dimensions parcel height, [mm] | 180 |
| Dimensions parcel width, [mm] | 415 |
| Parcel weight, [kg] | 4.71 |
Videos
Safety warnings
01
FlammableGases
HAZARD STATEMENTS
Loading products…
Highlights

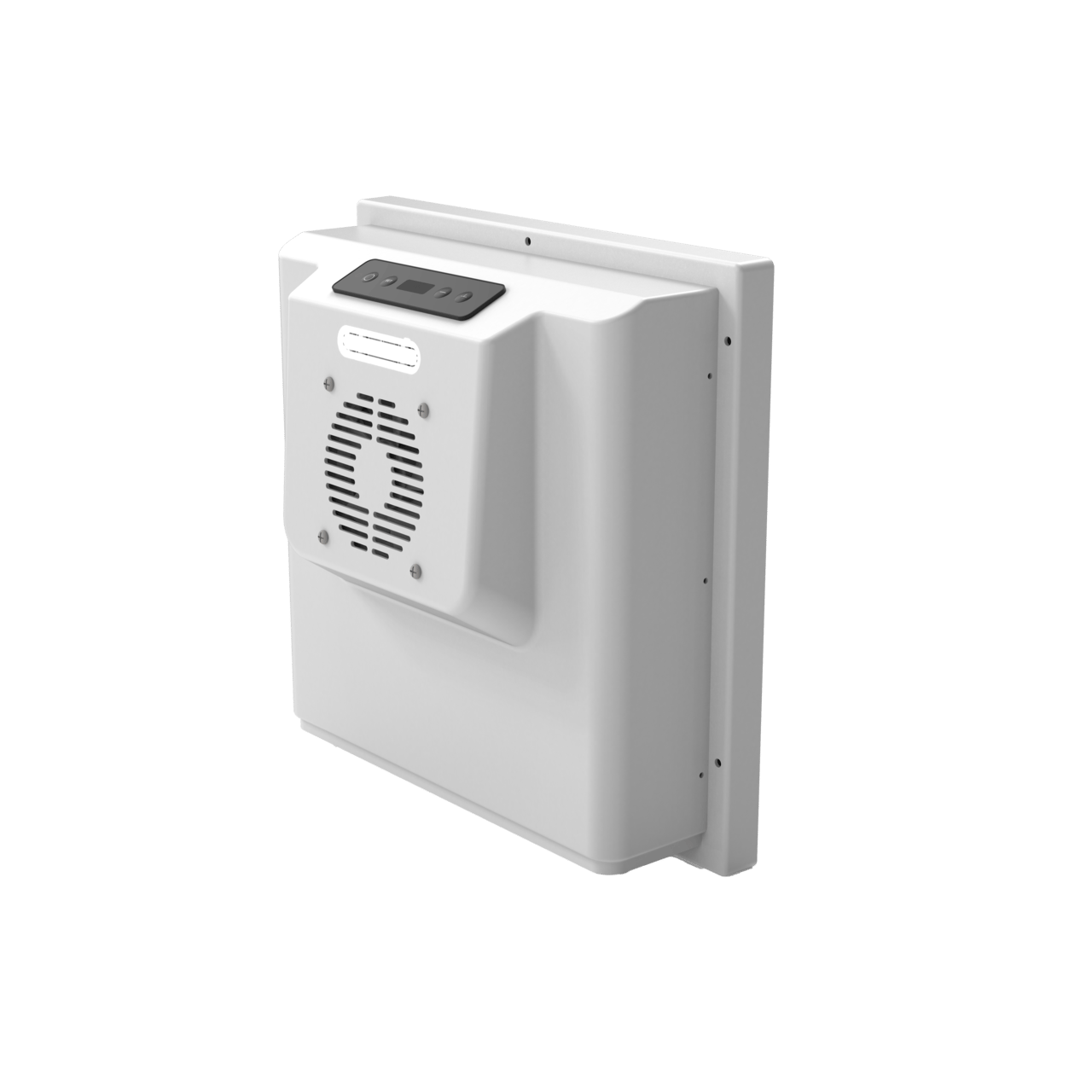

Dedicated deep-freezer unit

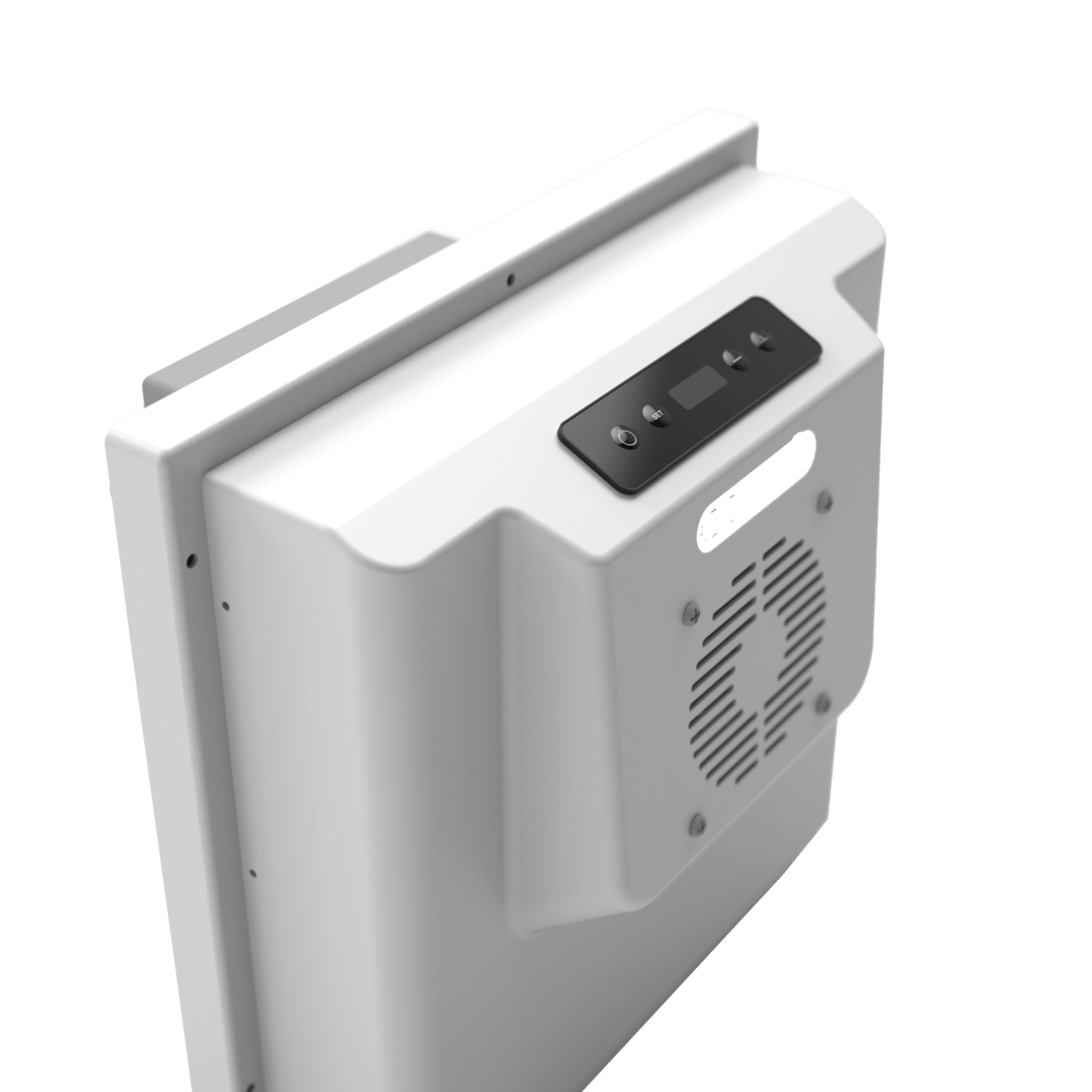

Integrated digital control

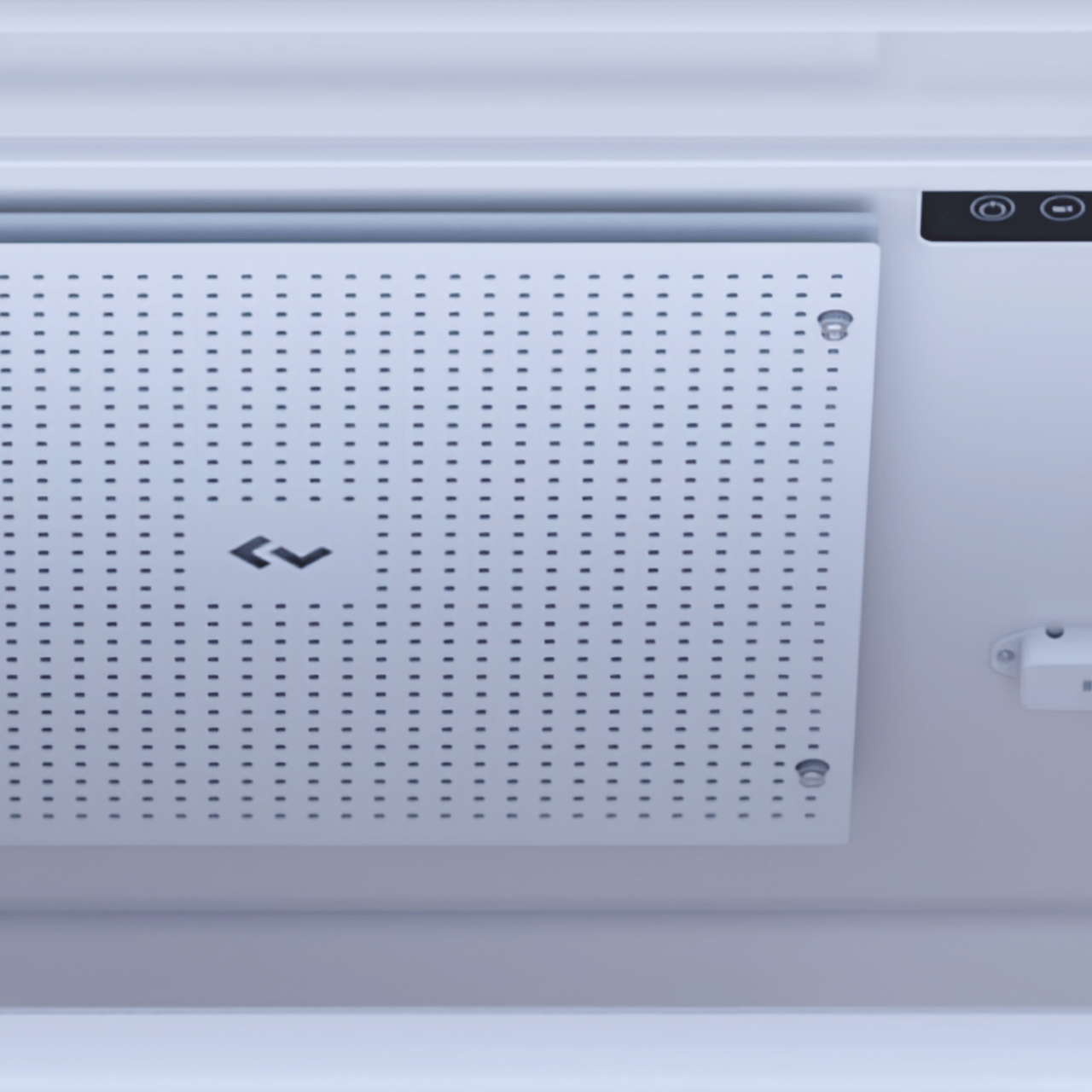

2.2m refrigerant pipe
Stable sub-zero cooling
