Description
- Large roll-bond plate suited to high-capacity refrigeration up to 250L
- Extended plate length (780 × 270 × 15 mm) maximises internal wall coverage

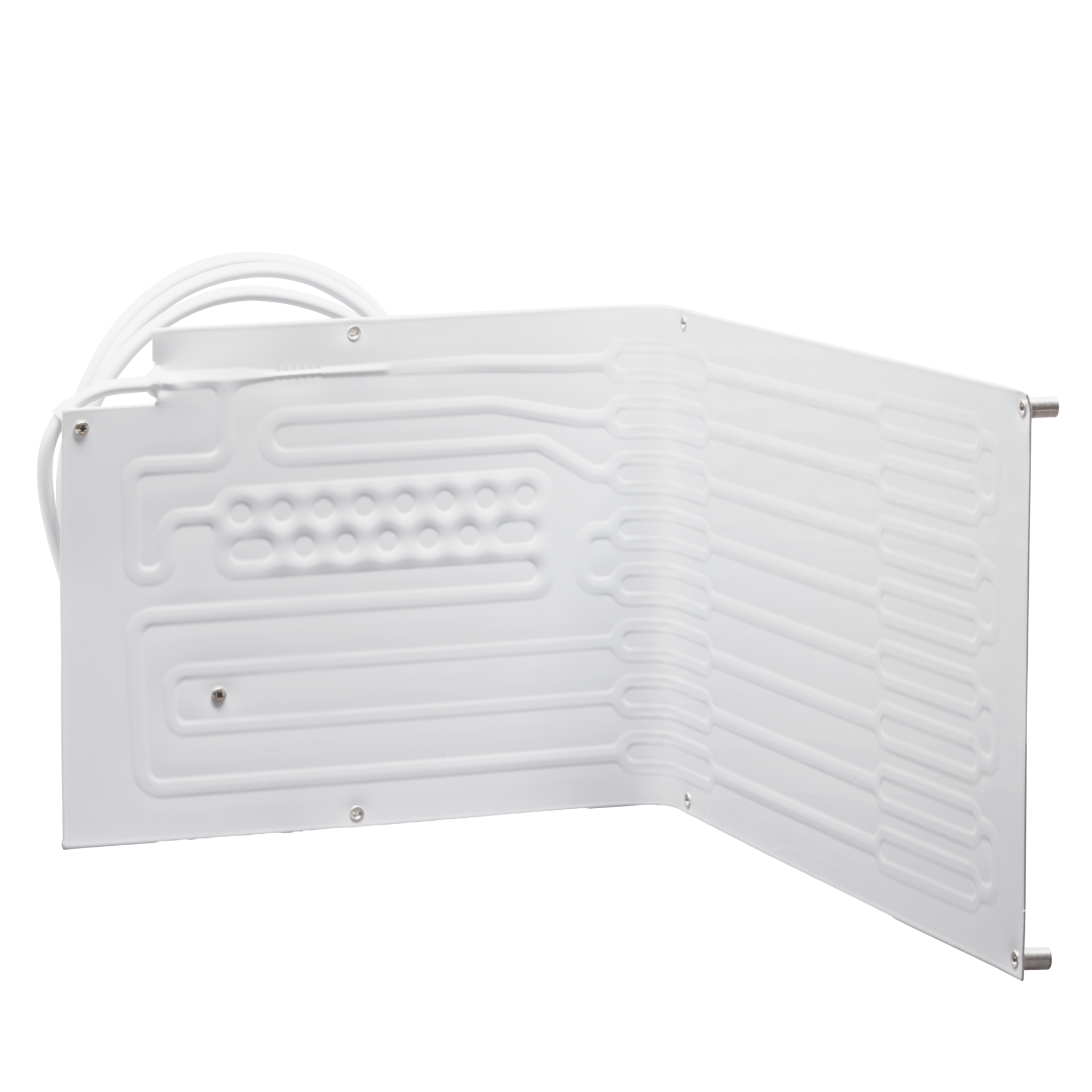

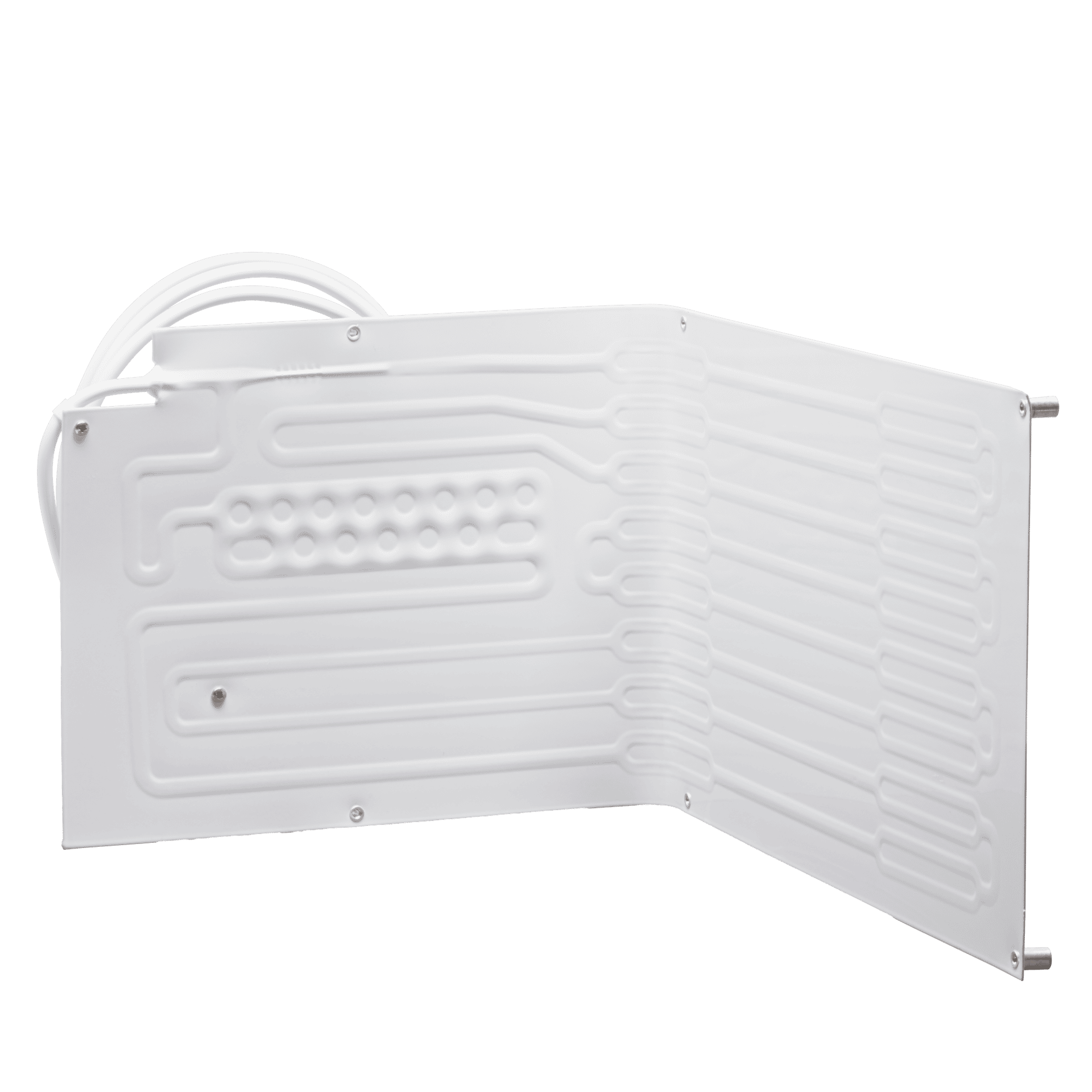

- Bendable plate in L Shape for optimal surface distribution in cooled compartment
- Ideal for larger galley refrigerators or fish boxes
- 2.2 m refrigerant pipe length allows flexible compressor positioning

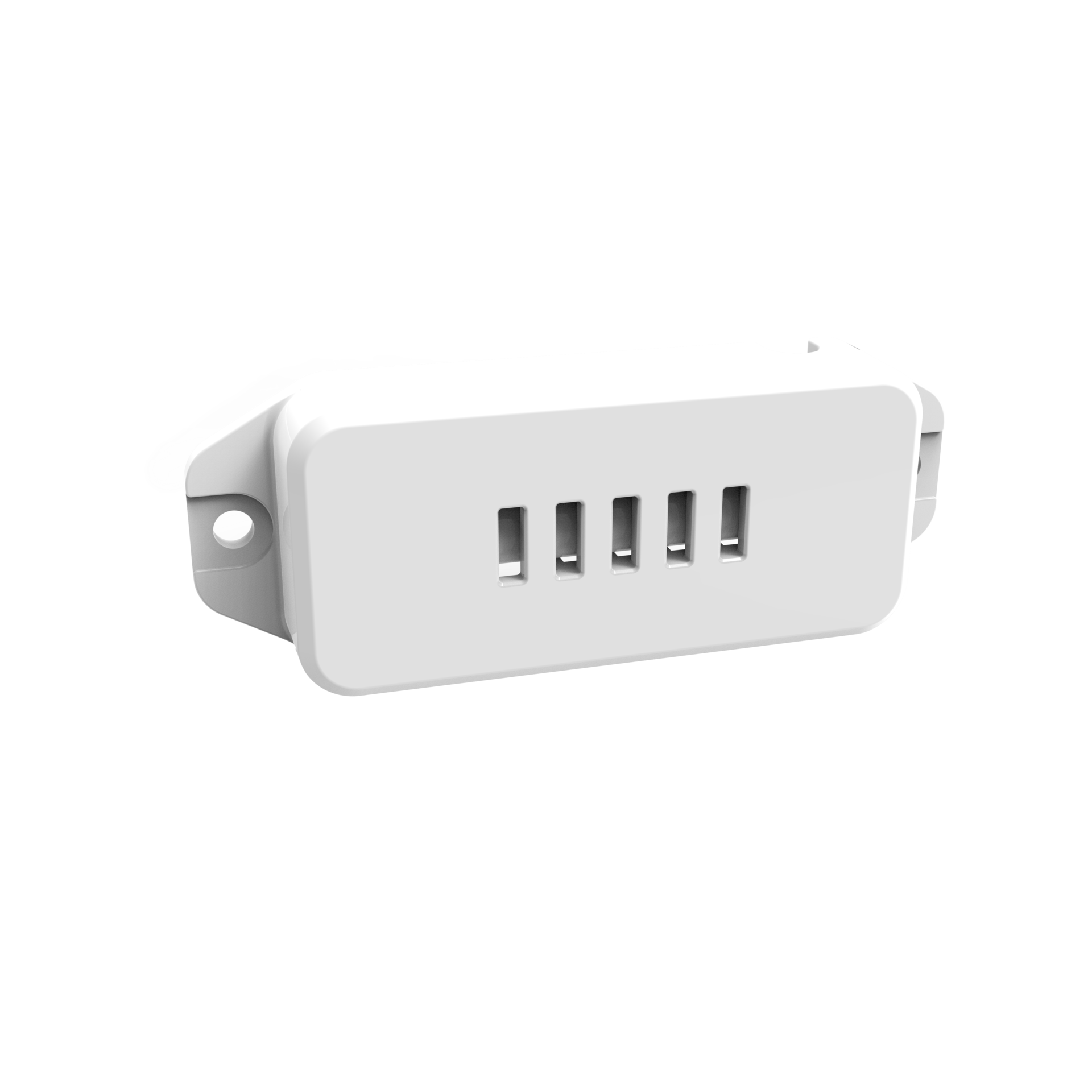

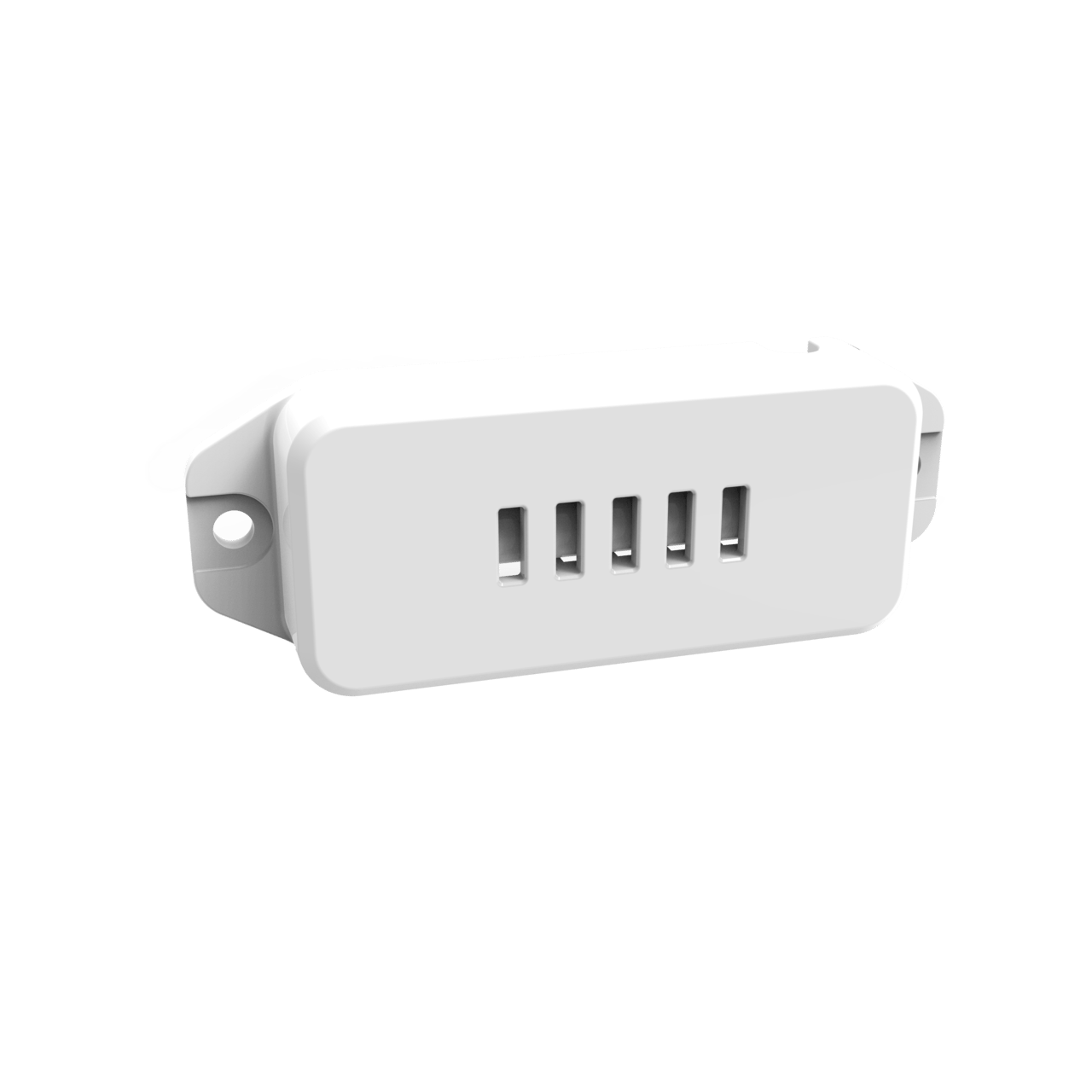

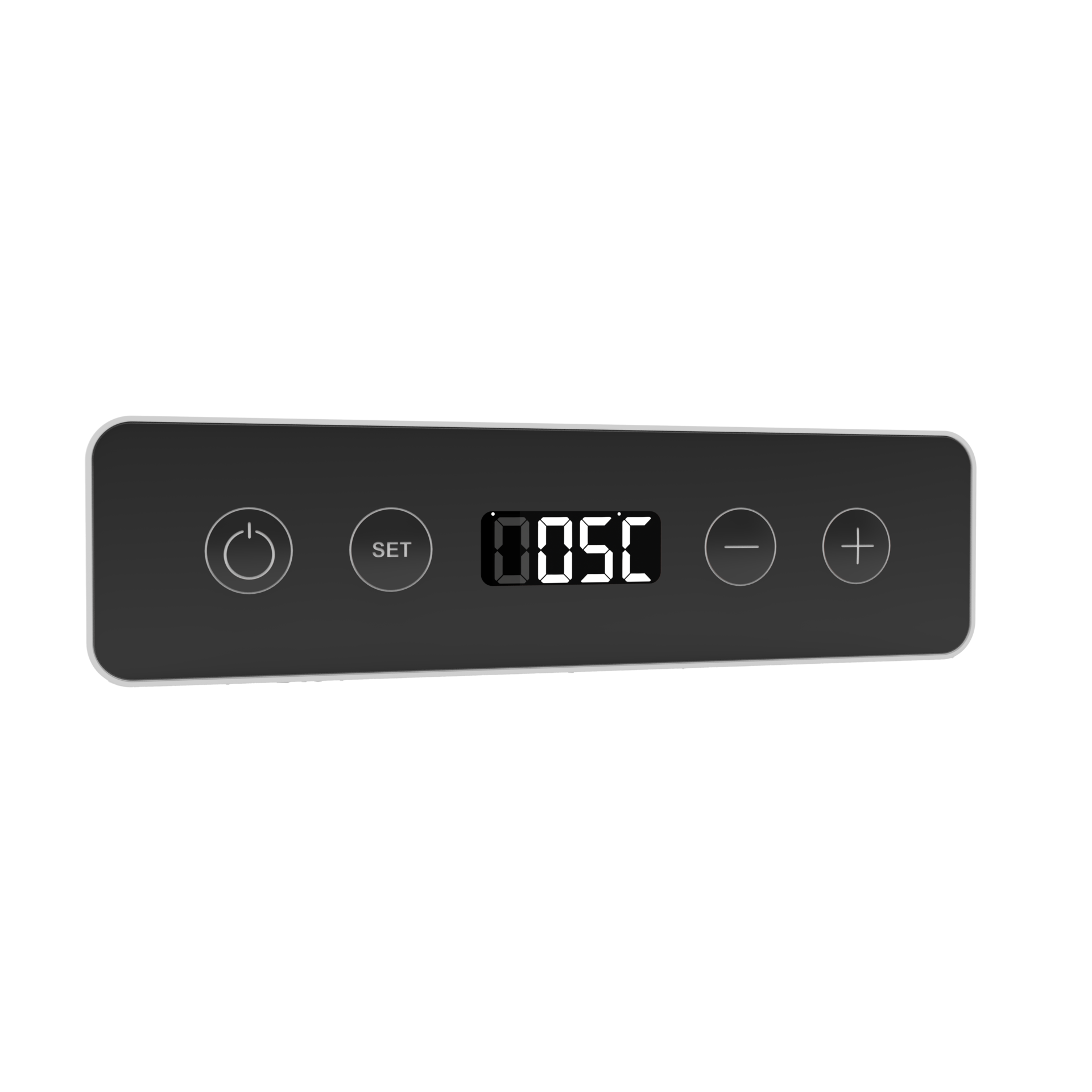

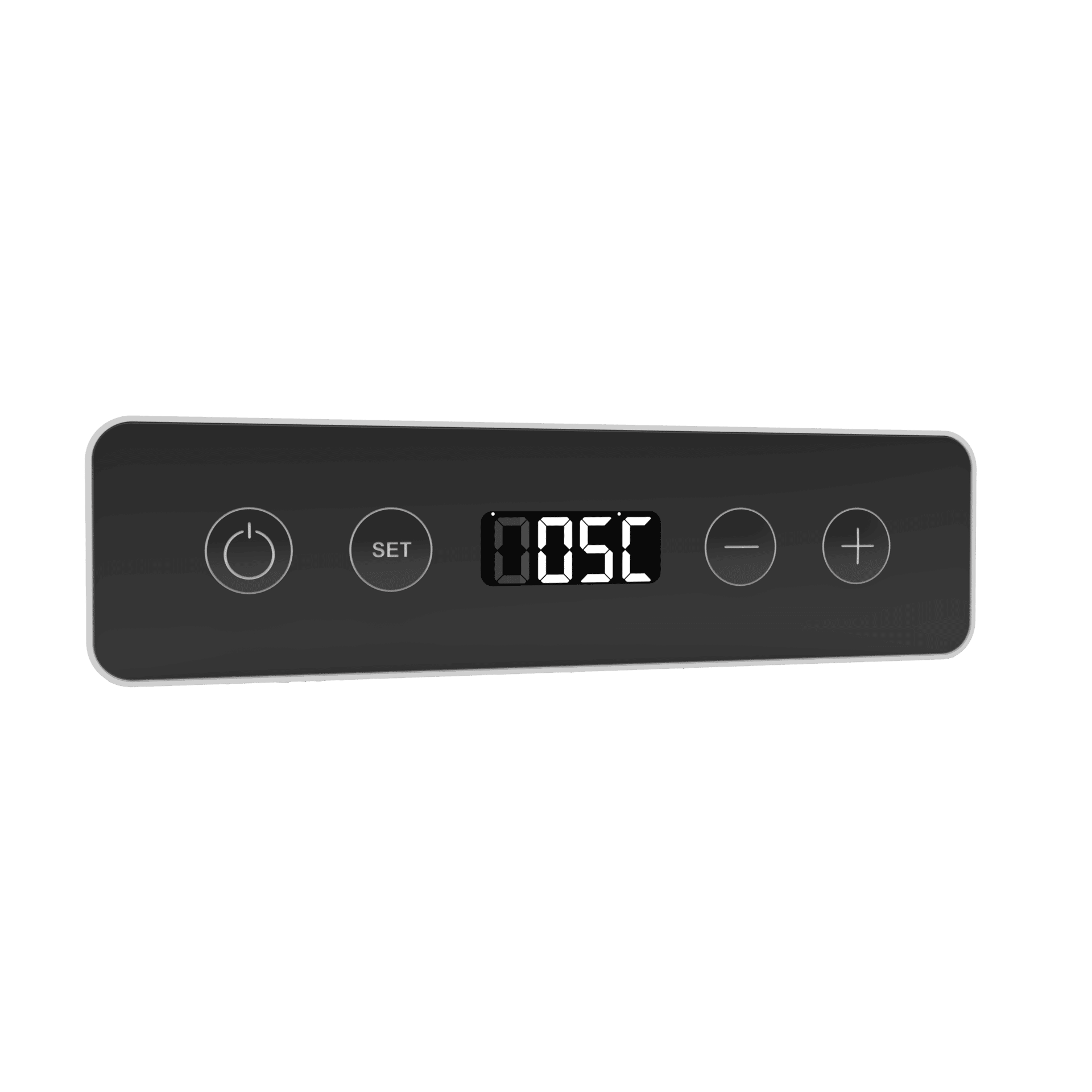

- Precision digital control compatibility with NTC temperature sensor for stable onboard cooling performance

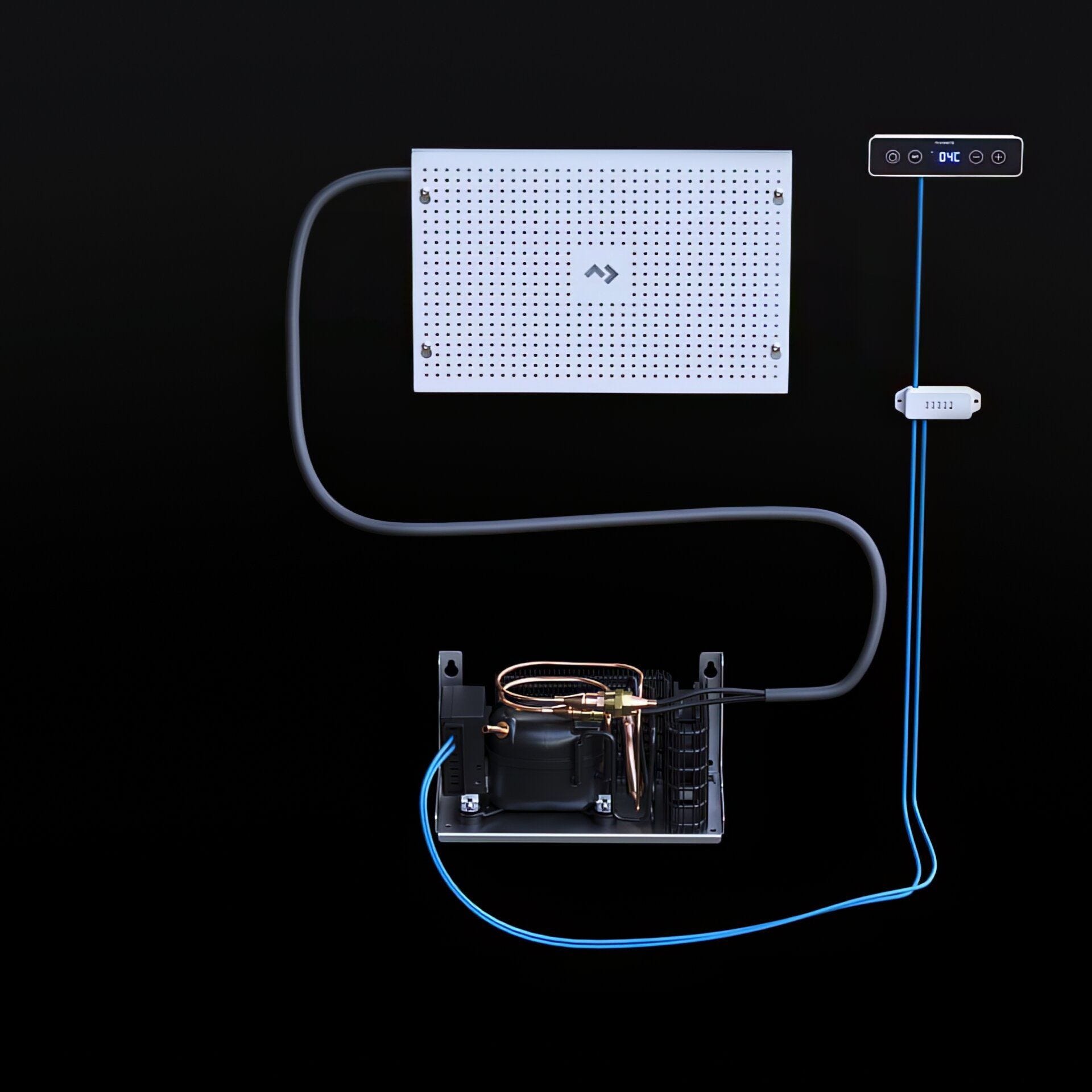

Designed for flexibility and performance, the Dometic VX series evaporators bring precise, even cooling to any custom box configuration. Available in flat, O-box, and fan-cooled formats, each plate integrates cleanly into your design and connects easily to CX condensing units for a perfectly balanced refrigeration system.
Specifications
SKU: 9630000222
| Model | VX250 |
|---|---|
| Scope of delivery | 1 coldmachine, 1 manual |
| SKUCertificates | CE;EMC;eMark |
| Product Description | Flat roll-bond evaporator for volumes up to 250L |
| Dimensions product height, [mm] | 270 |
|---|---|
| Dimensions product width, [mm] | 780 |
| Input voltage (DC), [V] | 12/24 |
|---|---|
| Battery type | Not Applicable (NA) |
| Refrigerant, type | R1234yf |
|---|---|
| GWP | 0.5 |
| Connectivity Type | None |
|---|---|
| Thermostat control | Electronic Thermostat |
| Dimensions parcel depth, [mm] | 340 |
|---|---|
| Dimensions parcel height, [mm] | 100 |
| Dimensions parcel width, [mm] | 850 |
| Parcel weight, [kg] | 2.77 |
Videos
Safety warnings
01
FlammableGases
HAZARD STATEMENTS
Loading products…
Highlights
For compartments up to 250L
NTC digital control ready
Bendable L-shape plate

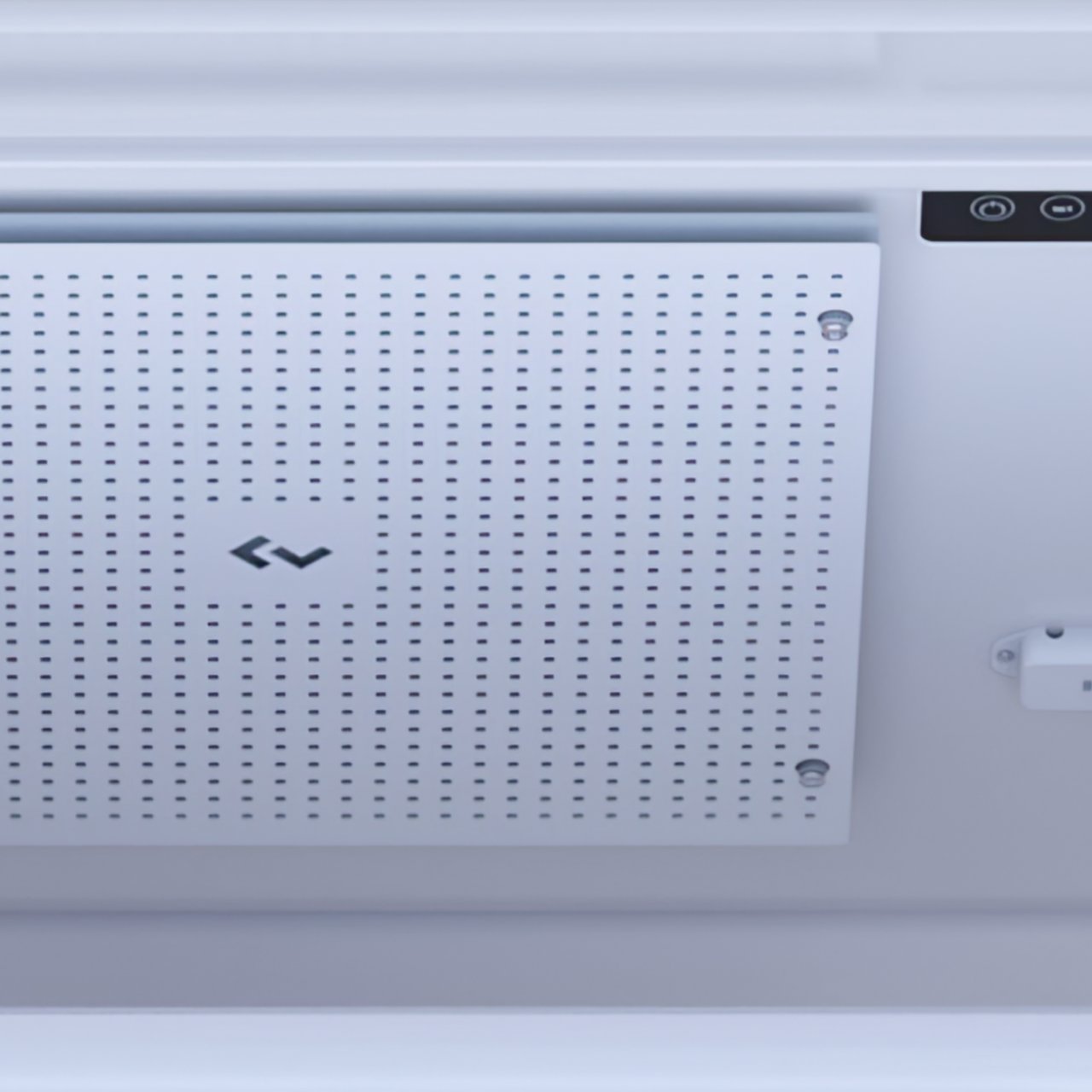

2.2m refrigerant pipe

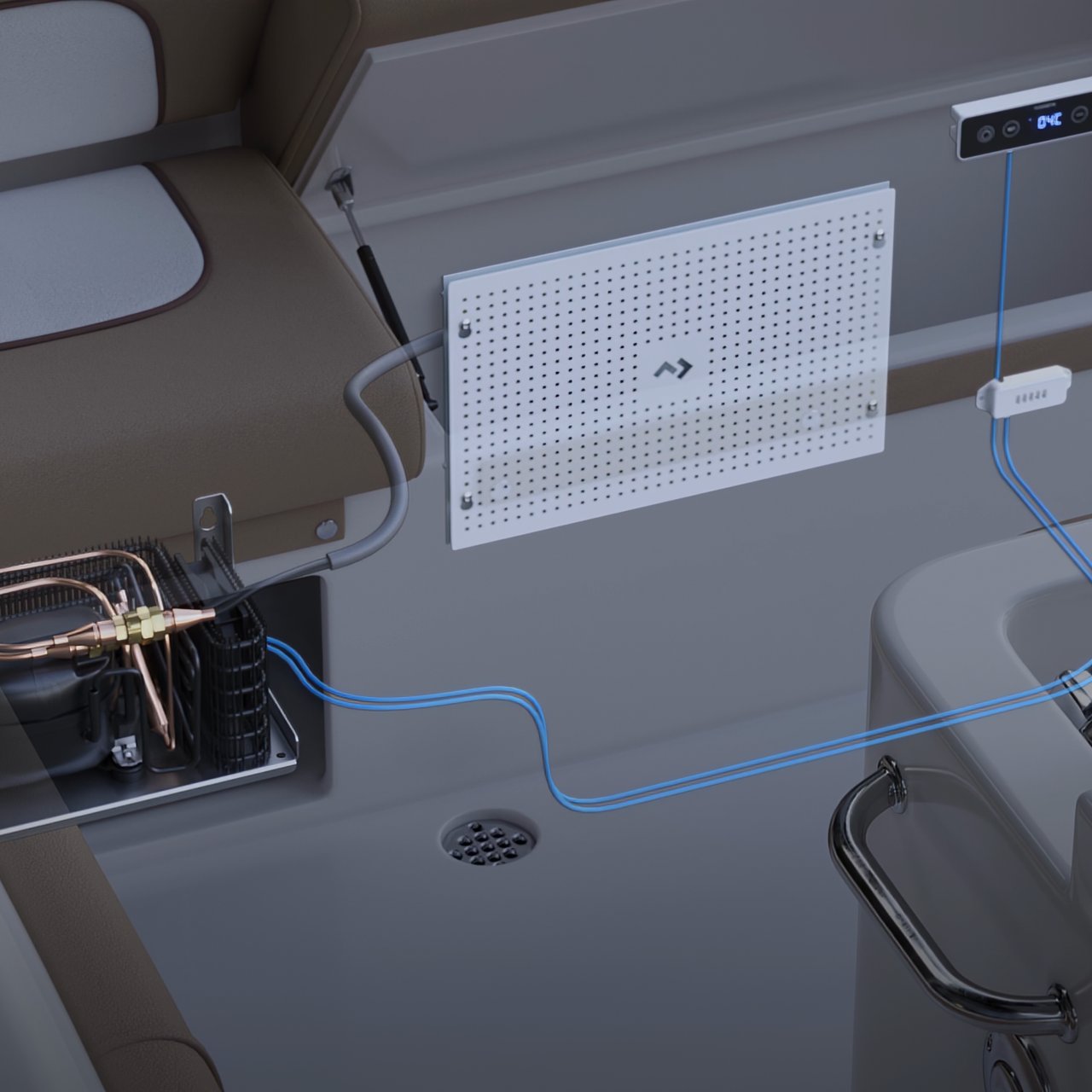

For large galley fridges
780×270×15mm plate
£ 229.00
