Description

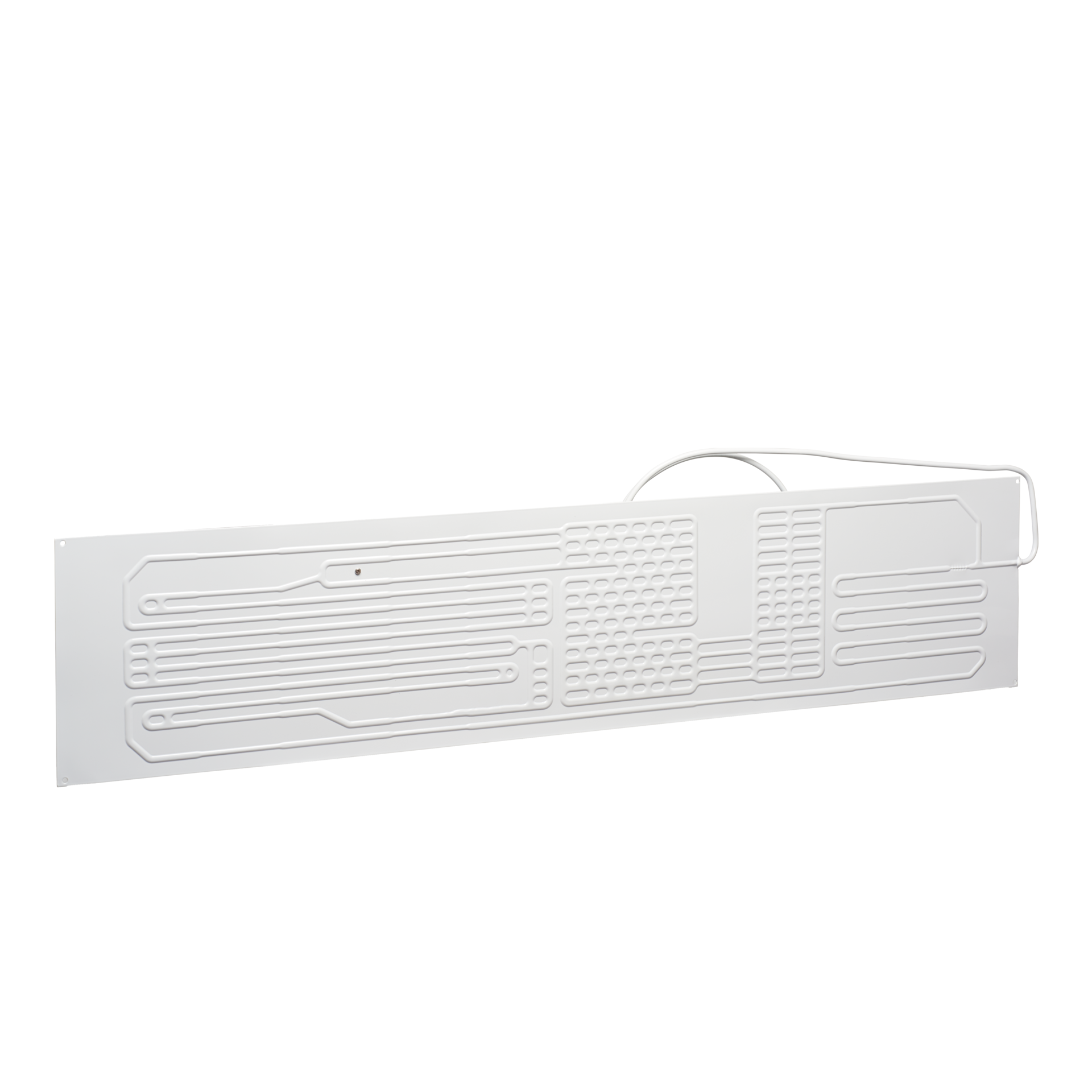

- High-capacity roll-bond plate for refrigeration systems up to 300 L
- Extended plate size (1370 × 305 × 15 mm) maximises cooling surface
- Bendable plate in L or U shape for optimal surface distribution in cooling compartment
- Ideal for large galleys and extended cruising requirements
- 2.2 m refrigerant pipe length allows flexible compressor positioning
- Precision digital control compatibility with NTC temperature sensor for stable onboard cooling performance
Designed for flexibility and performance, the Dometic VX series evaporators bring precise, even cooling to any custom box configuration. Available in flat, O-box, and fan-cooled formats, each plate integrates cleanly into your design and connects easily to CX condensing units for a perfectly balanced refrigeration system.
Specifications
SKU: 9630000223
| Model | VX300 |
|---|---|
| Scope of delivery | 1 coldmachine, 1 manual |
| SKUCertificates | CE;EMC;eMark |
| Product Description | Flat roll-bond evaporator for volumes up to 300L |
| Dimensions product height, [mm] | 305 |
|---|---|
| Dimensions product width, [mm] | 1370 |
| Input voltage (DC), [V] | 12/24 |
|---|---|
| Battery type | Not Applicable (NA) |
| Refrigerant, type | R1234yf |
|---|---|
| GWP | 0.5 |
| Climate class (EN 62552) | T |
| Connectivity Type | None |
|---|---|
| Thermostat control | Electronic Thermostat |
| Dimensions parcel depth, [mm] | 380 |
|---|---|
| Dimensions parcel height, [mm] | 100 |
| Dimensions parcel width, [mm] | 1475 |
| Parcel weight, [kg] | 4.62 |
Videos
Safety warnings
01
FlammableGases
HAZARD STATEMENTS
Loading products…
Highlights
For compartments up to 300L

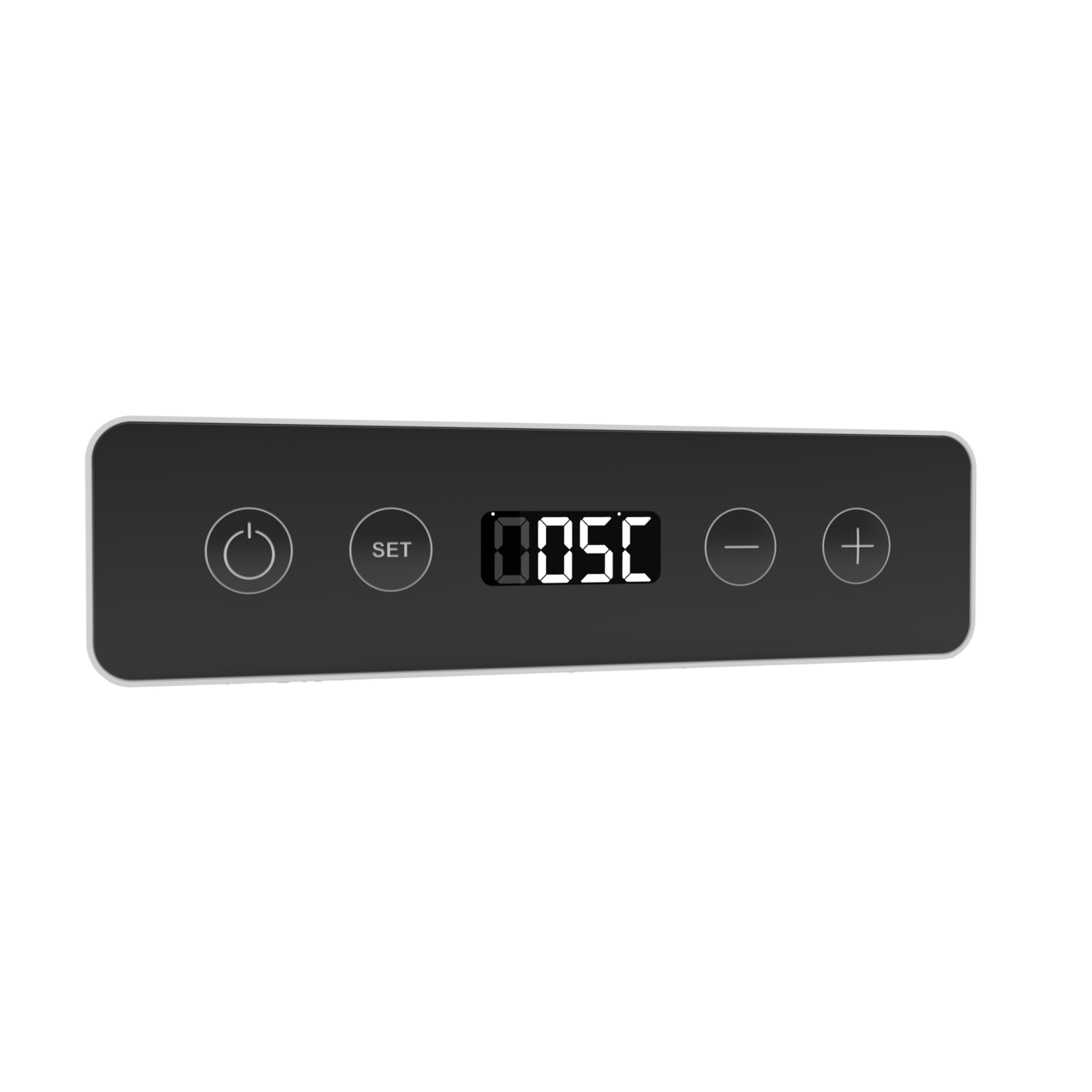

NTC digital control ready
1370×305×15mm plate
2.2m refrigerant pipe
Bendable L/U-shape plate
For large galleys
£ 245.00
