Description

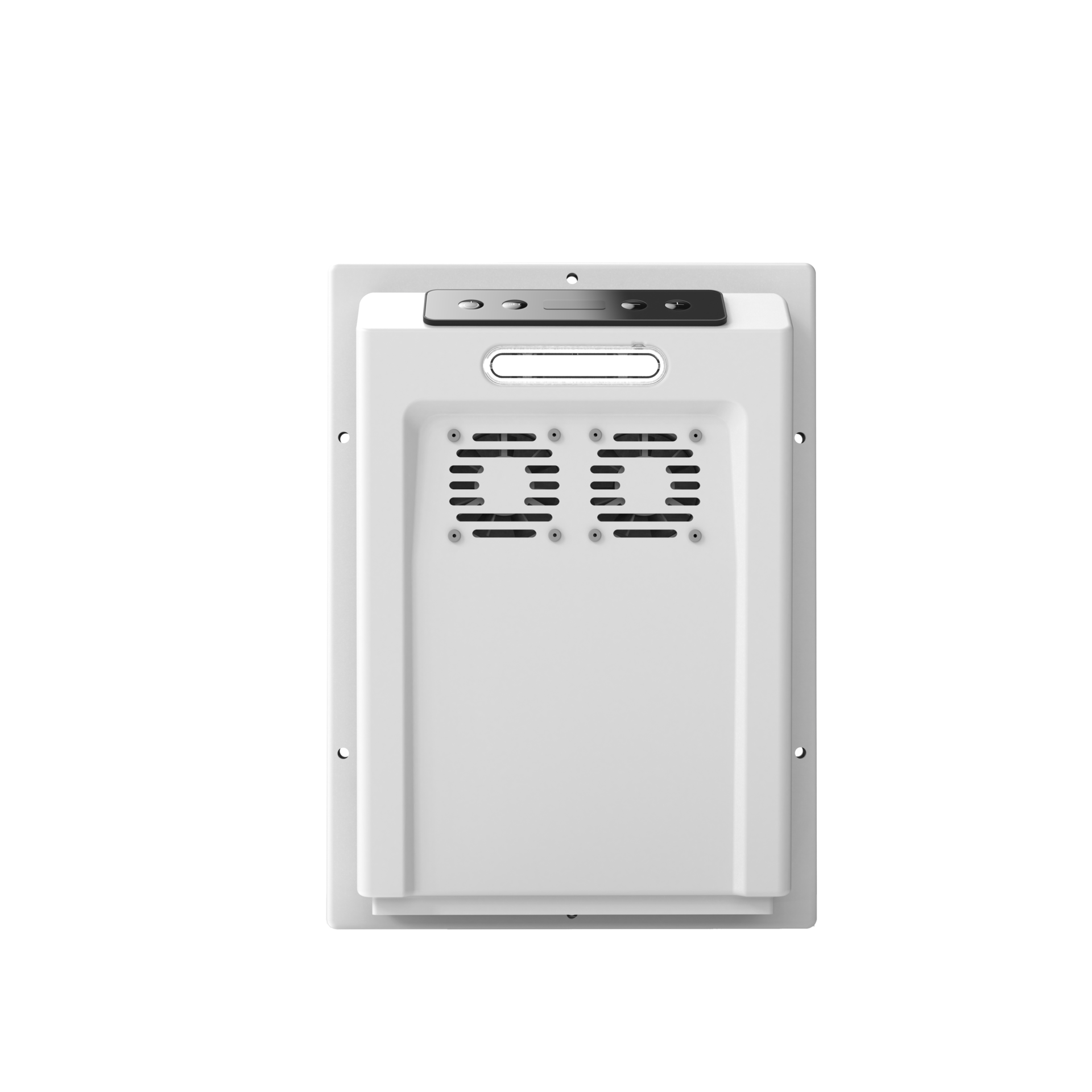

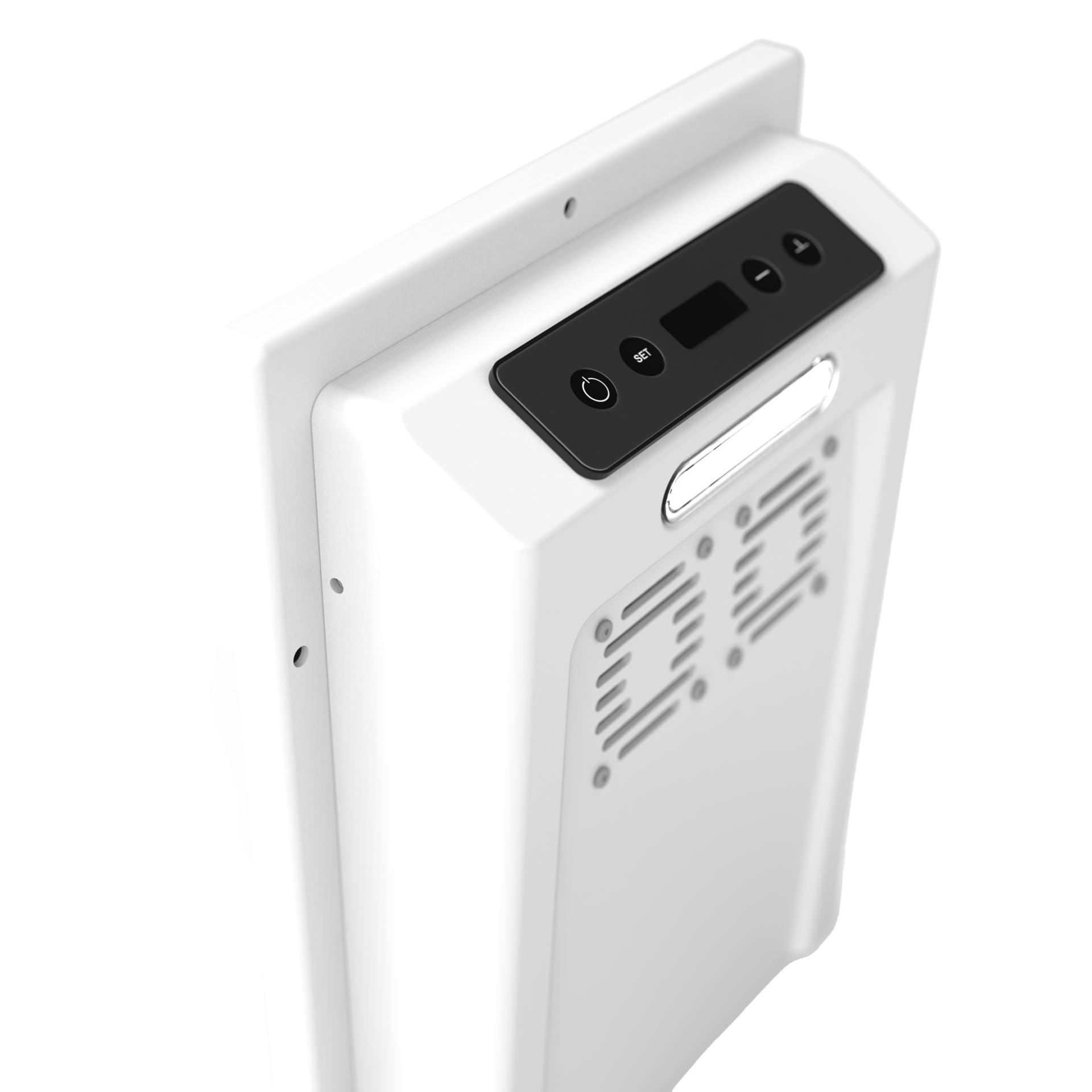

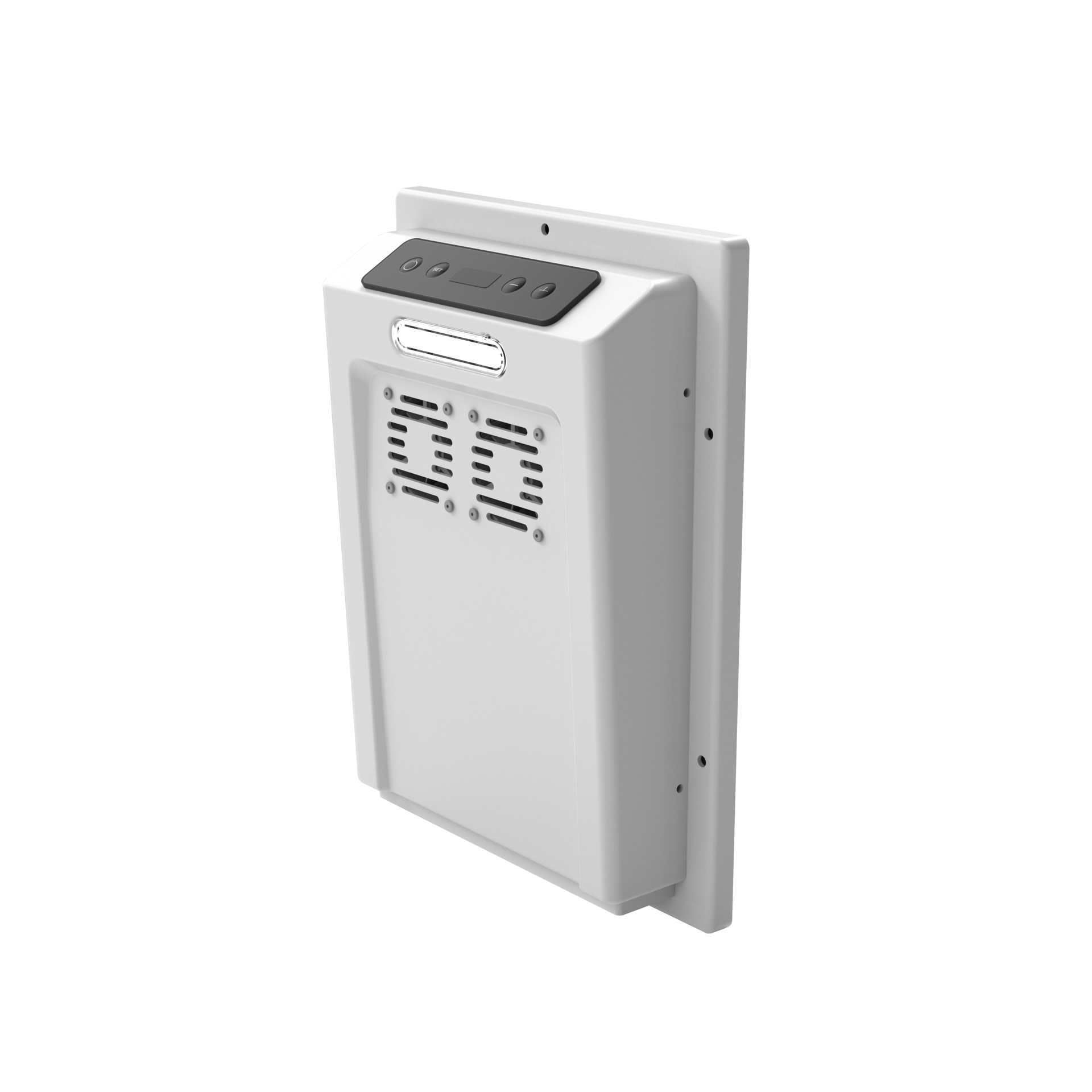

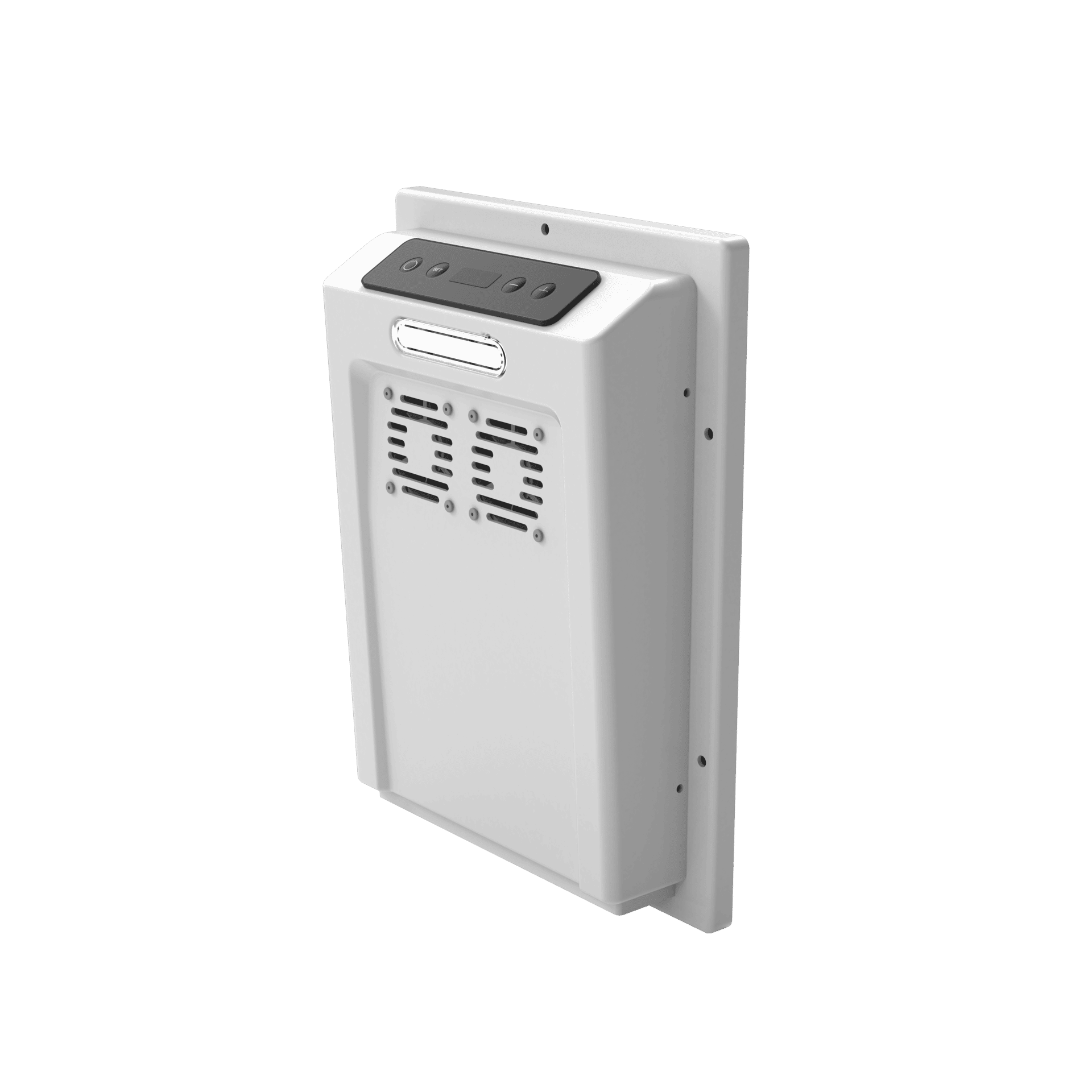

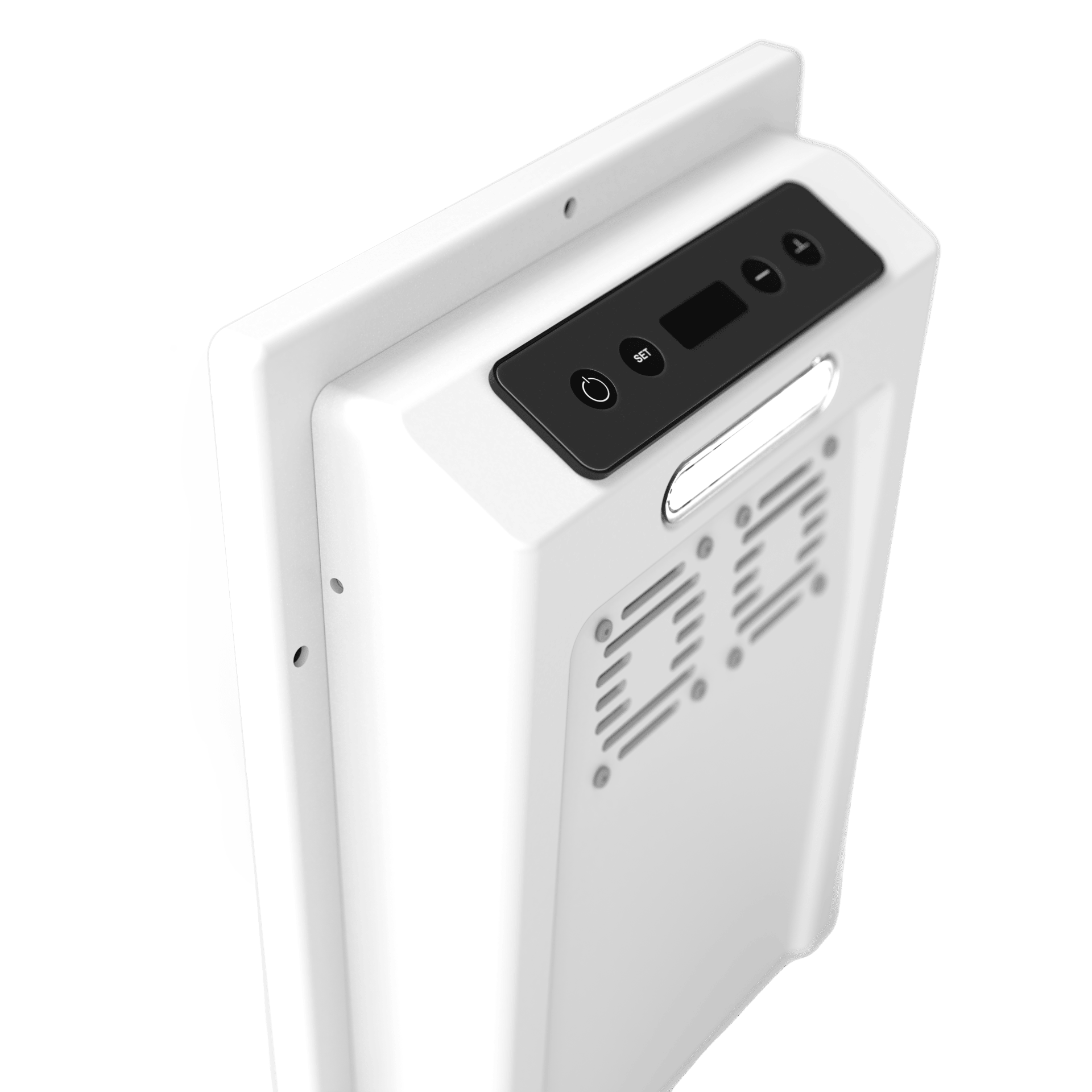

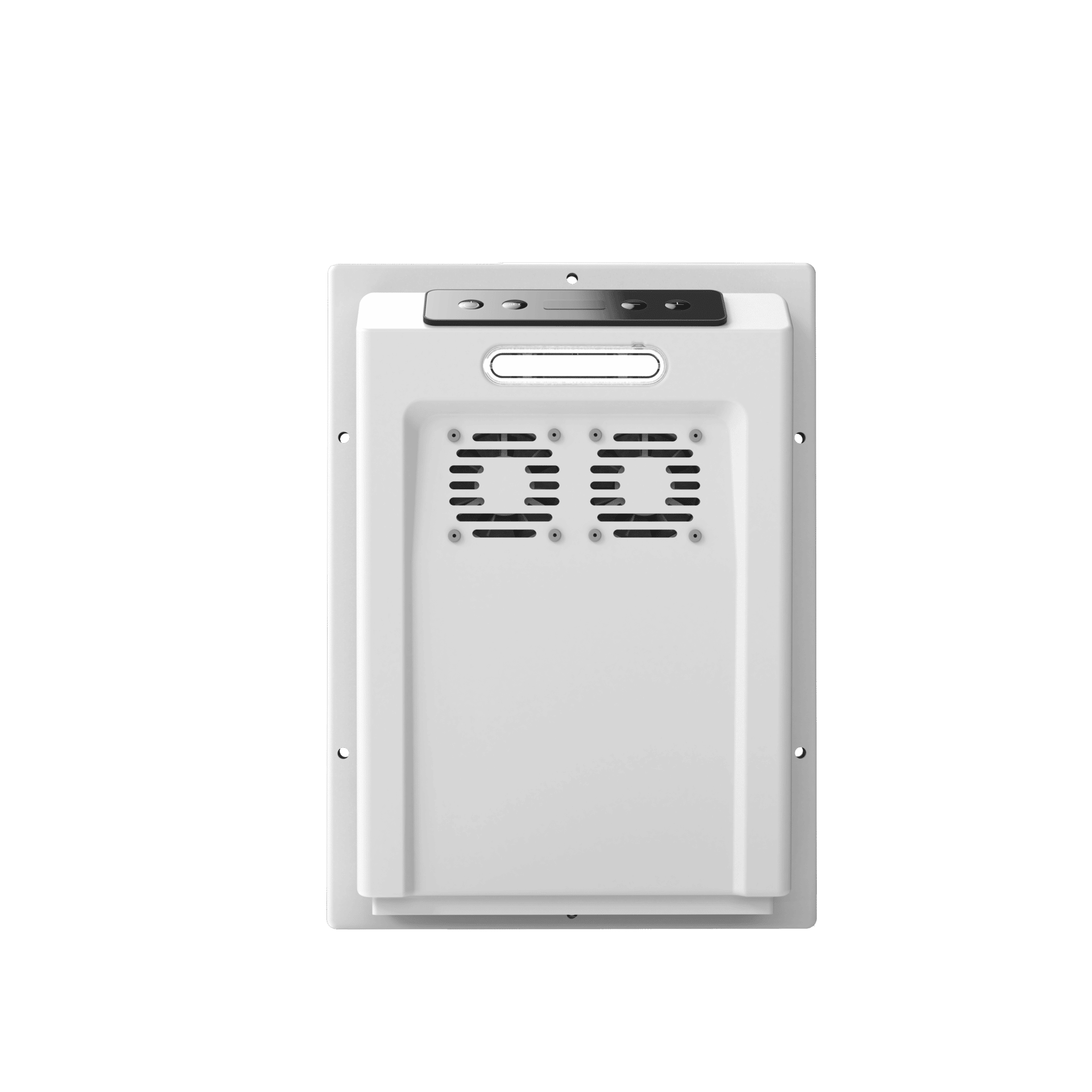

- Fan-cooled evaporator for maximum airflow in large compartments
- Compact fan housing (221 × 318 × 67 mm) supports active air circulation
- Integrated digital temperature control
- Improves pull-down time and temperature consistency
- 2.2 m refrigerant pipe length allows flexible compressor positioning
- Precision digital control compatibility with NTC temperature sensor for stable onboard cooling performance

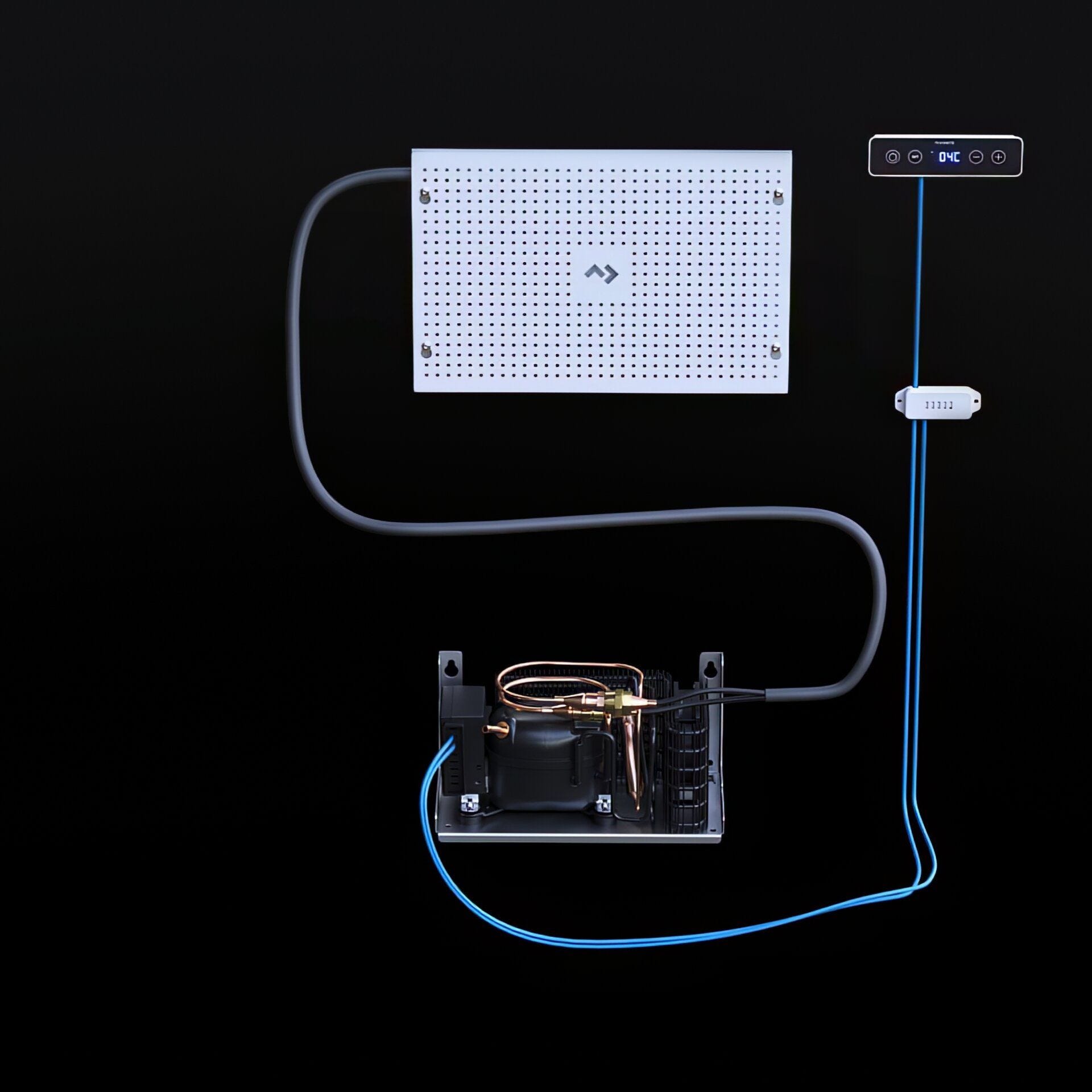

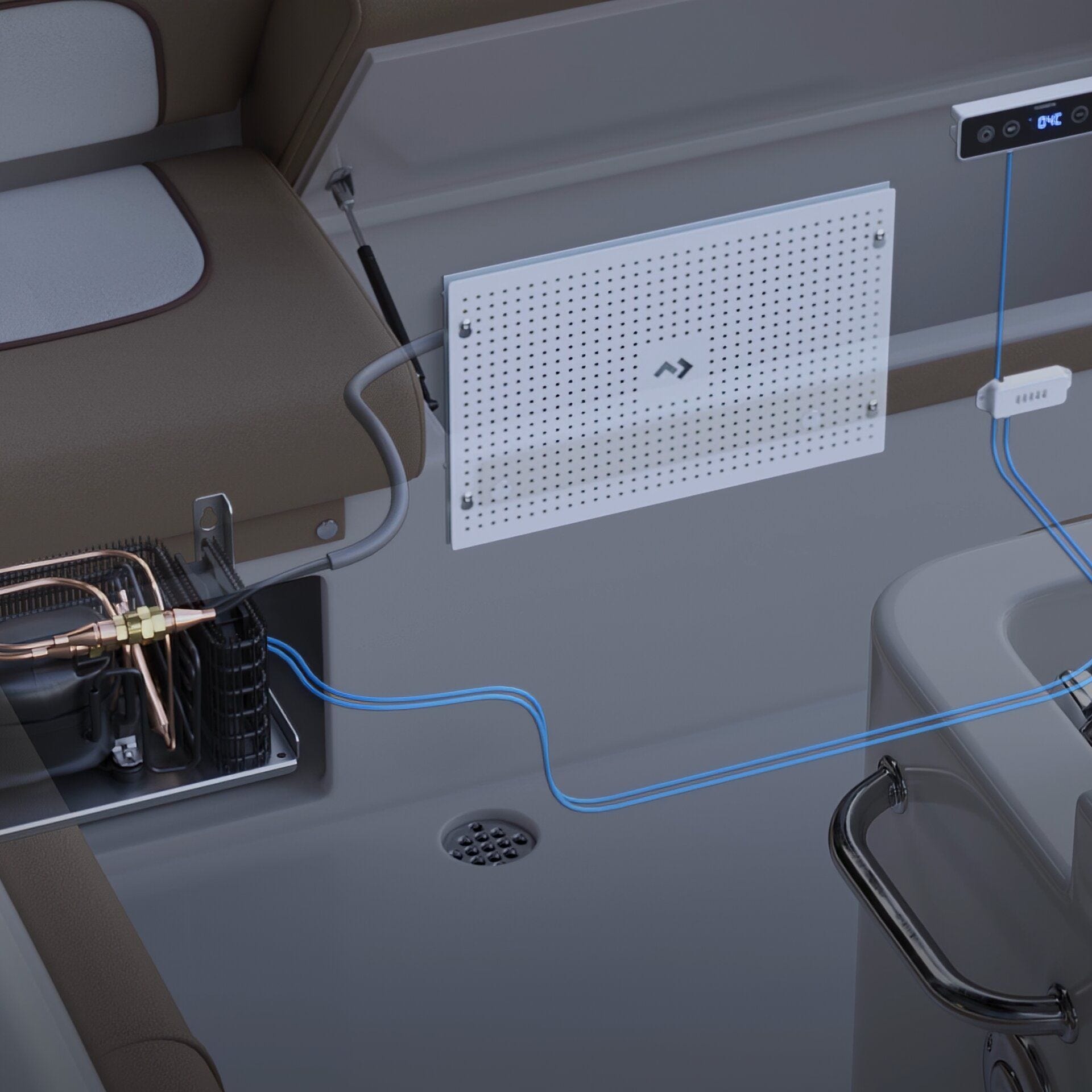

Designed for flexibility and performance, the Dometic VX series evaporators bring precise, even cooling to any custom box configuration. Available in flat, O-box, and fan-cooled formats, each plate integrates cleanly into your design and connects easily to CX condensing units for a perfectly balanced refrigeration system.
Specifications
SKU: 9630000228
| Model | VX400F |
|---|---|
| Scope of delivery | 1 coldmachine, 1 manual |
| SKUCertificates | CE;EMC;eMark |
| Product Description | Fan-cooled evaporator for volumes up to 400L |
| Dimensions product depth, [mm] | 67 |
|---|---|
| Dimensions product height, [mm] | 318 |
| Dimensions product width, [mm] | 221 |
| Input voltage (DC), [V] | 12/24 |
|---|---|
| Battery type | Not Applicable (NA) |
| Refrigerant, type | R1234yf |
|---|---|
| GWP | 0.5 |
| Climate class (EN 62552) | T |
| Connectivity Type | None |
|---|---|
| Interior light | Yes, LED |
| Dimensions parcel depth, [mm] | 560 |
|---|---|
| Dimensions parcel height, [mm] | 110 |
| Dimensions parcel width, [mm] | 255 |
| Parcel weight, [kg] | 3 |
Videos
Safety warnings
01
FlammableGases
HAZARD STATEMENTS
Loading products…
Highlights
Fan-cooled evaporator
221×318×67mm fan unit
Integrated digital control
2.2m refrigerant pipe
Fast pull-down cooling
£ 309.00
