Description
- Cools and heats for year-round comfort
- Low-profile is ideal for height restricted installation
- Rotatable blower allows air distribution exactly as you need it
- Drain pan has anti-slosh, anti-fungal foam lining
- Thermal expansion valve for optimal performance over a range of conditions
- Available with electric heat (Dometic EBHLE models)
- Designed to be used with Emerald series R410A condensers

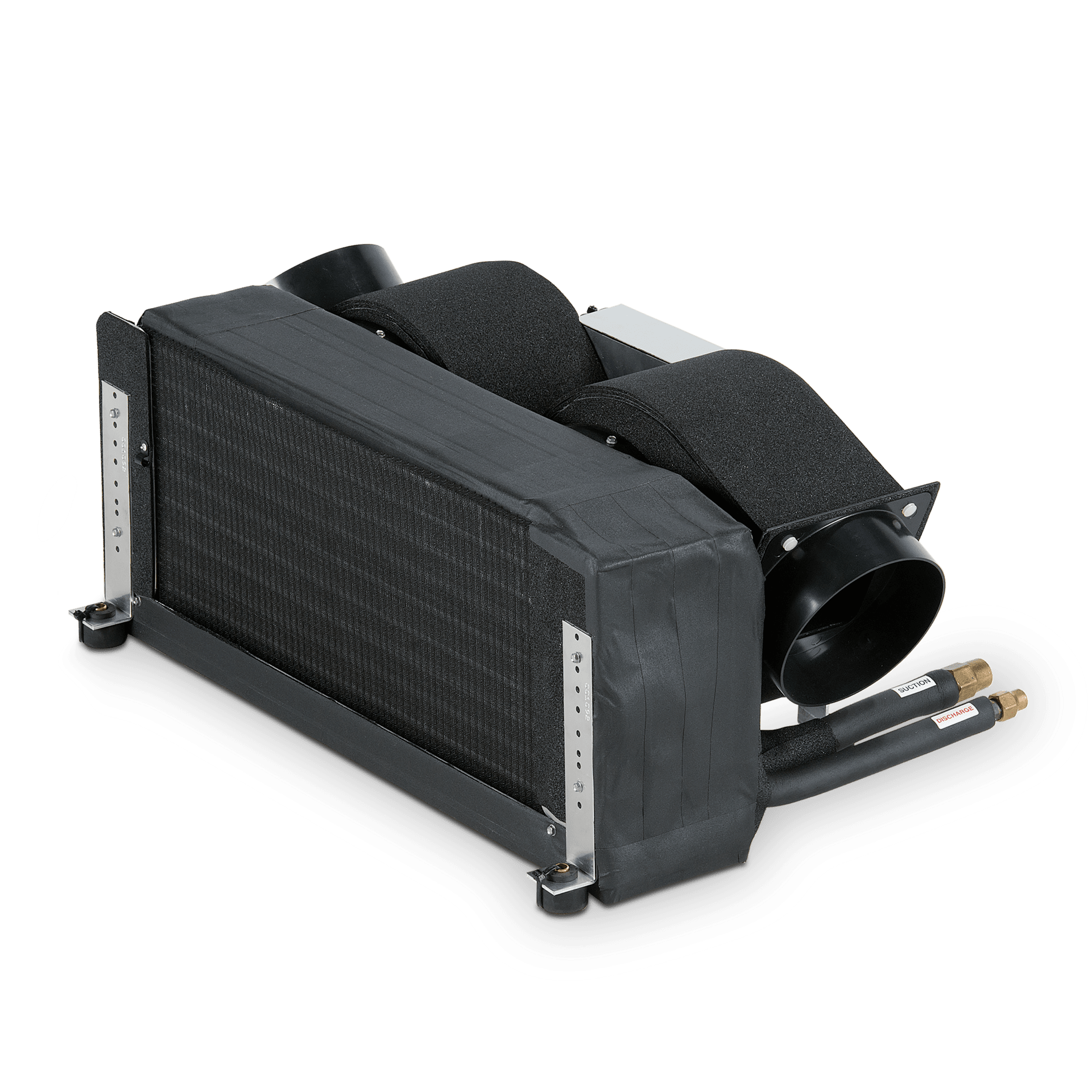

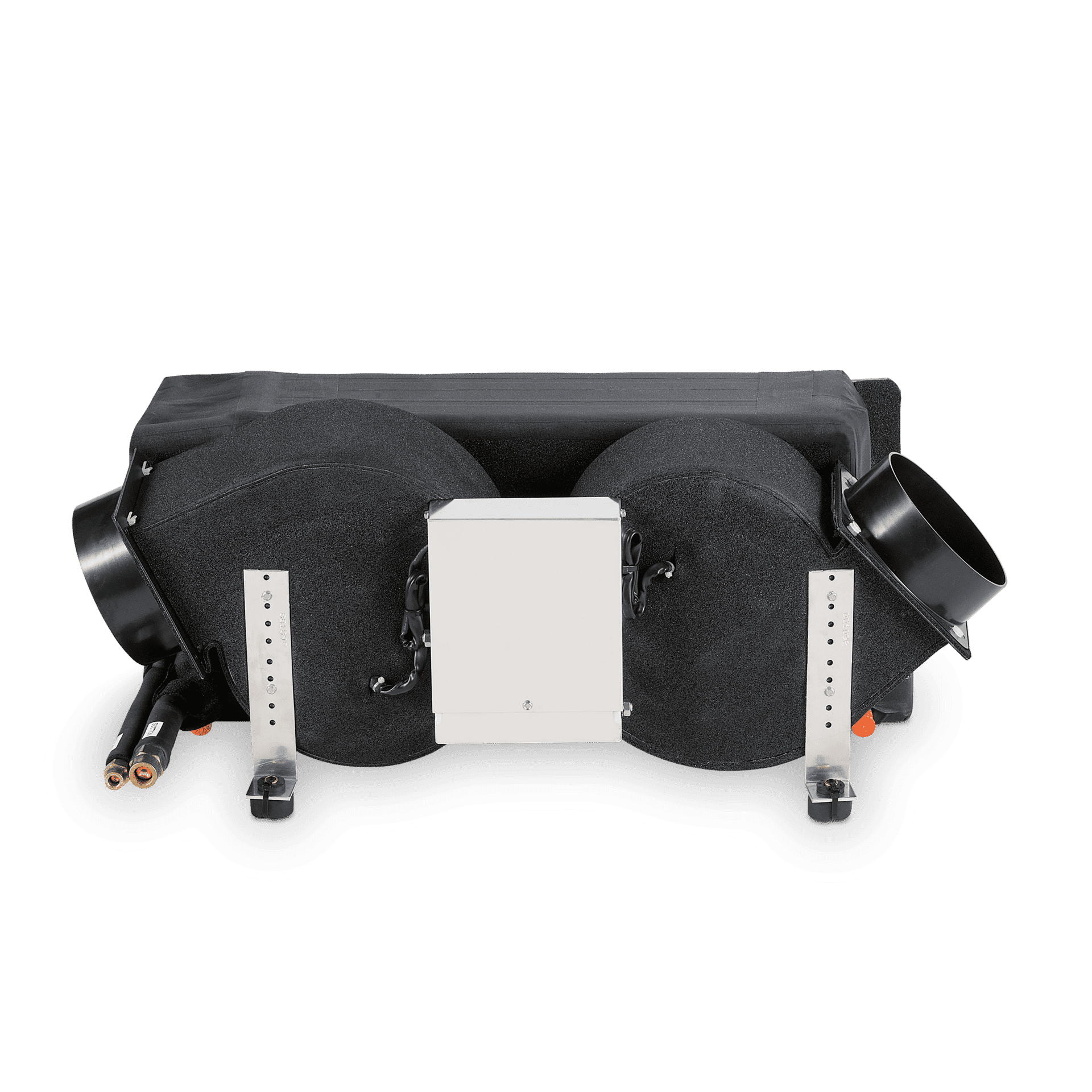

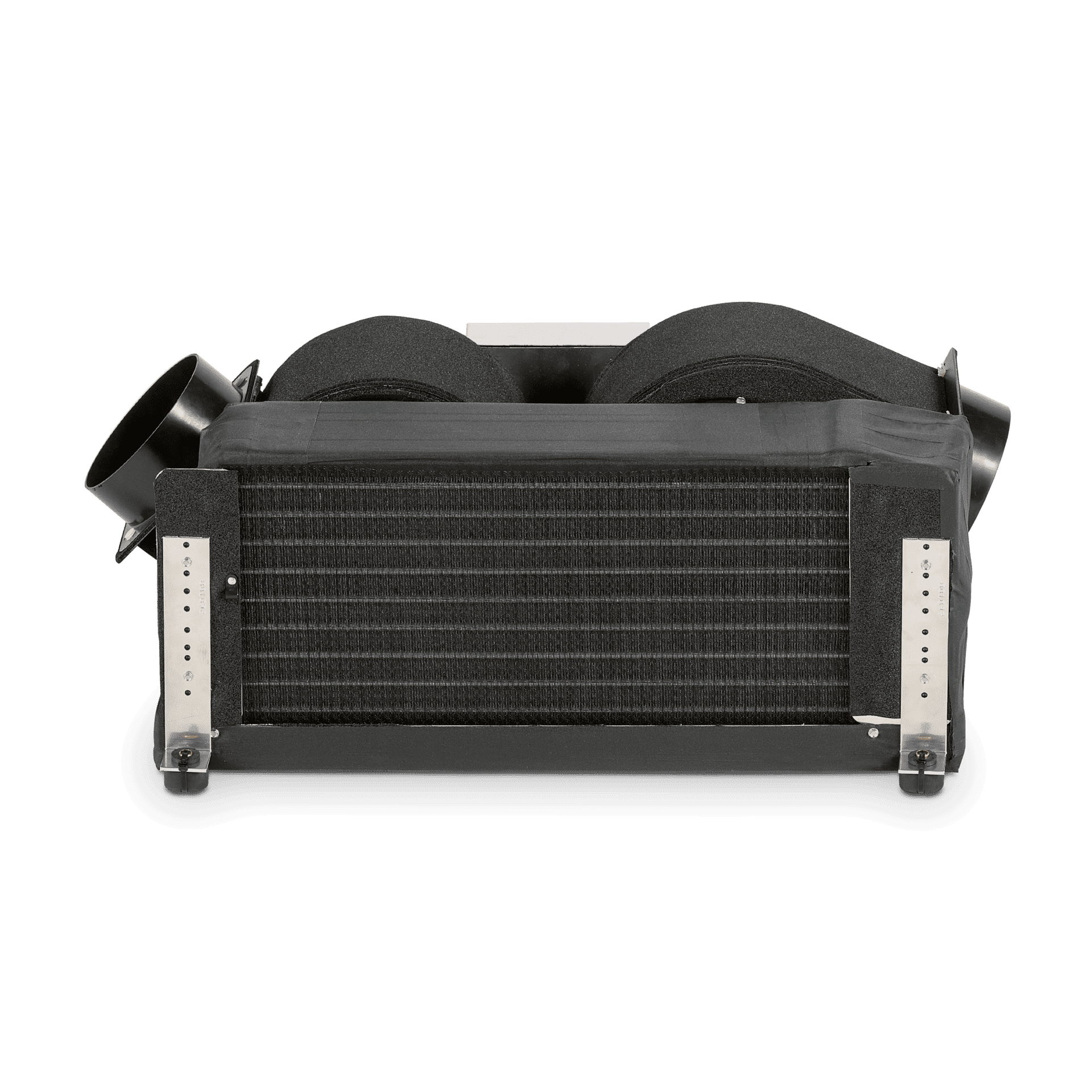

Dometic EBLE series low-profile evaporating units are ductable cooling and heating units. EBLE units are designed for installations where there is limited vertical space such as beneath a seat or bunk, or in overhead spaces.
Specifications
SKU: 9108690163
| Model | EVAPS EBLE Series |
|---|---|
| Product Description | Evaporating Unit, 24,000BTU/H 230V |
| Dimensions product depth, [mm] | 355.6 |
|---|---|
| Dimensions product height, [mm] | 317.5 |
| Dimensions product width, [mm] | 698.5 |
| Net weight, [kg] | 18.01 |
| Input voltage (AC), [V] | 230 |
|---|---|
| Input frequency, [Hz] | 50/60 |
| Required AC circuit protection min, [A] | 3 |
| Required AC circuit protection max, [A] | 5 |
| Cooling Capacity ISO5151 Display | 7033.71 |
|---|---|
| Cooling Capacity Display | 24000 |
| Current consumption min cooling, [A] | 1.76 |
| Current consumption max cooling, [A] | 1.76 |
| Dimensions parcel depth, [mm] | 825.5 |
|---|---|
| Dimensions parcel height, [mm] | 563.88 |
| Dimensions parcel width, [mm] | 571.5 |
| Parcel weight, [kg] | 21.38 |
Dometic (R410a) DEG, DEU, EBE, EBLE, DEUX, TVE (MVAC Split System "Emerald") - Installation and Operating Manual Marine INT24
Installation And Operating Manual
