Description
- Model available with inner fly screen (can be adjusted separately) and optional darkening
- Model available with or without forced ventilation
- Maximum opening angle: 50°
- Double acrylic glazing, tinted on the outside
- Lockable vent position
- For roof thickness of 23–42 mm

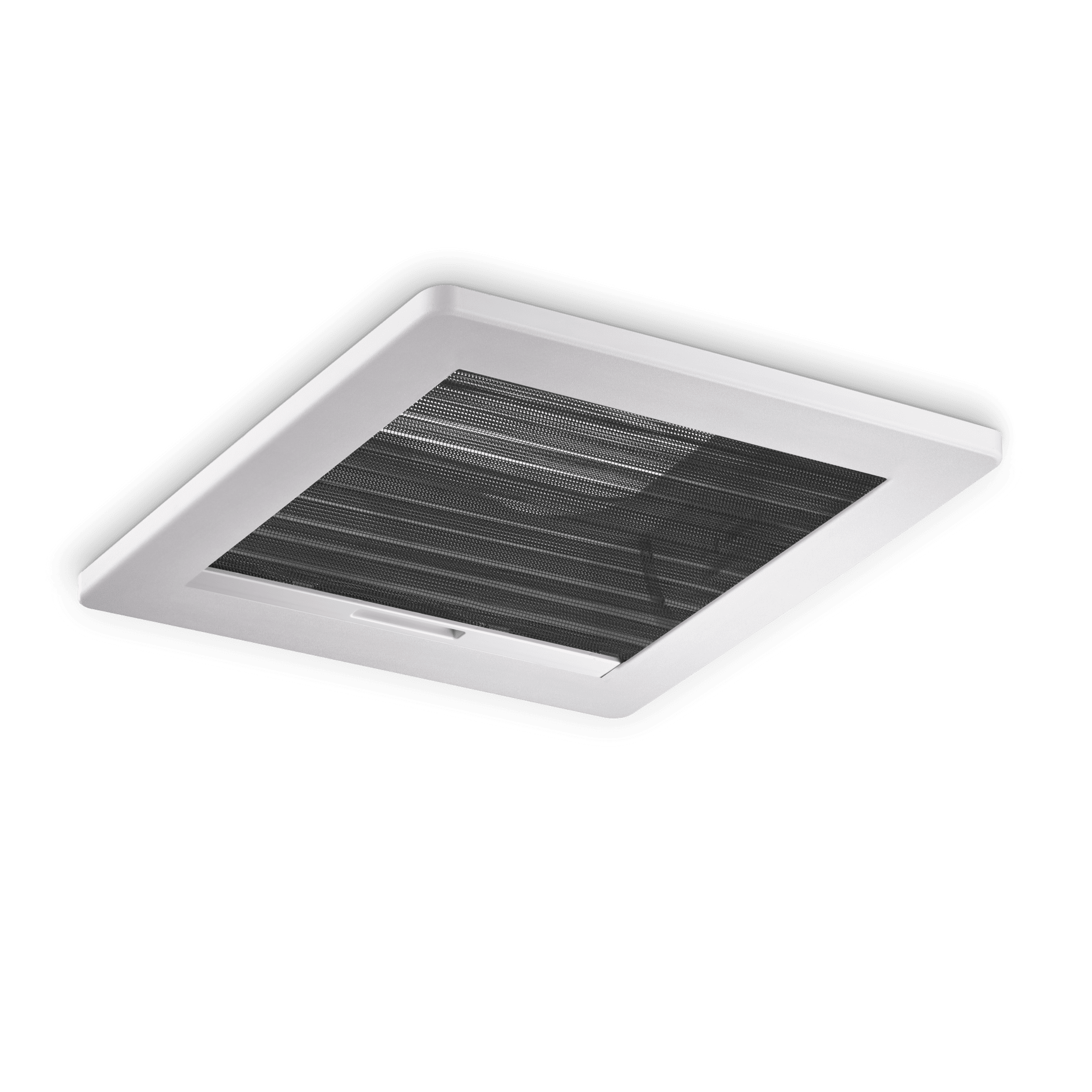

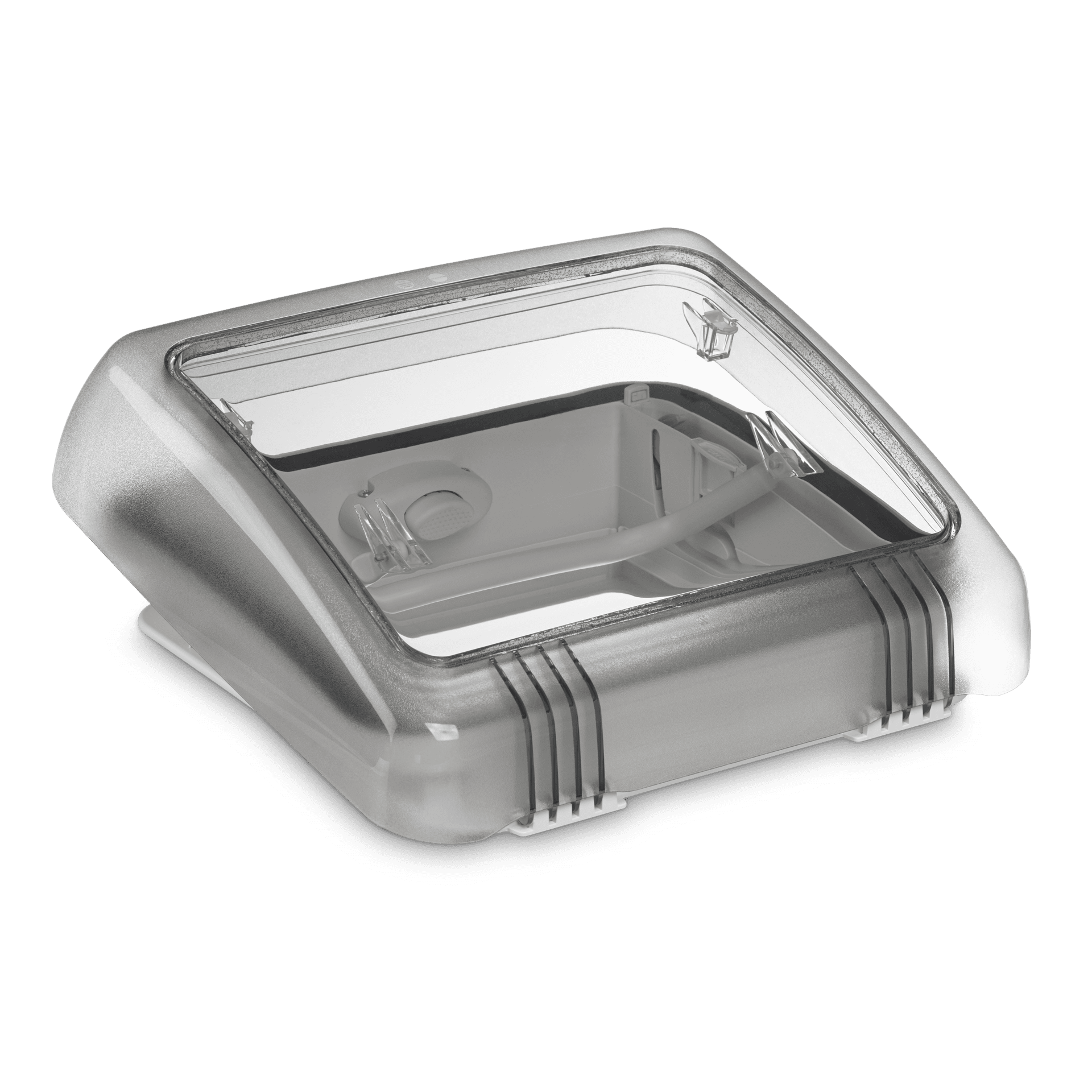

This ultra-compact roof light was specially designed for the bathroom area. It fits into a roof opening of 280 x 280 mm and can be opened and closed with a hand-lever system. For motorhomes and caravans.
Specifications
SKU: 9104117435
| Model | Micro Heki |
|---|---|
| Scope of delivery | Micro Heki with manual in box |
| SKUCertificates | ECE R43 |
| Product Description | Roof window with flyscreen, without forced ventilation |
| Dimensions product depth, [mm] | 370 |
|---|---|
| Dimensions product height, [mm] | 370 |
| Dimensions product width, [mm] | 408 |
| Dimensions ordered height, [mm] | 280 |
| Dimensions ordered width, [mm] | 280 |
| Net weight, [kg] | 1.82 |
| Possible material thickness 1 min, [mm] | 23 |
| Possible material thickness 1 max, [mm] | 42 |
| Cut out height, [mm] | 280 |
| Cut out width, [mm] | 280 |
| Opening angle max, [°] | 50 |
|---|---|
| Positions fixed | 2 |
| Dimensions parcel depth, [mm] | 390 |
|---|---|
| Dimensions parcel height, [mm] | 170 |
| Dimensions parcel width, [mm] | 450 |
| Parcel weight, [kg] | 2.47 |
Loading products…
Highlights

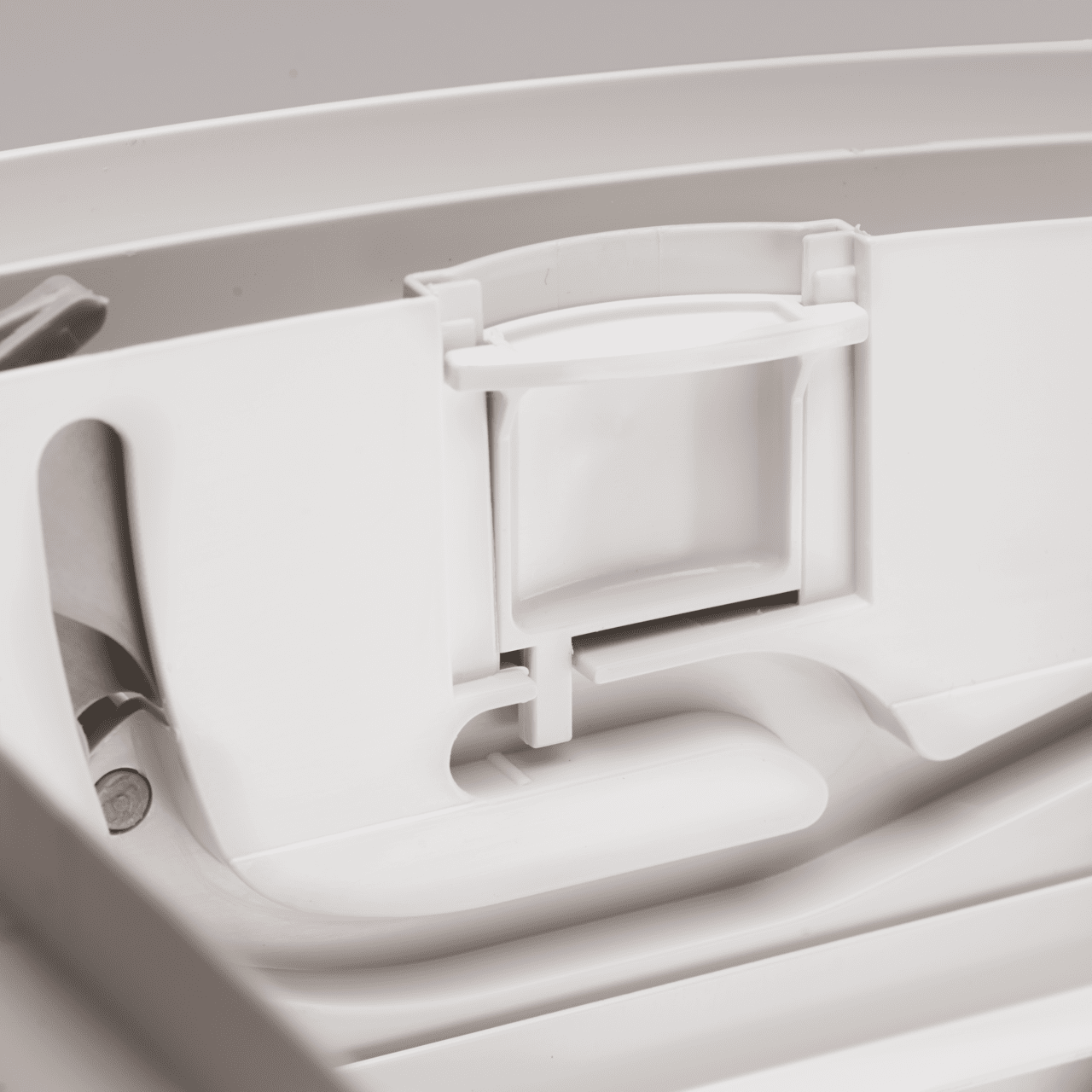

Safely locked in place
The glass dome is safely locked, so it won’t slam down when the wind blows

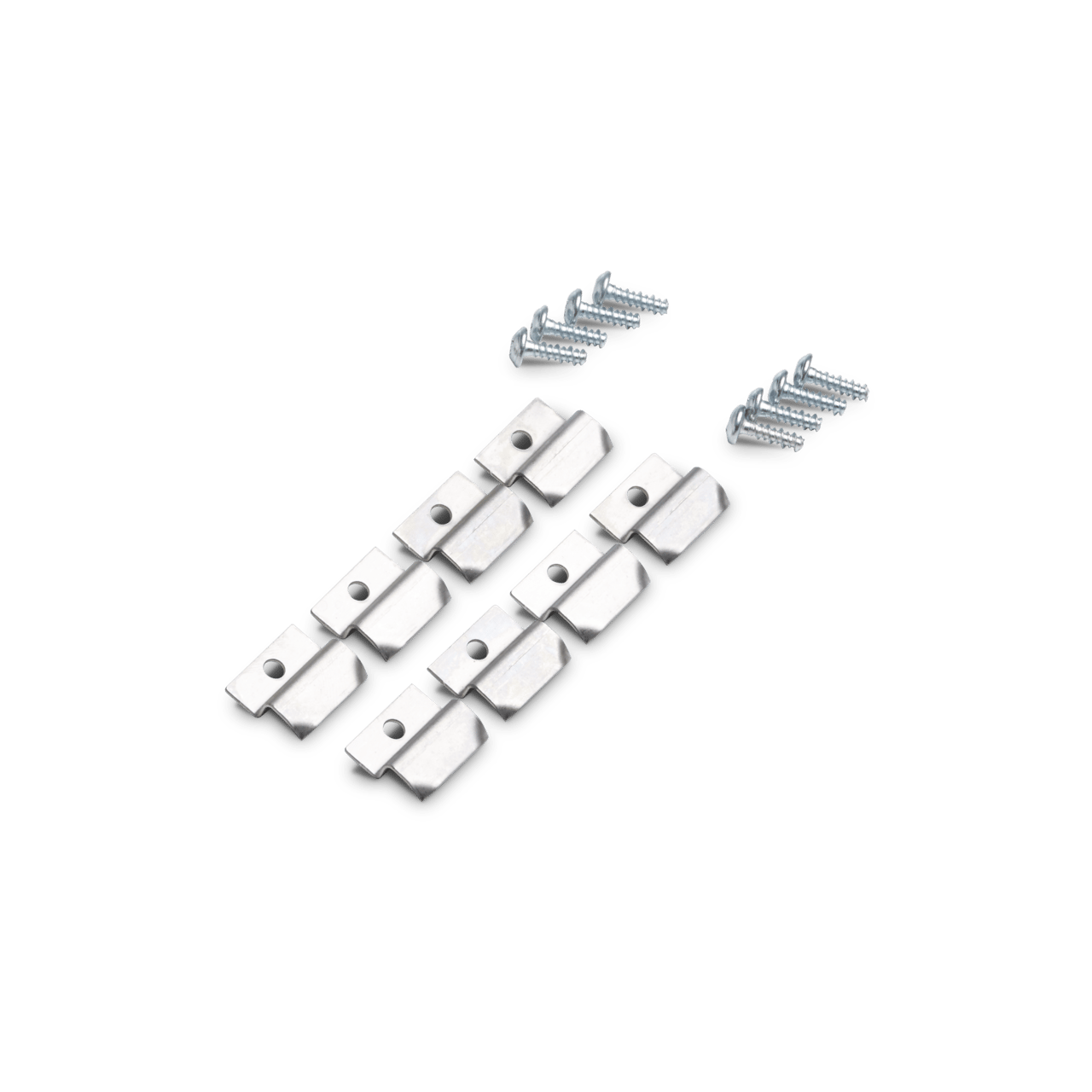

Sold separately
Required assembly kit for specific roof thickness is sold separately
£ 115.00
