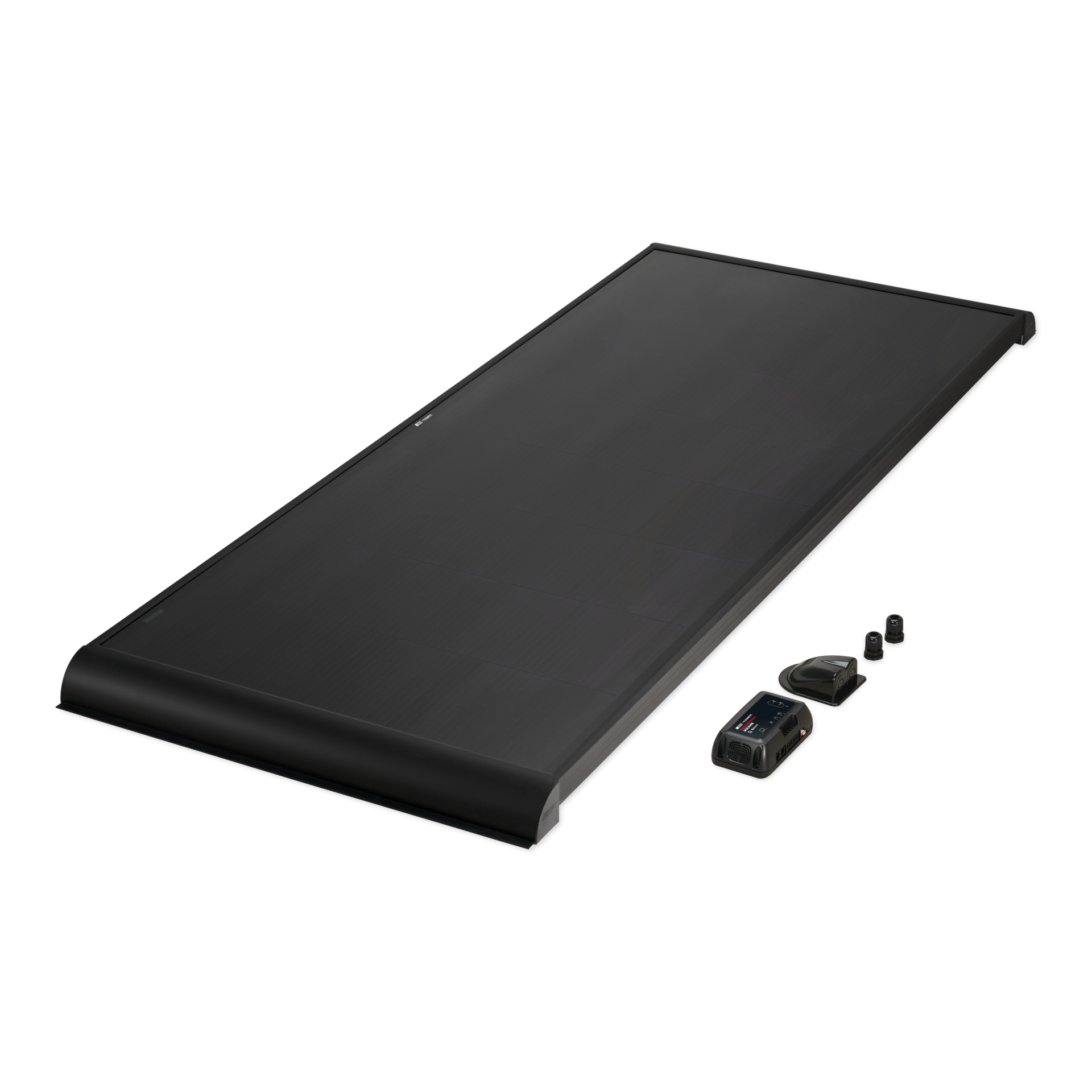

Dometic NDS BLACKSOLAR BS230/SCE360B

Black solar panel, 230 Wp + 360-W solar charge controller, Bluetooth model

£ 449.00

More power in less space: This high-end monocrystalline solar kit captures more solar energy and produces more electricity than standard modules. That means it will even generate a good yield in half-light conditions, such as at dawn or dusk. Latest-generation PERC cells ensure superior energy efficiency. A highly efficient 360-W solar charge controller with Bluetooth functionality is included in the set, allowing you to control and manage your device with the NDS App.

Description

  1. High-performance monocrystalline cells
  2. Frame, structure, cells, strings, all completely black
  3. High-quality 360-W solar charge controller with Bluetooth functionality included in the set (SUNCONTROL2 SCE360B)
  4. Mounting brackets integrated into the panel frame for safe and easy installation
  5. PERC technology (Passivated Emitter and Rear Cell) increases energy conversion efficiency
  6. 6 m bipolar connection cable with an all-weather protective outer layer
  7. Suitable for motorhomes and boats

Specifications

SKU: 9620013093

Dometic NDS BLACKSOLAR BS230/SCE360B — General specifications
ModelBS230
Scope of deliverySolar panel, Regulator SCE360B, installation and operating manual
Product DescriptionBlack solar panel, 230 Wp + 360-W solar charge controller, Bluetooth model

Dometic NDS BLACKSOLAR BS230/SCE360B — Dimensions specifications
Dimensions product depth, [mm]1665
Dimensions product height, [mm]60
Dimensions product width, [mm]700
Net weight, [kg]15.84

Dometic NDS BLACKSOLAR BS230/SCE360B — Logistics specifications
Dimensions parcel depth, [mm]1885
Dimensions parcel height, [mm]250
Dimensions parcel width, [mm]720
Parcel weight, [kg]16.61

Product size & weight

W 700 x H 60 x D 1665 mm

Weight: 15.84 kg

Built-in mounting bracket

Built-in mounting bracket

The mounting brackets integrated in the frame of the solar panel facilitate installation. They also allow the optimum distance from the mounting surface to be maintained at all times. This ensures proper ventilation of the cells and avoids any loss of performance even at high operating temperatures. Adequate aerodynamics are guaranteed by the rounded corners of the mounting brackets. These solar panels have a five-year warranty and a TUV certification.
