Robust and tight aluminium housing with integrated heating, glare-free night vision and certified for professional use. This heavy-duty camera with a diagonal picture angle of 120° was specially designed for use in trucks and agricultural vehicles.
[]

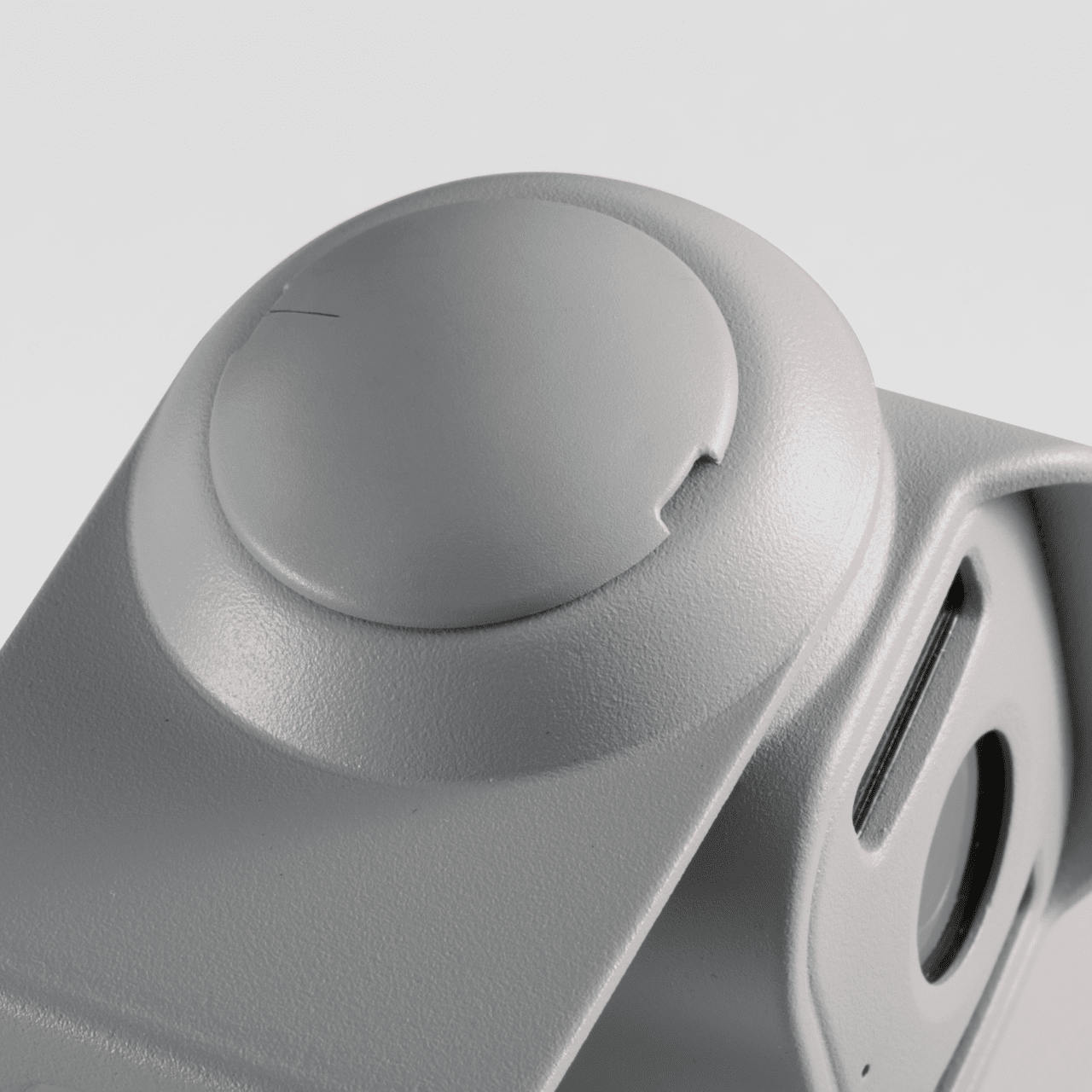

Robust housing
[]

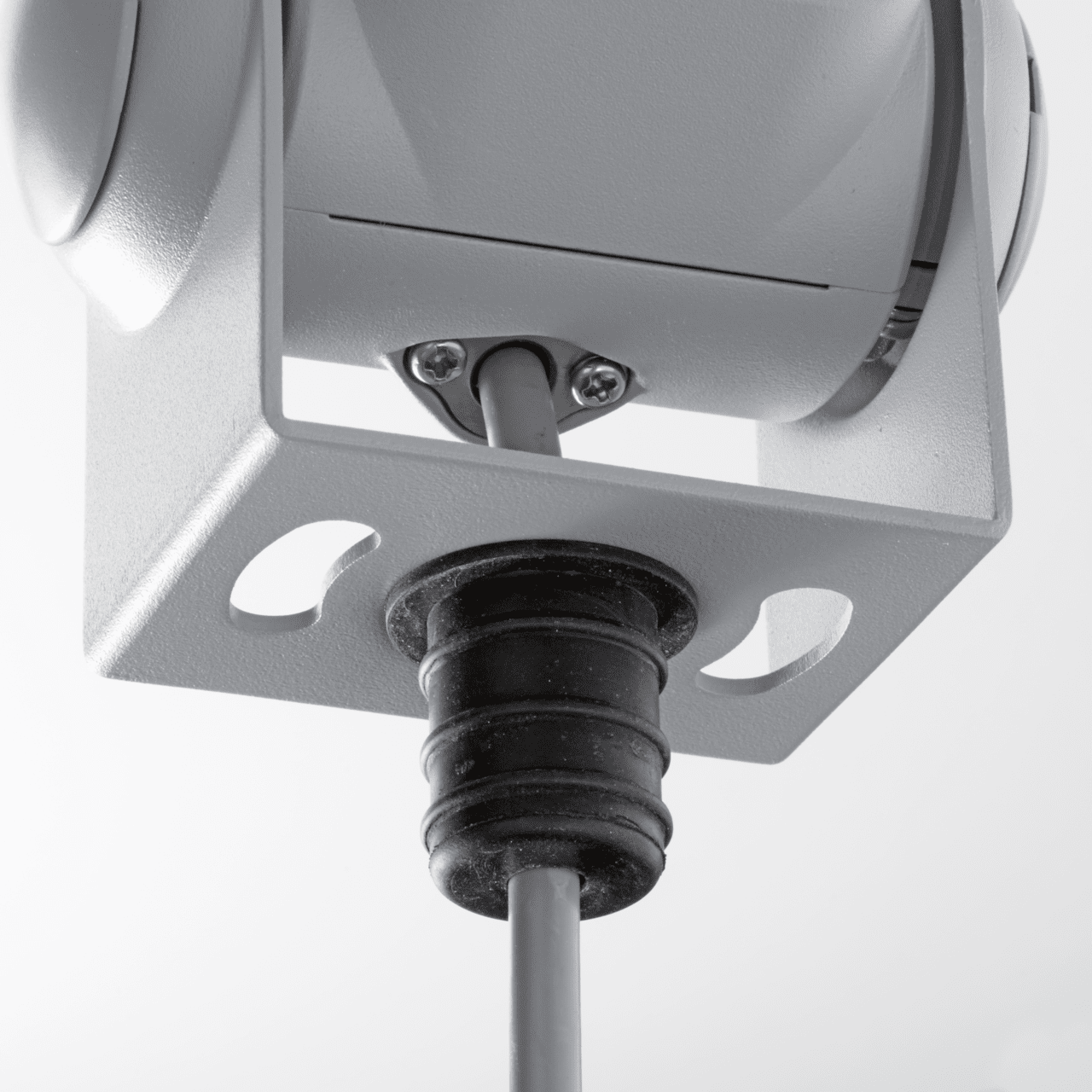

Optimised mounting base
[]

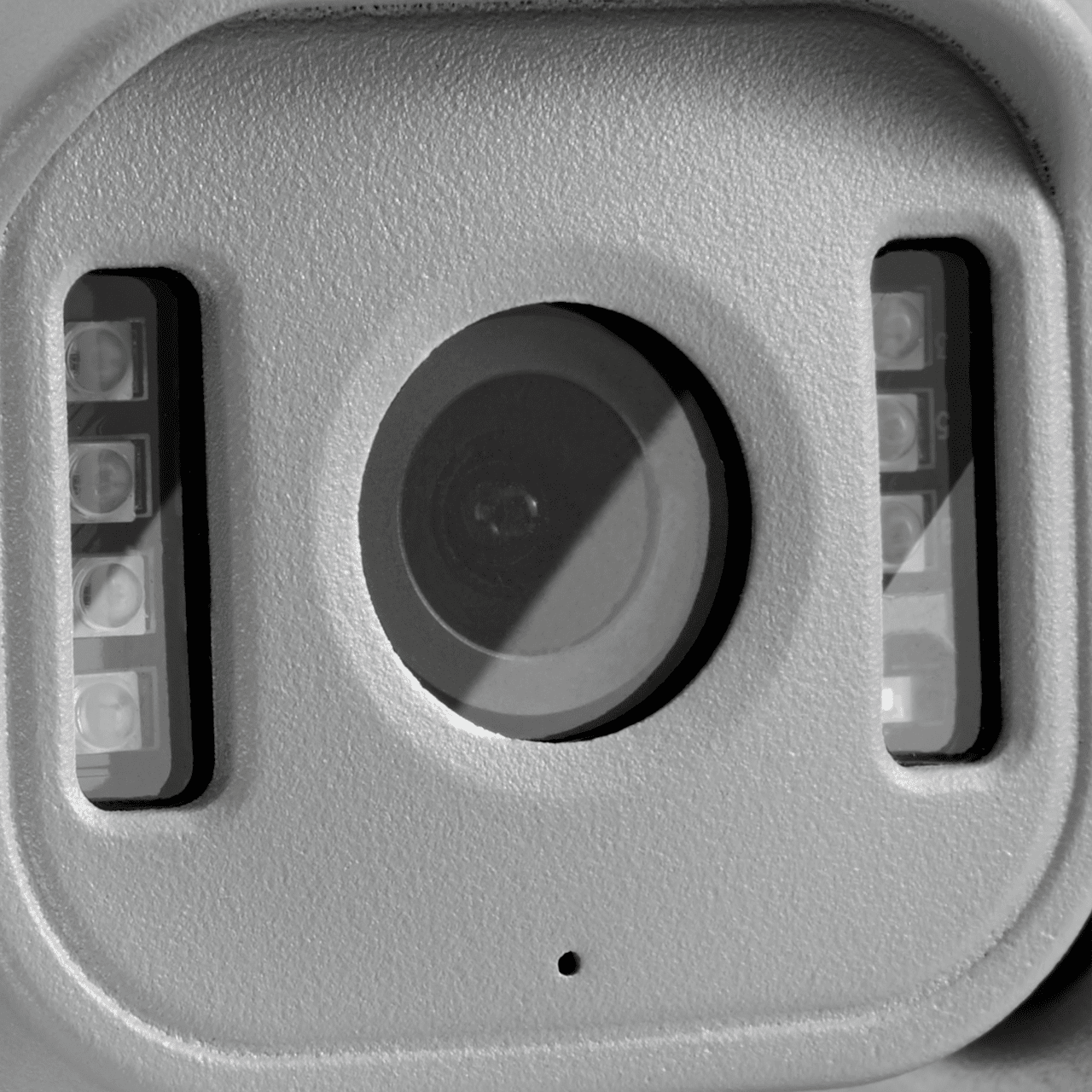

Separately placed LEDs
Technical Information
Specifications
General
Scope of delivery
Camera, 20m system cable, installation material, manual
Product Description

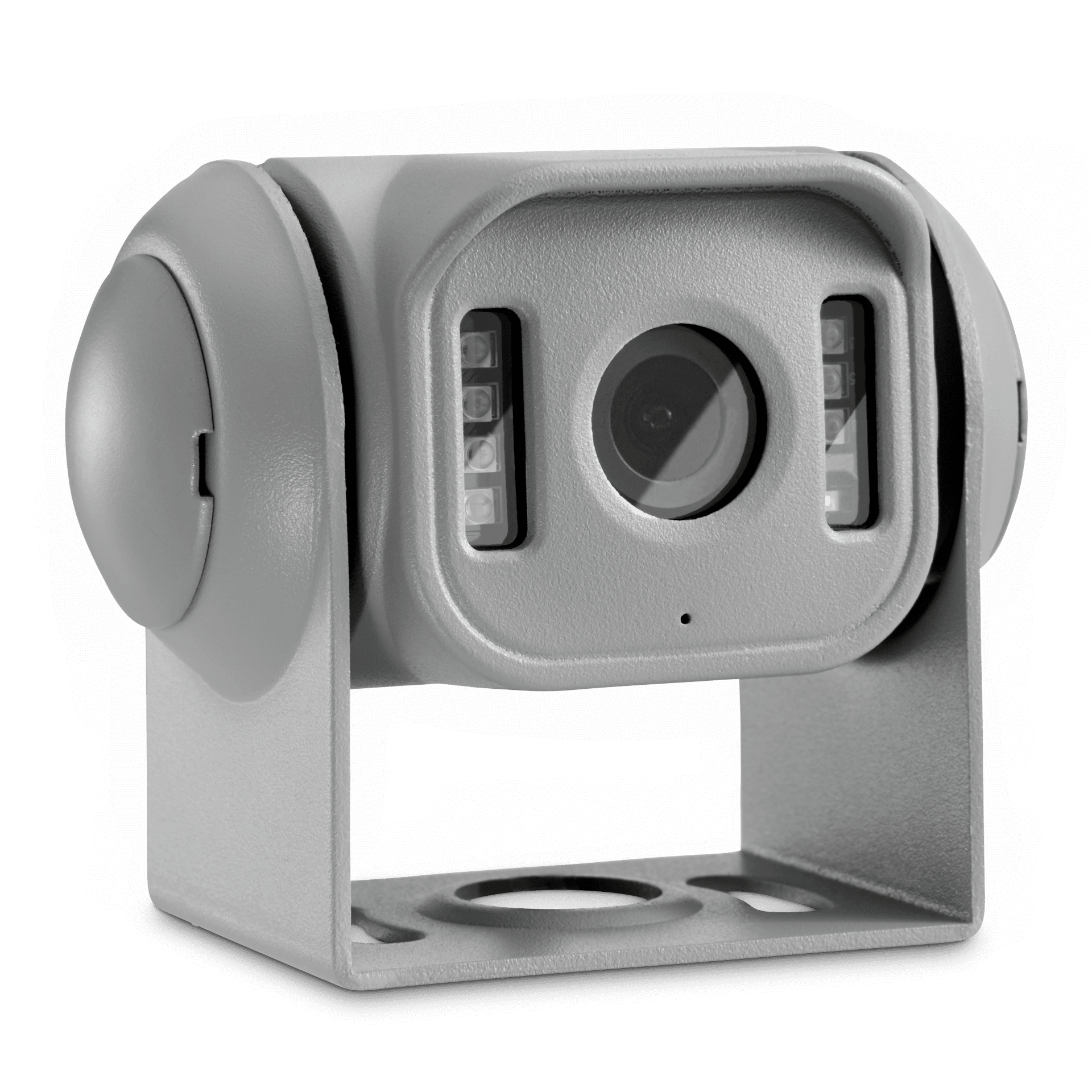

Heavy-duty colour camera, silver, 120° diagonal
Dimensions
Dimensions product depth, [mm]
62
Dimensions product height, [mm]
50
Dimensions product width, [mm]
80
Dimensions product width, ["] - Display
3.15
Net weight, [kg]
0.25
Net weight, [lbs]
0.55
Electrical
Input voltage (DC), [V]
12/24
IP class
IP69K
Performance
Operating temperature min, [°C]
-30.000000
Operating temperature max, [°C]
70.000000
Logistics
Dimensions parcel depth, [mm]
105
Dimensions parcel height, [mm]
195
Dimensions parcel width, [mm]
275
Parcel weight, [kg]
1.40
Parcel weight, [lbs]
3.09
Specifications
Documentation & Downloads
Get the Highlights
Robust housing
Robust aluminium housing with stainless steel mounting bracket
