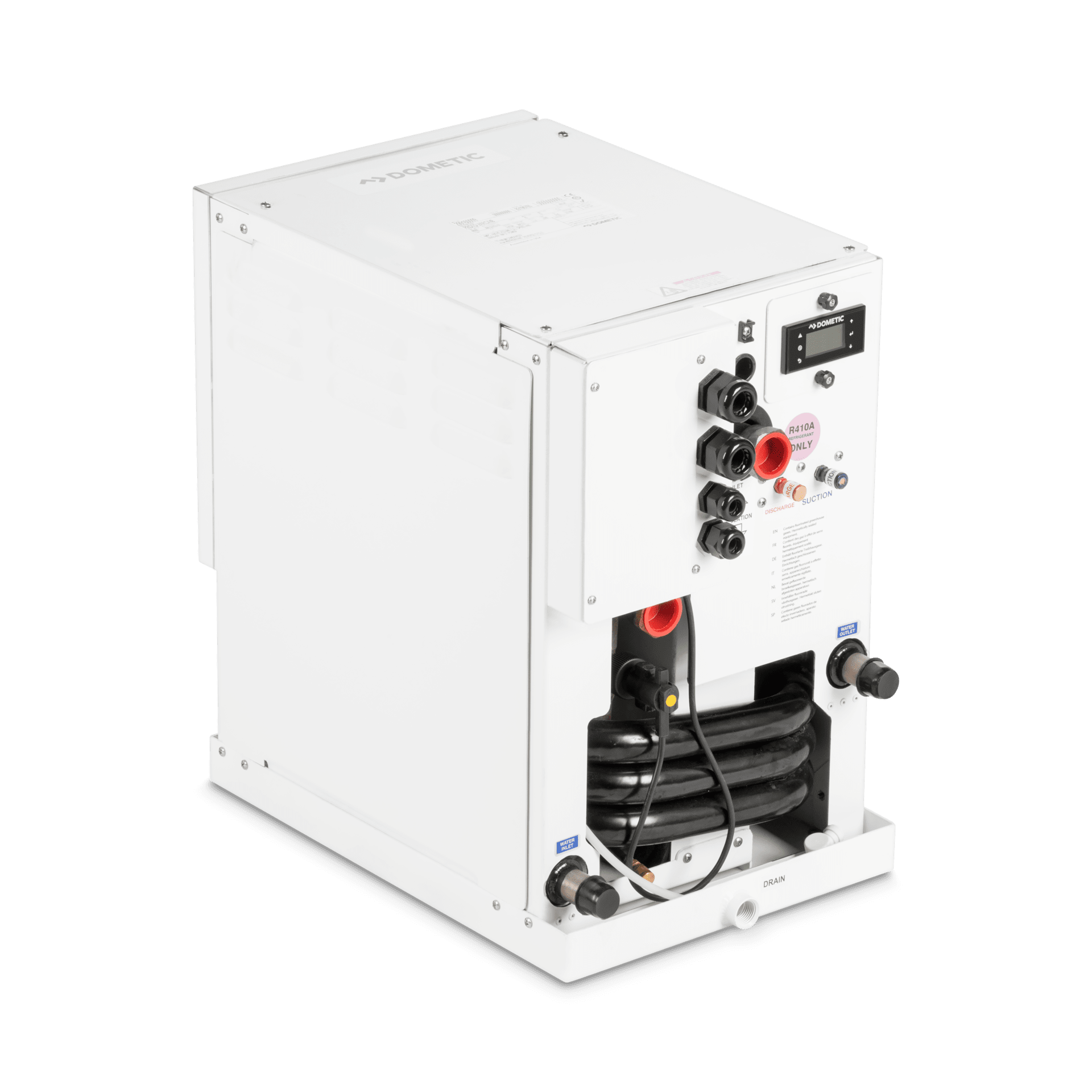

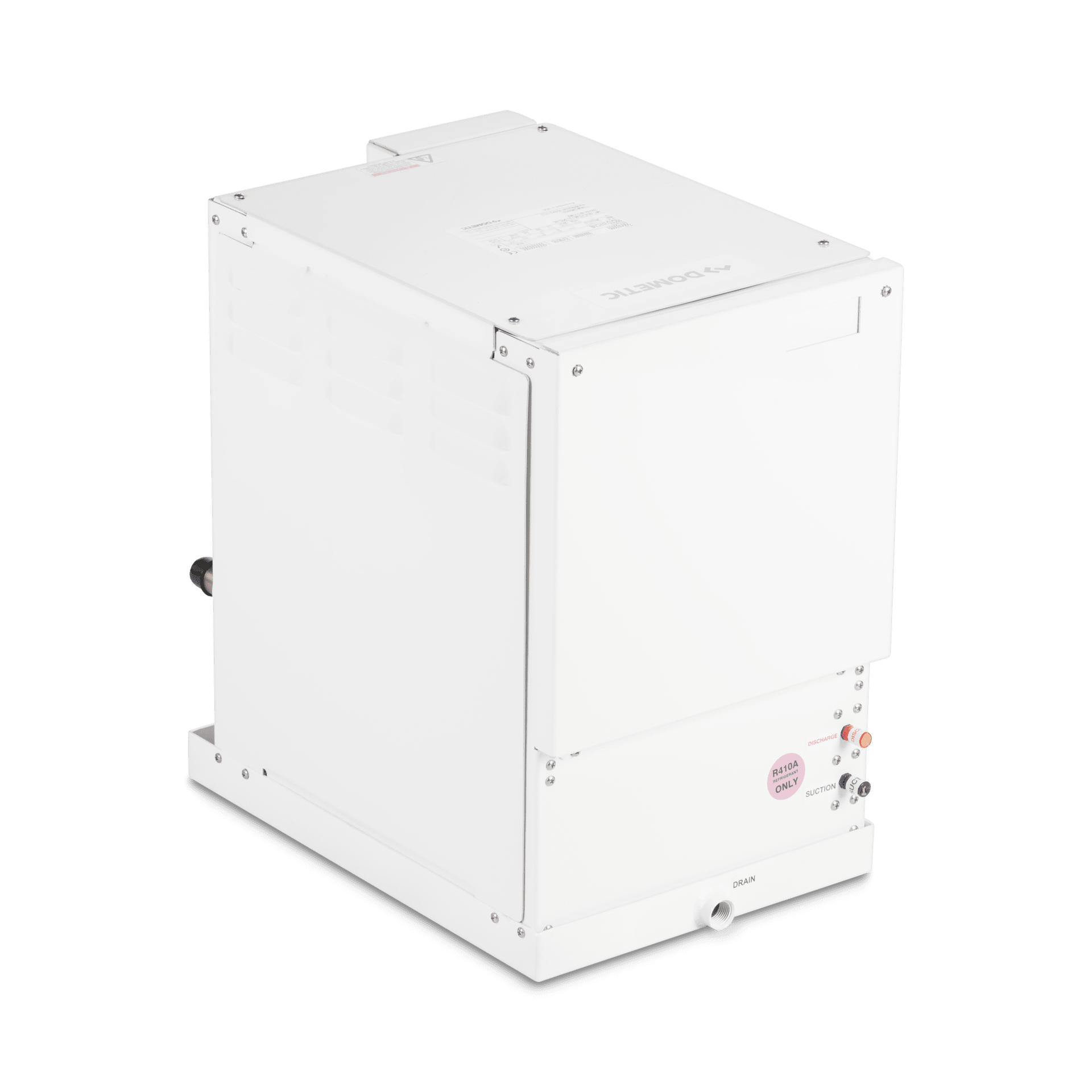

Dometic VARCX
Variable Capacity Chiller from 72,000 BTU/h
SKU: 9600017093
Technical Information
Specifications
- General
- Product Description
- Variable Capacity Chiller from 72,000 BTU/h
- Dimensions
- Dimensions product depth, [mm]
- 647.70
- Dimensions product height, [mm]
- 609.60
- Dimensions product width, [mm]
- 336.55
- Dimensions product width, ["] - Display
- 13.25
- Net weight, [kg]
- 81.65
- Net weight, [lbs]
- 180
- Electrical
- Input voltage (AC), [V]
- 230
- Input frequency, [Hz]
- 50/60
- Required AC circuit protection min, [A]
- 48.000000
- Required AC circuit protection max, [A]
- 50.000000
- Performance
- Hermetically Sealed
- Yes
- Refrigerant, type
- R410A
- GWP
- 2088
- CO2 equivalent, [t]
- 3,552
- Current consumption min cooling, [A]
- 27.200000
- Current consumption max cooling, [A]
- 27.200000
- Logistics
- Dimensions parcel depth, [mm]
- 942.34
- Dimensions parcel height, [mm]
- 889
- Dimensions parcel width, [mm]
- 787.4
- Parcel weight, [kg]
- 118.84
- Parcel weight, [lbs]
- 262
