Dometic PUR-Win S10

Specificaties

Algemeen

Scope of delivery

S10.4 Window with manual in box

SKUCertificates

ECE R43

Product Description

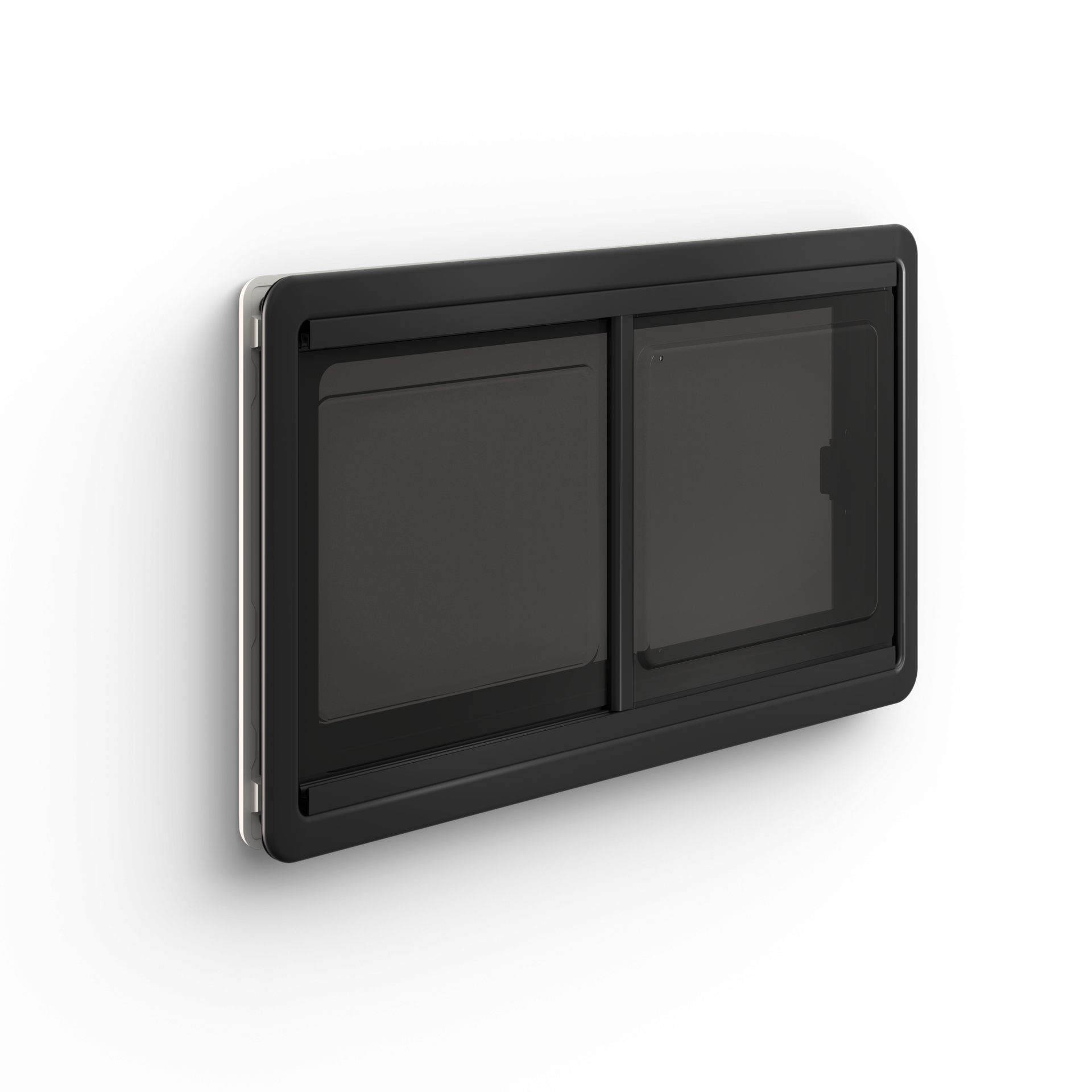

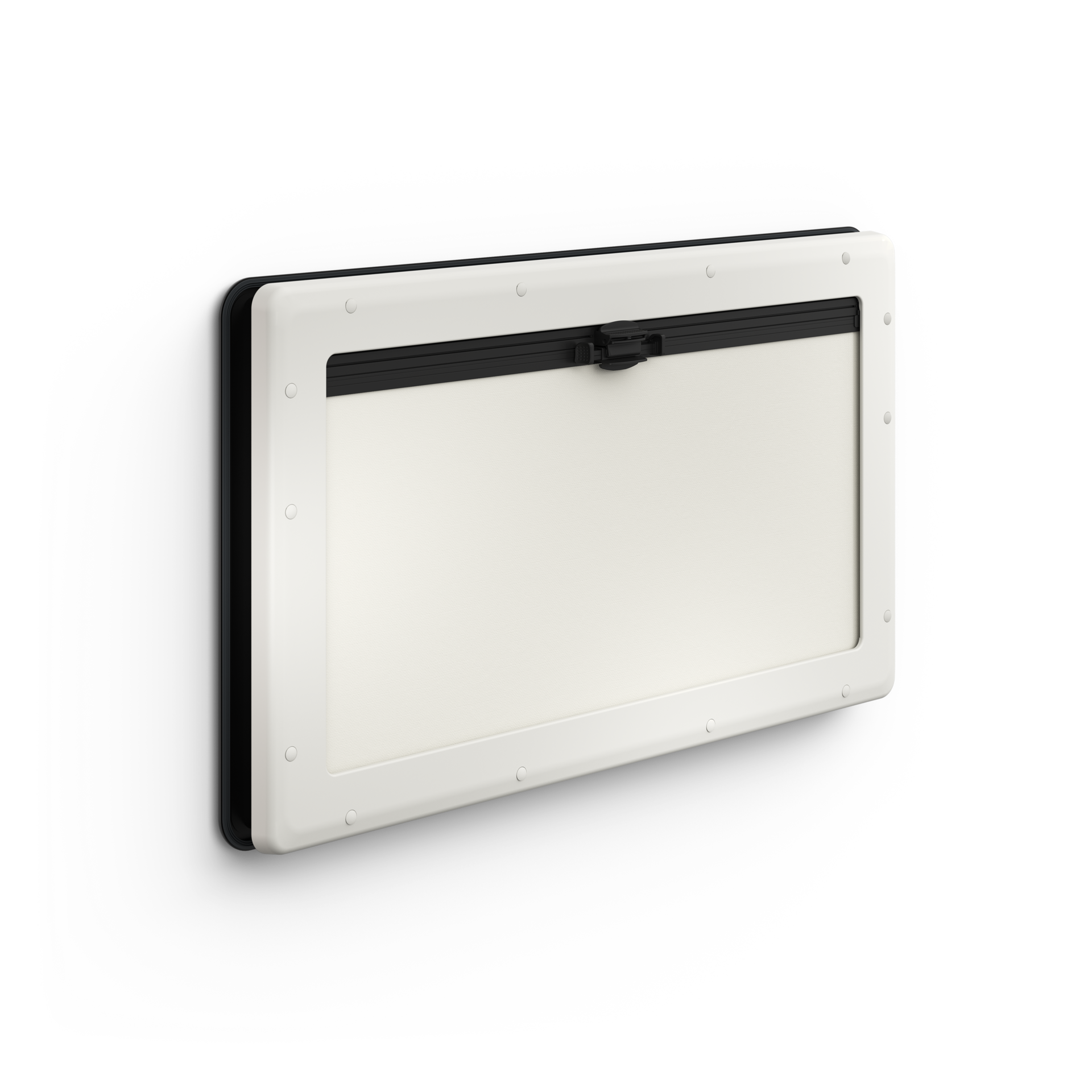

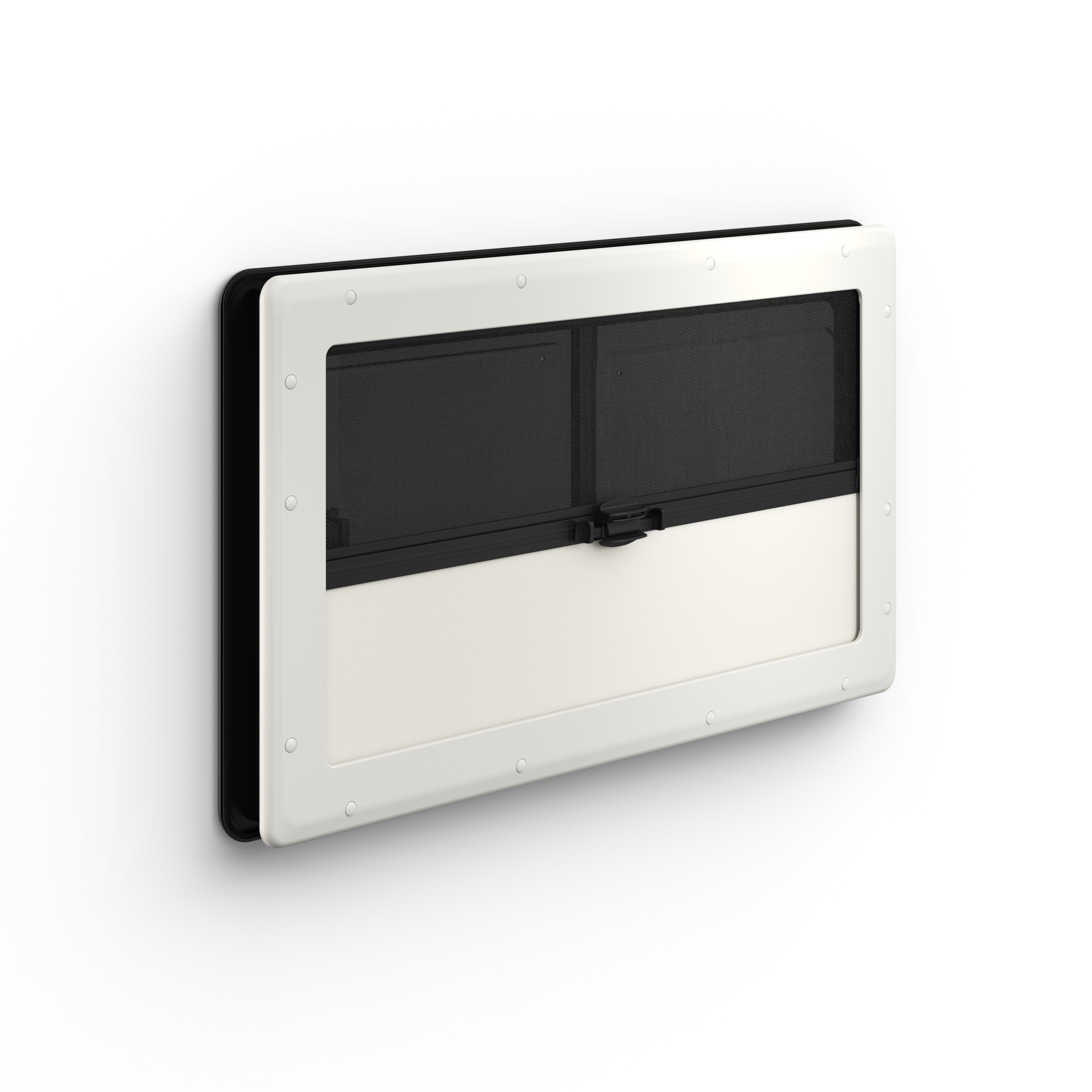

Schuifraam, 1000 x 500, zwart/wit

Afmetingen

Dimensions product height, [mm]

531

Dimensions product width, [mm]

1048

Dimensions product width, ["] - Display

41.26

Dimensions ordered height, [mm]

500

Dimensions ordered width, [mm]

1000

Net weight, [kg]

9.30

Net weight, [lbs]

20.51

Standard mount. material thickness 1 min, [mm]

26

Standard mount. material thickness 1 max, [mm]

26

Possible material thickness 1 min, [mm]

27

Possible material thickness 1 max, [mm]

41

Cut out height, [mm]

499.000000

Cut out width, [mm]

1002.000000

Eigenschappen

Hinge type

Schuif

Positions variable

Variable

Logistiek

Dimensions parcel depth, [mm]

610

Dimensions parcel height, [mm]

180

Dimensions parcel width, [mm]

1120

Parcel weight, [kg]

11.02

Parcel weight, [lbs]

24.29
