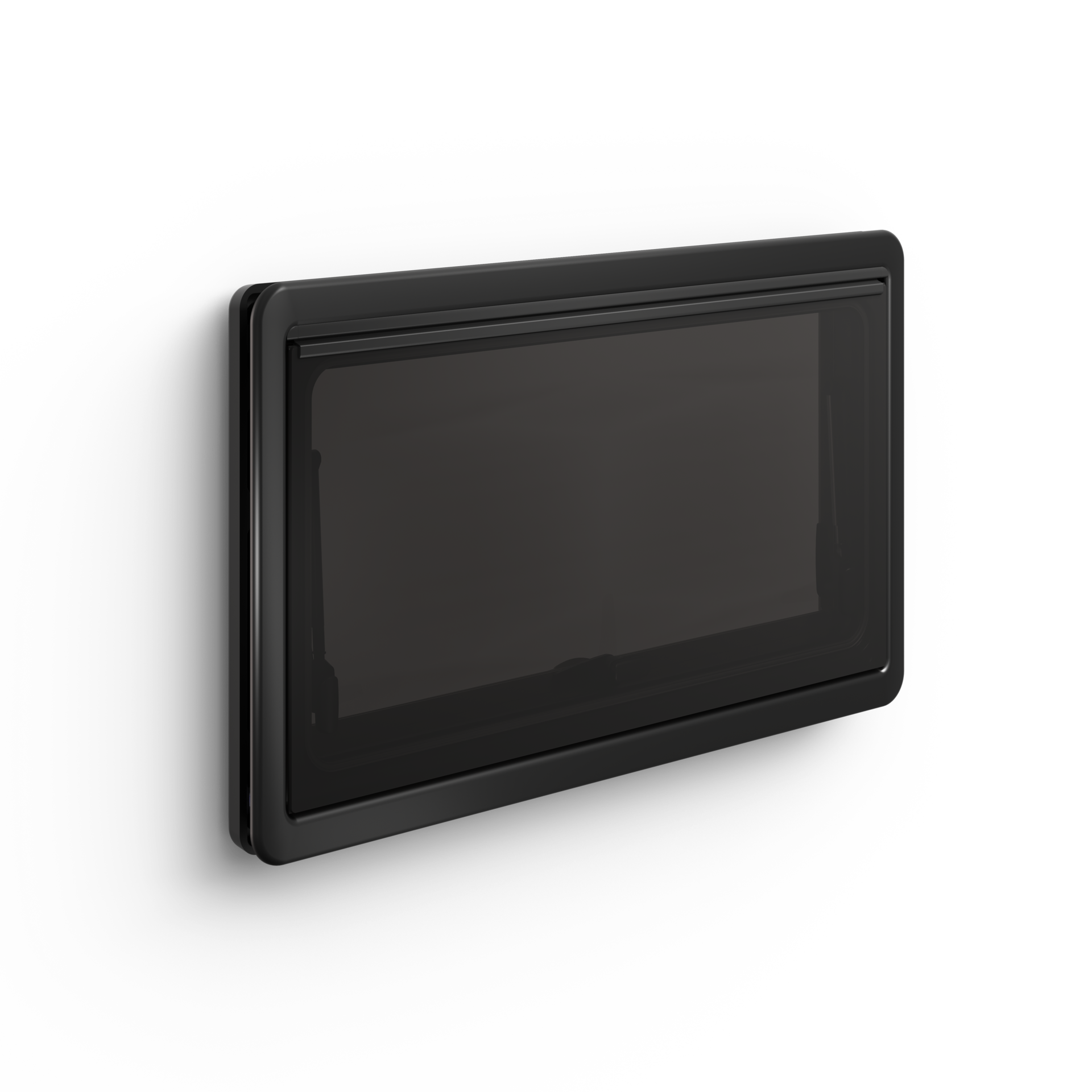

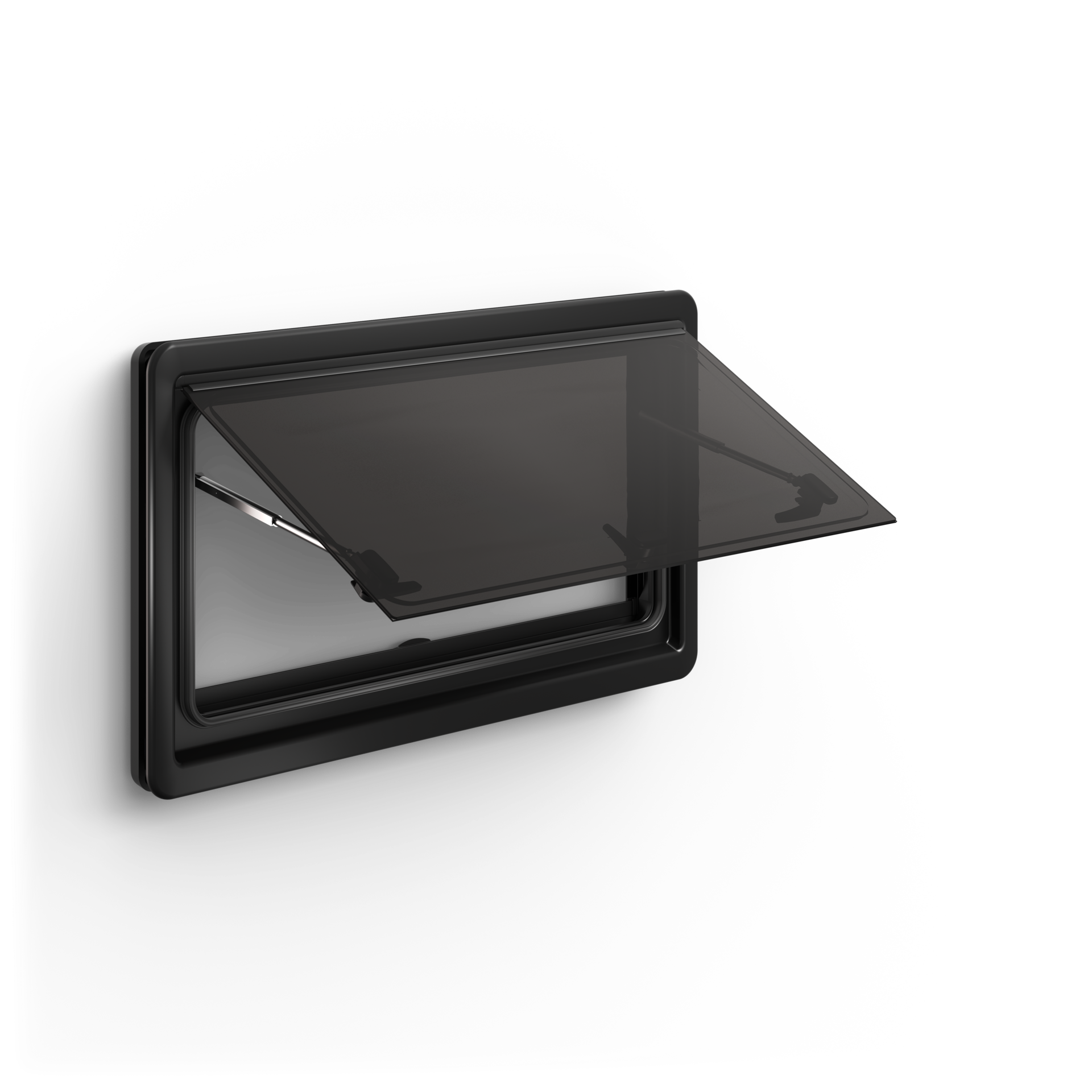

Dometic PUR-Win S10

Specificaties

Algemeen

Scope of delivery

S10.4 Window with manual in box

SKUCertificates

ECE R43

Product Description

Bovenscharnierend wandklapraam, 500 x 300, zwart

Afmetingen

Dimensions product height, [mm]

330

Dimensions product width, [mm]

544

Dimensions product width, ["] - Display

21.42

Dimensions ordered height, [mm]

300

Dimensions ordered width, [mm]

500

Net weight, [kg]

4.30

Net weight, [lbs]

9.48

Standard mount. material thickness 1 min, [mm]

26

Standard mount. material thickness 1 max, [mm]

26

Possible material thickness 1 min, [mm]

27

Possible material thickness 1 max, [mm]

41

Cut out height, [mm]

298.000000

Cut out width, [mm]

499.000000

Eigenschappen

Hinge type

Bovenscharnierend

Positions variable

Variable

Logistiek

Dimensions parcel depth, [mm]

400

Dimensions parcel height, [mm]

180

Dimensions parcel width, [mm]

610

Parcel weight, [kg]

5.22

Parcel weight, [lbs]

11.52
