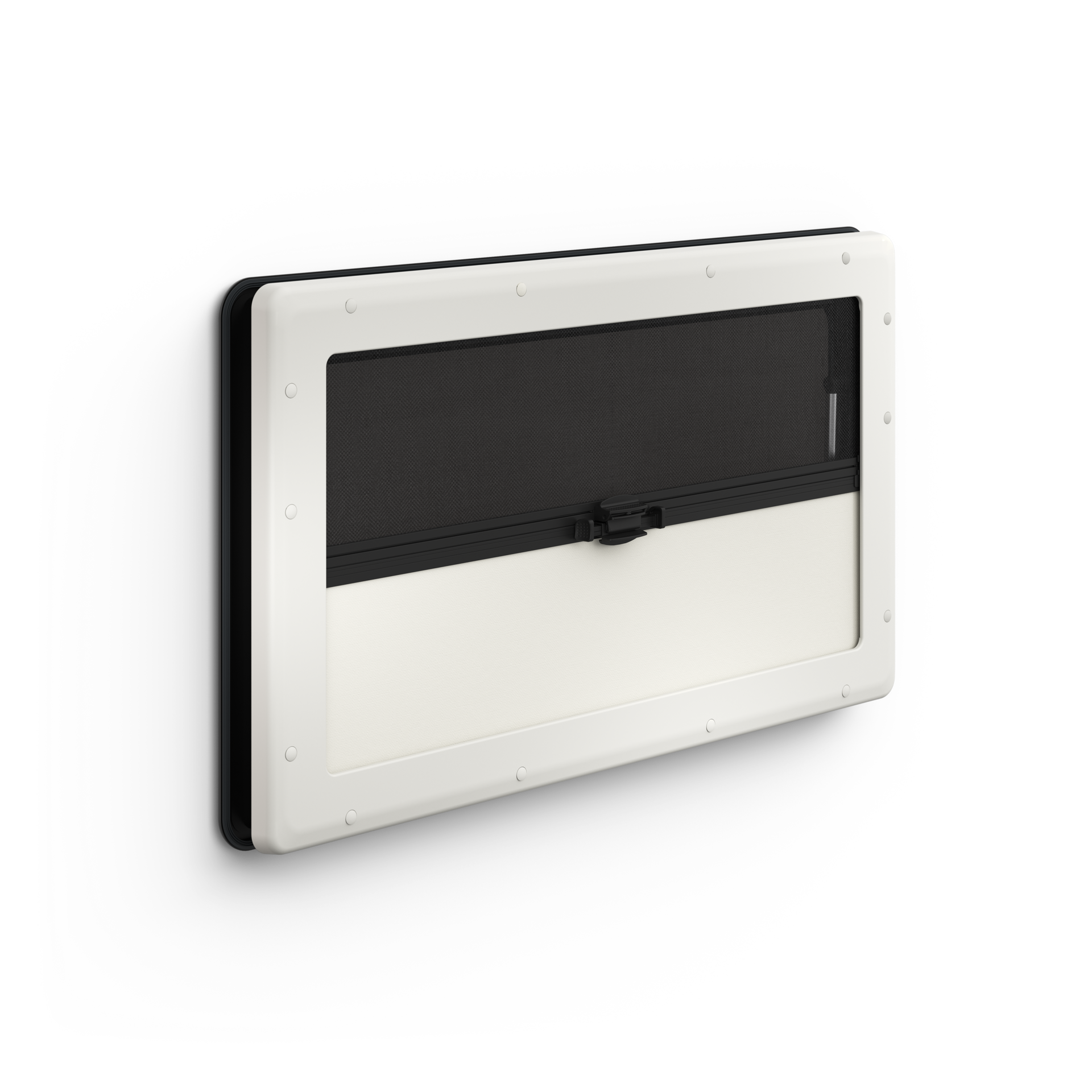

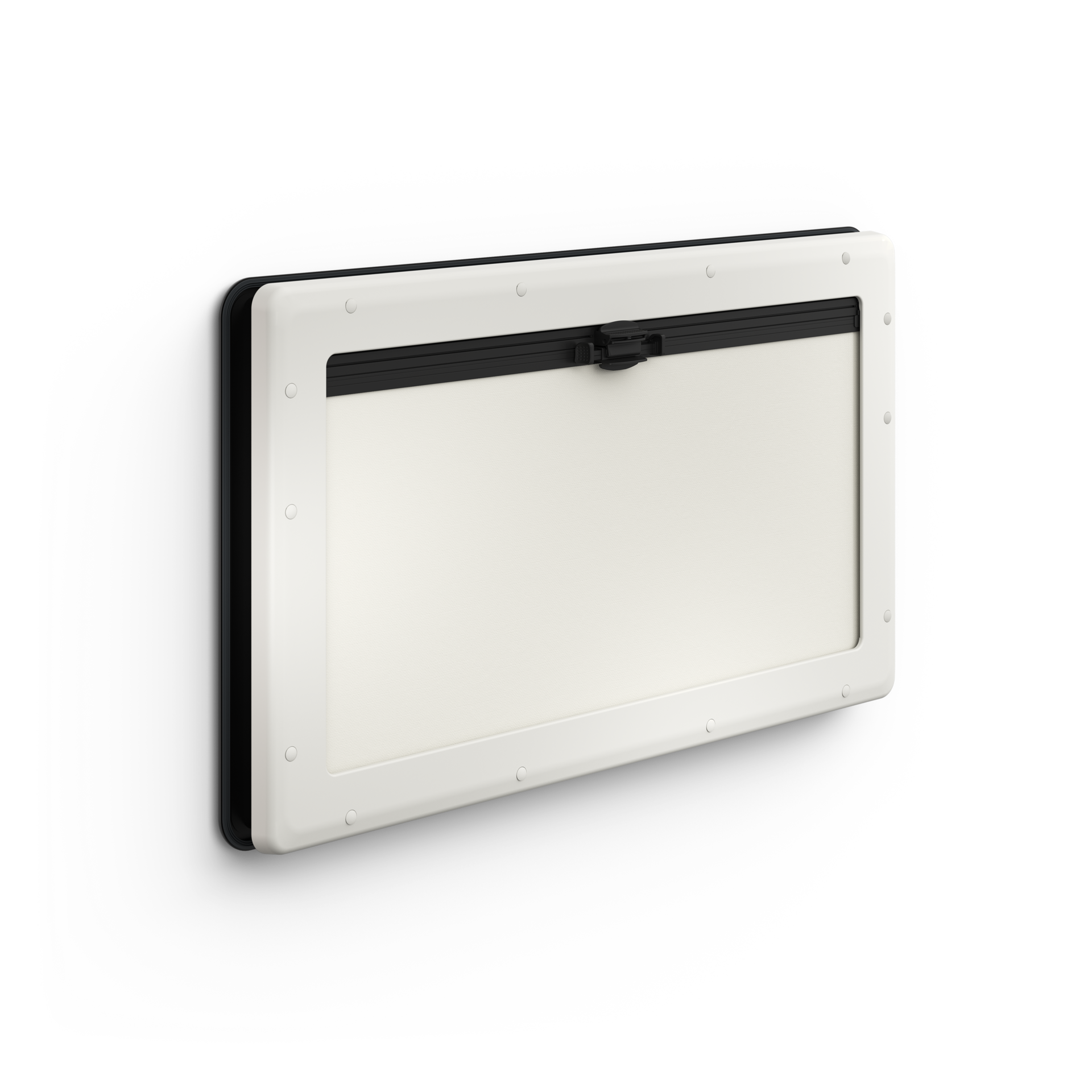

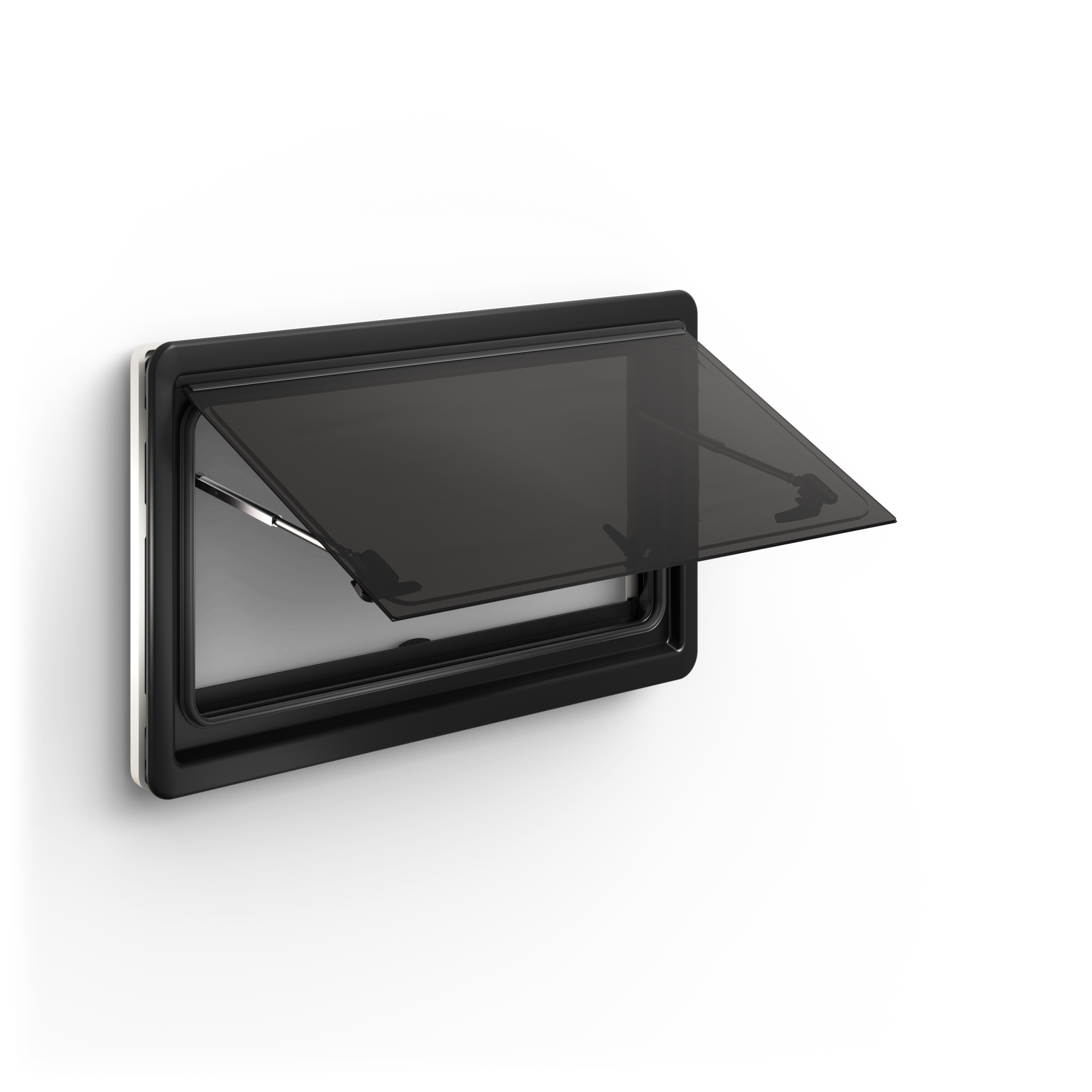

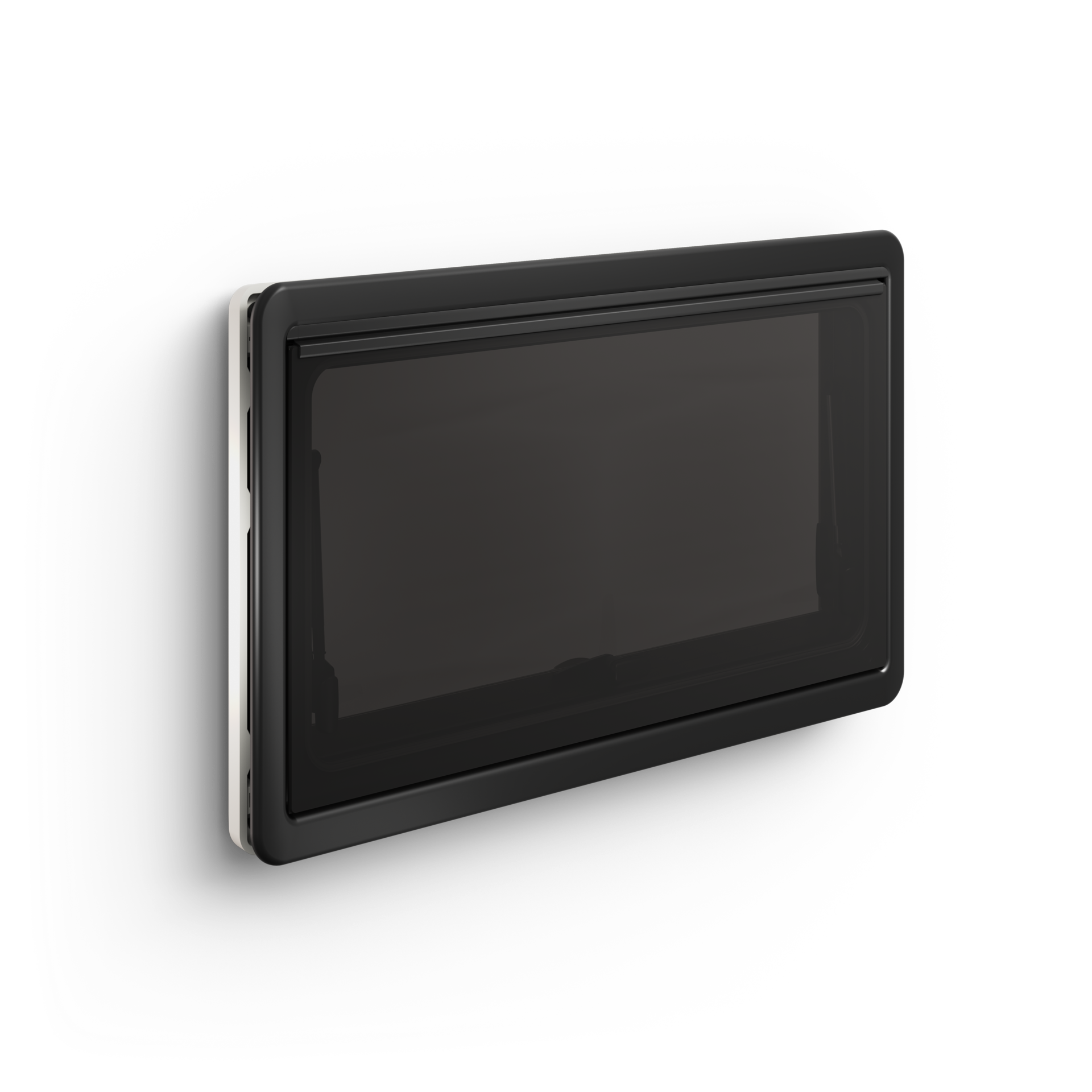

Dometic PUR-Win S10

Specificaties

Algemeen

Scope of delivery

S10.4 Window with manual in box

SKUCertificates

ECE R43

Product Description

Bovenscharnierend wandklapraam, 1300 x 600, zwart/wit

Afmetingen

Dimensions product height, [mm]

631

Dimensions product width, [mm]

1343

Dimensions product width, ["] - Display

52.87

Dimensions ordered height, [mm]

600

Dimensions ordered width, [mm]

1300

Net weight, [kg]

14.20

Net weight, [lbs]

31.31

Standard mount. material thickness 1 min, [mm]

26

Standard mount. material thickness 1 max, [mm]

26

Possible material thickness 1 min, [mm]

27

Possible material thickness 1 max, [mm]

41

Cut out height, [mm]

599.000000

Cut out width, [mm]

1297.000000

Eigenschappen

Hinge type

Bovenscharnierend

Positions variable

Variable

Logistiek

Dimensions parcel depth, [mm]

710

Dimensions parcel height, [mm]

180

Dimensions parcel width, [mm]

1420

Parcel weight, [kg]

16.32

Parcel weight, [lbs]

35.97
