Dometic Steering Wheel

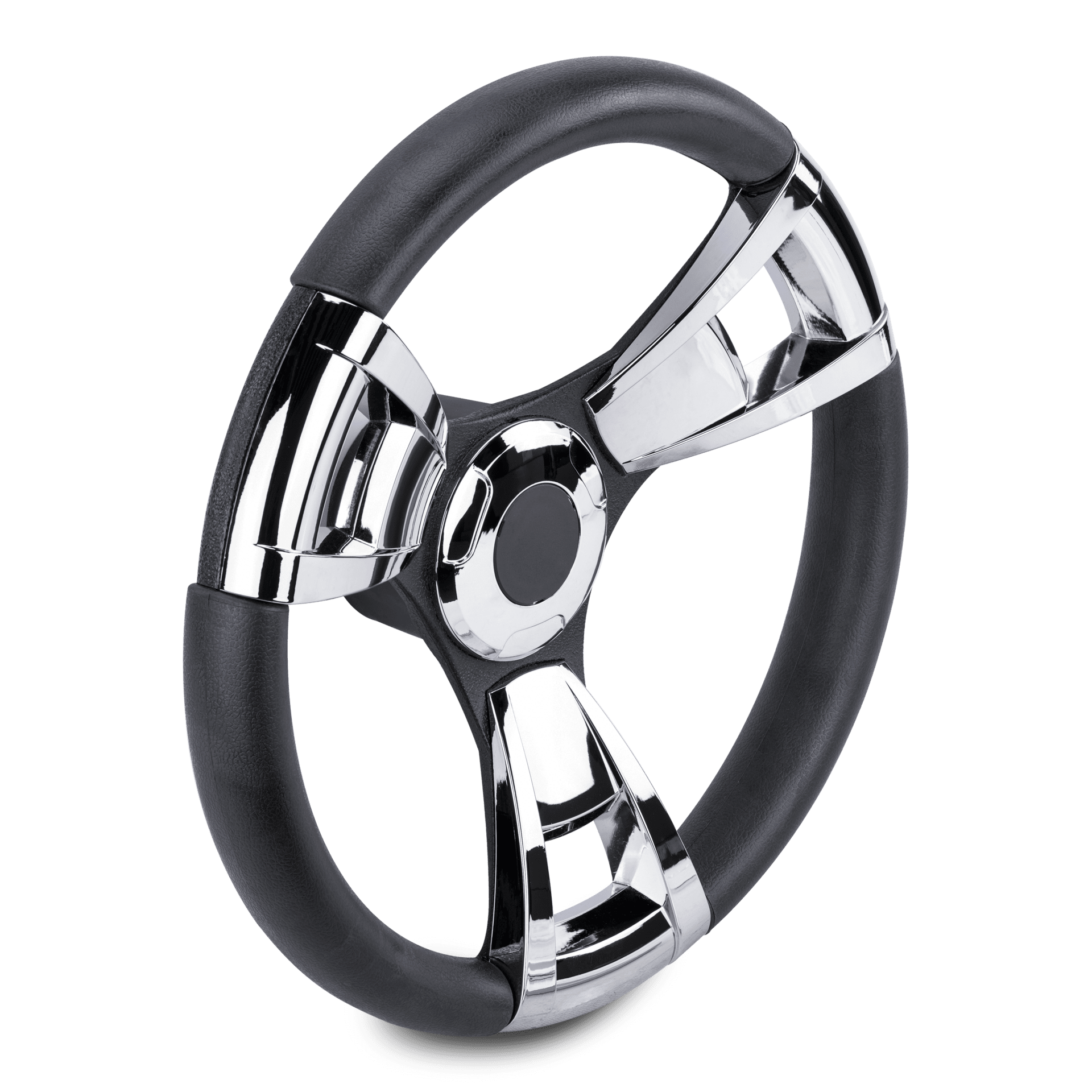

Armada Steering Wheel, 13.5", SW60105P

This all-ABS steering wheel features EVA soft touch rim, chromed ABS spoke inserts, and a center ring with resin logo. It will attach to marine helms with ABYC standard 3/4” tapered steering shafts, using anti-vibratory lock nuts.

Beschrijving

This all-ABS steering wheel features EVA soft touch rim, chromed ABS spoke inserts, and a center ring with resin logo. It will attach to marine helms with ABYC standard 3/4” tapered steering shafts, using anti-vibratory lock nuts.

Specificaties

SKU: 9130005843

Dometic Steering Wheel — Algemeen, specificaties
ModelSteering Wheels
Product DescriptionArmada Steering Wheel, 13.5", SW60105P

Dometic Steering Wheel — Afmetingen, specificaties
Dimensions product depth, [mm]110.49
Dimensions product height, [mm]369.57
Dimensions product width, [mm]361.95

Dometic Steering Wheel — Logistiek, specificaties
Parcel weight, [kg]1.56

Productafmetingen & gewicht

B 361.95 x H 369.57 x D 110.49 mm

Vragen, beantwoord.

Handig om te weten voordat je kiest.

Nog hulp nodig?

Contact met productondersteuning

1 vraag

Dometic does not make specific recommendations regarding steering wheel size, except that the wheel is at or below the maximum wheel diameter noted for each type of helm and that the wheel is sized/located so it can be rotated freely by the boat operator through the entire steering arc with no obstruction or hindrance to movement. Wheels in the 14" diameter range are used widely with mechanical steering systems. Any size wheel may be used so long as the helm's recommended maximum wheel diameter is not exceeded and steering effort is acceptable.

An equidistant-spoke steering wheel is suggested for hydraulic steering systems since a certain amount of oil bypass in the helm will gradually result in the wheel becoming un-centered when the engine/drive/rudder is in the straight-ahead position. Again, please note the maximum wheel diameter recommended for the helm.
