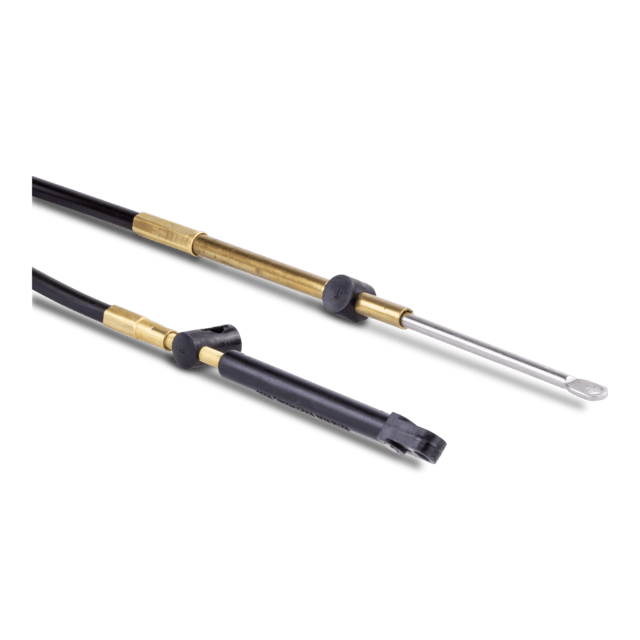

Dometic Xtreme CCX179

Xtreme Cable Assembly, Gen I Mercury, available in many lengths
Sold in our dealer networkArt nr: 9130003433
Your Configurations
Dimensions product length, [']

19

Dometic Xtreme Control cables have a patented splined core for smoother control without sacrificing precision. The HDPE outer casing offers durability and excellent resistance to UV and chemicals. This CCX179 series cable is a replacement for Mercury 600A premium cables.

Unique XTREME technology with patented splined core

Coated core element provides maximum smoothness with minimal lost motion

Black HDPE outer casing for durability and excellent resistance to UV and chemicals

Ridges on the core allow a close fit with cable’s inner liner, but with minimum contact so the core glides smoothly

Drop-in replacement cables are engineered as replacements for original equipment cables

Cables use the existing connection components

SKU number

9130003433

Model

Mercury Gen I

Legacy Factory Item Number

CCX17919

Product Description

Xtreme Cable Assembly, Gen I Mercury, 19'

Dimensions product height, ["]

1 1/4

Dimensions product width, ["]

17

Dimensions product length, [']

19

Net weight, [lbs]

2.62

Wire Gauge, [awg]

17

Wire Length, [']

17

EAN-13

0

Dimensions parcel depth, ["]

1 1/4

Dimensions parcel height, ["]

17

Dimensions parcel width, ["]

2.62

Parcel weight, [lbs]

2.75

C1

Product Leaflet

Download
