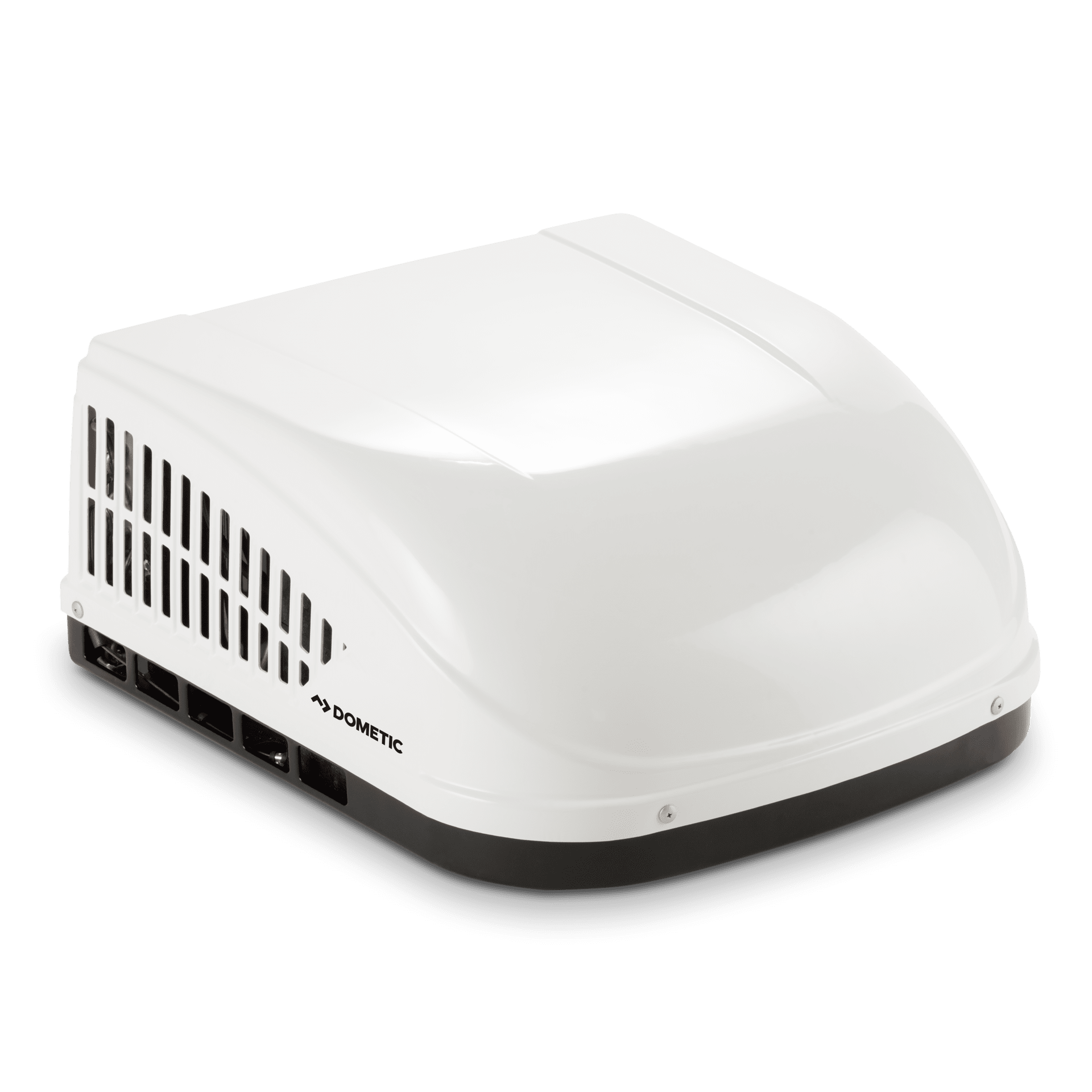

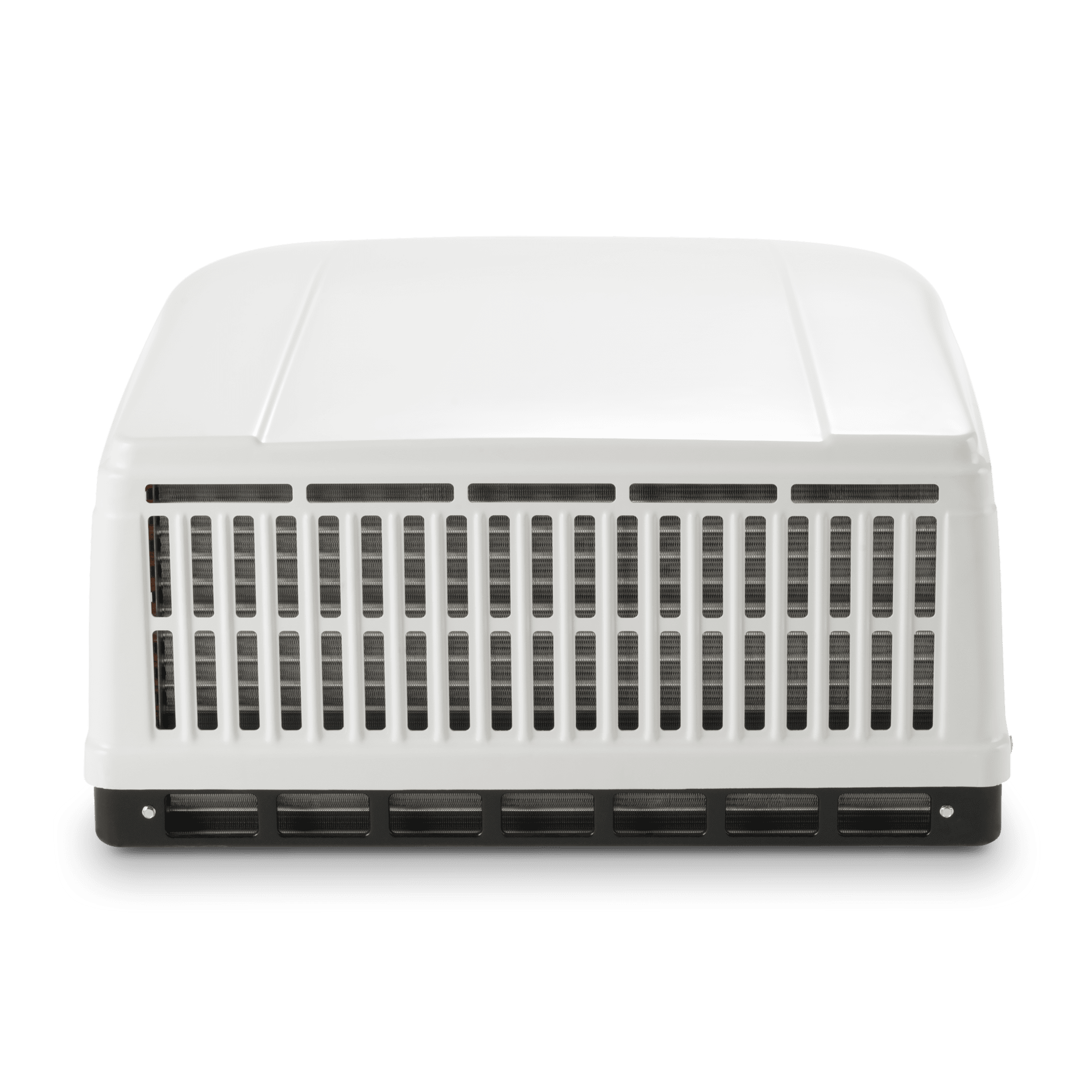

Brisk II Evolution 15K with Heat Pump

Specifications

General

Scope of delivery

1 Air conditioner, 1 Warranty card, 1 Registration card

SKUCertificates

CSA

Product Description

15,000 BTU - Rooftop Standard Profile Air Conditioner with Heat Pump - No Pre-installed controls - Non-ducted application: air distribution box, CT controls and CT thermostat required - Ducted application: return air grille, CT controls and CT thermostat

Dimensions

Dimensions product depth, [mm]

736.60

Dimensions product height, [mm]

381

Dimensions product width, [mm]

774.70

Dimensions product width, ["] - Display

30 1/2

Net weight, [kg]

38.56

Net weight, [lbs]

85

Cut out height, [mm]

360.000000

Cut out width, [mm]

360.000000

Electrical

Input voltage (AC), [V]

115

Input frequency, [Hz]

60

Performance

Hermetically Sealed

Yes

Refrigerant, type

R410A

GWP

2088

CO2 equivalent, [t]

1,302

AirFlow, [m³h]

295.000000

Power consumption - Heat pump (ISO 5151)

1402

Logistics

Dimensions parcel depth, [mm]

737

Dimensions parcel height, [mm]

381

Dimensions parcel width, [mm]

775

Parcel weight, [kg]

38.56

Parcel weight, [lbs]

85.01
