Opis
- Available in 230V 50Hz, 230V 60 Hz, and 380V 50Hz 3PH
- 36,000 to 72,000 BTU/h units also available in 460V 60Hz 3PH
- Split-gas system confines compressor noise to the engine room and places quiet evaporating units in living areas
- Square chassis for easy installation in tight spaces. Reversing valve, pressure switches, and service ports centrally located for easy maintenance access from any side
- Rust-free composite drain pan
- Reconfigurable chassis allows optimal drain connections
- Compressor vibration-isolation mounts minimize noise and vibration
- Built-in refrigerant line filter drier reduces installation time and protects the compressor from moisture and contaminants

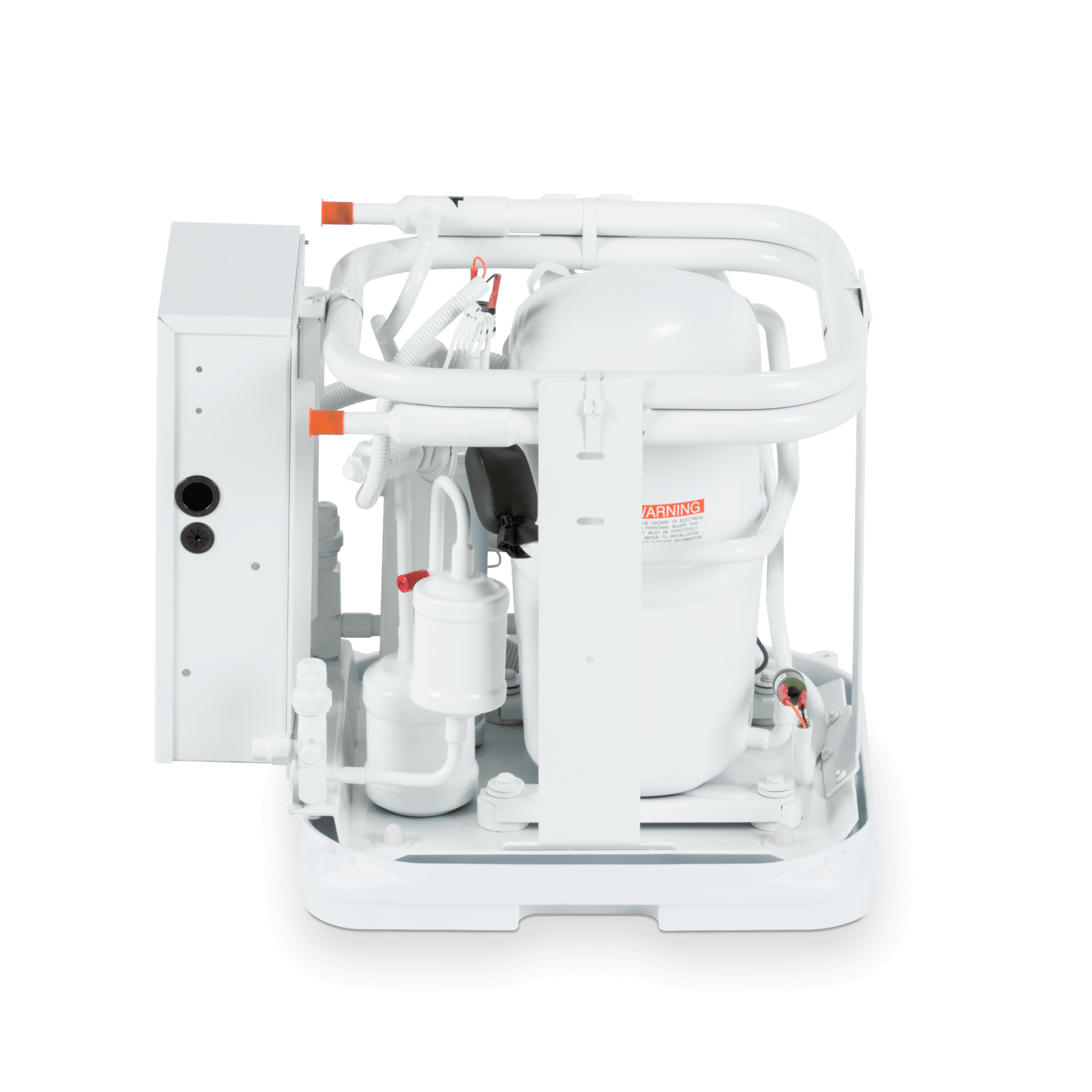

This titanium condenser has reversing valve, pressure switches, and service ports centrally located for easy maintenance access from any side. Vibration-isolating compressor mounting system reduces noise and vibration. Pair this with a Dometic Emerald TurboVap R-410A evaporator.
Specyfikacje
SKU: 9610004721
| Model | DEUX |
|---|---|
| Product Description | Condensing Unit from 24,000 BTU/h to 72,000 BTU/h |
| Input voltage (AC), [V] | 220-240 |
|---|---|
| Input frequency, [Hz] | 50 |
| Required AC circuit protection min, [A] | 22 |
| Required AC circuit protection max, [A] | 35 |
| Hermetically Sealed | Tak |
|---|---|
| Refrigerant, type | R410A |
| GWP | 2088 |
| CO2 equivalent, [t] | 2.49 |
| Cooling Capacity Display | 24000 |
| Current consumption min cooling, [A] | 6.3 |
| Current consumption max cooling, [A] | 6.3 |
| Dimensions parcel depth, [mm] | 622.30 |
|---|---|
| Dimensions parcel height, [mm] | 723.90 |
| Dimensions parcel width, [mm] | 622.30 |
| Parcel weight, [kg] | 52.21 |
