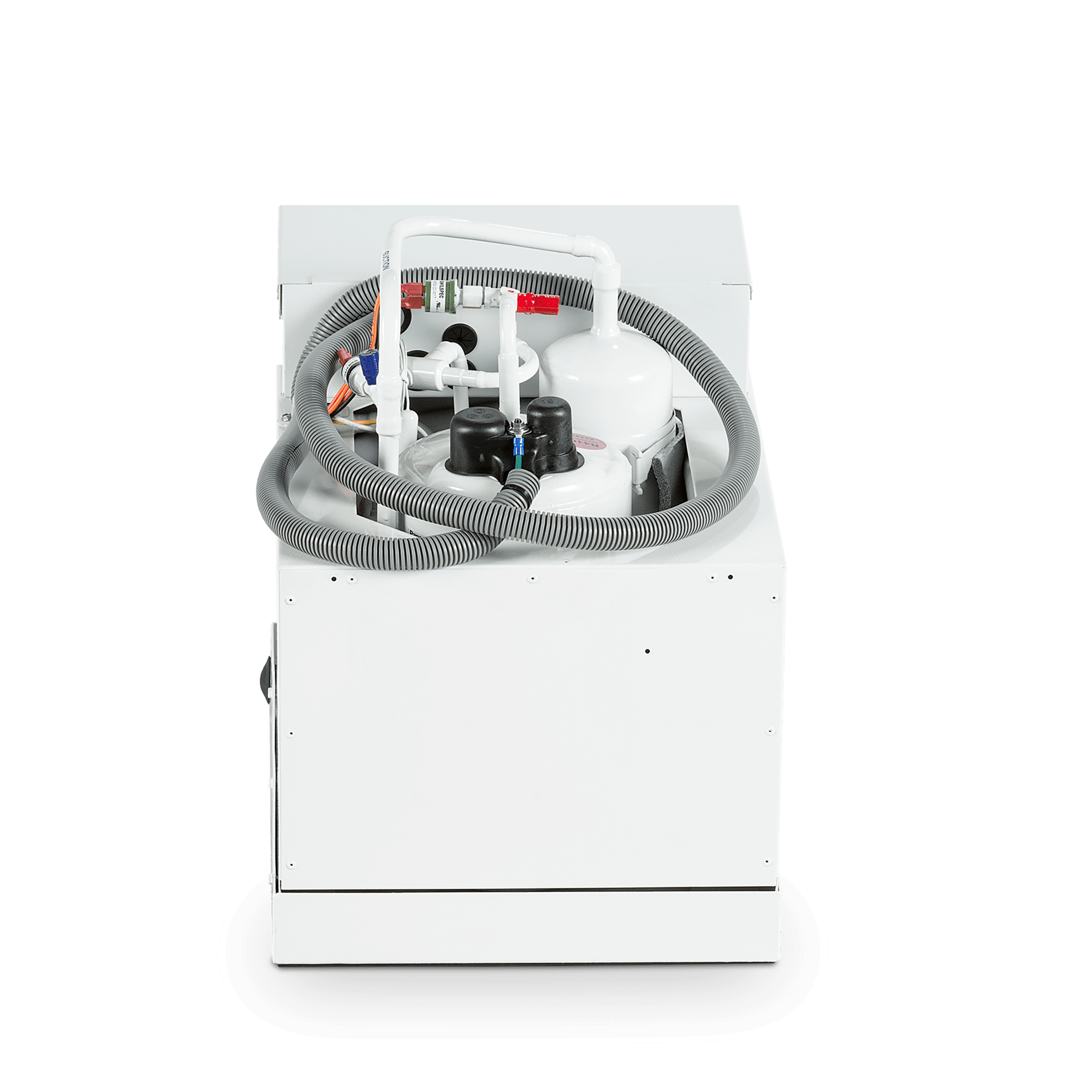

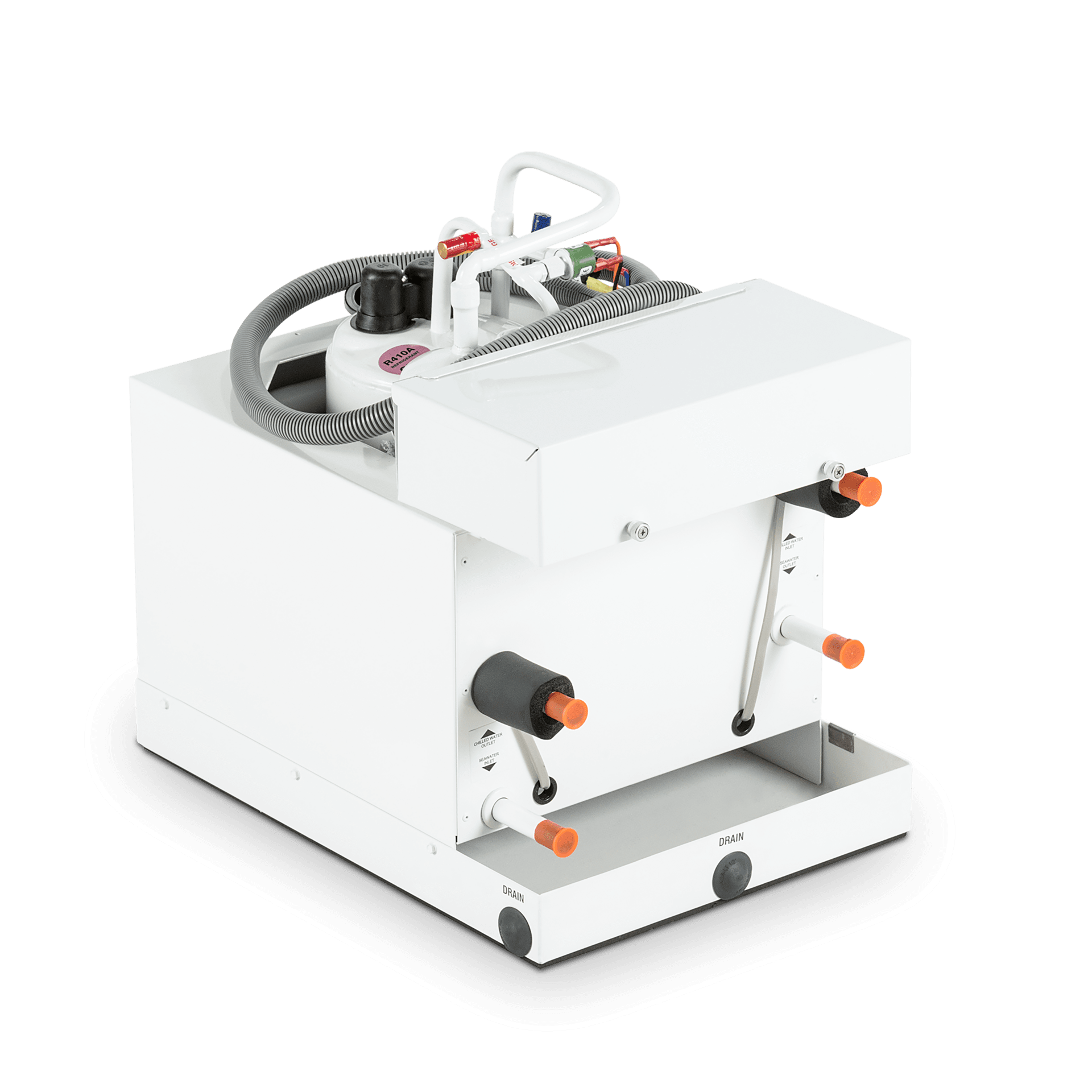

Image 1 of 2

Dometic CHCG CW Module

Chilled Water Condenser, 24,000 BTU/h, 230V

Provides installation flexibility, reliability, maximum performance and easy accessibility for maintenance and repair.

Description

  1. Compact footprint for installation flexibility
  2. Engineered to maximize the performance of R410A, an environmentally safe refrigerant
  3. Hot-gas bypass valve maintains heating performance in cold seawater
  4. Up to six modules can be multiplexed for larger capacities
  5. Thermodynamically-matched components assure maximum performance
  6. Spiral-fluted cupronickel condenser coil provides maximum heat transfer and corrosion resistance
  7. High-efficiency rotary or scroll compressors

Specifications

SKU: 9108850289

Dometic CHCG CW Module — General specifications
ModelChiller Cond CHC Modular
Product DescriptionChilled Water Condenser, 24,000 BTU/h, 230V

Dometic CHCG CW Module — Dimensions specifications
Dimensions product depth, [in]17.5
Dimensions product height, [in]19
Dimensions product width, [in]24 1/2
Net weight, [lbs]91.50

Dometic CHCG CW Module — Electrical specifications
Input voltage (AC), [V]230
Input frequency, [Hz]60
Required AC circuit protection min, [A]23
Required AC circuit protection max, [A]40

Dometic CHCG CW Module — Performance specifications
Hermetically SealedYes
Refrigerant, typeR410A
GWP2088
CO2 equivalent, [t]1,361
Cooling Capacity ISO5151 Display7033.71
Cooling Capacity Display24000
Current consumption min cooling, [A]9.5
Current consumption max cooling, [A]9.5

Dometic CHCG CW Module — Logistics specifications
Dimensions parcel depth, [in]22.5
Dimensions parcel height, [in]25.5
Dimensions parcel width, [in]20.5
Parcel weight, [lbs]114.2

Dometic Chillers Fixed Speed - Declaration of Conformity EU
Declaration Of Conformity
Dometic Climate Parts Guide.pdf
Cancer warning icon

Warning: Cancer or reproductive harm www.P65Warnings.ca.gov

Product size & weight

H 19 x D 17.5 in

Weight: 91.50 lbs
