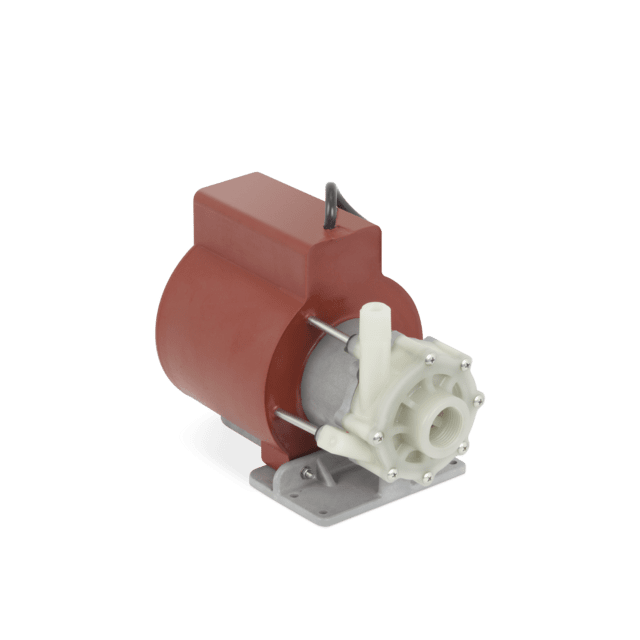

Dometic DX P800 PMA1000
This pump provides a steady flow of cooling water through your marine air conditioning system: ensuring a reliable performance. A wide range of pumps and motors are available for use in different power environments. This pump also boasts an exclusive marine-grade base that's capable of withstanding harsh marine conditions.
Magnetic-drive impeller means no seal to wear, leak, or repair
Efficient motor with low power consumption
Exclusive marine-grade base can handle harsh marine conditions
Liquid-cooled (submersible)
All components in contact with water are plastic, ceramic, or stainless steel
6 ft. (1.8 m) power cord is standard
SKU number
9108690301
Model
Magnetic Drive
Model on label
225500276
Product Description
Water Pump, 115V, 14.5GPM
Dimensions product depth, [mm]
250.19
Dimensions product height, [mm]
181.36
Dimensions product width, [mm]
143
Net weight, [kg]
7.35
Input voltage (AC), [V]
115
Input frequency, [Hz]
50/60
Required AC circuit protection min, [A]
2.1
EAN-13
7315091207393
Dimensions parcel depth, [mm]
312.42
Dimensions parcel height, [mm]
234.95
Dimensions parcel width, [mm]
226.06
Parcel weight, [kg]
7.99
