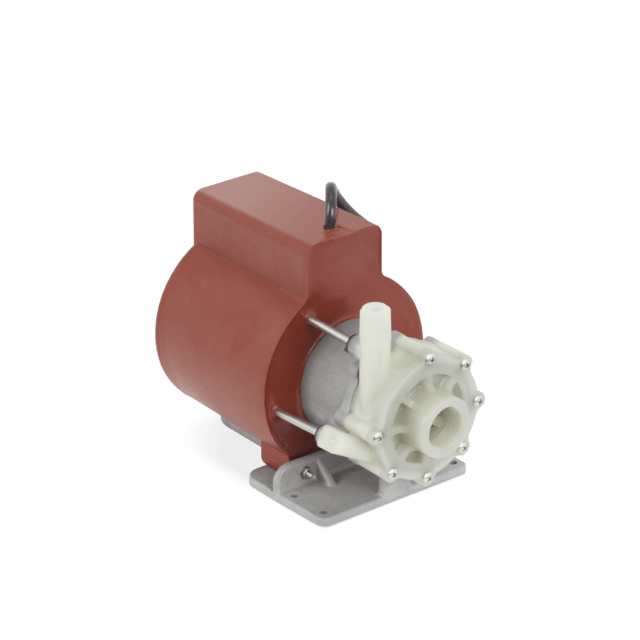

Dometic Magnetic Drive Pump
This pump provides a steady flow of cooling water through your marine air conditioning system: ensuring a reliable performance. A wide range of pumps and motors are available for use in different power environments. This pump also boasts an exclusive marine-grade base that's capable of withstanding harsh marine conditions.
Magnetic-drive impeller means no seal to wear, leak, or repair
Efficient motor with low power consumption
Exclusive marine-grade base can handle harsh marine conditions
Liquid-cooled (submersible)
All components in contact with water are plastic, ceramic, or stainless steel
6 ft. (1.8 m) power cord is standard
SKU number
9108690330
Model
Magnetic Drive
Model on label
225500288
Product Description
Water Pump, 230V, 14.5 GPM
Dimensions product depth, [mm]
393.7
Dimensions product height, [mm]
325.12
Dimensions product width, [mm]
317.5
Net weight, [kg]
7.03
Input voltage (AC), [V]
230
Input frequency, [Hz]
50/60
Required AC circuit protection min, [A]
2
Required AC circuit protection max, [A]
5
EAN-13
7315091217224
Dimensions parcel depth, [mm]
312.42
Dimensions parcel height, [mm]
234.95
Dimensions parcel width, [mm]
226.06
Parcel weight, [kg]
7.94
