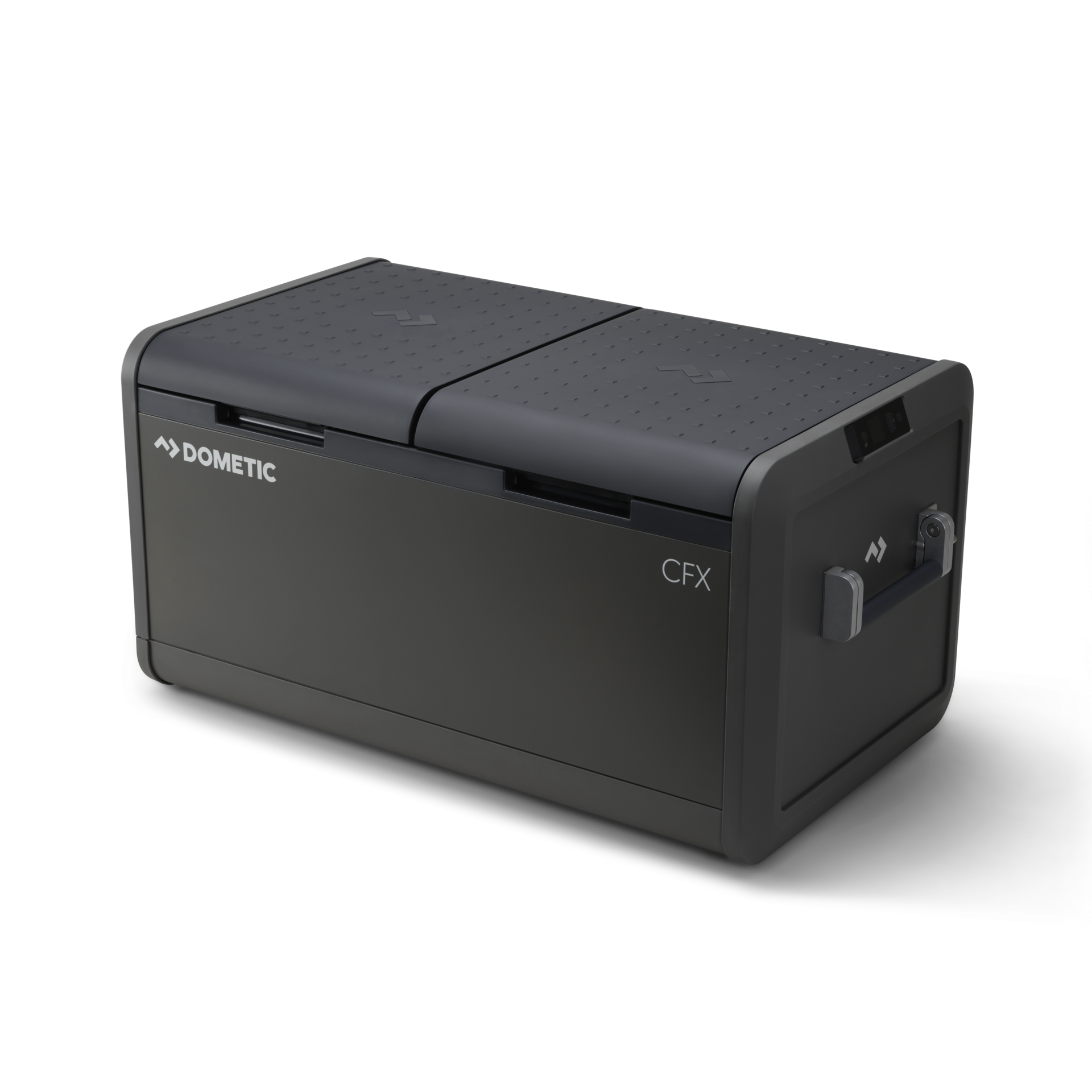

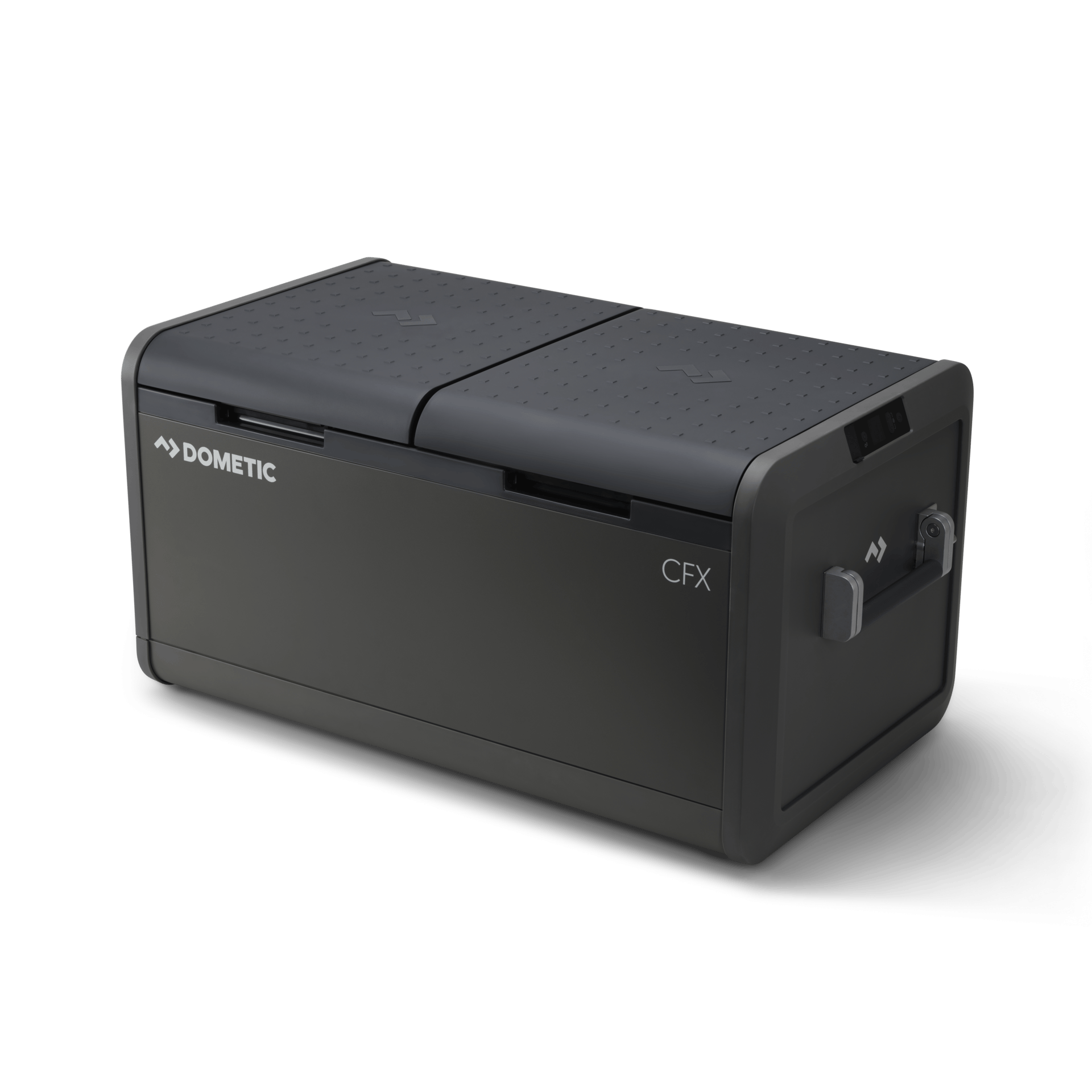

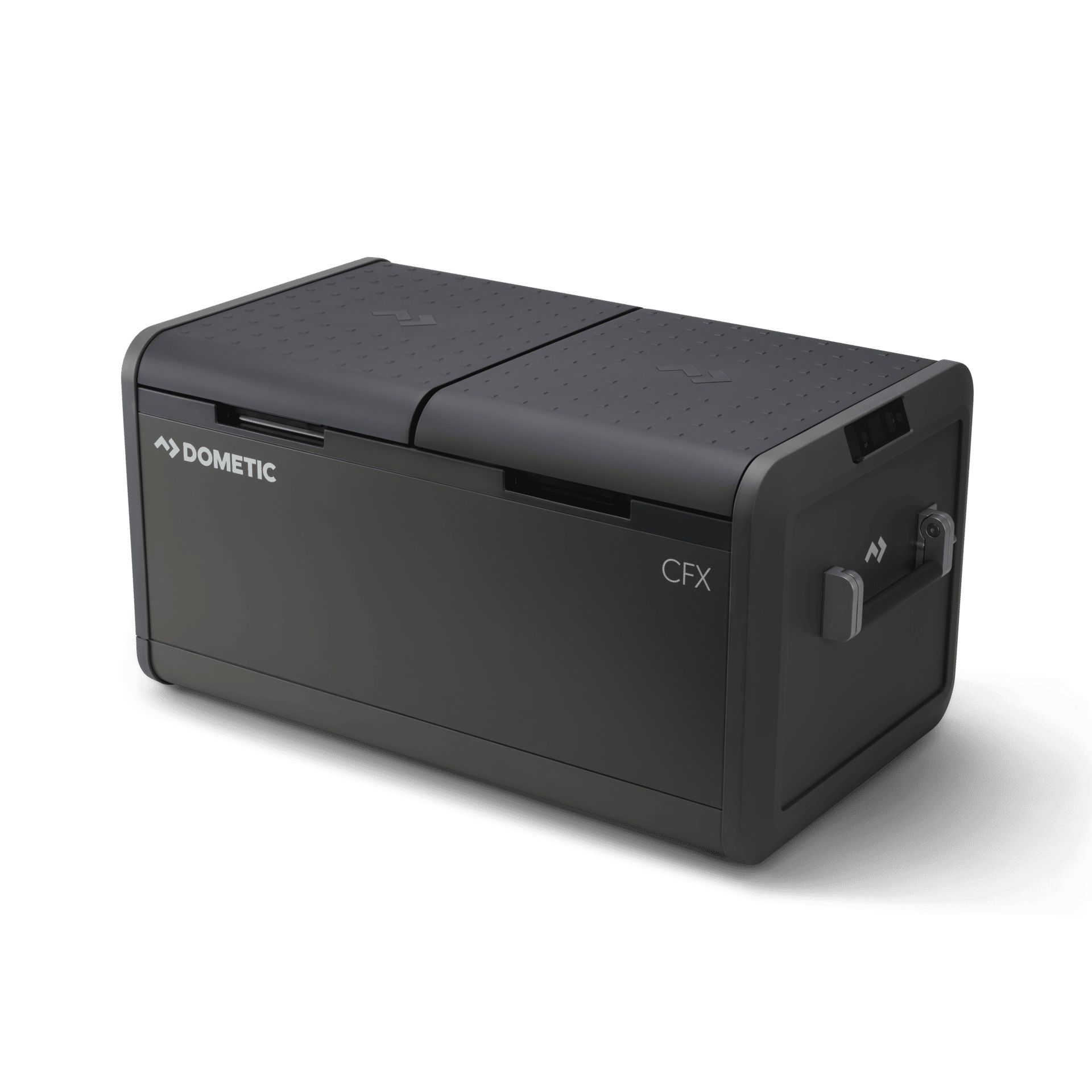

CFX5 95DZ Electric Cooler

Description

1. 01The 96L DZ capacity holds up to 133 x 12 oz cans – a large size for big groups and extended nomadic travel
2. 02Temperature range of -7F (-22C) to 68F (20C); Using less power than a 60W light bulb.
3. 03Track energy consumption and monitor temperature with the cooler’s Bluetooth smartphone app; be alerted when lid is left over, monitor history, and connect multiple devices at once.

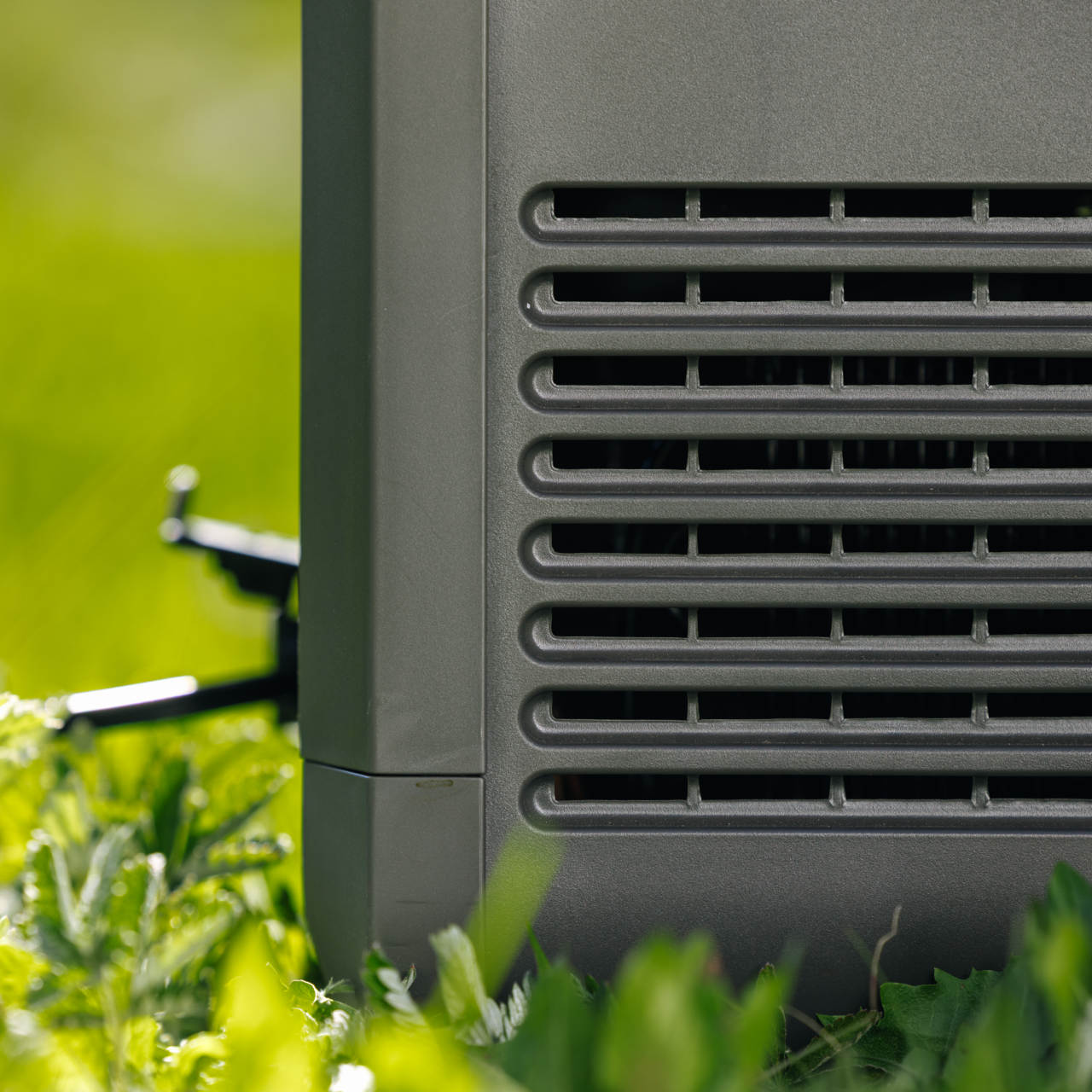

4. 04Optimized ratio of exterior to interior proportions provides maximum compressor efficiency, while the extended evaporator on inner walls ensures an even distribution of cold air.
5. 05Powered by AC (110-240V), DC (12/24V) – or go off-grid with Dometic batteries and Obsidian solar panels.
6. 063-stage dynamic battery protection system actively monitors inbound power and prevents draining a vehicle battery or allows deep draw on dual batteries.

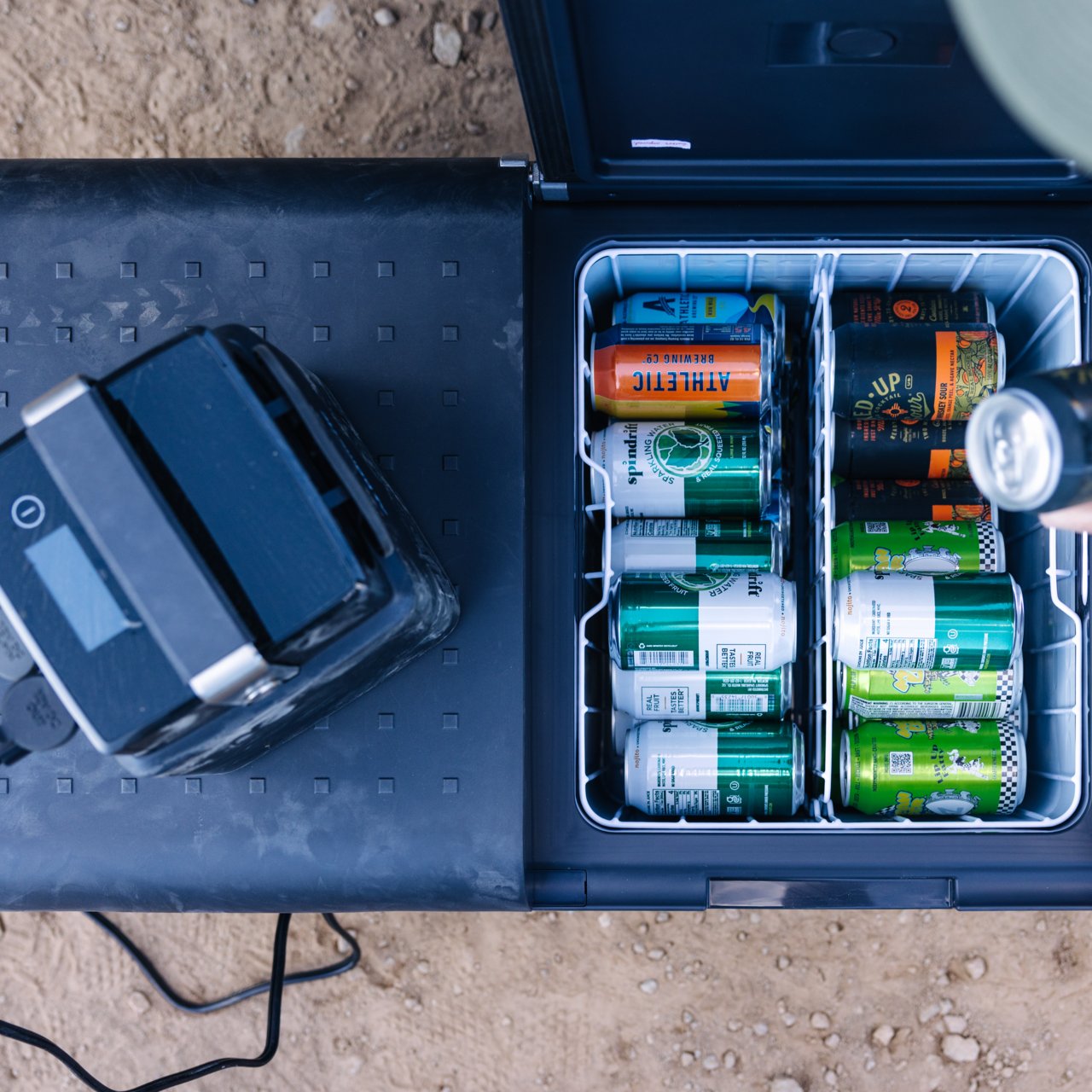

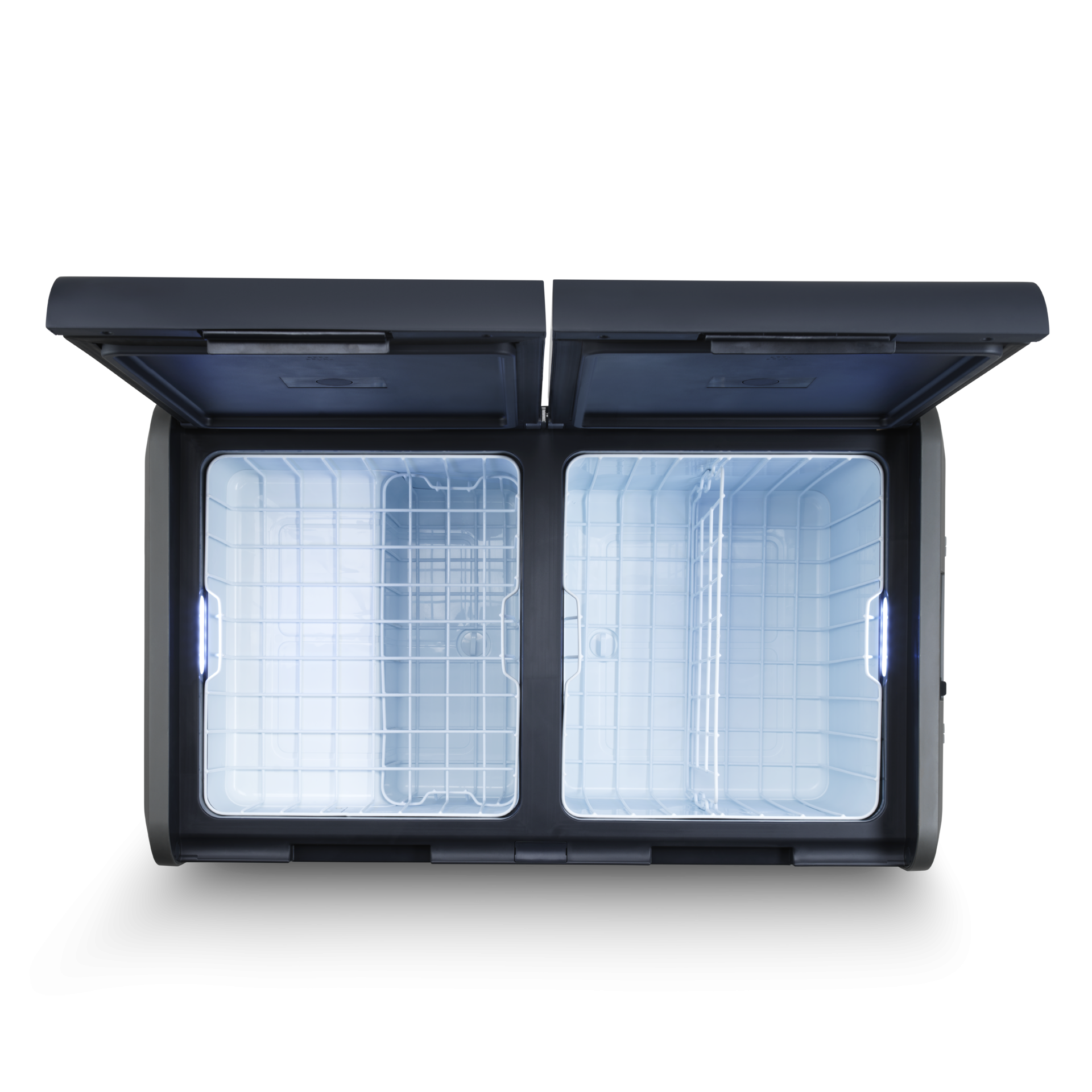

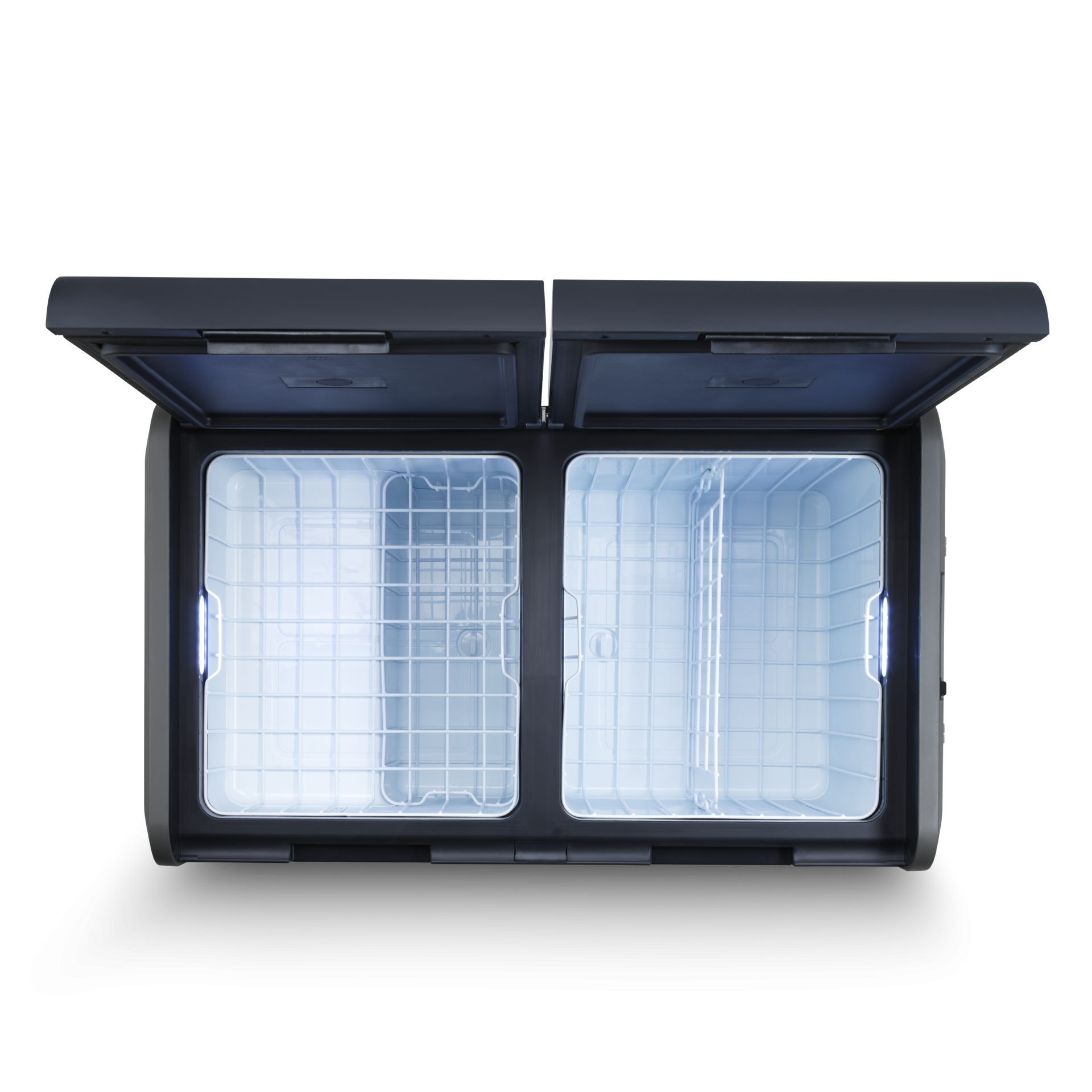

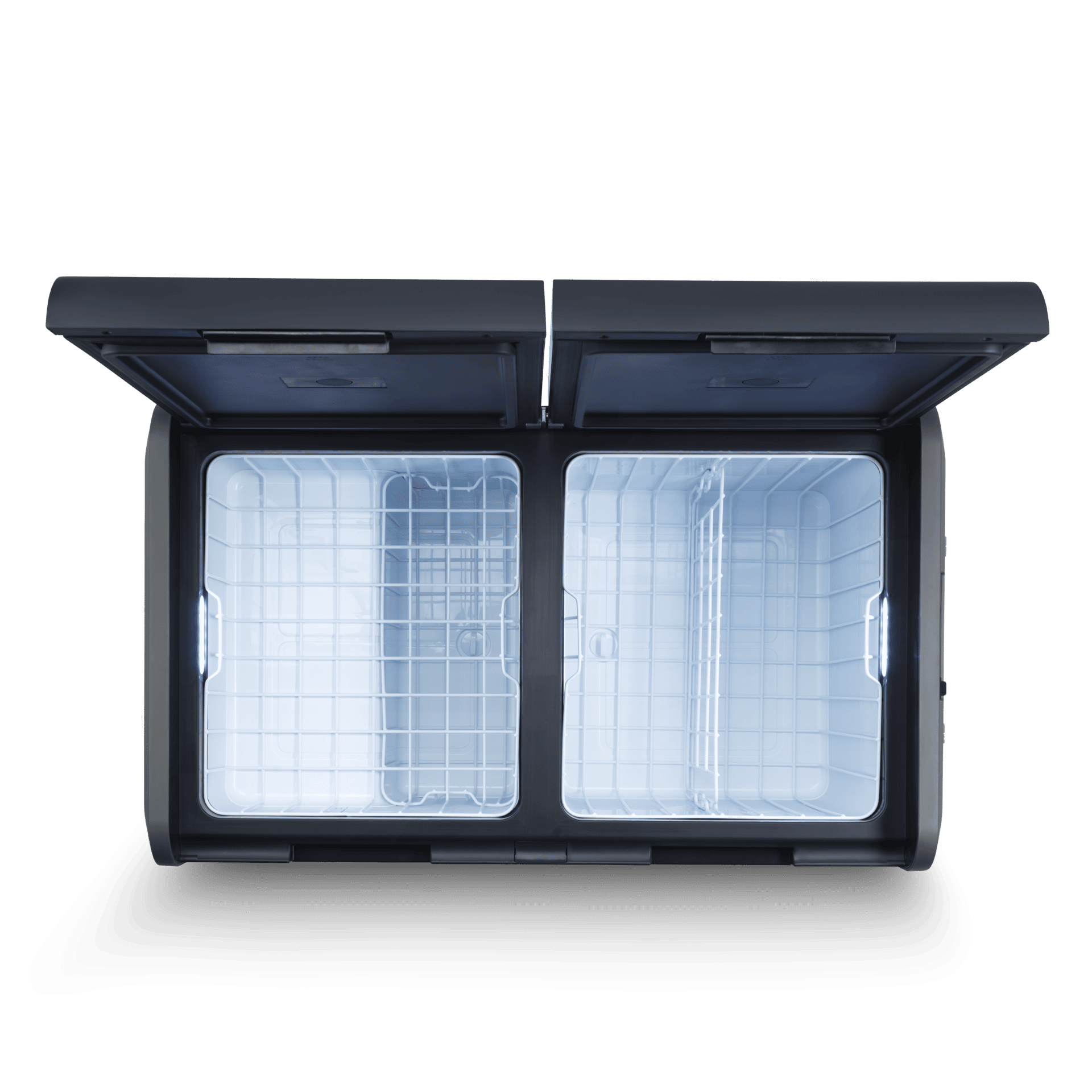

7. 07Two cooling zones allow you to bring refrigerated and frozen foods all at once.

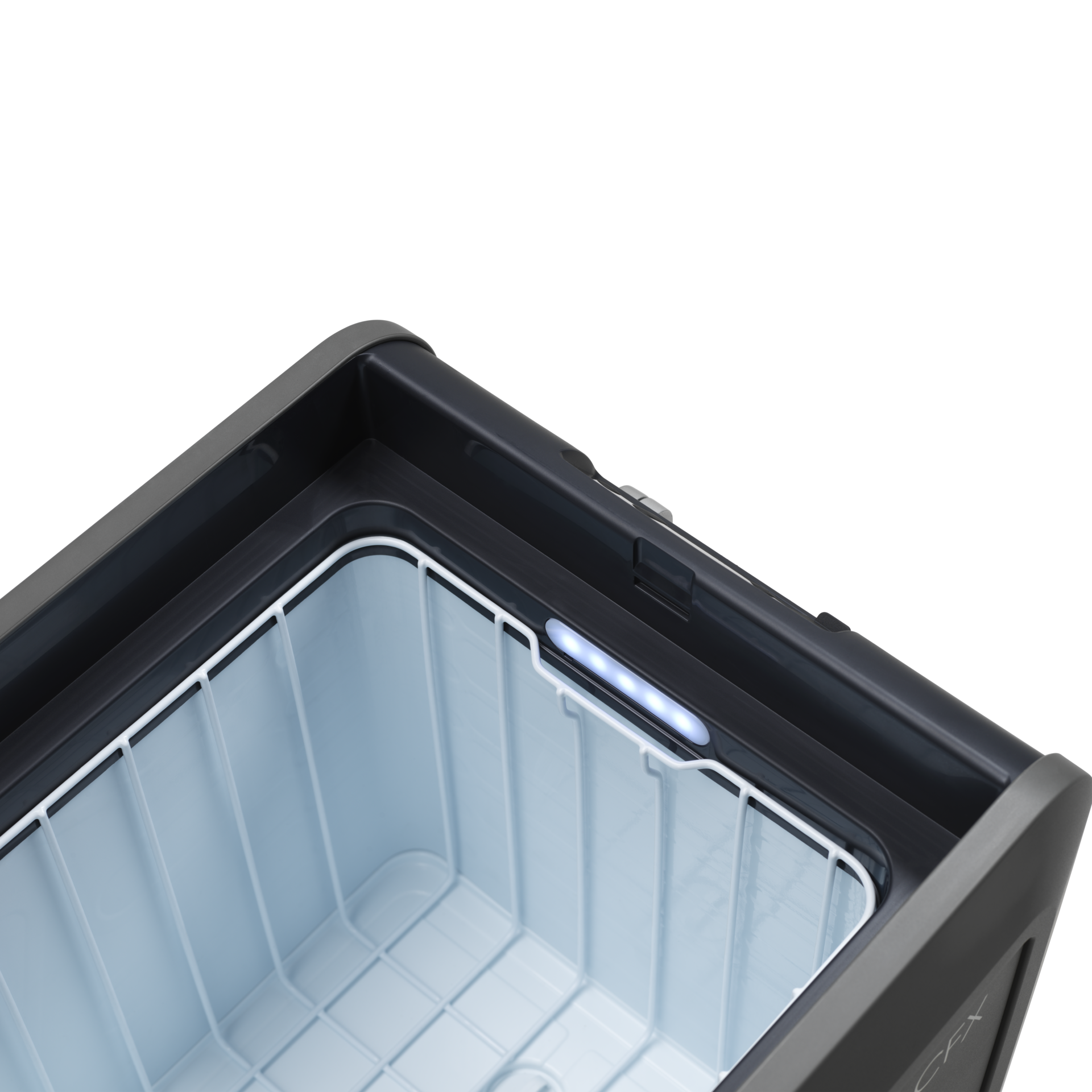

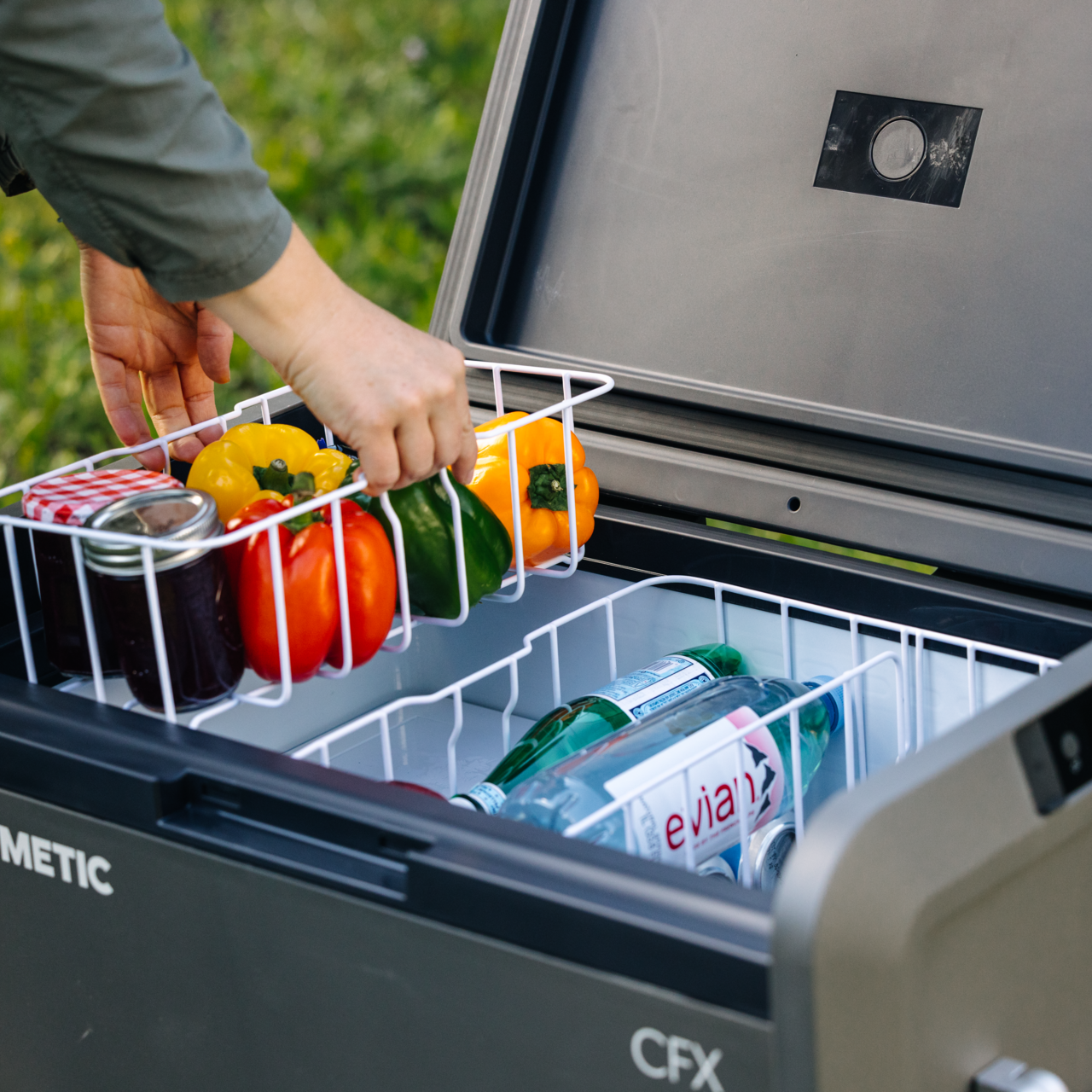

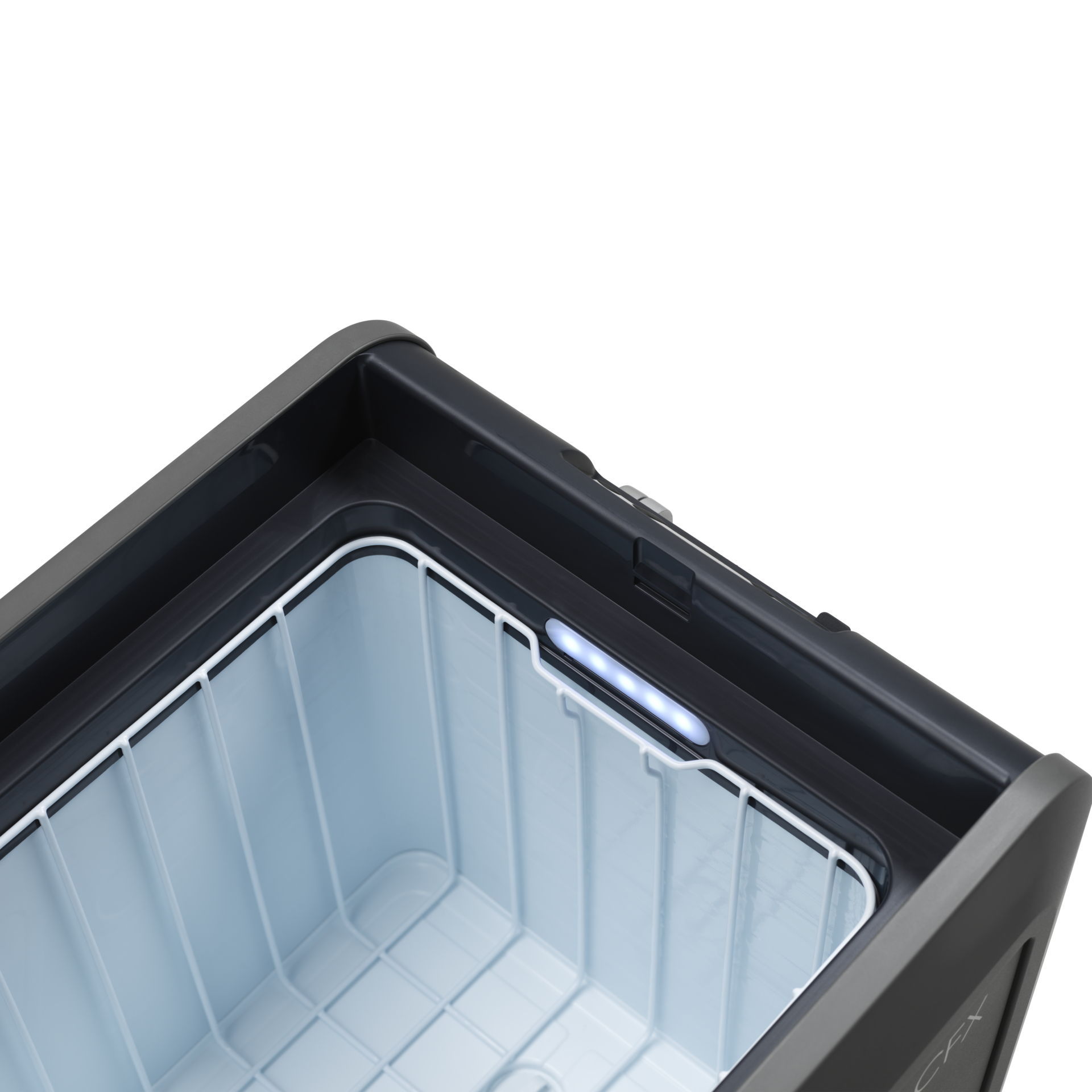

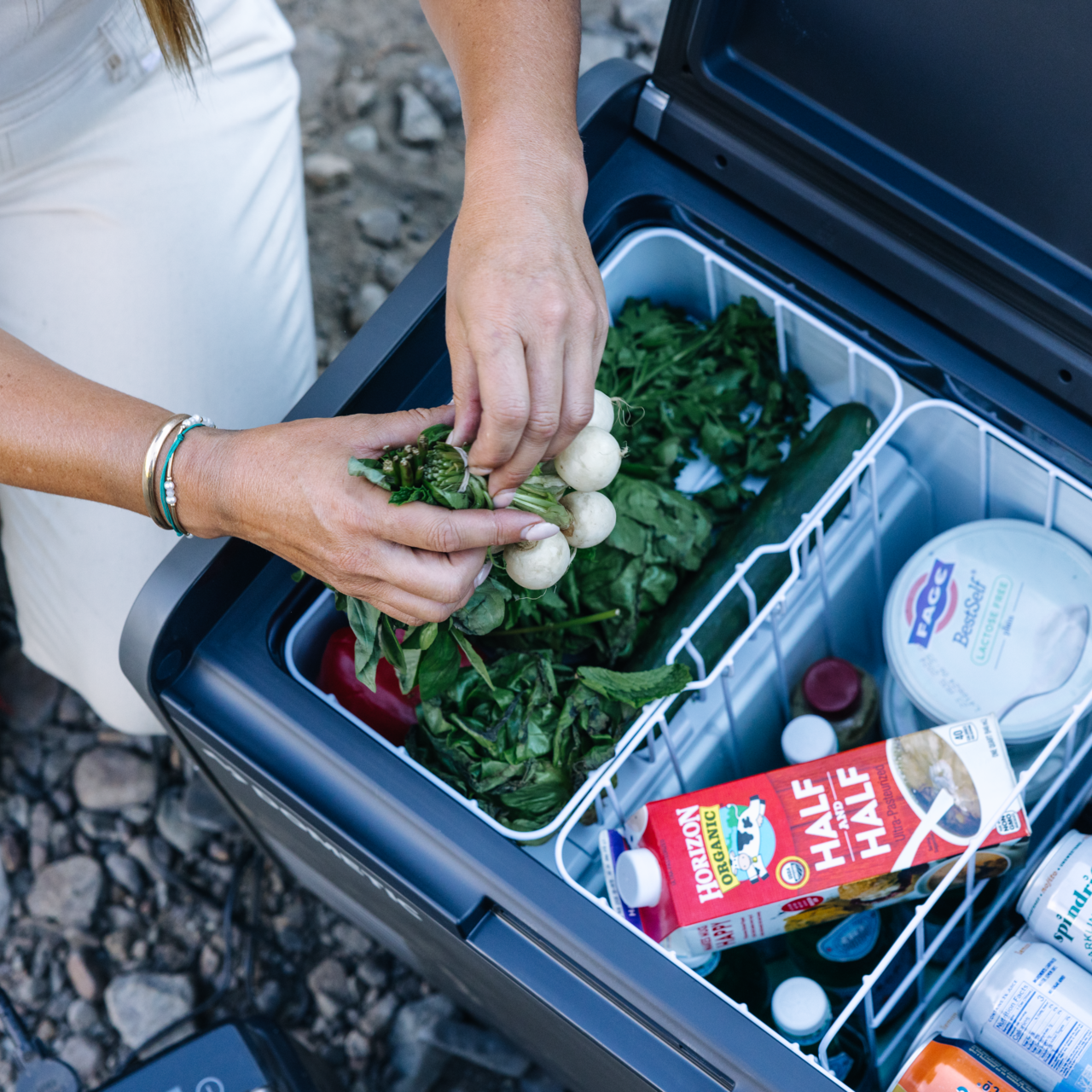

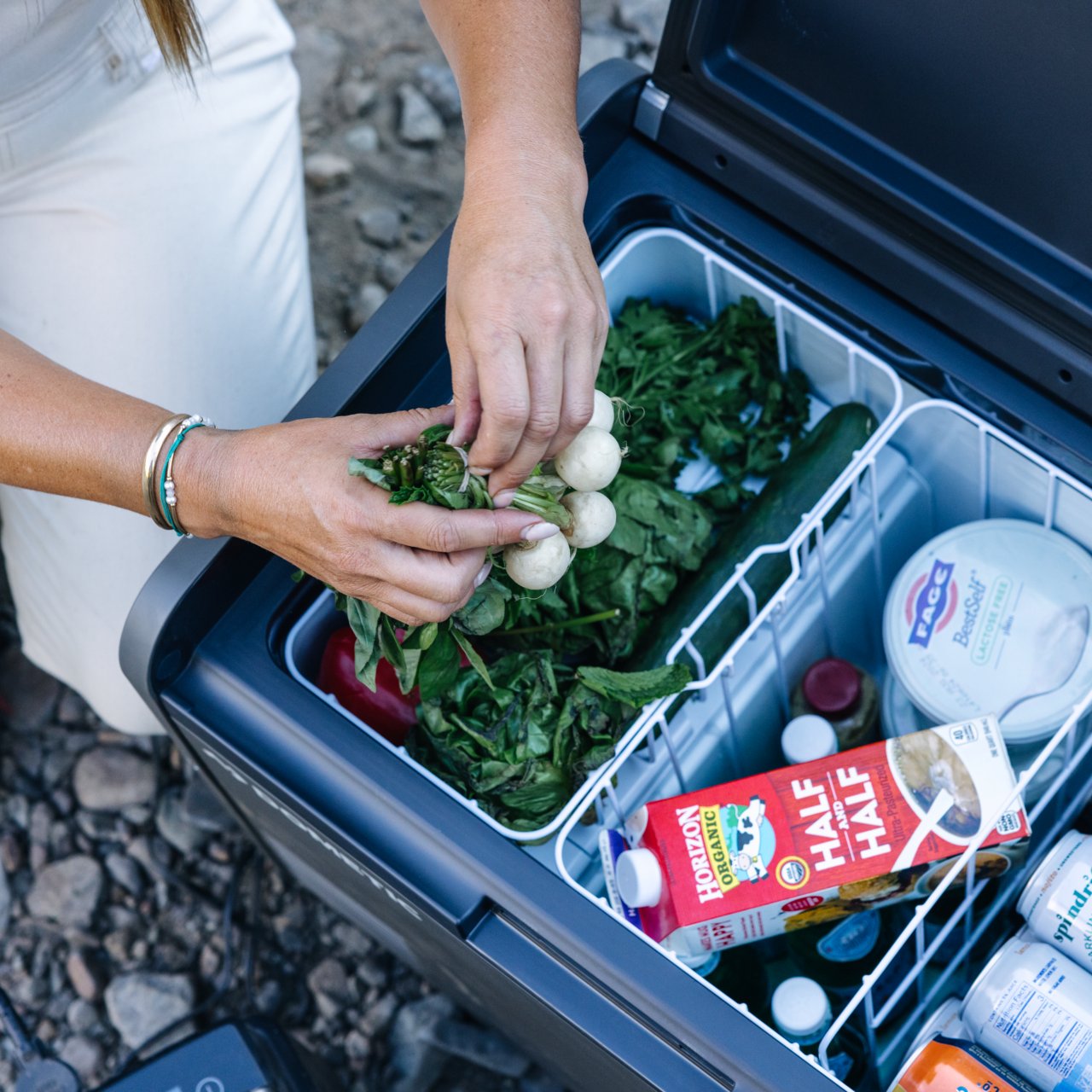

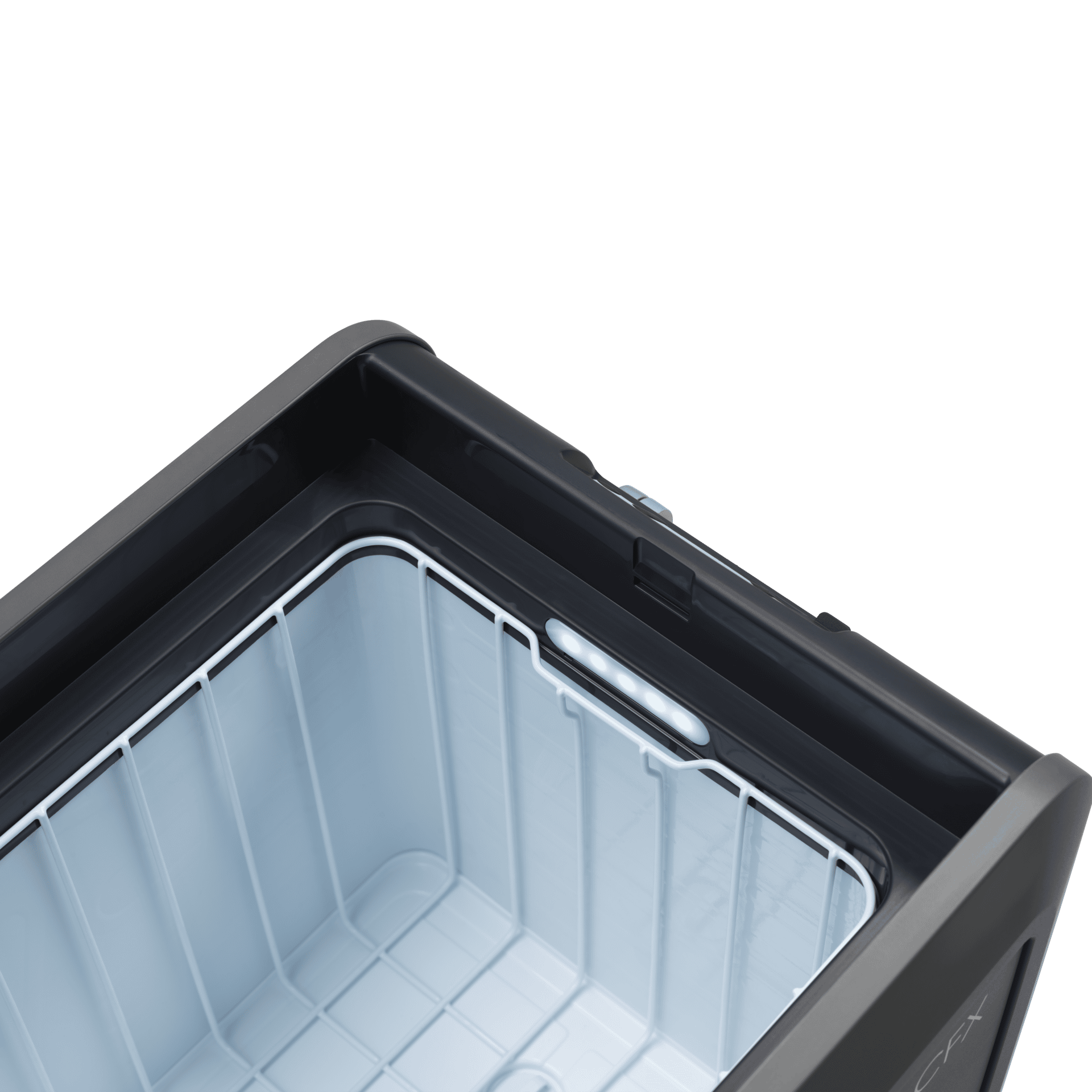

8. 08Internal details include a removable wire divider and an interior light.

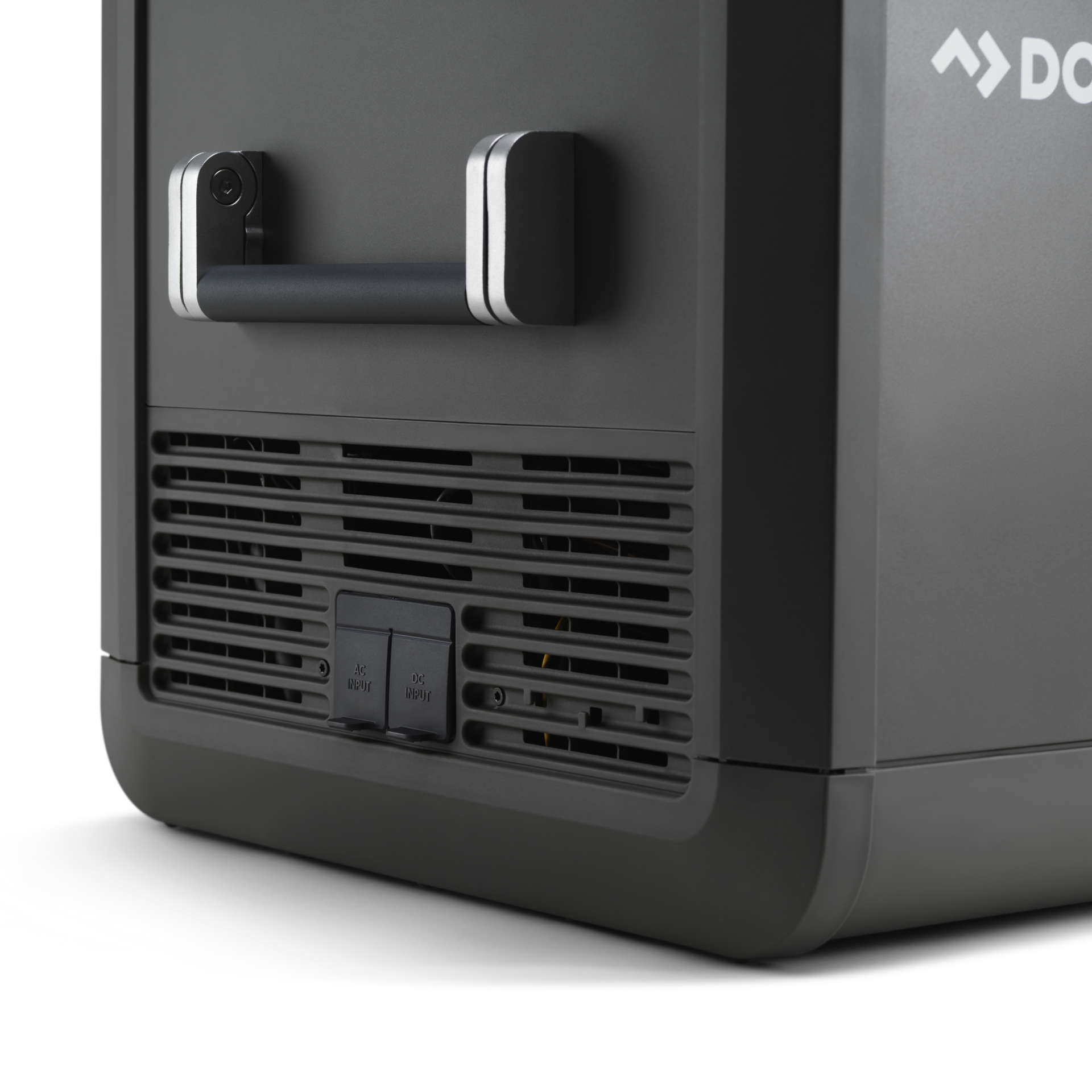

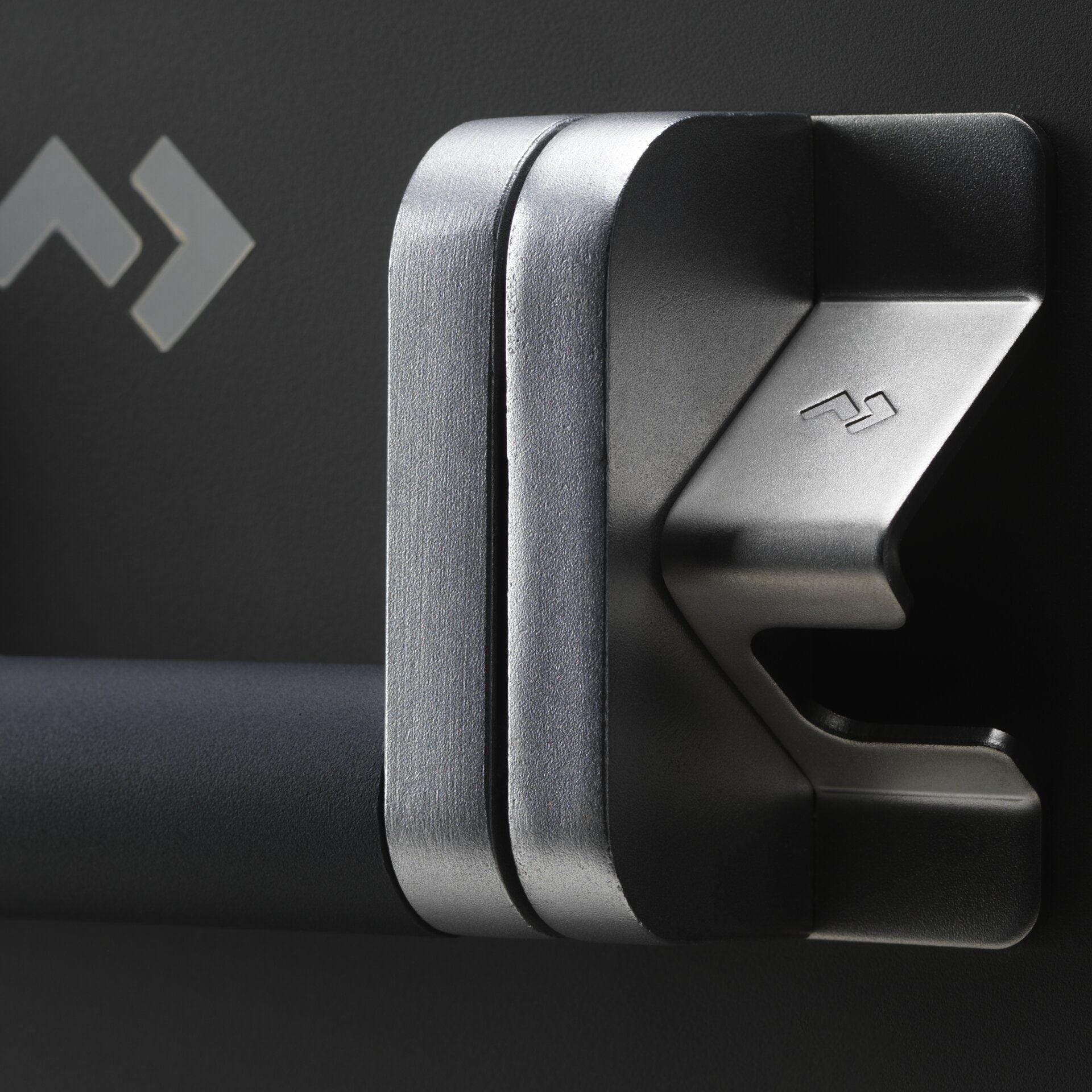

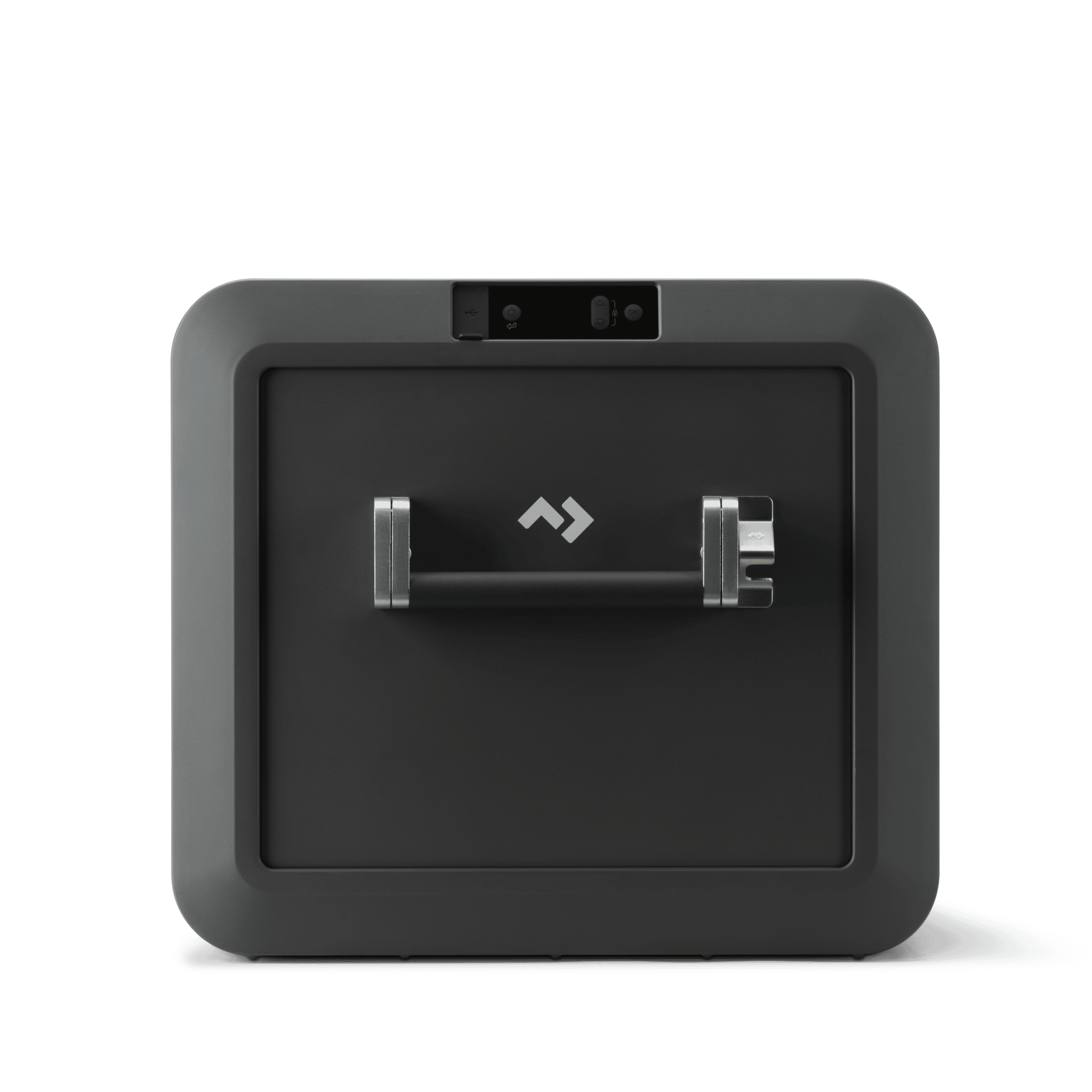

9. 09External details include self-folding aluminum alloy handles, a removable, textured nonslip lid, TPE gaskets to ensure a tight lid seal, and an integrated bottle opener.

Specifications

SKU: 97000050758

General

CFX5 95DZ Electric Cooler — General specifications

Model	CFX595DZ
Scope of delivery	1 cooler, 1 manual, 1 warranty card, 1 Connection cable for 12/24V connection, 1 Connection cable for 100-240V connection, removable wire baskets, bottle opener
Product Description	Advanced Materials and Design in a 95L DZ Dual-Zone Electric Cooler

Dimensions

CFX5 95DZ Electric Cooler — Dimensions specifications

Dimensions product depth, [in]	37.87
Dimensions product height, [in]	18.58
Dimensions product width, [in]	20.87
Net weight, [lbs]	63.50
Total volume (IEC 62552-3), [l]	94
Amount of cans (12oz/375ml)	121

Electrical

CFX5 95DZ Electric Cooler — Electrical specifications

Input voltage (AC), [V]	100-240
Input voltage (DC), [V]	12/24
Rated input current (AC), [A]	1.15A at 100V, 0.48A at 240V
Rated input current (DC), [A]	4.5A at 24V, 9.8A at 12V
Rated input power (AC), [W]	65
Input frequency, [Hz]	50/60
Battery type	Not Applicable (NA)
Priority circuit (Integrated)	Yes

Performance

CFX5 95DZ Electric Cooler — Performance specifications

Hermetically Sealed	Yes
Refrigerant, type	R1234yf
GWP	0.5
Energy Consumption 12VDC (Ambient@90F, Internal@39F), [Ah/h]	1.53
Energy Consumption 12VDC (4 °C large zone, -15 °C small zone, 32 °C ambient), [Ah/h]	3.26
Climate class (EN 62552)	N/T
Operating temperature min, [°F]	61
Operating temperature max, [°F]	109
Insulation Type	PU (Polyurethane)

Properties

CFX5 95DZ Electric Cooler — Properties specifications

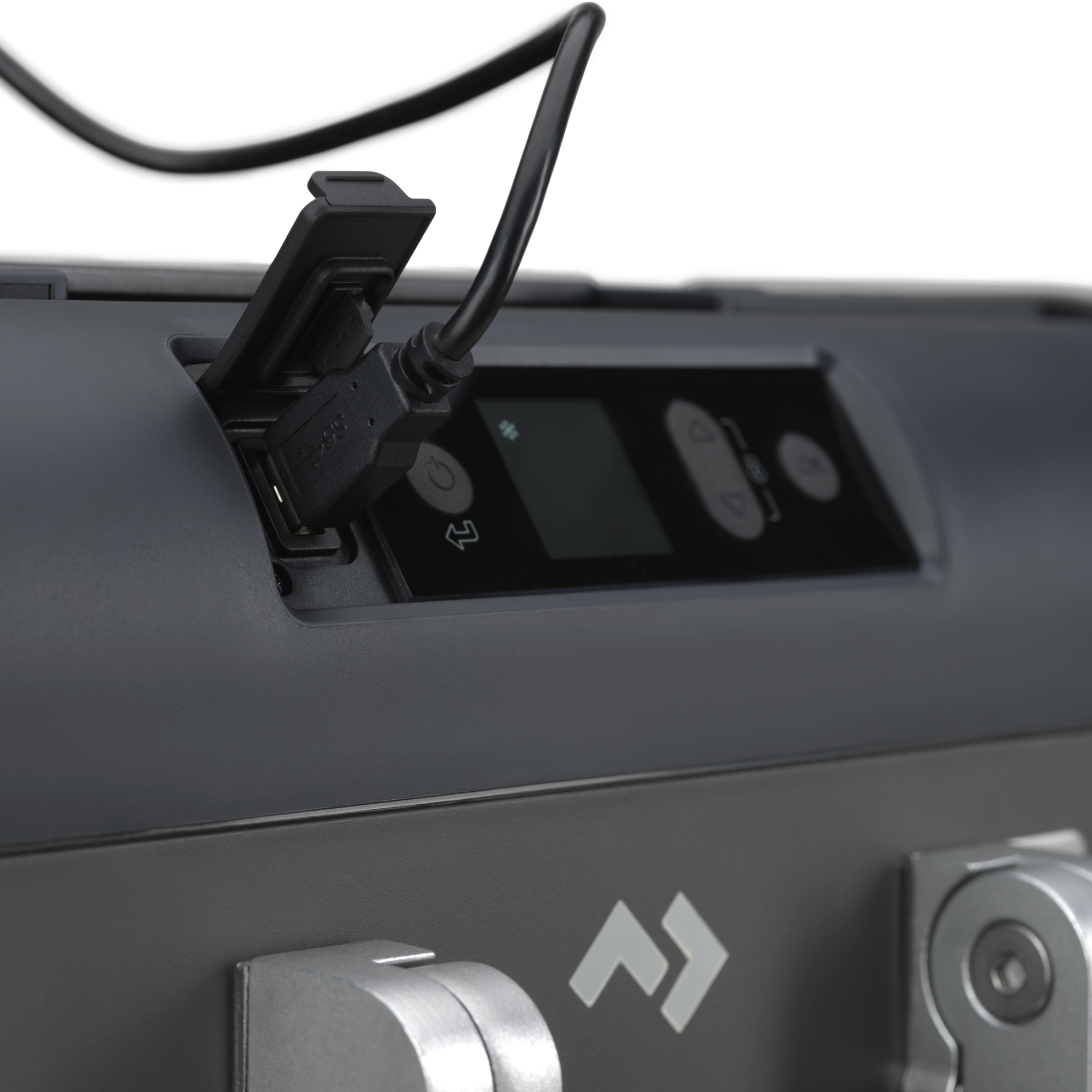

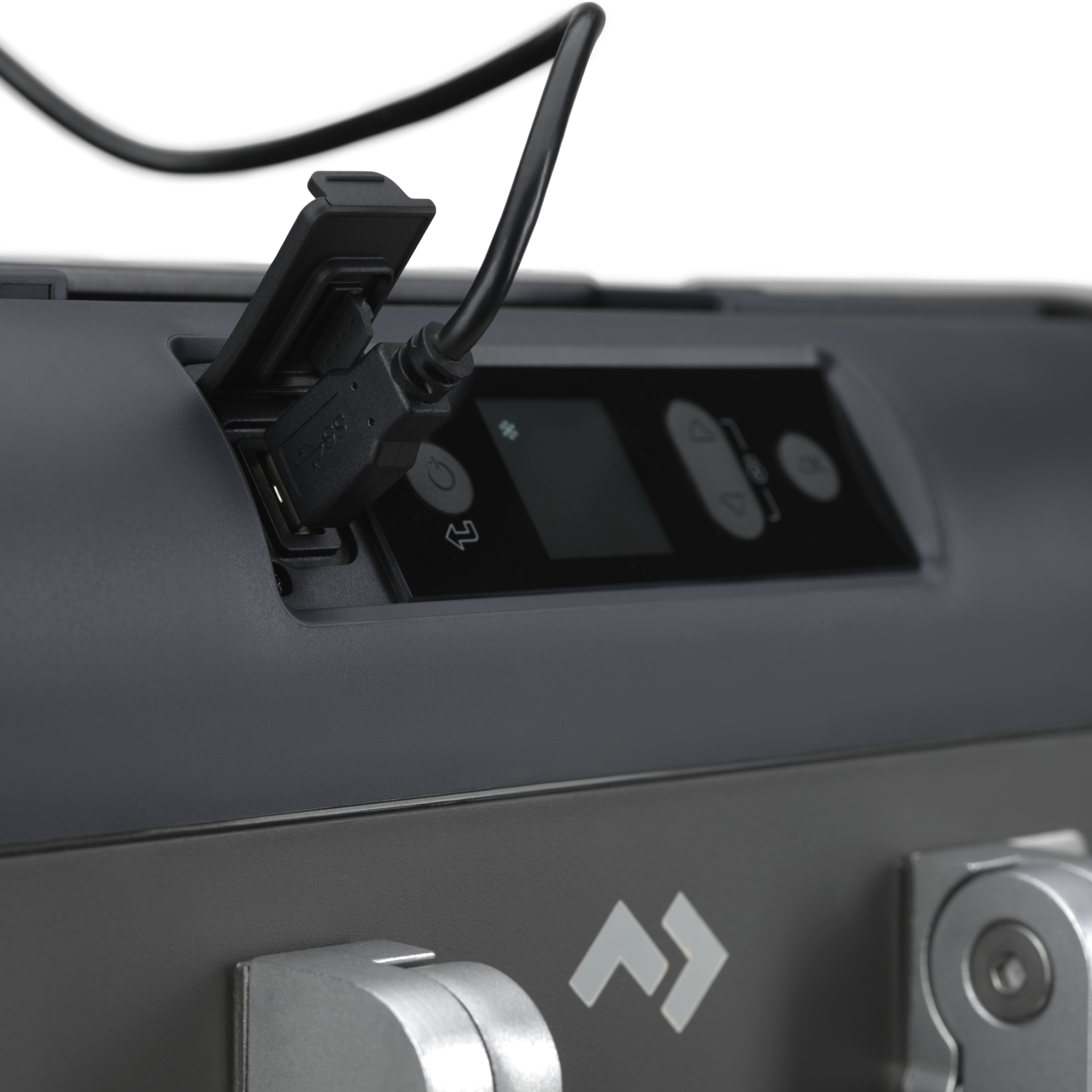

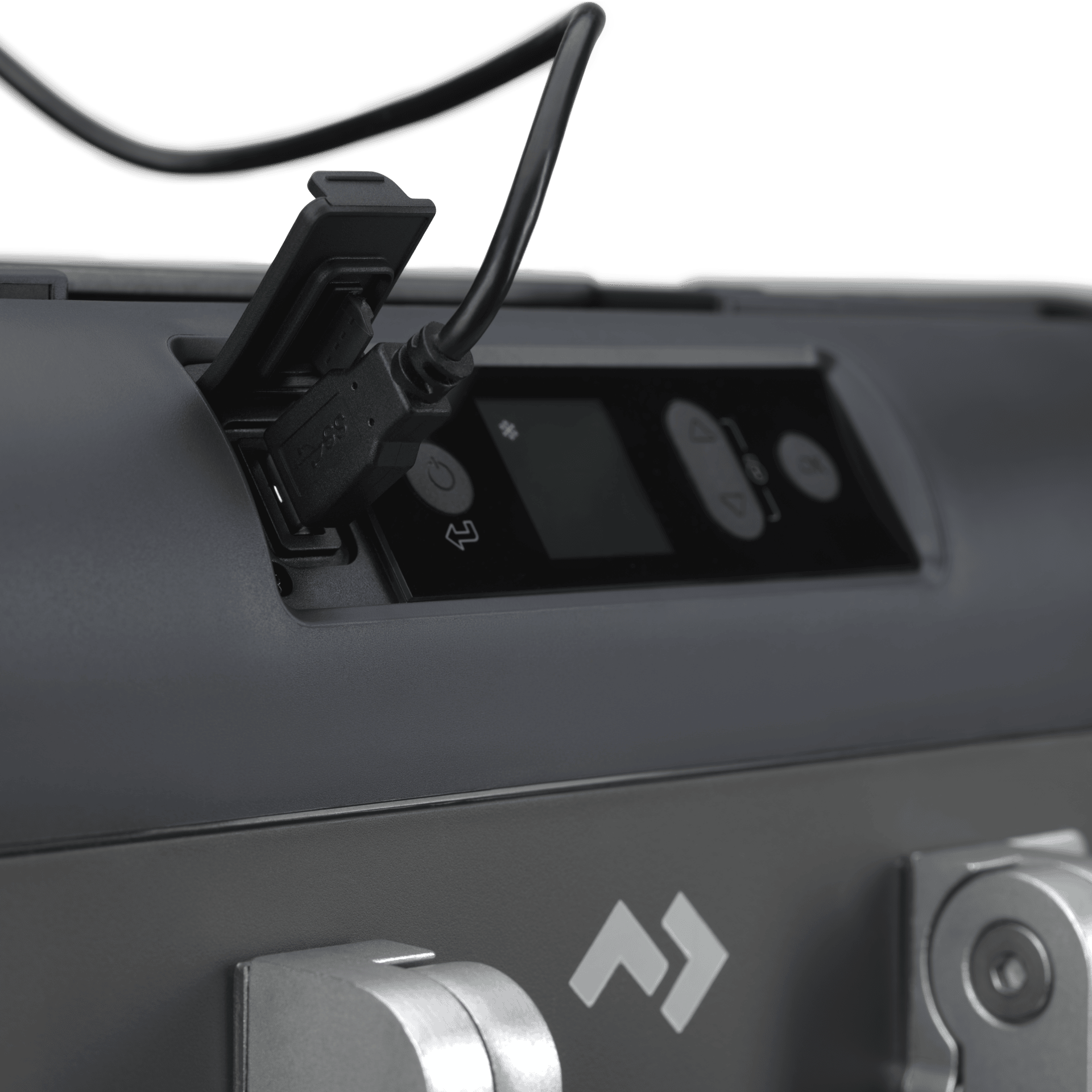

USB Port	Yes
Connectivity Type	Bluetooth
Basket	Yes
Threaded inserts in base for mounting	M6

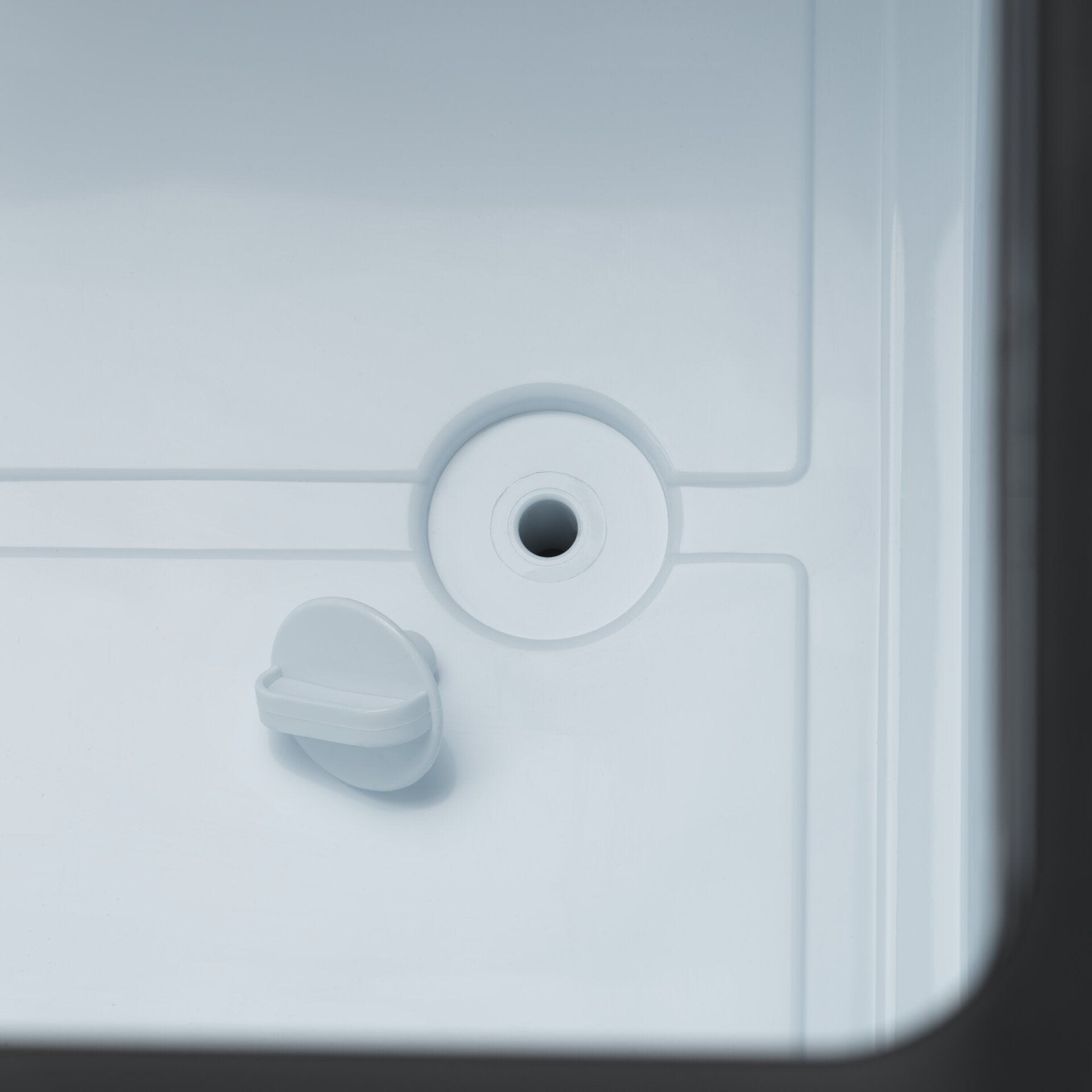

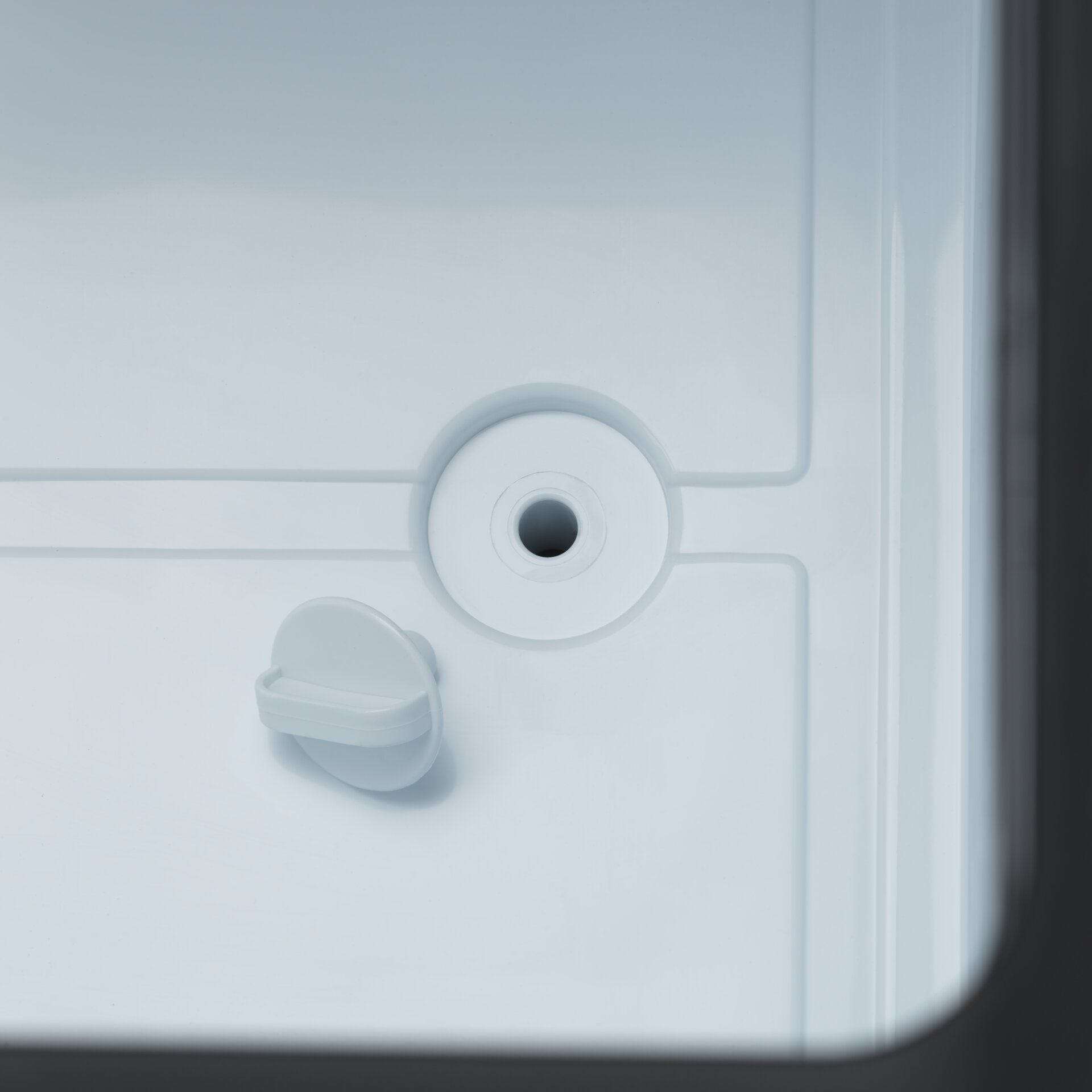

Drain plug	Yes
Anti-condensation coil	Yes
Single or Dual Zone	Dual
Thermostat control	Electronic Thermostat
Interior light	Yes, LED

Logistics

CFX5 95DZ Electric Cooler — Logistics specifications

Dimensions parcel depth, [in]	39.57
Dimensions parcel height, [in]	20.47
Dimensions parcel width, [in]	22.44
Parcel weight, [lbs]	71.72

Documentation & Downloads

Dometic CFX5 25, CFX5 35, CFX5 45, CFX5 55IM, CFX5 75DZ, CFX5 95DZ - Operating Manual AMER3

Operating Manual

Dometic CFX5 Cooler - Start Up Procedure

Operating Manual

Dometic CFX5 25, CFX5 35, CFX5 45, CFX5 55IM, CFX5 75DZ, CFX5 95DZ - Short Operating Manual AMER3

Short Operating Manual
