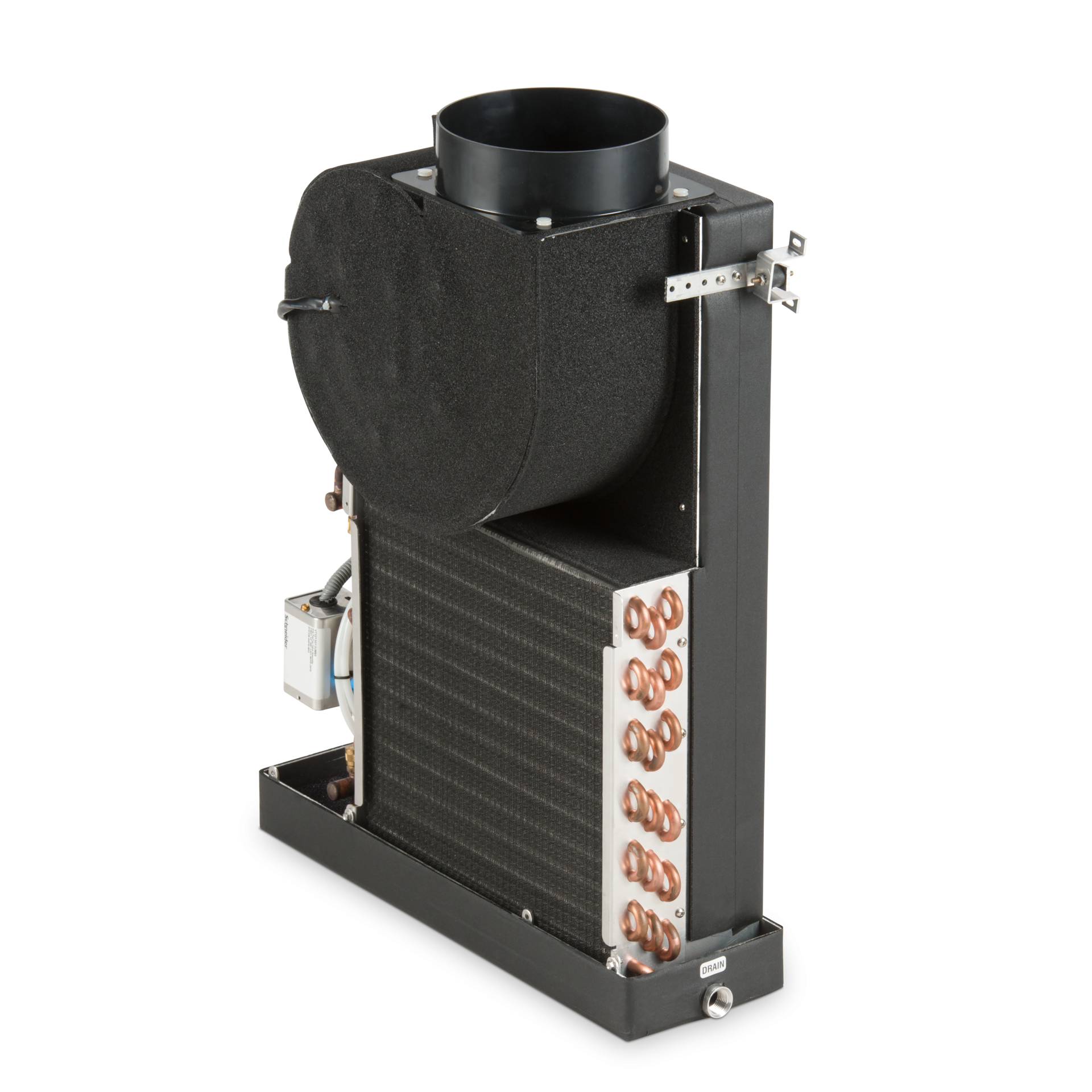

Dometic ATV-HV

Chilled Water Air Handler

This air handler's slim-profile design is ideal for installation in walls and other areas where depth is limited. Its powerful blower ensures cool air is distributed effectively.

Description

  1. Unique vertical design results in dramatically reduced depth
  2. Powerful blower with internal motor to reduce depth
  3. Insulated condensate pan with anti-slosh, anti-fungal foam lining
  4. Exposed components are insulated against secondary condensation
  5. Electrical box can be remotely mounted up to 6 ' away (1.8 m)

Specifications

SKU: 9108682812

Dometic ATV-HV — General specifications
ModelChillers Air Handlers ATV
Product DescriptionChilled Water Air Handler

Dometic ATV-HV — Dimensions specifications
Dimensions product depth, [in]7.93
Dimensions product height, [in]31.46
Dimensions product width, [in]22.8
Net weight, [lbs]65

Dometic ATV-HV — Electrical specifications
Input voltage (AC), [V]230
Input frequency, [Hz]50/60
Required AC circuit protection min, [A]3
Required AC circuit protection max, [A]5

Dometic ATV-HV — Performance specifications
Cooling Capacity ISO5151 Display24000
Cooling Capacity Display24000
Current consumption min cooling, [A]1.64
Current consumption max cooling, [A]1.64

Dometic ATV-HV — Logistics specifications
Dimensions parcel depth, [in]34.5
Dimensions parcel height, [in]13.25
Dimensions parcel width, [in]19.5
Parcel weight, [lbs]76.17

Dometic Fan Coils and Controls - Declaration of Conformity EMEA24
Declaration Of Conformity
Dometic Airhandler - Installation and Operating Manual APAC/AMER/EMEA(en)
Installation And Operating Manual
Dometic Climate Parts Guide.pdf
Buying Guide
Cancer warning icon

Warning: Cancer or reproductive harm www.P65Warnings.ca.gov

Product size & weight

W 22.8 x H 31.46 x D 7.93 in

Weight: 65 lbs
