Description
- Rust-free composite drain pan
- Vibration-isolation mounts reduce noise and vibration
- DC "WhisperCool" blowers are extremely quiet yet powerful
- The drain pan features anti-slosh, positive-flow condensate channels
- Components are insulated against secondary condensation
- Single adjustment screw for 270° of blower rotation
- Blower can be rotated to straight down position for overhead applications
Specifications
SKU: 9108798660
| Model | Chillers Air Handlers AU DC |
|---|---|

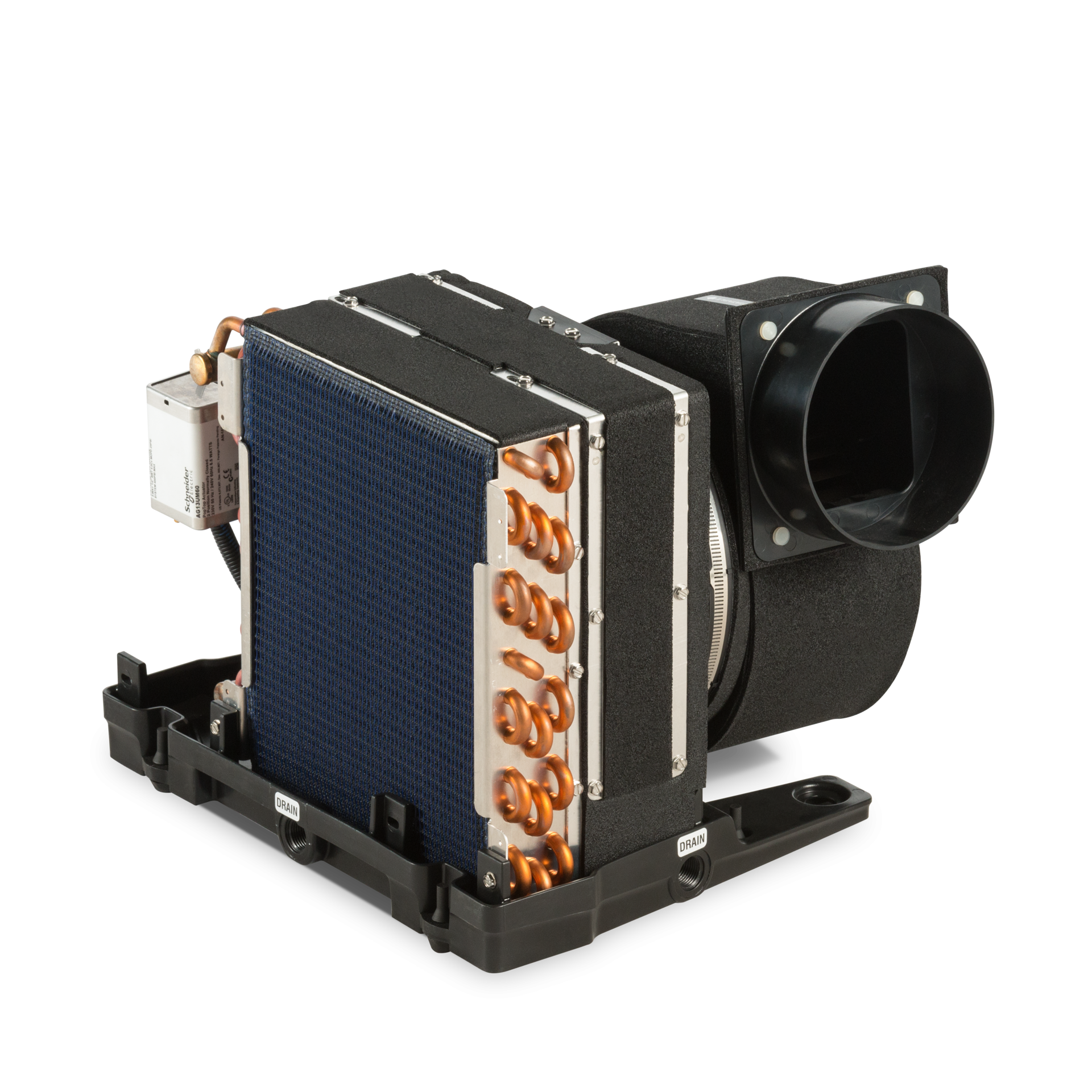

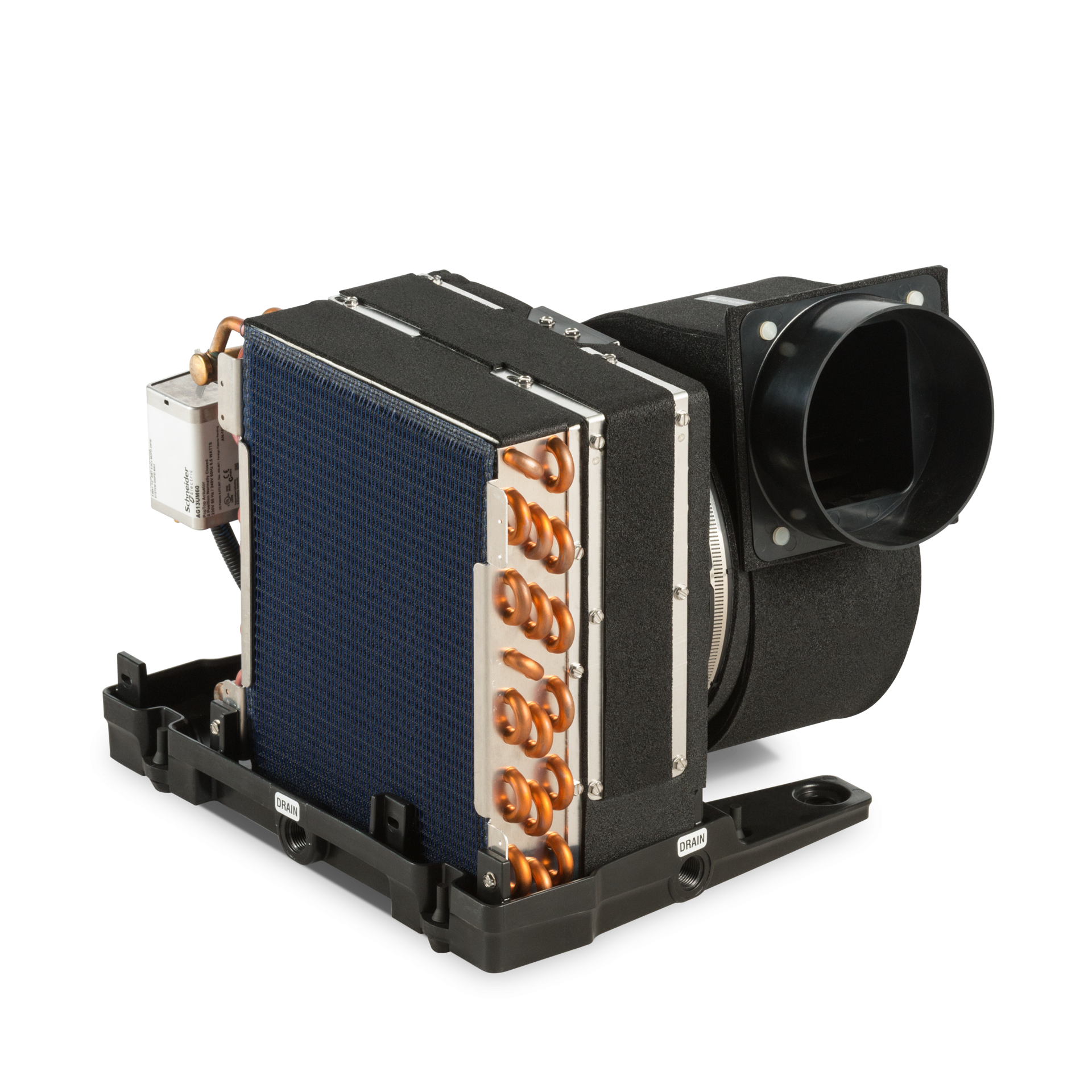

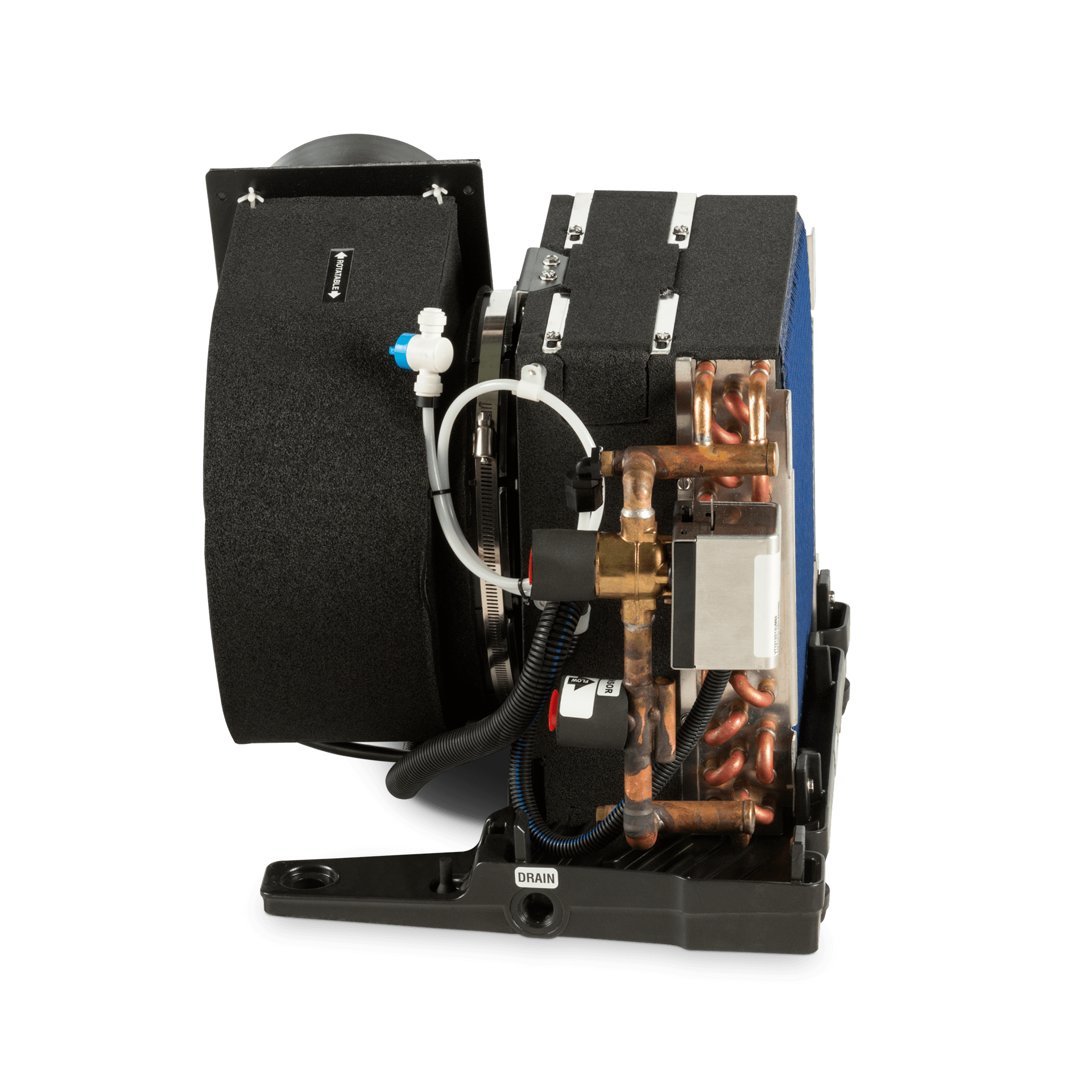

| Product Description | Chilled Water Air Handler |
| Net weight, [lbs] | 38 |
|---|
| Input voltage (AC), [V] | 230 |
|---|---|
| Input frequency, [Hz] | 50/60 |
| Required AC circuit protection min, [A] | 5 |
| Required AC circuit protection max, [A] | 5 |
| Cooling Capacity ISO5151 Display | 18000 |
|---|---|
| Cooling Capacity Display | 18000 |
| Current consumption min cooling, [A] | 2.3 |
| Current consumption max cooling, [A] | 2.3 |
| Dimensions parcel depth, [in] | 32.5 |
|---|---|
| Dimensions parcel height, [in] | 22.2 |
| Dimensions parcel width, [in] | 22.5 |
| Parcel weight, [lbs] | 50.14 |
Warning: Cancer or reproductive harm www.P65Warnings.ca.gov
A sea-worthy product
Completely redesigned for easier installation and improved performance, the chilled water air handler, recipient of an Honorable Mention at the 2012 International Boatbuilders Exhibition and Conference (IBEX), incorporates many innovative features, including an optional Breathe Easy™ air purifier. Its rust-free, anti-slosh, positive-flow drain pan quickly removes condensate water and a third drain hole can be employed to further increase drainage. Each drain hole is reinforced and has an external stop to prevent over tightening of the screw-in hose barb. For complete flexibility, each drain hole can accept either a straight or 90-degree hose barb. In addition, the vibration-isolation mounting hardware can be attached at a variety of locations along the perimeter of the drain pan and ensures a quieter performance.
