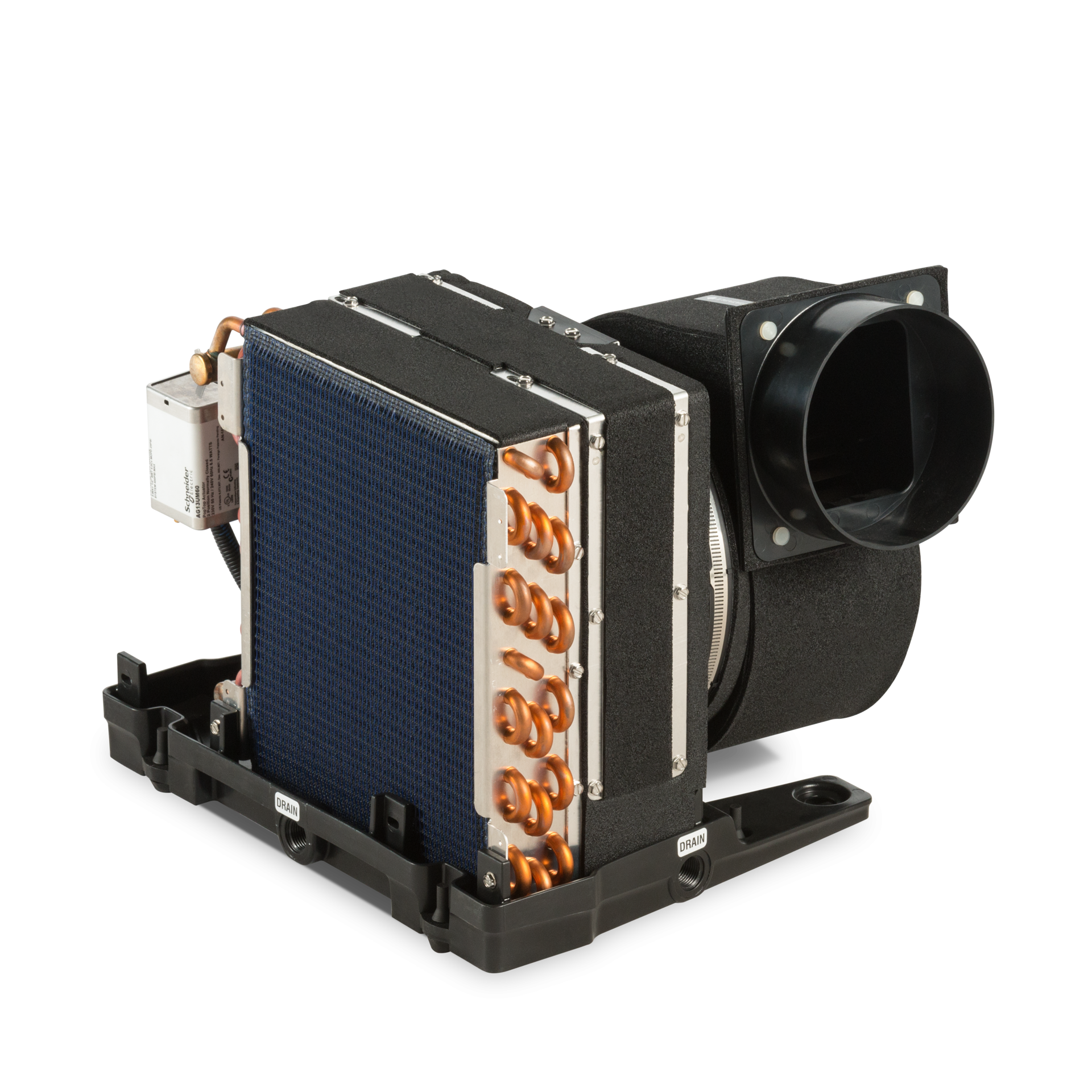

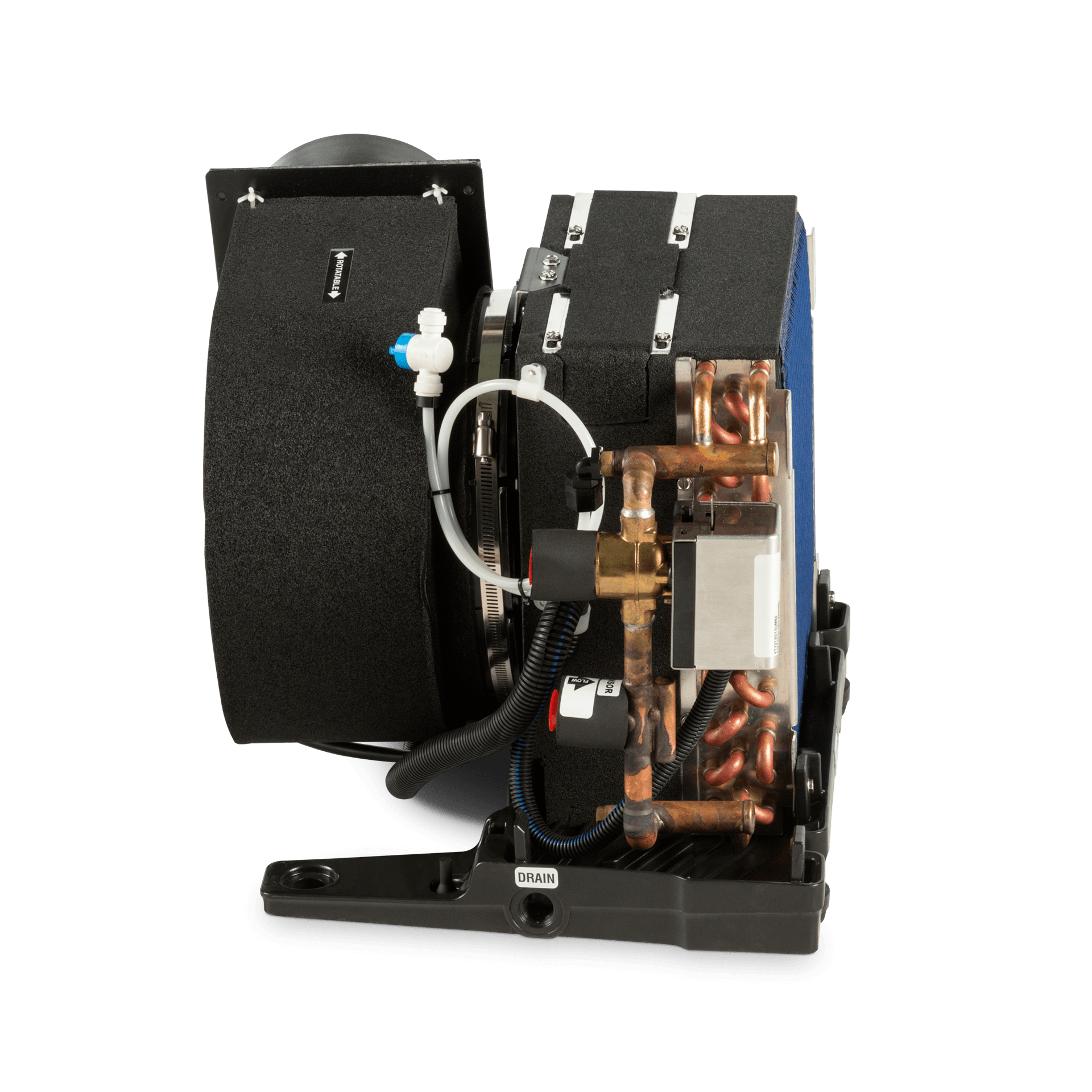

Dometic AU-DC

Chilled Water Air Handler

This air handler ensures a quiet performance due to its powerful Whispercool blower, as well as vibration isolation mounting clips. The blower is rotatable to ensure air is distributed exactly as you need it.

Description

  1. Rust-free composite drain pan
  2. Vibration-isolation mounts reduce noise and vibration
  3. DC "WhisperCool" blowers are extremely quiet yet powerful
  4. The drain pan features anti-slosh, positive-flow condensate channels
  5. Components are insulated against secondary condensation
  6. Single adjustment screw for 270° of blower rotation
  7. Blower can be rotated to straight down position for overhead applications

Specifications

SKU: 9108798705

Dometic AU-DC — General specifications
ModelChillers Air Handlers AU DC
Product DescriptionChilled Water Air Handler

Dometic AU-DC — Dimensions specifications
Dimensions product depth, [in]16.7
Dimensions product height, [in]13.4
Dimensions product width, [in]16.4
Net weight, [lbs]33.25

Dometic AU-DC — Electrical specifications
Input voltage (AC), [V]230
Input frequency, [Hz]50/60
Required AC circuit protection min, [A]10
Required AC circuit protection max, [A]15

Dometic AU-DC — Performance specifications
Cooling Capacity ISO5151 Display3516.85
Cooling Capacity Display12000
Current consumption min cooling, [A]2.26
Current consumption max cooling, [A]2.26

Dometic AU-DC — Logistics specifications
Dimensions parcel depth, [in]32.5
Dimensions parcel height, [in]22.2
Dimensions parcel width, [in]22.5
Parcel weight, [lbs]42.14

Dometic Fan Coils and Controls - Declaration of Conformity EMEA24
Declaration Of Conformity
Dometic Airhandler - Installation and Operating Manual APAC/AMER/EMEA(en)
Installation And Operating Manual
Dometic Climate Parts Guide.pdf
Buying Guide
Cancer warning icon

Warning: Cancer or reproductive harm www.P65Warnings.ca.gov

Product size & weight

W 16.4 x H 13.4 x D 16.7 in

Weight: 33.25 lbs
