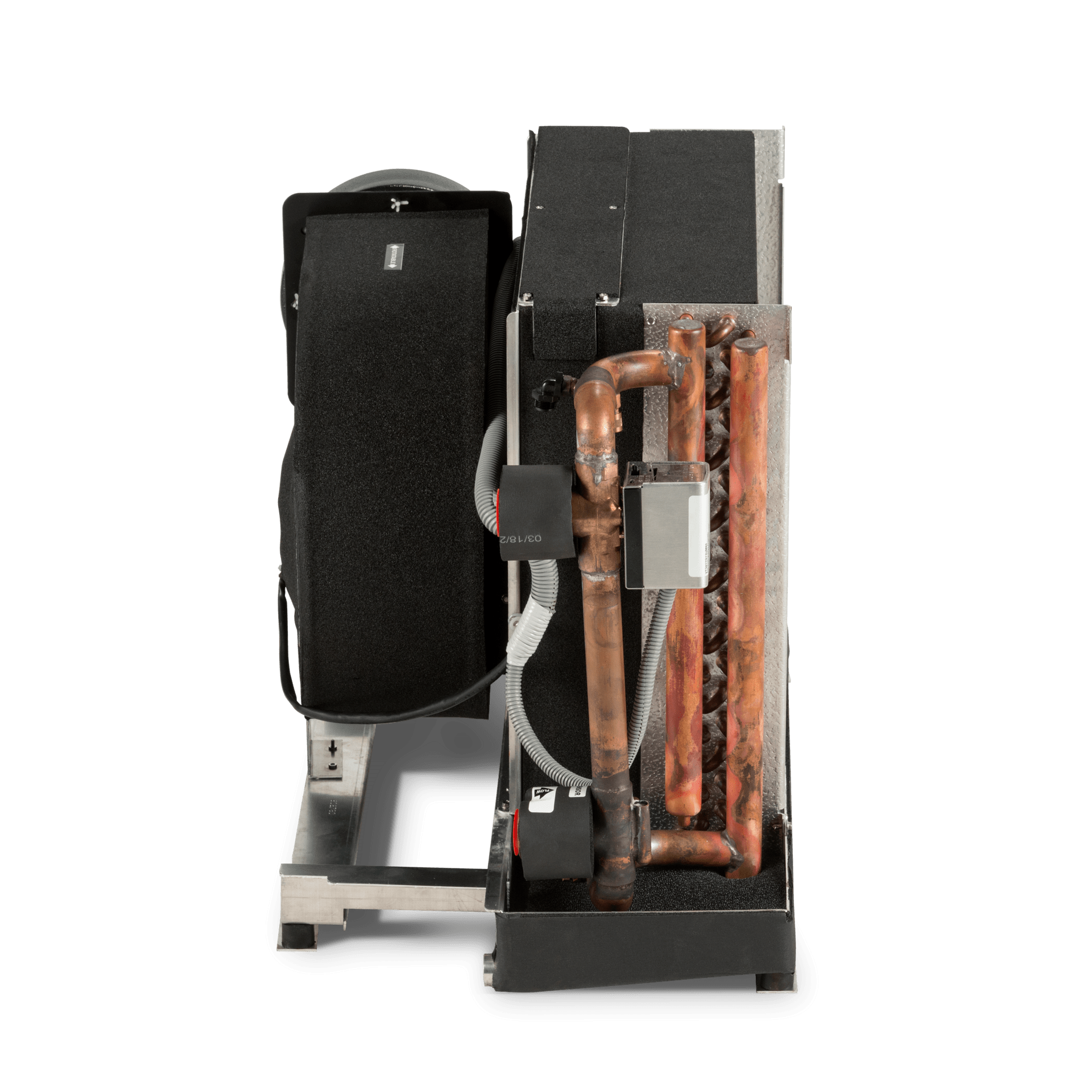

Dometic AU-HV

Air Handler

The AT-HV series of air handlers feature powerful, rotatable blowers for superb air distribution. The AT-HV series replaces Flex-Duct and Draw-Through series air handlers, and has many improvements compared to these older units. Easy to install and quiet operation.

Description

  1. Powerful fully-insulated blowers are rotatable for effective air distribution
  2. Vibration-isolation mounts reduce noise and vibration.
  3. Improved cooling performance includes dehumidification
  4. Remote air bleeder on 6 ft. (1.8 m) of flexible tubing with ball valve
  5. Corrosion-resistant coating on evaporator coil, blower, and drain pan
  6. Compact design

Specifications

SKU: 9108551795

Dometic AU-HV — General specifications
ModelChillers Air Handlers AT
Product DescriptionAir Handler

Dometic AU-HV — Dimensions specifications
Net weight, [lbs]54.70

Dometic AU-HV — Electrical specifications
Input voltage (AC), [V]230
Input frequency, [Hz]50/60
Required AC circuit protection min, [A]16
Required AC circuit protection max, [A]20

Dometic AU-HV — Performance specifications
Cooling Capacity ISO5151 Display36000
Cooling Capacity Display36000
Current consumption min cooling, [A]1.6
Current consumption max cooling, [A]1.6

Dometic AU-HV — Logistics specifications
Dimensions parcel depth, [in]36
Dimensions parcel height, [in]26
Dimensions parcel width, [in]25.7
Parcel weight, [lbs]73.57

Dometic Fan Coils and Controls - Declaration of Conformity EMEA24
Declaration Of Conformity
Dometic Airhandler - Installation and Operating Manual APAC/AMER/EMEA(en)
Installation And Operating Manual
Dometic Climate Parts Guide.pdf
Buying Guide
Cancer warning icon

Warning: Cancer or reproductive harm www.P65Warnings.ca.gov

Product size & weight

Weight: 54.70 lbs
