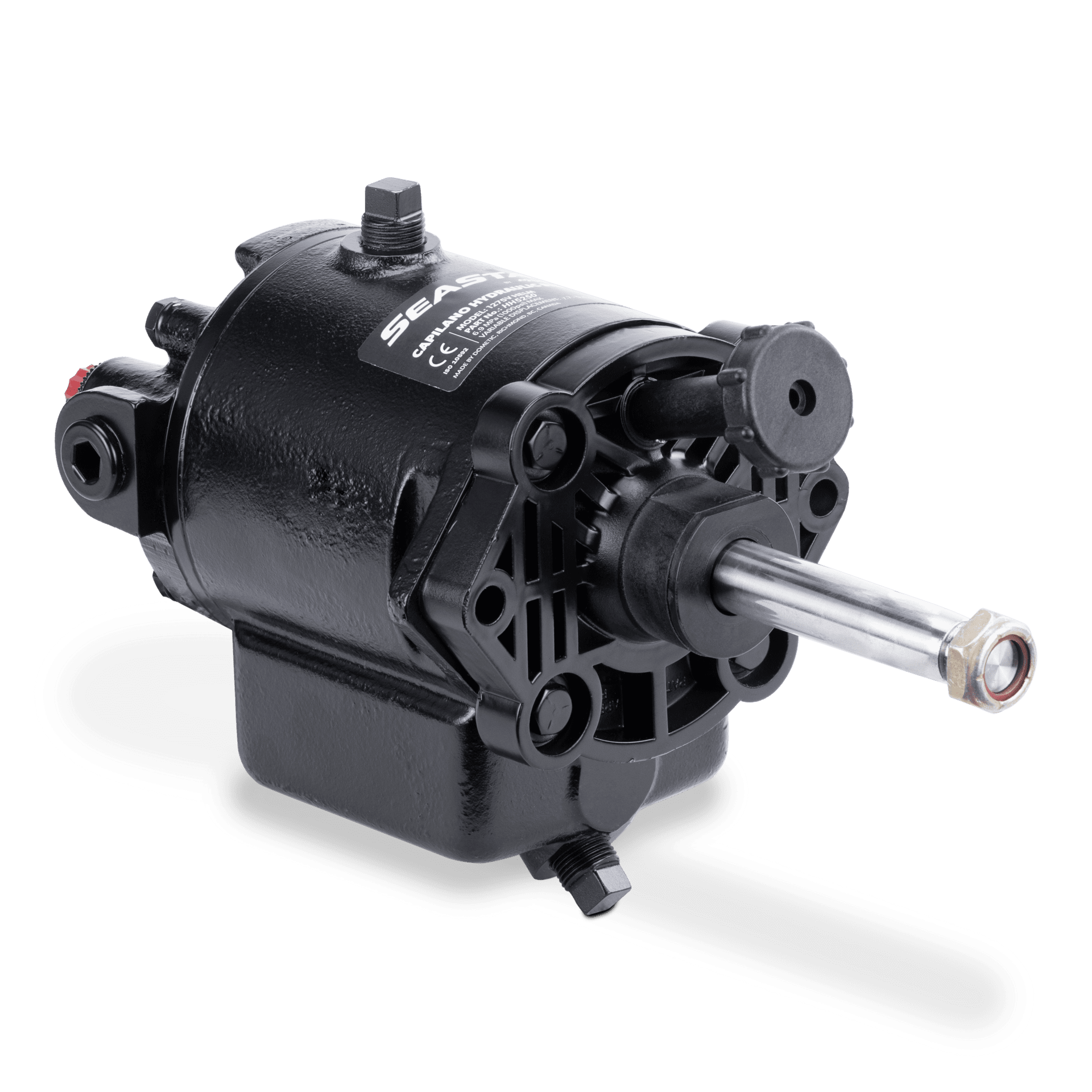

Dometic Capilano Helm

Helm, 1250v 1.7-3.4, HH5250

Fluid Displacement Imperial: 3.4
Item Description: CAPILANO HELM 1250V-BLEED

For extra heavy duty/commercial vessels, Dometic's Capilano steering system offers extremely rugged and reliable "variable flow" rear-mount helms and heavy duty brass cylinders with stainless steel and bronze mounting hardware.

Description

  1. Designed for heavy-duty marine use
  2. Variable displacement allows for variable number of turns lock-to-lock
  3. Suitable for a wide range of applications
  4. Easy installation on single and dual rudder vessels
  5. Standard 3/4" tapered steering shaft
  6. Meets ABS requirements

Specifications

SKU: 9130000547

Dometic Capilano Helm — General specifications
ModelCapilano Helm
Product DescriptionHelm, 1250v 1.7-3.4, HH5250

Dometic Capilano Helm — Dimensions specifications
Dimensions product depth, [in]11.62
Dimensions product height, [in]5.87
Dimensions product width, [in]5 1/2
Net weight, [lbs]15.93

Dometic Capilano Helm — Performance specifications
Fluid displacement, [ cubic "]3.4

Dometic Capilano Helm — Logistics specifications
Dimensions parcel depth, [in]13
Dimensions parcel height, [in]7.25
Dimensions parcel width, [in]8

Dometic Marine Steering Selection Guide (en)
Application Guide
Dometic Marine Ride & Handling 2022 - Catalog - "Application Guide" lowres (en)
Application Guide

Product size & weight

H 5.87 x D 11.62 in

Weight: 15.93 lbs
