SKU: 9108844415
Provides installation flexibility, reliability, maximum performance and easy accessibility for maintenance and repair.
Technical Information
Technical Information
- Color
- Black
- Brand
- Dometic
- EAN-13
- 7315091241588
- Publication Model Name

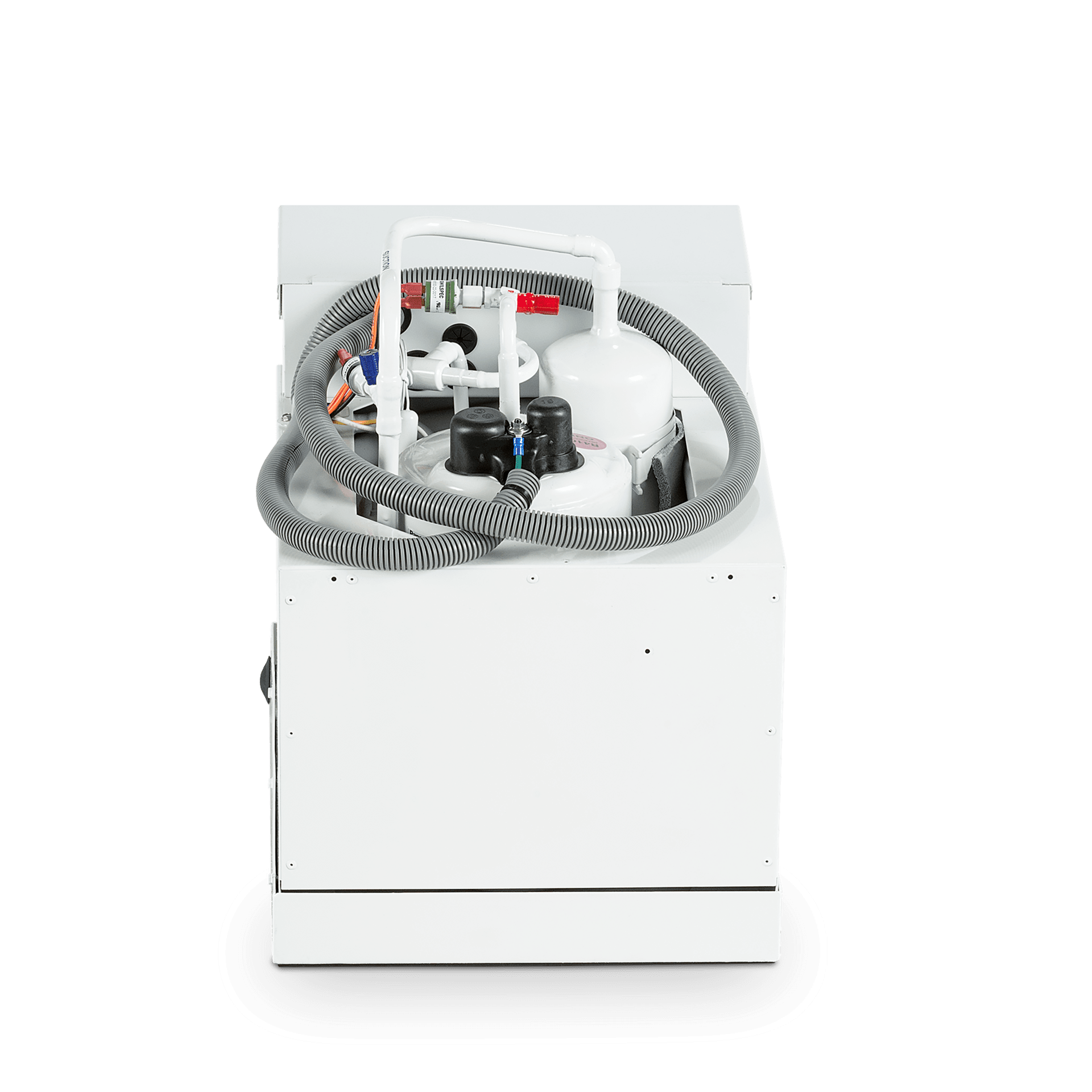

- Dometic CHCG CW Module
- Product Description
- Chilled Water Module Compact 24,000 BTU/h--410A
- Dimensions product depth, [mm]
- 444.5
- Dimensions product height, [mm]
- 482.6
- Dimensions product width, [mm]
- 622.3
- Net weight, [kg]
- 49.76
- Net weight, [lbs]
- 109.70
- Dimensions parcel depth, [mm]
- 622.3
- Dimensions parcel height, [mm]
- 482.6
- Dimensions parcel width, [mm]
- 444.5
- Parcel weight, [kg]
- 59.06
- Parcel weight, [lbs]
- 130.22
- GWP
- 2088
- CO2 equivalent, [t]
- 1,065
- Hermetically Sealed
- Yes
- Refrigerant, type
- R410A
- Input voltage (AC), [V]
- 230
- Input frequency, [Hz]
- 50/60
- Required AC circuit protection min, [A]
- 25.000000
- Required AC circuit protection max, [A]
- 45.000000
- Current consumption min cooling, [A]
- 8.500000
- Current consumption max cooling, [A]
- 8.500000
- Dimensions product width, ["] - Display
- 24.5
- Item Description
- CHCG24Z3-410 DNFS PVE 2363
