SKU: 9108850289
Provides installation flexibility, reliability, maximum performance and easy accessibility for maintenance and repair.
Technical Information
Technical Information
- Color
- Black
- Brand
- Dometic
- EAN-13
- 0713814305017
- Publication Model Name

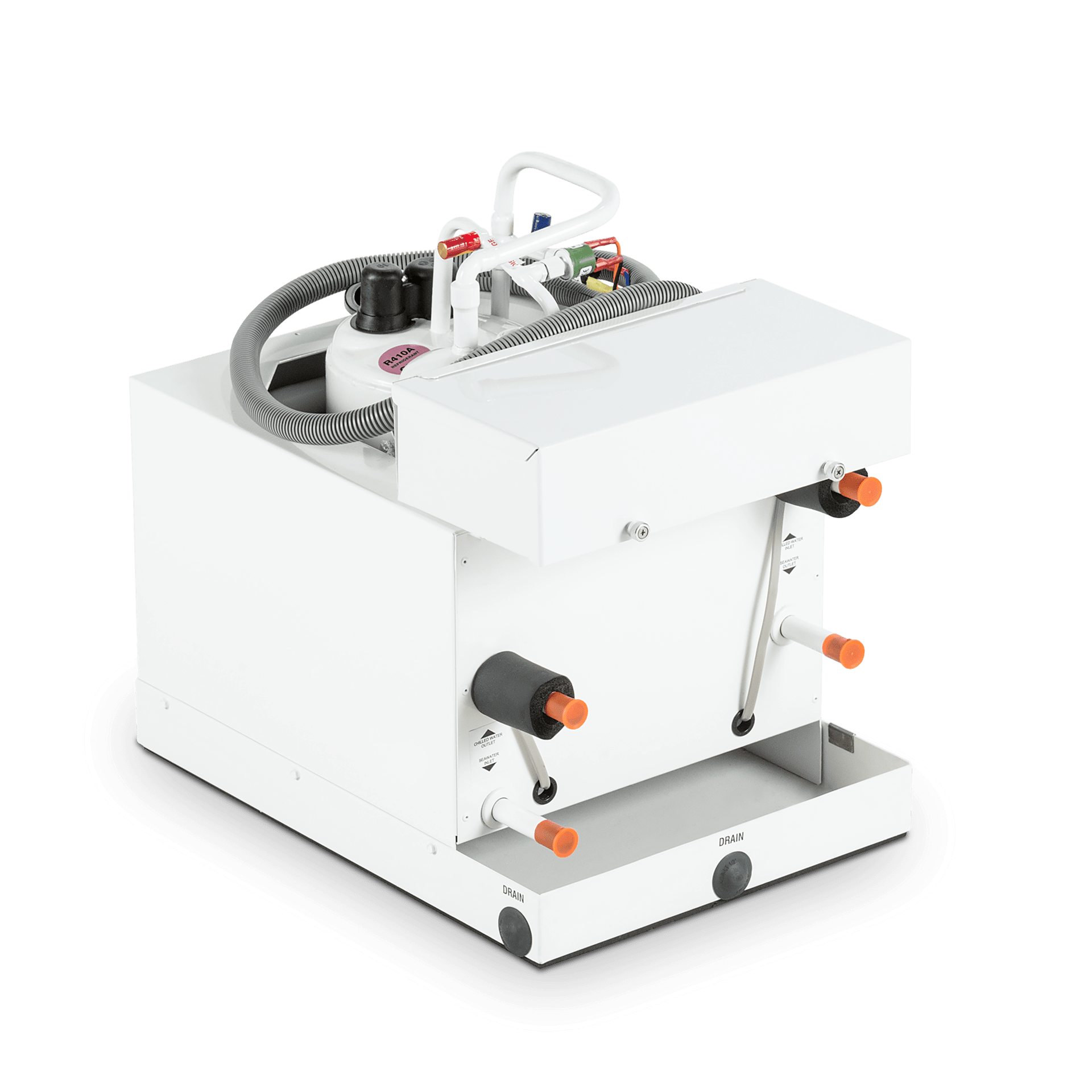

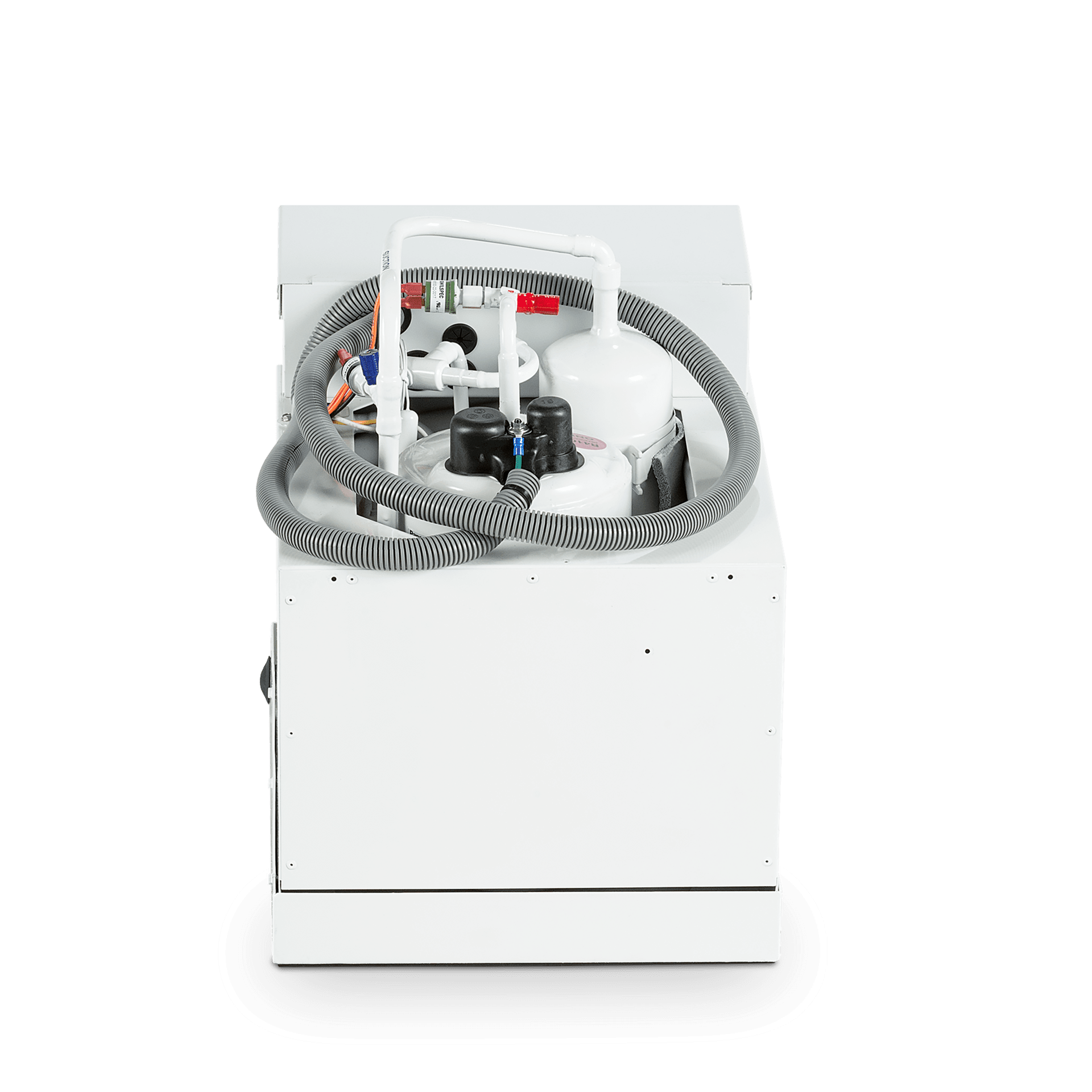

- Dometic CHCG CW Module
- Product Description
- Chilled Water Condenser, 24,000 BTU/h, 230V
- Dimensions product depth, [mm]
- 444.5
- Dimensions product height, [mm]
- 482.6
- Dimensions product width, [mm]
- 622.3
- Net weight, [kg]
- 41.5
- Net weight, [lbs]
- 91.50
- Dimensions parcel depth, [mm]
- 571.50
- Dimensions parcel height, [mm]
- 647.70
- Dimensions parcel width, [mm]
- 520.70
- Parcel weight, [kg]
- 51.8
- Parcel weight, [lbs]
- 114.2
- GWP
- 2088
- CO2 equivalent, [t]
- 1,361
- Hermetically Sealed
- Yes
- Refrigerant, type
- R410A
- Input voltage (AC), [V]
- 230
- Input frequency, [Hz]
- 60
- Required AC circuit protection min, [A]
- 23.000000
- Required AC circuit protection max, [A]
- 40.000000
- Current consumption min cooling, [A]
- 9.500000
- Current consumption max cooling, [A]
- 9.500000
- Dimensions product width, ["] - Display
- 24 1/2
- Item Description
- 3'HRNS
