Dometic DFMDH35111 Medium 35K Furnace Essential

Doored Furnace, 35,000 BTU, Uses LP Gas, 12 DC Voltage

$ 1404.49
  • Precision Engineering
  • Smoother Startups
  • More Airflow

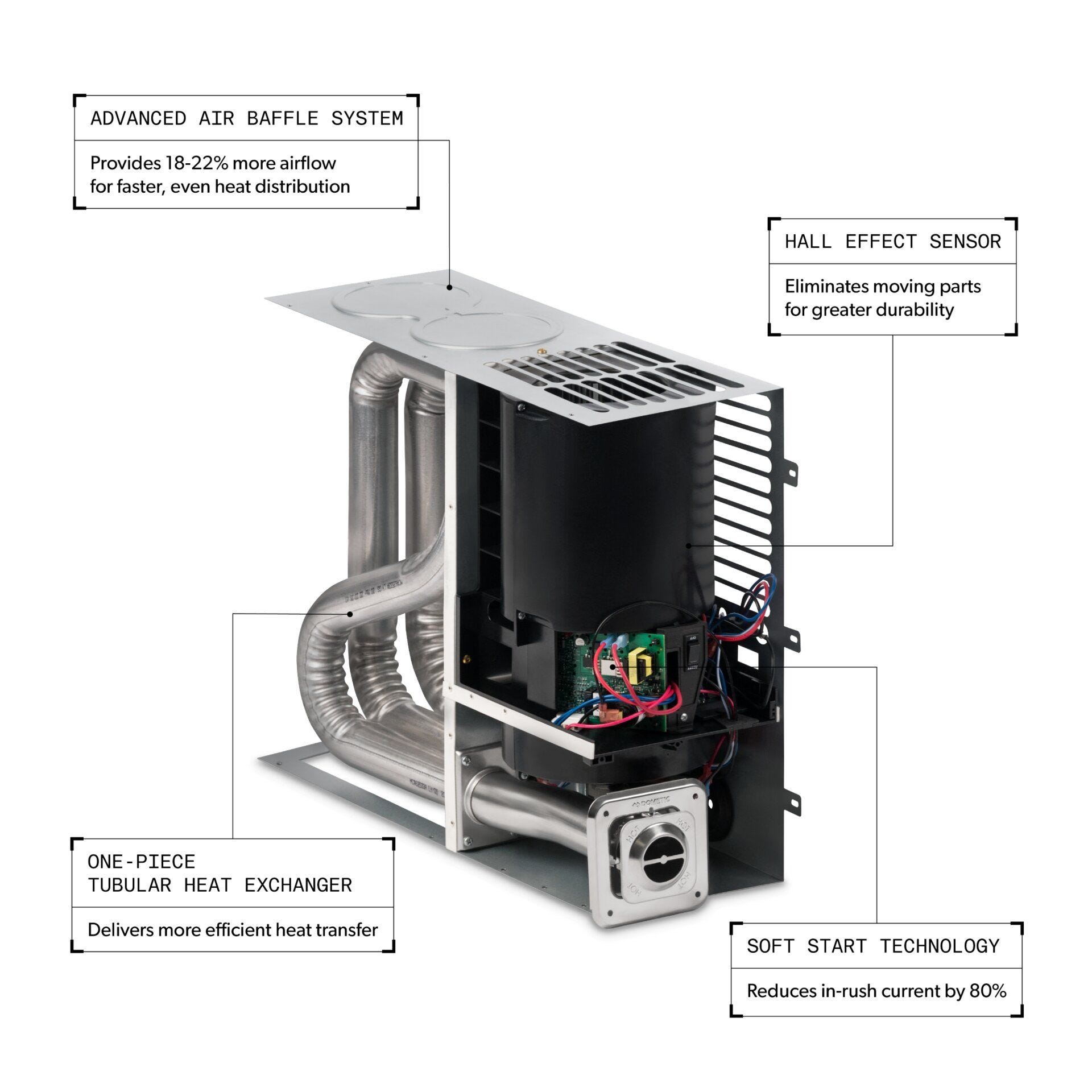

Maximize comfort and dependability in cool weather. Now enhanced with an automotive-grade Hall Effect Sensor and built-in Soft Start, the DFMDH35111 Medium 35,000 BTU Furnace Essential delivers more reliable ignition and quieter startups. With 18–22% more airflow than the leading competitor, it distributes heat more evenly throughout the RV—thanks to its advanced air baffle system and one-piece tubular heat exchanger designed for long-lasting, efficient performance. Access Door and Thermostat sold separately.

Description

  1. Heating Capacity: 35,000 BTU
  2. Doored Furnace
  3. Patent-pending Hall Effect Sensor eliminates moving parts for greater durability
  4. One-piece, seamless tubular heat exchanger delivers efficient heat transfer and airflow distribution
  5. 18-22% more airflow, compared to the leading competitor’s furnace, in ducted applications
  6. On-board Soft Start reduces in-rush current up to 80%
  7. Precision engineering with no moving parts improves long-term reliability
  8. Horizontal or vertical configuration for flexible installation
  9. Low-profile, compact design
  10. 12 V DC powered unit

Specifications

SKU: 9610007792

Dometic DFMDH35111 Medium 35K Furnace Essential — General specifications
ModelDFM-H
Scope of deliverySingle Pack of one boxed
SKUCertificatesCSA
Product DescriptionDoored Furnace, 35,000 BTU, Uses LP Gas, 12 DC Voltage

Dometic DFMDH35111 Medium 35K Furnace Essential — Dimensions specifications
Dimensions product depth, [in]20
Dimensions product height, [in]7.01
Dimensions product width, [in]16.5
Net weight, [lbs]33.5

Dometic DFMDH35111 Medium 35K Furnace Essential — Electrical specifications
Input voltage (DC), [V]12
Rated input current (DC), [A]11.1

Dometic DFMDH35111 Medium 35K Furnace Essential — Performance specifications
Fuel typeLiquid gas LPG
Energy efficiency, [%]76.4
Heating Capacity, [Btu/h]35000
Number of burnersYes
Operating temperature min, [°F]-40
Operating temperature max, [°F]90

Dometic DFMDH35111 Medium 35K Furnace Essential — Properties specifications
Thermostat controlManual Thermostat

Dometic DFMDH35111 Medium 35K Furnace Essential — Logistics specifications
Dimensions parcel depth, [in]26.3
Dimensions parcel height, [in]11.5
Dimensions parcel width, [in]21
Parcel weight, [lbs]30.03

Dometic DF (Furnaces Series DFSA, DFSD, DFMD, DFLD, DFLA) - Operating Manual AMER3
Operating Manual
Dometic DF (Furnaces Series DFSA, DFSD, DFMD, DFLD, DFLA) - Installation Manual AMER3
Installation Manual
Dometic 35K Furnace Aftermarket
Leaflet
Dometic DF (Furnaces Series DFSA, DFSD, DFMD, DFLD, DFLA) - Short Installation and Operating AMER3
Short Installation And Operating Manual
35K Furnace Aftermarket Comparison Chart
Comparison Chart
Furnace Essential AM Transition Chart
Other Document
Furnace Essential AM Leaflet
Product Leaflet
Cancer warning icon

Warning: Cancer or reproductive harm www.P65Warnings.ca.gov

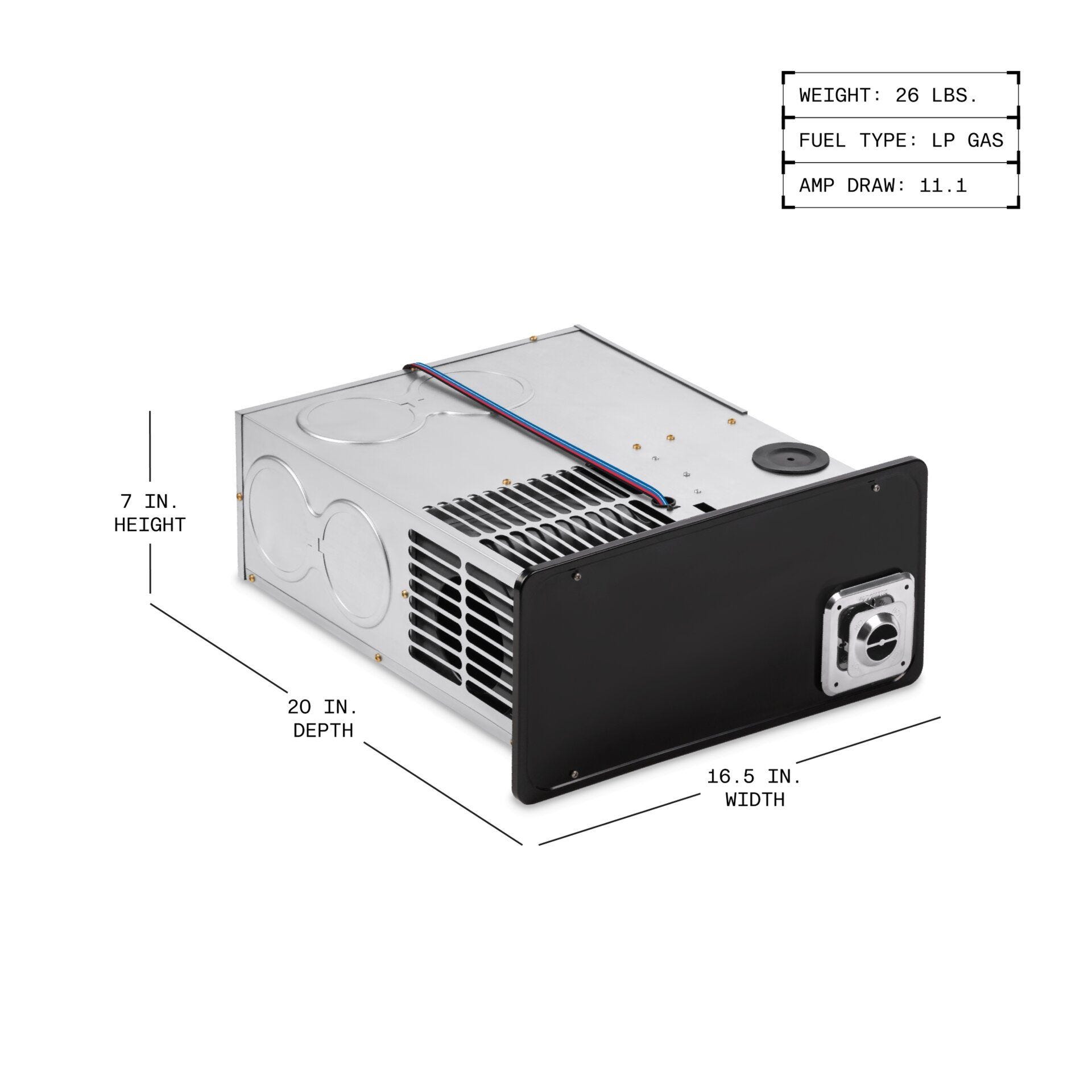

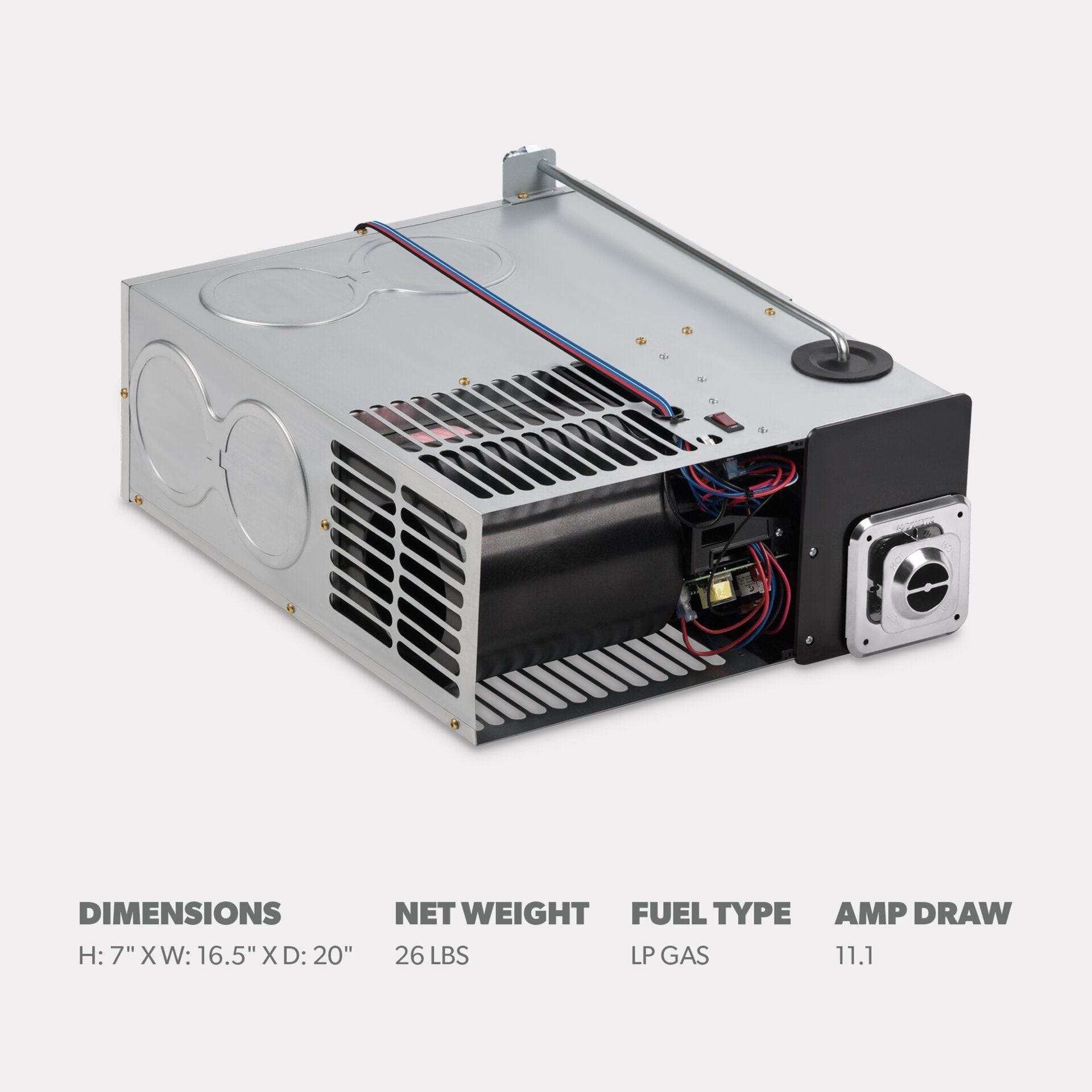

Product size & weight

W 16.5 x H 7.01 x D 20 in

Weight: 33.5 lbs

Add the essentials

Loading products…

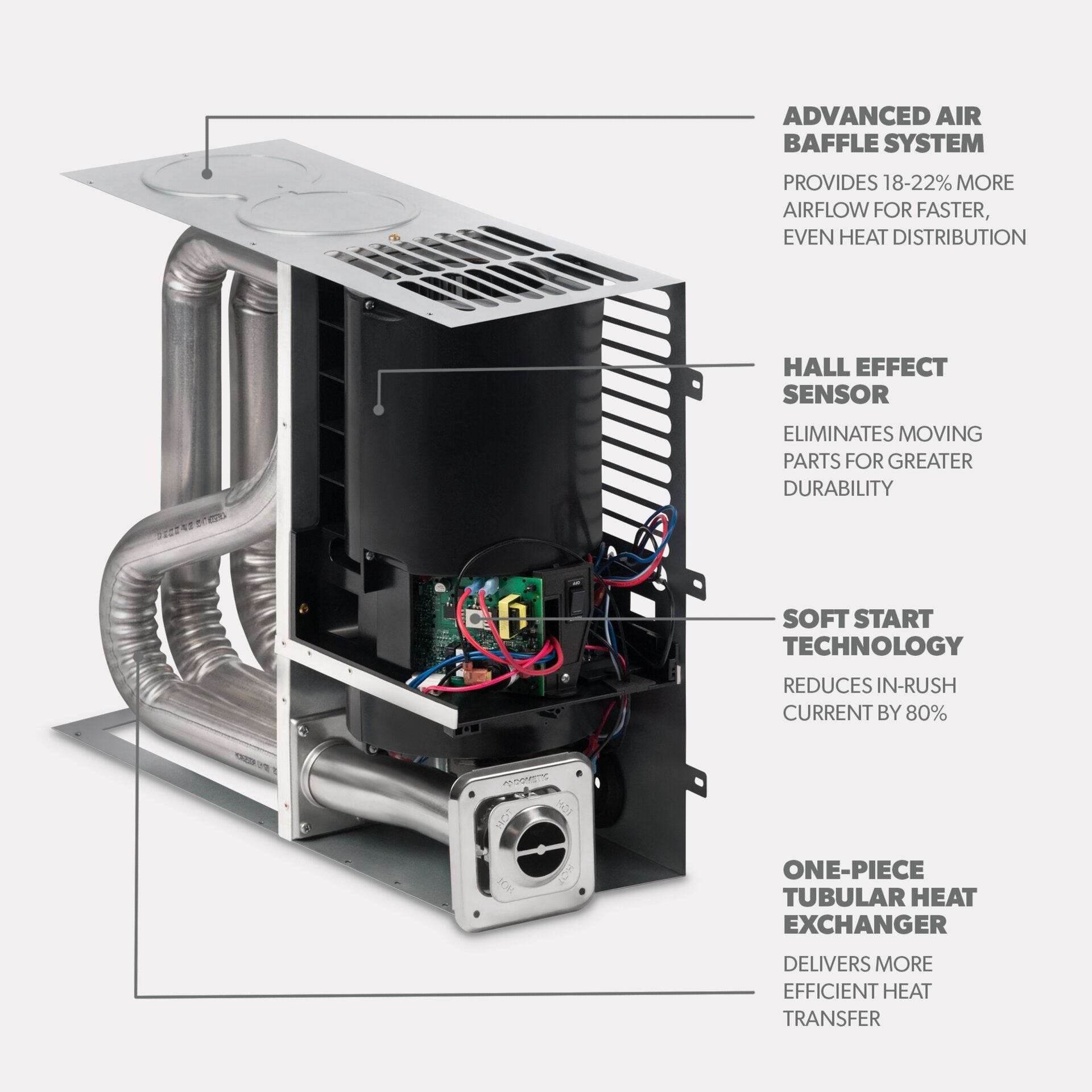

Highlights

Precision Engineering

Patent-pending Hall Effect Sensor for cleaner, debris-resistant ignition.

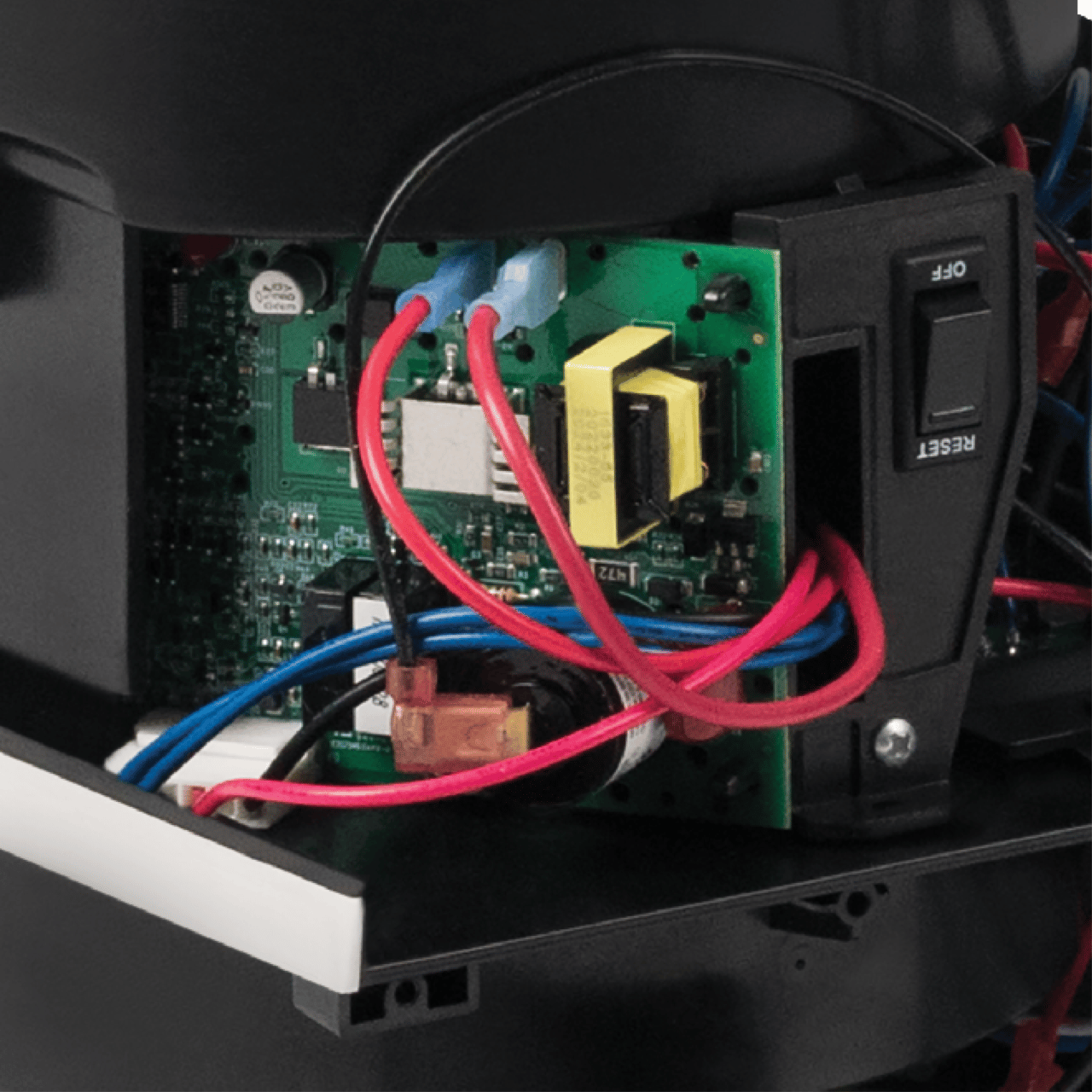

Smoother Startups

On-Board Soft Start reduces in rush current by 80% and jarring start up noise.

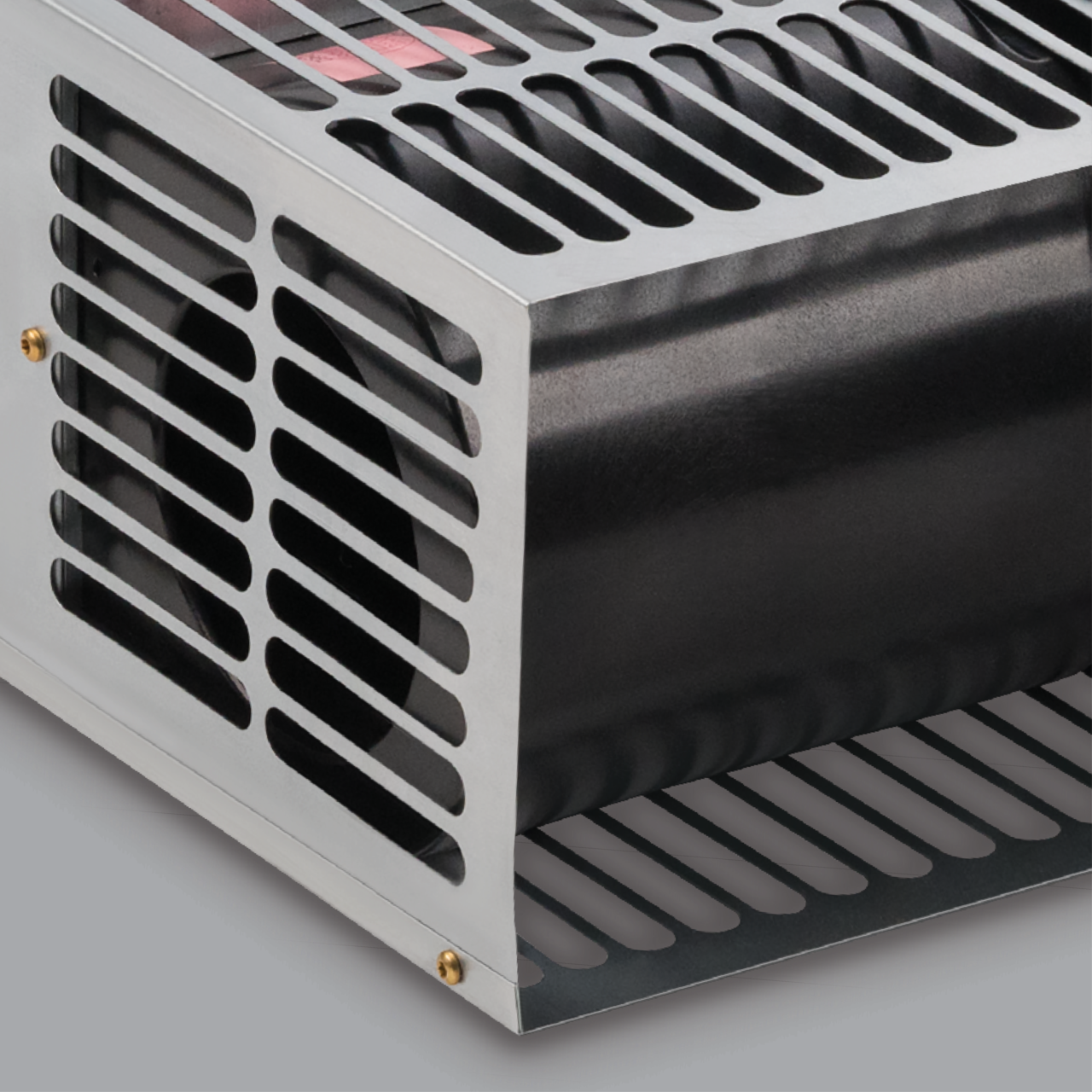

More Airflow

18–22% more airflow ensures even heat throughout.

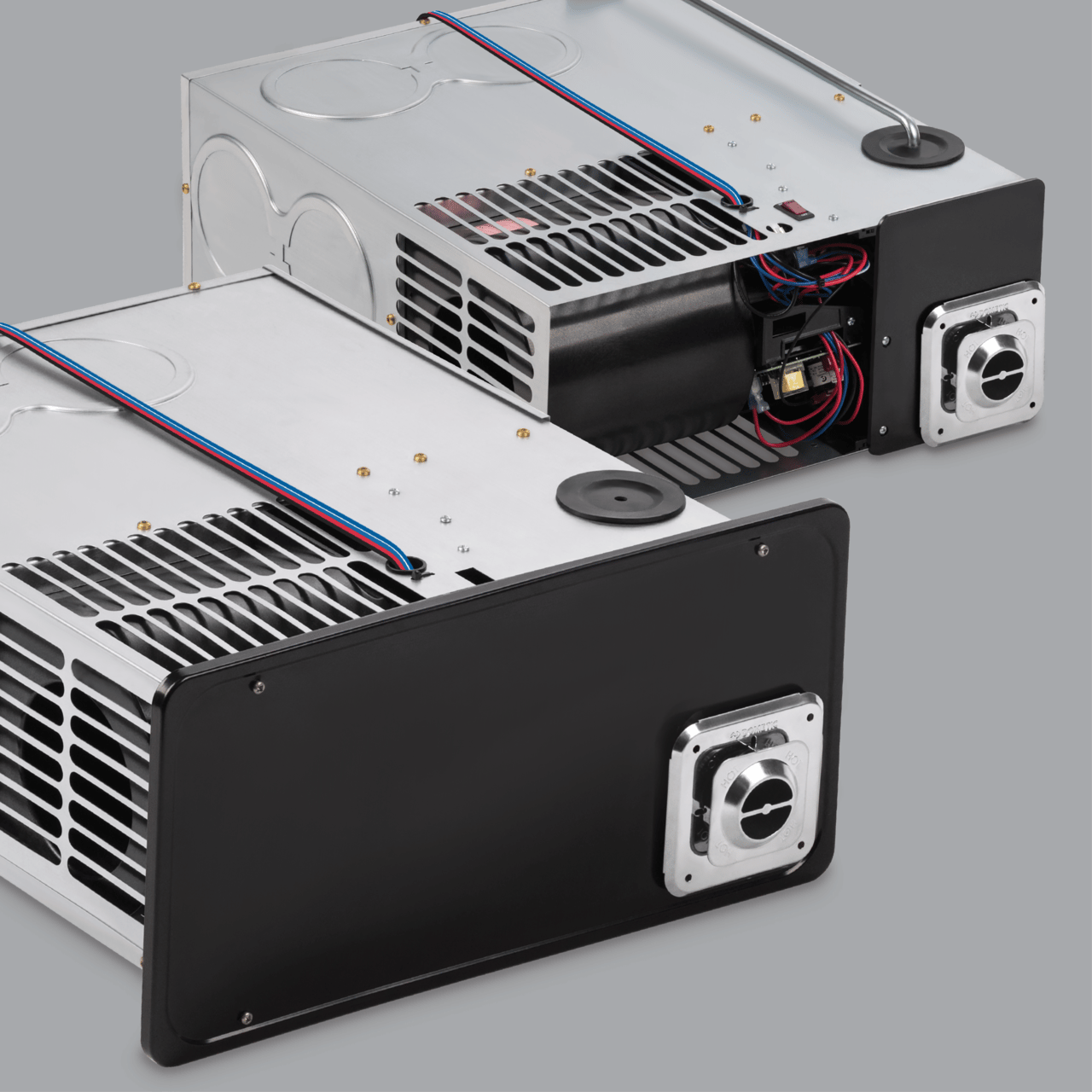

Flexible Fit

Horizontal or vertical install with door or doorless options.

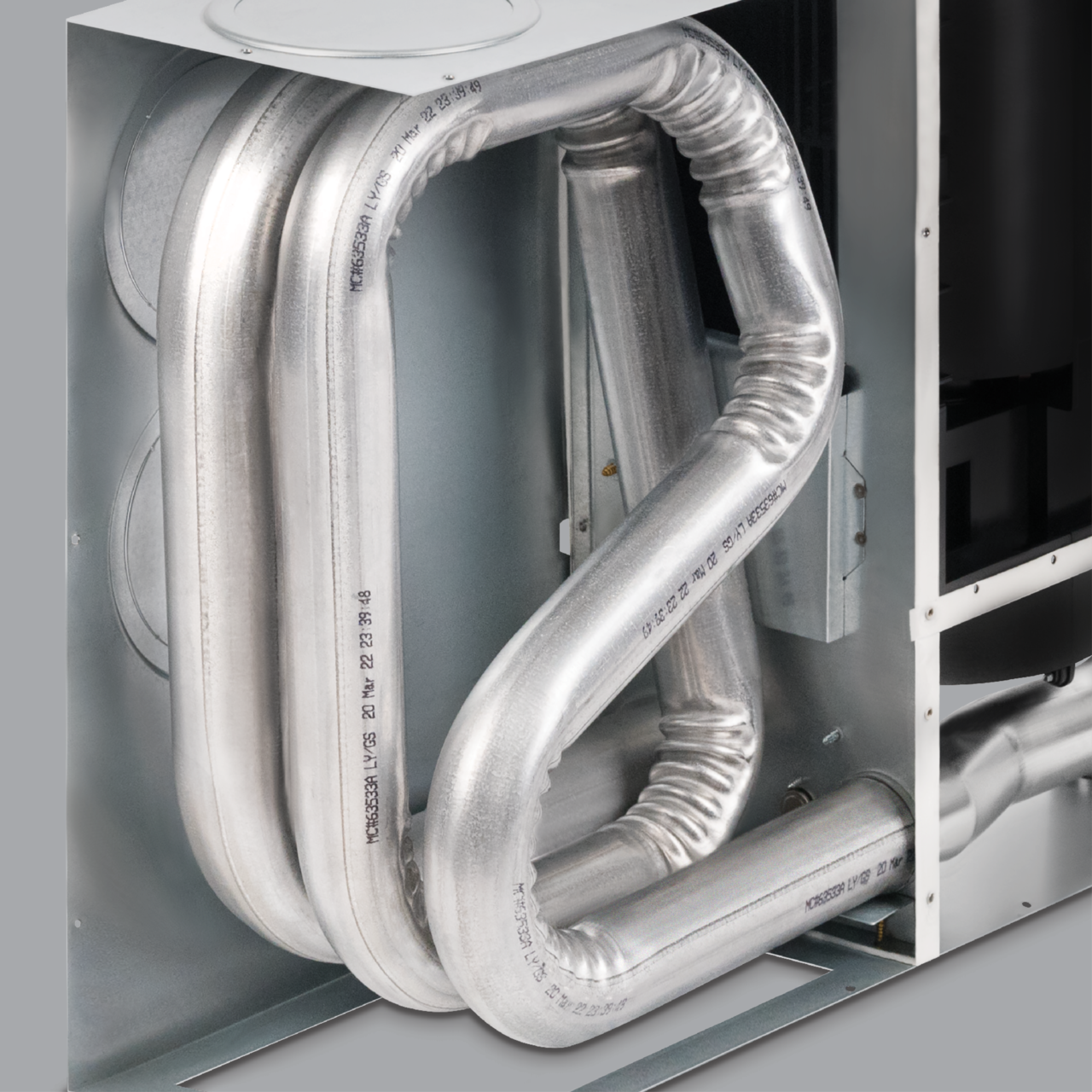

Durable Heat Exchanger

One-piece tubular design delivers efficient heat transfer and airflow distribution.
