Dometic DPS-R135 AC/DC Adapter

Refrigeration power adapter plug, 100-240V~50/60Hz output 27V 5A

$ 175.79

Effortlessly transition from battery to mains power (100-240V) for uninterrupted appliance operations on any voyage. Designed to seamlessly integrate with the cutting-edge NRX Series compressor refrigerators and other 12/24V appliances, the Dometic DPS-R135 AC/DC Adapter automatically reverts to battery power (12/24V) when unplugged.

Description

  1. Connects 24V DC refrigerators or other appliances to the main power socket
  2. Compatible with all Dometic refrigerators
  3. Easy Quick-Connect wiring
  4. Automatic switching DC<>AC

Specifications

SKU: 9620013451

Dometic DPS-R135 AC/DC Adapter — General specifications
ModelDPSR

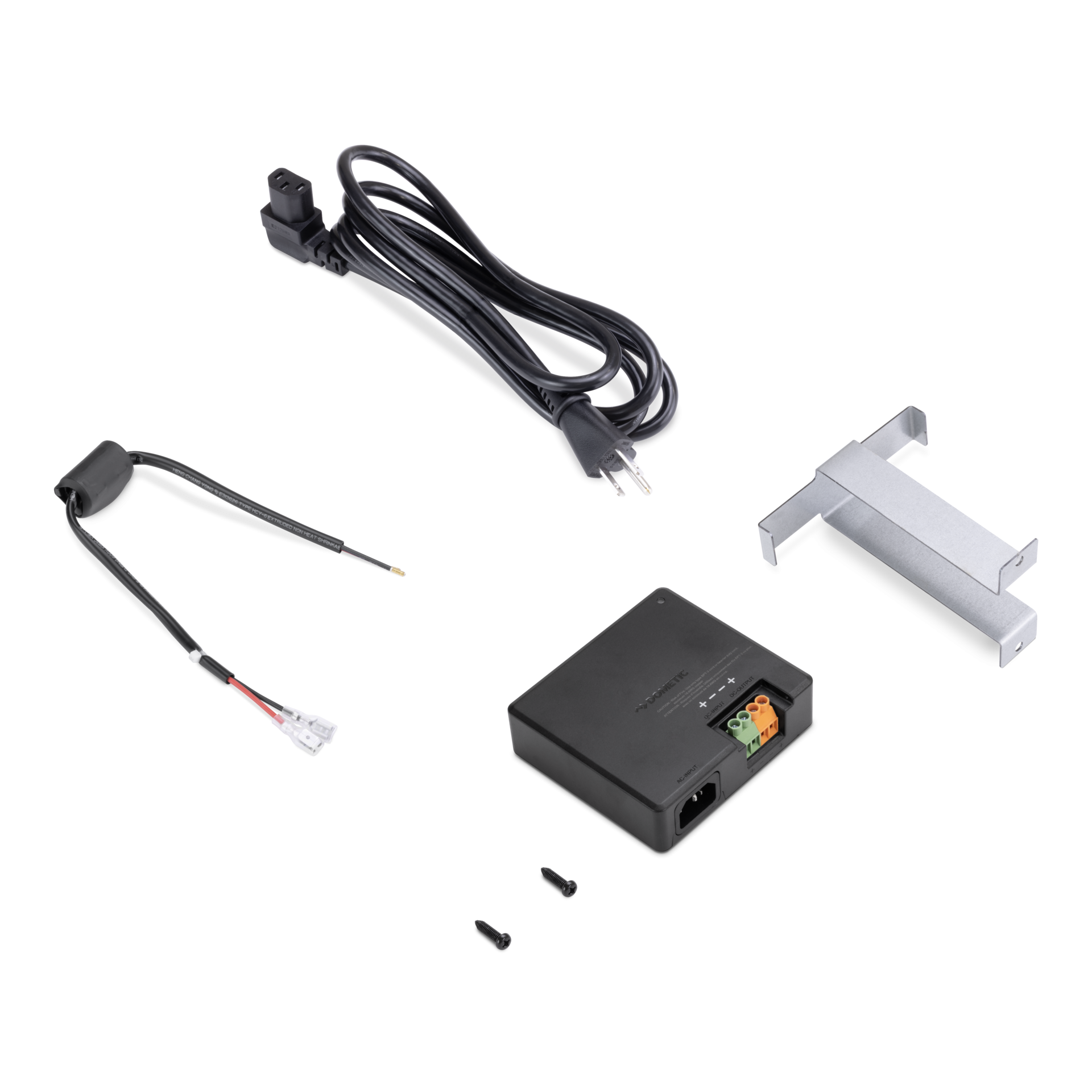

Scope of delivery1x adapter, 1 x DC magnetic cable, 1x AC plug, 1 x mounting bracket, 2 x screws, 3 x manual
Product DescriptionRefrigeration power adapter plug, 100-240V~50/60Hz output 27V 5A

Dometic DPS-R135 AC/DC Adapter — Dimensions specifications
Dimensions product depth, [in]4.33
Dimensions product height, [in]3.94
Dimensions product width, [in]1.26
Net weight, [lbs]1.10

Dometic DPS-R135 AC/DC Adapter — Electrical specifications
Input voltage (AC), [V]100-240
Input voltage (DC), [V]12/24
Rated input current (AC), [A]AC100V:1.53A; AC240V:0.64A (88% energy efficiency）
Rated input current (DC), [A]DC12V:10A; DC24V:5A

Dometic DPS-R135 AC/DC Adapter — Logistics specifications
Dimensions parcel depth, [in]4.45
Dimensions parcel height, [in]12.83
Dimensions parcel width, [in]4.45
Parcel weight, [lbs]2.09

Dometic DPSR-135 - Installation and Operating Manual AMER4
Installation And Operating Manual

Product size & weight

W 1.26 x H 3.94 x D 4.33 in

Weight: 1.10 lbs
