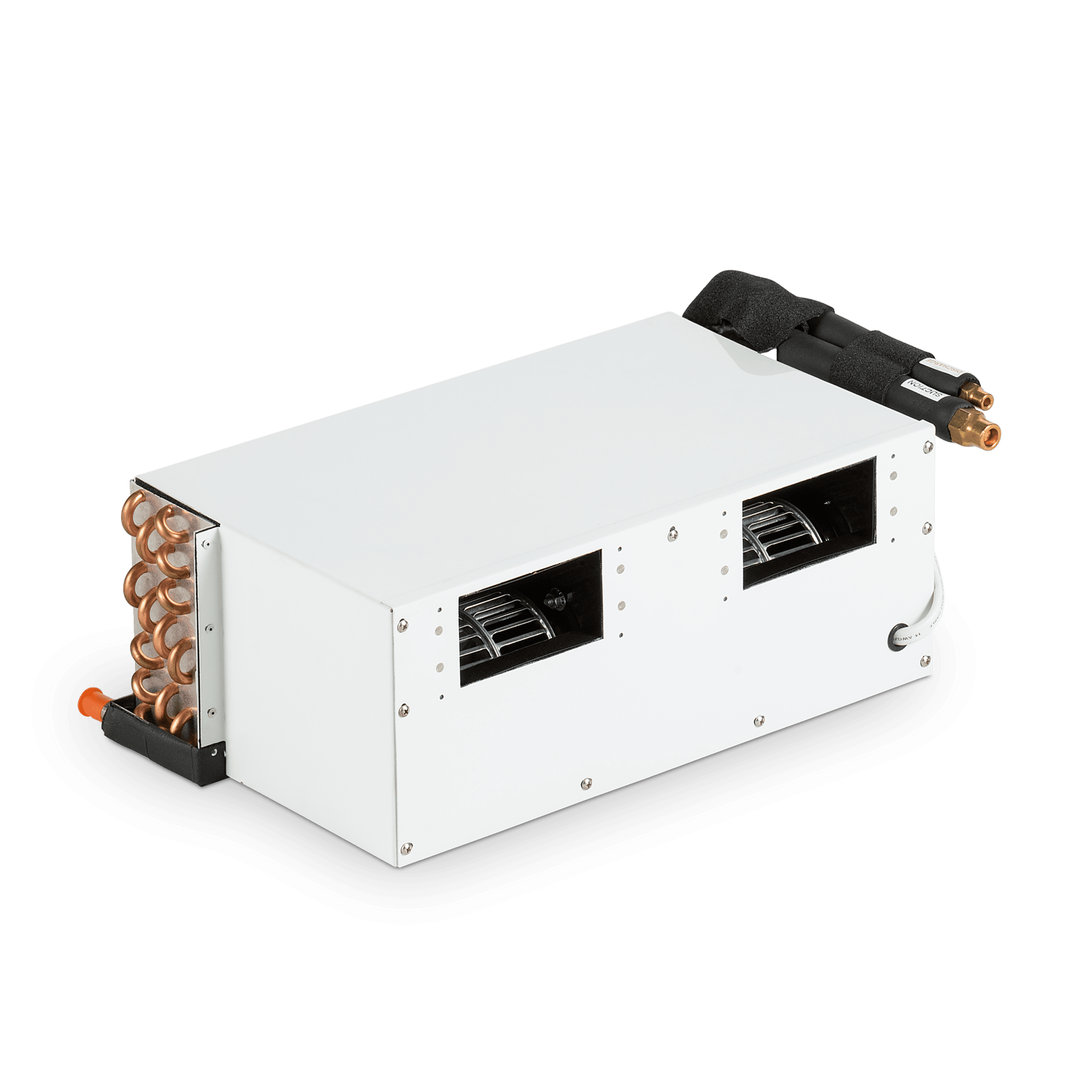

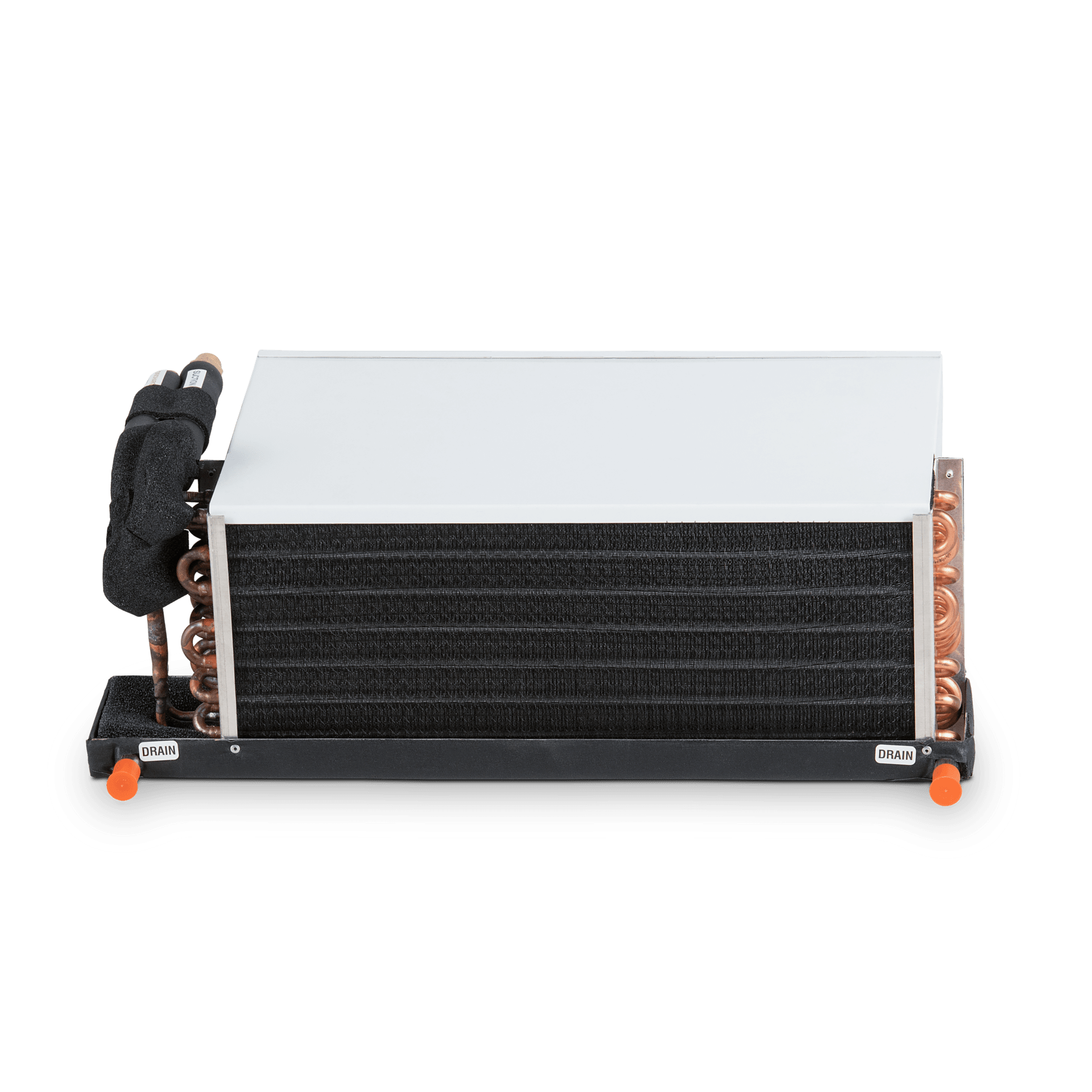

Dometic EDLE

Low Profile Enclosed Evaporator Series

Direct Expansion Low Profile Evaporator 16,000 BTU/h. Designed to work with Dometic's Emerald R410A remote condensing units. Can be used with R-22 or R-417A condensers.

Description

  1. Stands only 7.48 in. (190 mm) tall
  2. Corrosion-resistant coating on the blower and housing increases service life
  3. 304-grade stainless-steel drain pan gives durability
  4. Low-profile, designed for height-restrictive installations
  5. Ideal for flybridge, cockpit, and on-deck installations

Specifications

SKU: 9108690480

Dometic EDLE — General specifications
ModelEVAPS EDLE Series
Product DescriptionLow Profile Enclosed Evaporator Series

Dometic EDLE — Dimensions specifications
Dimensions product depth, [in]19.5
Dimensions product height, [in]13.25
Dimensions product width, [in]34 1/2
Net weight, [lbs]19

Dometic EDLE — Electrical specifications
Input voltage (AC), [V]230
Input frequency, [Hz]50/60
Required AC circuit protection min, [A]1
Required AC circuit protection max, [A]5

Dometic EDLE — Performance specifications
Cooling Capacity ISO5151 Display4689.14
Cooling Capacity Display16000
Current consumption min cooling, [A]0.62
Current consumption max cooling, [A]0.62

Dometic EDLE — Logistics specifications
Dimensions parcel depth, [in]29.9
Dimensions parcel height, [in]18.5
Dimensions parcel width, [in]18
Parcel weight, [lbs]29.13

Dometic Fan Coils and Controls - Declaration of Conformity EMEA24
Declaration Of Conformity
Dometic Climate Parts Guide.pdf
Buying Guide
Cancer warning icon

Warning: Cancer or reproductive harm www.P65Warnings.ca.gov

Product size & weight

H 13.25 x D 19.5 in

Weight: 19 lbs
