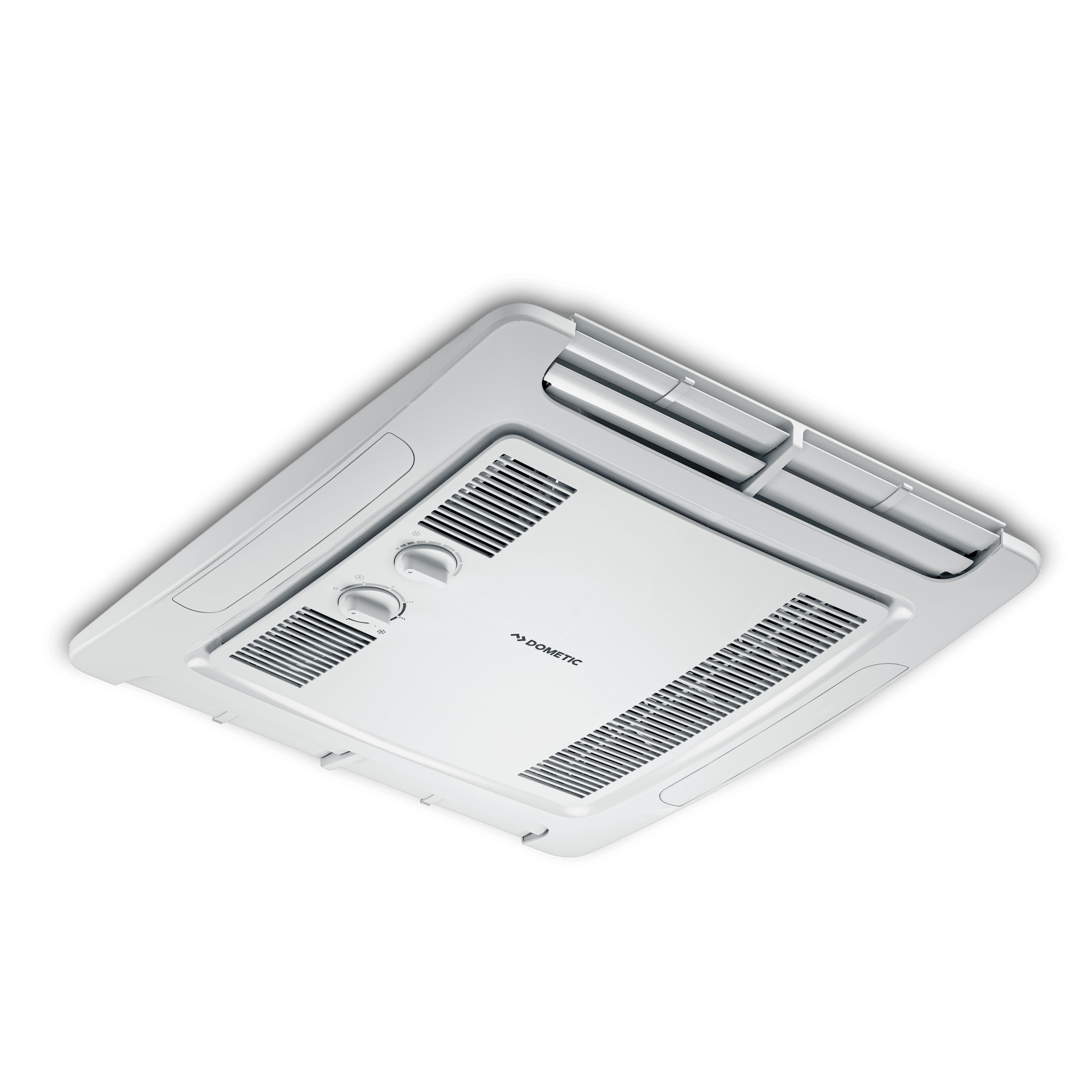

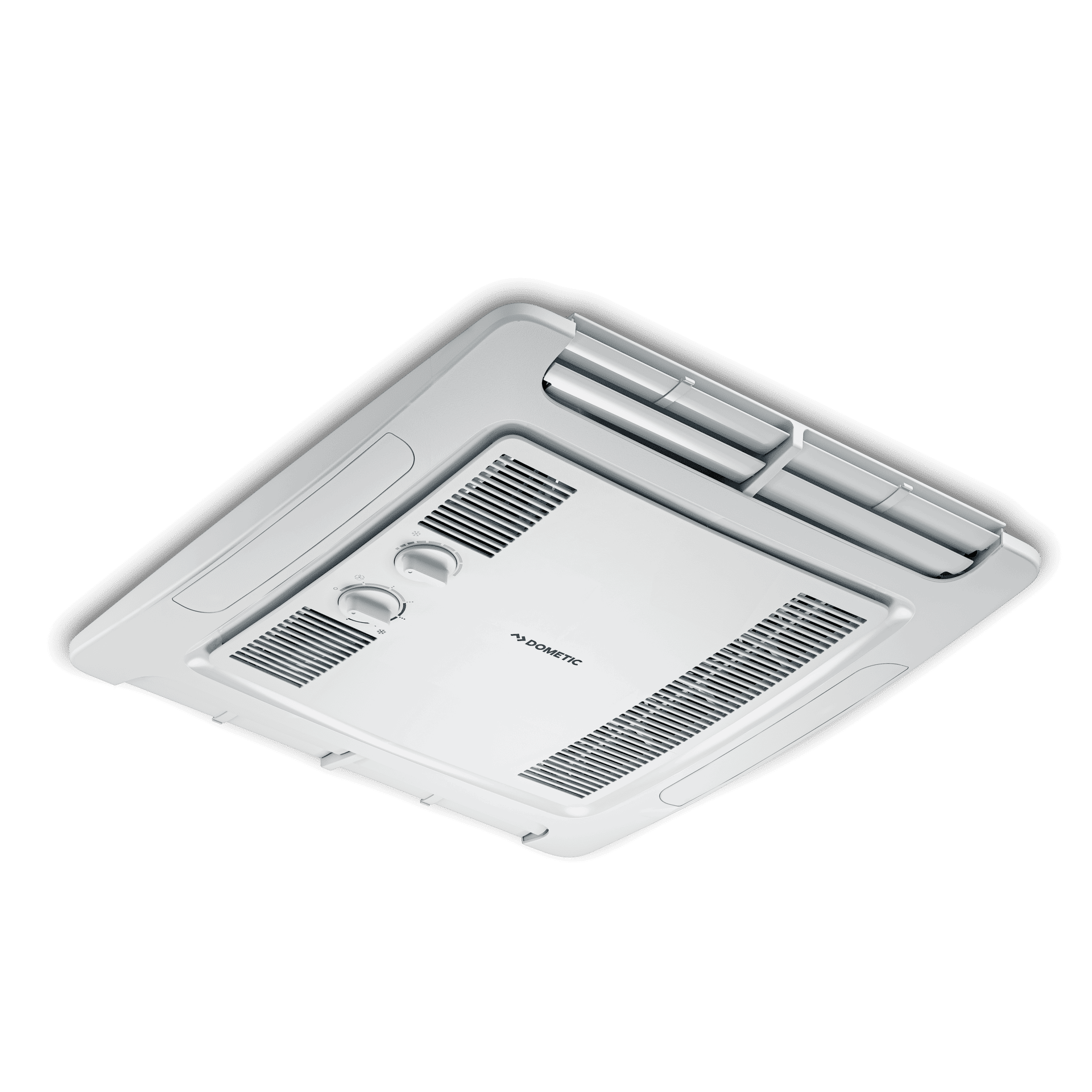

Dometic FreshJet Mechanical Air Distribution Box (non-ducted application)

Specifications

General

Scope of delivery

ADB, Installation and operating Manual, Installation Material

SKUCertificates

CSA

Product Description

FreshJet Air Distribution Box (ADB) - Manual ceiling controls

Dimensions

Dimensions product depth, [mm]

518

Dimensions product height, [mm]

59

Dimensions product width, [mm]

583

Dimensions product width, ["] - Display

22.95

Net weight, [kg]

3.40

Net weight, [lbs]

7.50

Standard mount. material thickness 1 min, [mm]

25

Standard mount. material thickness 1 max, [mm]

140

Cut out depth, [mm]

360.000000

Cut out width, [mm]

360.000000

Electrical

Input voltage (AC), [V]

115

Input frequency, [Hz]

60

Performance

Operating temperature min, [°C]

16.000000

Operating temperature max, [°C]

46.000000

Properties

Thermostat control

Manual Thermostat

Logistics

Dimensions parcel depth, [mm]

640

Dimensions parcel height, [mm]

140

Dimensions parcel width, [mm]

565

Parcel weight, [kg]

5.69

Parcel weight, [lbs]

12.54
