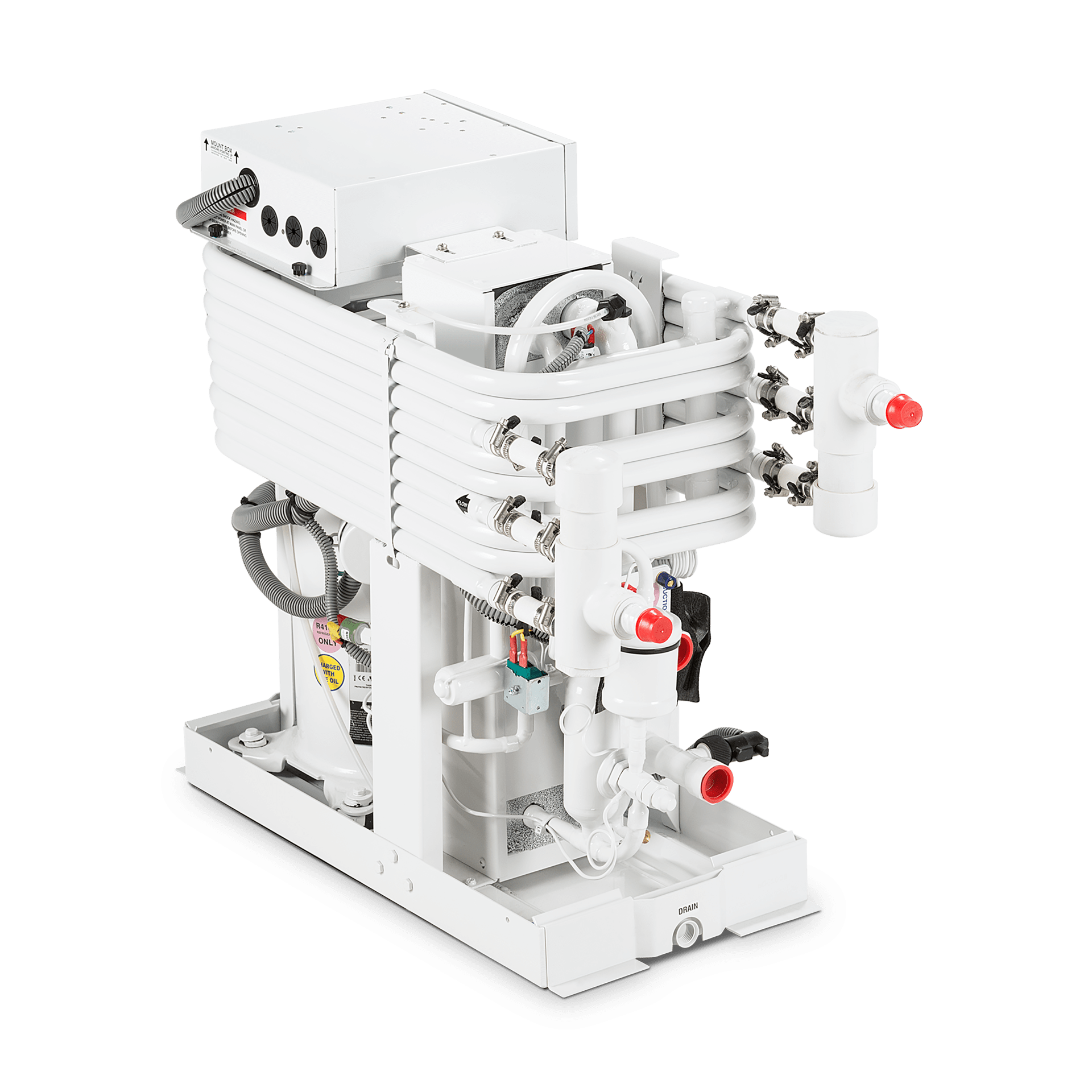

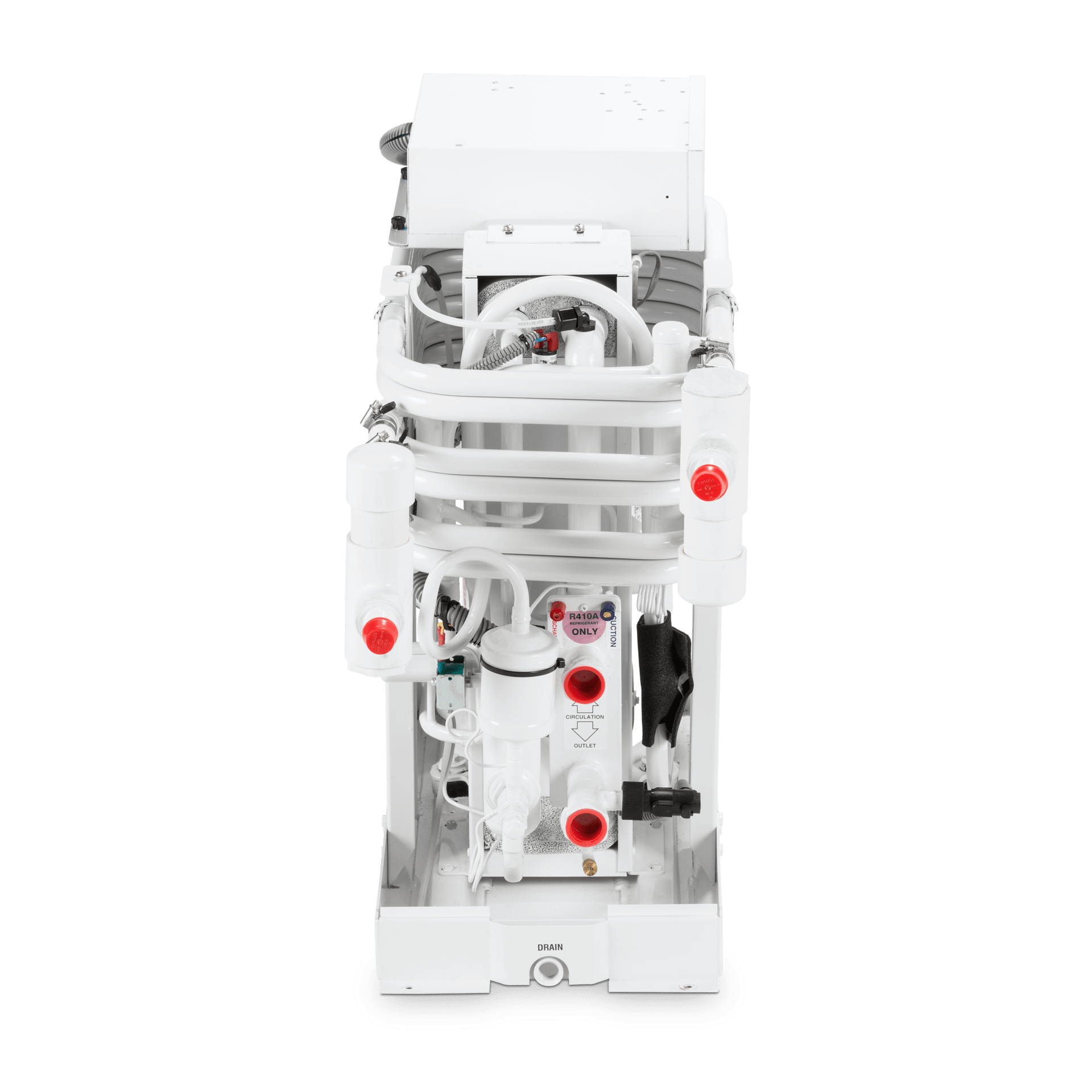

Dometic MCGX CW Module

Modular Titanium Chiller from 24000 BTU/h or 180000 BTU/h

Dometic MCGX modular chillers use titanium condensers to greatly increase durability and product lifespan. Titanium is unaffected by the punishing combination of saltwater, invasive marine life, and the harsh acids used for routine cleaning of the condenser coil. Titanium extends service life and is unaffected by the corrosion and erosion of the harsh marine environment.

Description

  1. Available in 230V 50 Hz, 230V 60Hz, 400V 50Hz 3PH, 400V 60 Hz 3 PH
  2. Titanium condenser dramatically increases product lifespan
  3. Up to six modules can be staged
  4. Hermetically sealed and pre-charged with R410A refrigerant
  5. Features freeze controls, high-limit switches, high and low aquastats and timers
  6. Unaffected by vibration, moisture or ambient temperatures up to 140 °F/60 °C
  7. Monitored and protected by Dometic’s exclusive Digital Diagnostic Controller (DDC)

Specifications

SKU: 9108916325

Dometic MCGX CW Module — General specifications
ModelChiller Cond MCG Modular
Product DescriptionModular Titanium Chiller from 24000 BTU/h or 180000 BTU/h

Dometic MCGX CW Module — Dimensions specifications
Dimensions product depth, [in]37
Dimensions product height, [in]42
Dimensions product width, [in]37
Net weight, [lbs]310

Dometic MCGX CW Module — Electrical specifications
Input voltage (AC), [V]380
Input frequency, [Hz]50
Required AC circuit protection min, [A]33
Required AC circuit protection max, [A]50

Dometic MCGX CW Module — Performance specifications
Hermetically SealedYes
Refrigerant, typeR410A
GWP2088
CO2 equivalent, [t]3,788
Cooling Capacity ISO5151 Display90000
Cooling Capacity Display90000
Current consumption min cooling, [A]11.3
Current consumption max cooling, [A]11.3

Dometic MCGX CW Module — Logistics specifications
Dimensions parcel depth, [in]37
Dimensions parcel height, [in]42
Dimensions parcel width, [in]37
Parcel weight, [lbs]355.42
