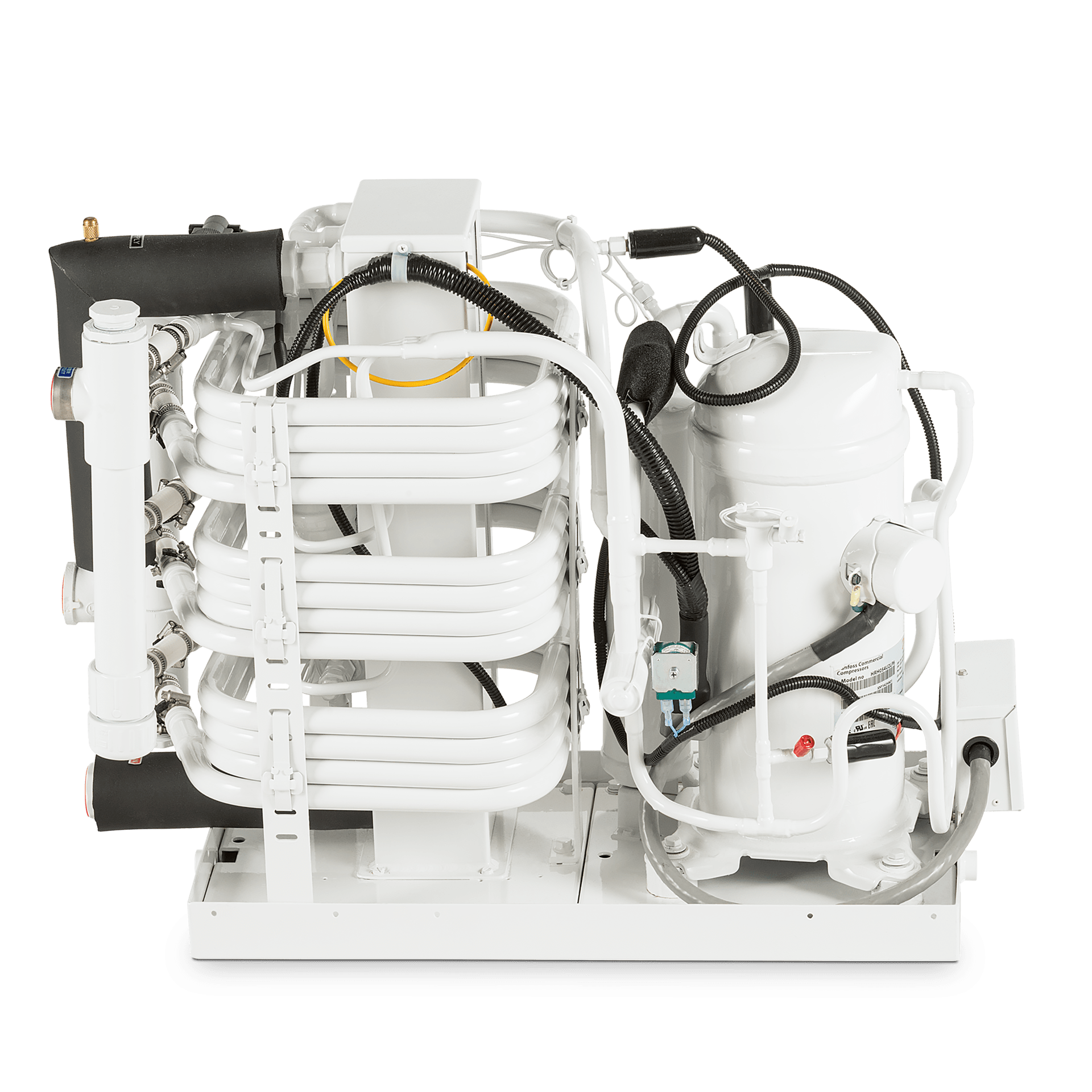

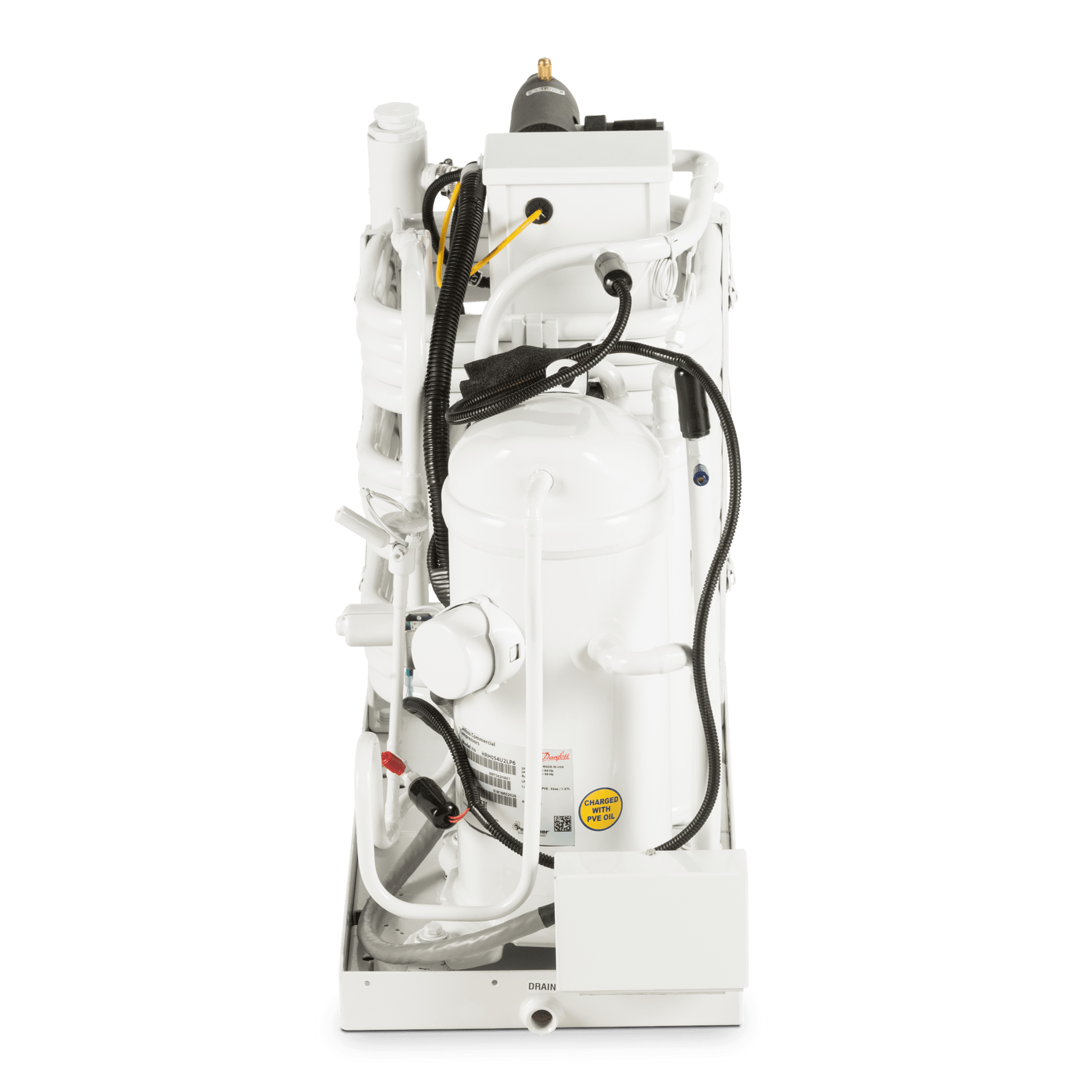

Dometic MCGXLP CW Module

Water Chiller

Provides installation flexibility, reliability, maximum performance and easy access for maintenance and repair. With easy module staging and multiple efficiency-boosting designs, this modular chiller offers great performance and serves as a great drop-in replacement for Dometic MTC R-407C units.

Description

  1. Ideal as drop-in replacements for Dometic MTC R-407C units
  2. Hot gas bypass valve maintains heating performance in cold seawater
  3. Wire harness with polarized plug for easy electrical connections
  4. Thermal expansion valves optimize performance
  5. Integrated loop-water strainer and flow switch

Specifications

SKU: 9108893793

Dometic MCGXLP CW Module — General specifications
ModelChiller Cond MTC Modular
Product DescriptionWater Chiller

Dometic MCGXLP CW Module — Dimensions specifications
Dimensions product depth, [in]26
Dimensions product height, [in]26
Dimensions product width, [in]36
Net weight, [lbs]220

Dometic MCGXLP CW Module — Electrical specifications
Input voltage (AC), [V]230
Input frequency, [Hz]60
Required AC circuit protection min, [A]34
Required AC circuit protection max, [A]60

Dometic MCGXLP CW Module — Performance specifications
Hermetically SealedYes
Refrigerant, typeR410A
GWP2088
CO2 equivalent, [t]2,249
Cooling Capacity ISO5151 Display17584.26
Cooling Capacity Display60000
Current consumption min cooling, [A]11.3
Current consumption max cooling, [A]11.3

Dometic MCGXLP CW Module — Logistics specifications
Dimensions parcel depth, [in]37
Dimensions parcel height, [in]35
Dimensions parcel width, [in]30
Parcel weight, [lbs]260.33

Dometic Chillers Fixed Speed - Declaration of Conformity EU
Declaration Of Conformity
Dometic Chilled Water System - Installation and Operating Manual - AMER(en)
Installation And Operating Manual
Dometic Climate Parts Guide.pdf
Buying Guide
Cancer warning icon

Warning: Cancer or reproductive harm www.P65Warnings.ca.gov

Product size & weight

W 36 x H 26 x D 26 in

Weight: 220 lbs
