Description
- High-capacity centrifugal pumps
- Vibration-isolation mounts reduce noise and vibration
- Seawater-grade construction with glass-filled polypropylene or bronze pump heads
- Single-phase motors have built-in ignition protection
Provides a steady flow of cooling water through your marine air conditioning system. A wide range of pumps and motors are available for use in different power environments.
Specifications
SKU: 9108549747
| Model | Magnetic Drive |
|---|---|
| Product Description | Water Pump, 115V - 6 GPM - 14 ft. of head |
| Dimensions product depth, [in] | 7.4 |
|---|---|
| Dimensions product height, [in] | 5.6 |
| Dimensions product width, [in] | 5 9/16 |
| Net weight, [lbs] | 7.95 |
| Input voltage (AC), [V] | 115 |
|---|---|
| Input frequency, [Hz] | 50/60 |
| Current consumption max cooling, [A] | 2 |
|---|---|
| Flow Rate Imperial | 6 |
| Dimensions parcel depth, [in] | 11 |
|---|---|
| Dimensions parcel height, [in] | 6 |
| Dimensions parcel width, [in] | 7 |
| Parcel weight, [lbs] | 7.76 |
Dometic Service Event Request & Claim Reimbursement Form for Marine Air Conditioning - Warranty Document AMER(en)
Warranty Document
Dometic Marine Warranty Policy (Air Condition and Refrigeration) - Owner’s Limited Warranty Policy AMER(en)
Warranty Document
Warning: Cancer or reproductive harm www.P65Warnings.ca.gov

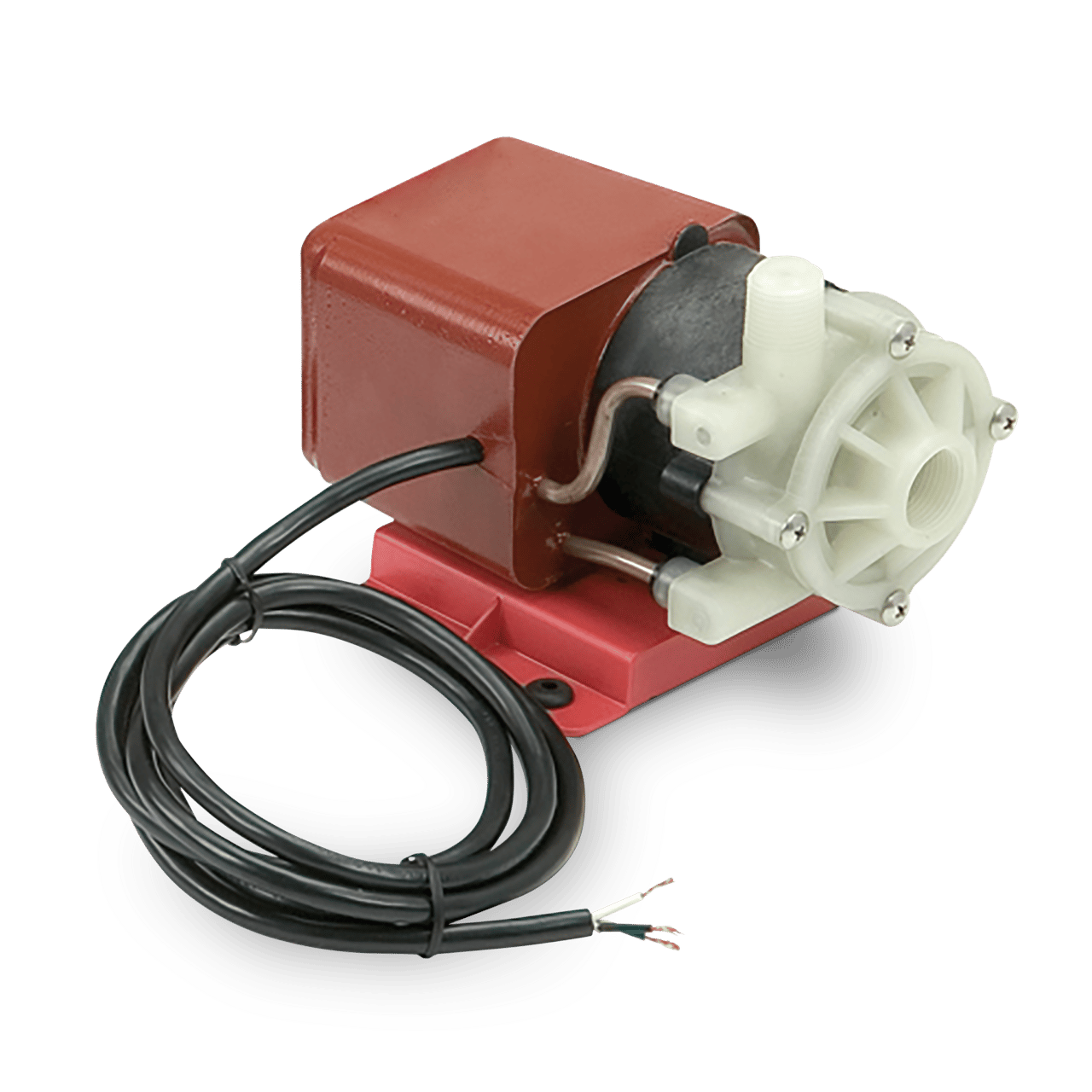

Ultra-durable and efficient
Dometic's Water-Cooled Pump provides seawater circulation for Dometic air conditioning systems. The proven magnetic drive eliminates the troublesome mechanical shaft seal. There is no seal wear, power-robbing friction, or leakage through the seal. The impeller and drive magnets are strong, permanent ceramic types, which prevent slippage, ensuring that full motor power is converted into pumping power.
