Description
- Easy installation design from behind the dash means no dash modification when replaces other Dometic rack steering systems
- Trapped nut engine connection stays in place during cable routing
- Tightly controlled core to conduit fit to offer precise steering
- Outer jacket is constructed with HDPE, a high density polyethylene material that is abrasion resistant and provides a high resistance to water penetration
- Output ends are constructed of stainless steel material for corrosion resistance
- Exceeds ABYC safety standards and ISO/IMCI/NMMA certification requirements
- Fits: SH5210P, SH5230P, SH91610 and SH91630P helms

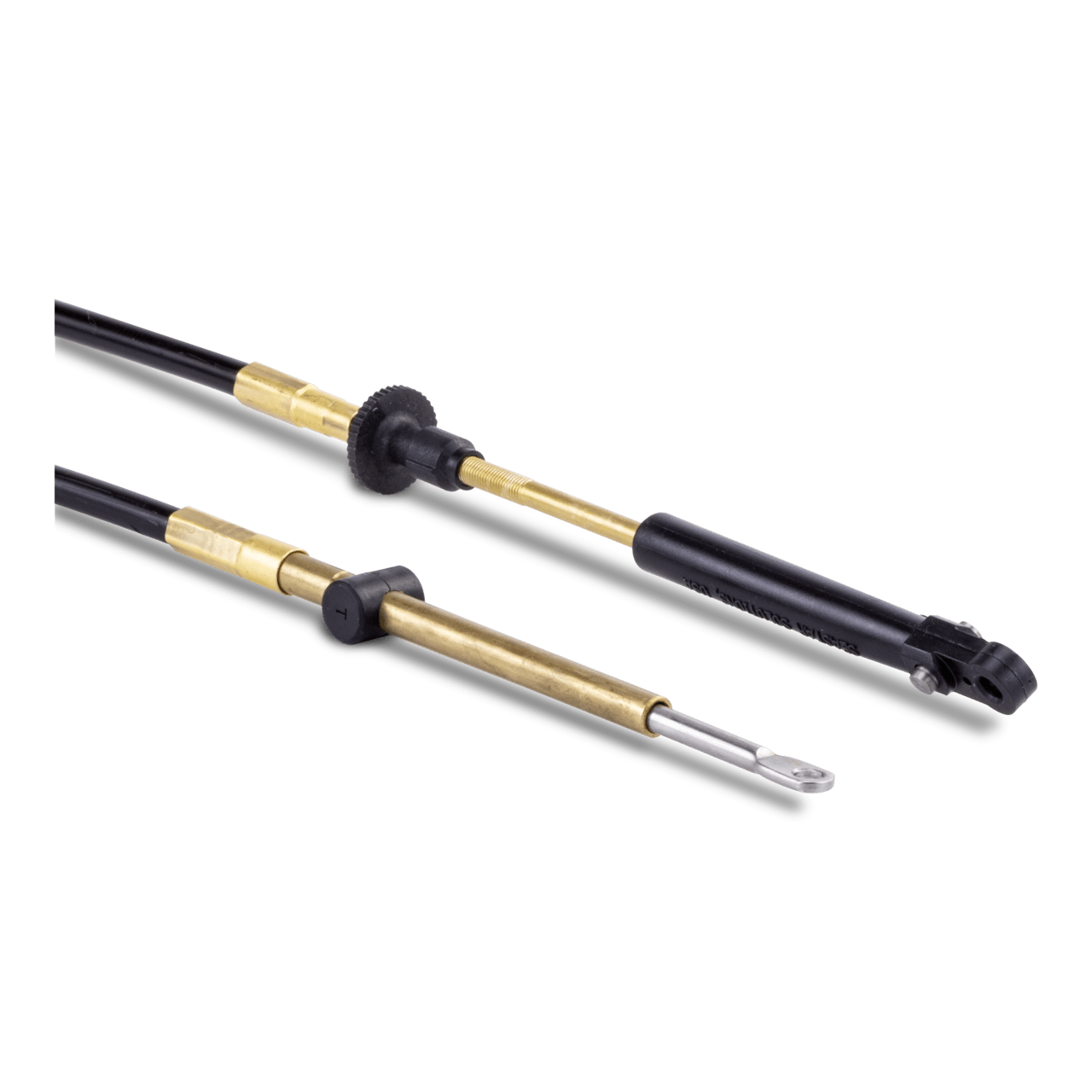

The Dometic SeaStar Rack SSC134 type cable is a back mount and NFB single rack cable. This cable is a single rack cable only.
Specifications
SKU: 9130004853
| Model | SSC134 |
|---|---|
| Product Description | Back Mount and NFB Single Rack Cable, 6', SSC13406 |
| Dimensions product height, [in] | 20 |
|---|---|
| Dimensions product width, [in] | 3 1/4 |
| Dimensions product length, [ft] | 6 |
| Net weight, [lbs] | 6.71 |
| Wire Length, [ft] | 27 |
|---|
| Dimensions parcel height, [in] | 20 |
|---|---|
| Dimensions parcel width, [in] | 3.25 |
| Parcel weight, [lbs] | 6.71 |
How to measure steering cables
When replacing a cable, measure twice and order once. If possible, find the part number stamped on the plastic jacket of the old cable. For rack cables, if you removed the old cable, measure plastic cable jacket in inches, add 30 inches and if it does not end on a foot, then round up to the next foot. Order that length cable.
