Description
- Available in 115V or 230V (50/60Hz)
- Rust-free composite drain pan has anti-slosh, "positive flow" drain channels for no spills and rapid removal of condensate
- Designed to be used with Emerald Series R410A condensers
- Vibration-isolation mounts reduce noise and vibration
- Single adjustment screw for 270° of blower rotation

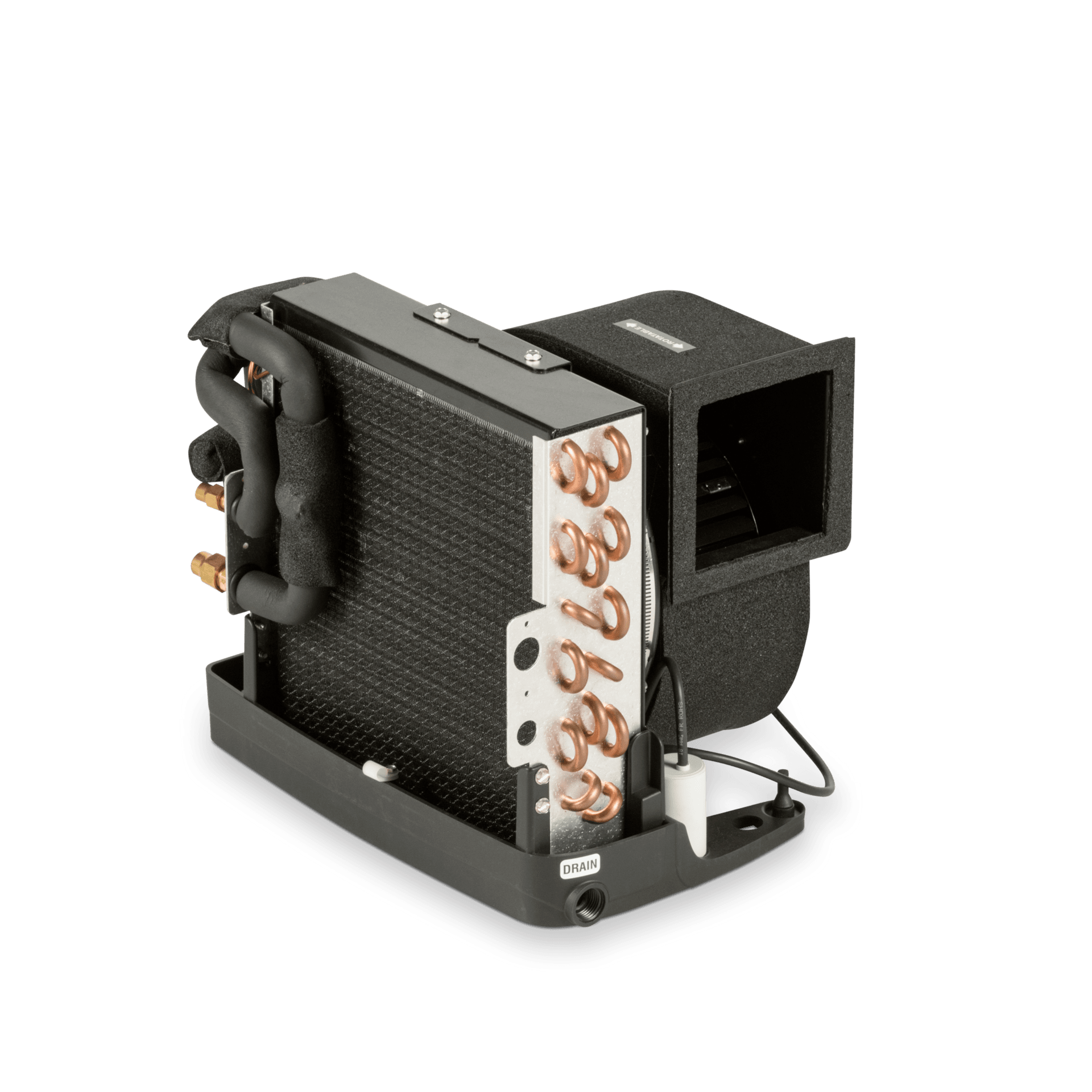

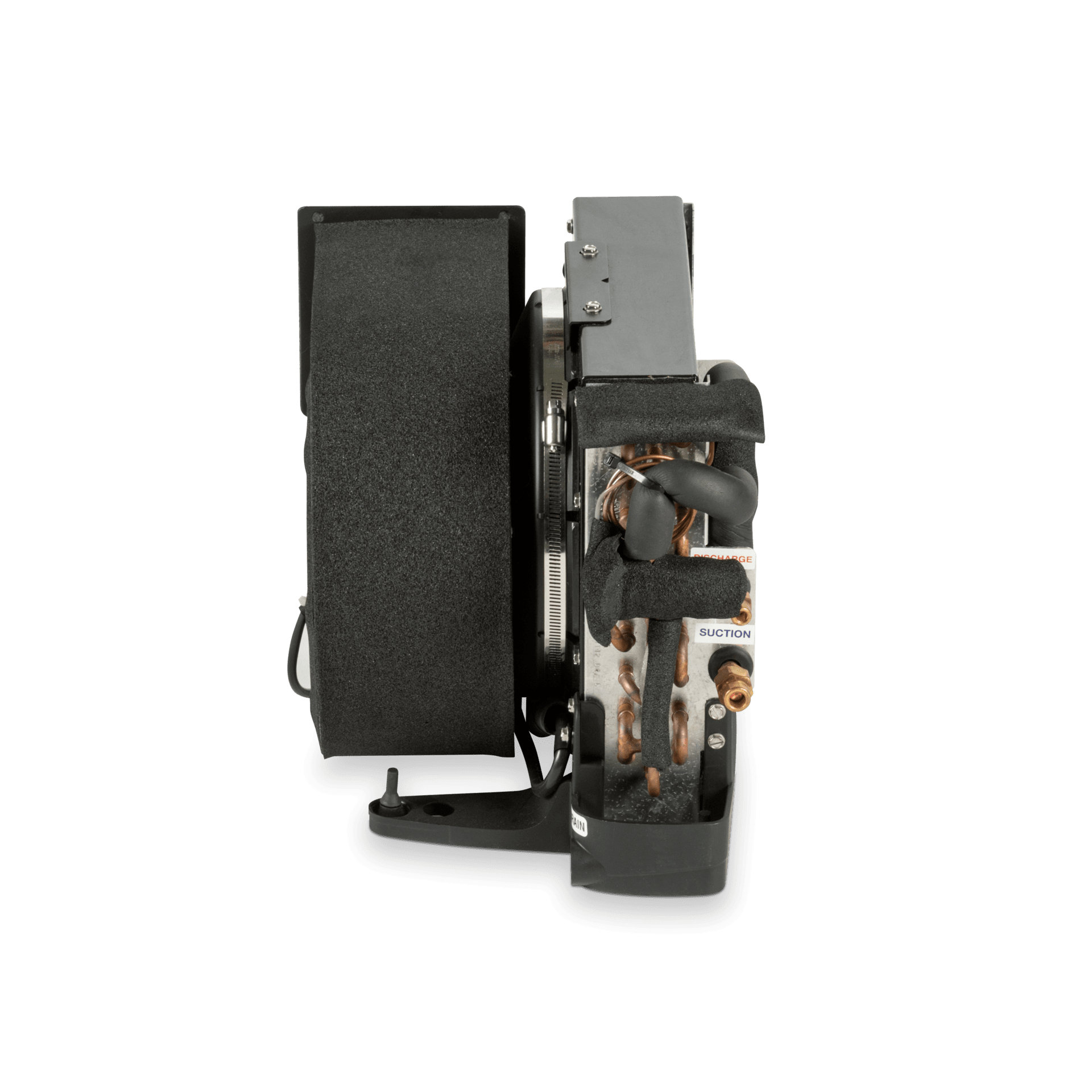

The Dometic Emerald (TVE) direct expansion (DX) split-gas evaporator is based on the innovative engineering advancements of the award-winning Dometic Turbo selfcontained air conditioning system. TVE units work with Dometic Emerald R410A condensing units.
Specifications
SKU: 9108548591
| Model | EVAPS TVE |
|---|---|
| Product Description | Direct Expansion Evaporating Unit from 4,000 to 16,000 BTU/h--410A |
| Dimensions product depth, [in] | 9.5 |
|---|---|
| Dimensions product height, [in] | 10.8 |
| Dimensions product width, [in] | 12 4/16 |
| Net weight, [lbs] | 10.50 |
| Input voltage (AC), [V] | 115 |
|---|---|
| Input frequency, [Hz] | 50/60 |
| Required AC circuit protection min, [A] | 2 |
| Required AC circuit protection max, [A] | 5 |
| Cooling Capacity ISO5151 Display | 1172.28 |
|---|---|
| Cooling Capacity Display | 4000 |
| Current consumption min cooling, [A] | 0.82 |
| Current consumption max cooling, [A] | 0.82 |
| Dimensions parcel depth, [in] | 24 |
|---|---|
| Dimensions parcel height, [in] | 18.5 |
| Dimensions parcel width, [in] | 17 |
| Parcel weight, [lbs] | 19.02 |
Dometic (R410a) DEG, DEU, EBE, EBLE, DEUX, TVE (MVAC Split System "Emerald") - Installation and Operating Manual Marine INT24
Installation And Operating Manual
Highlights

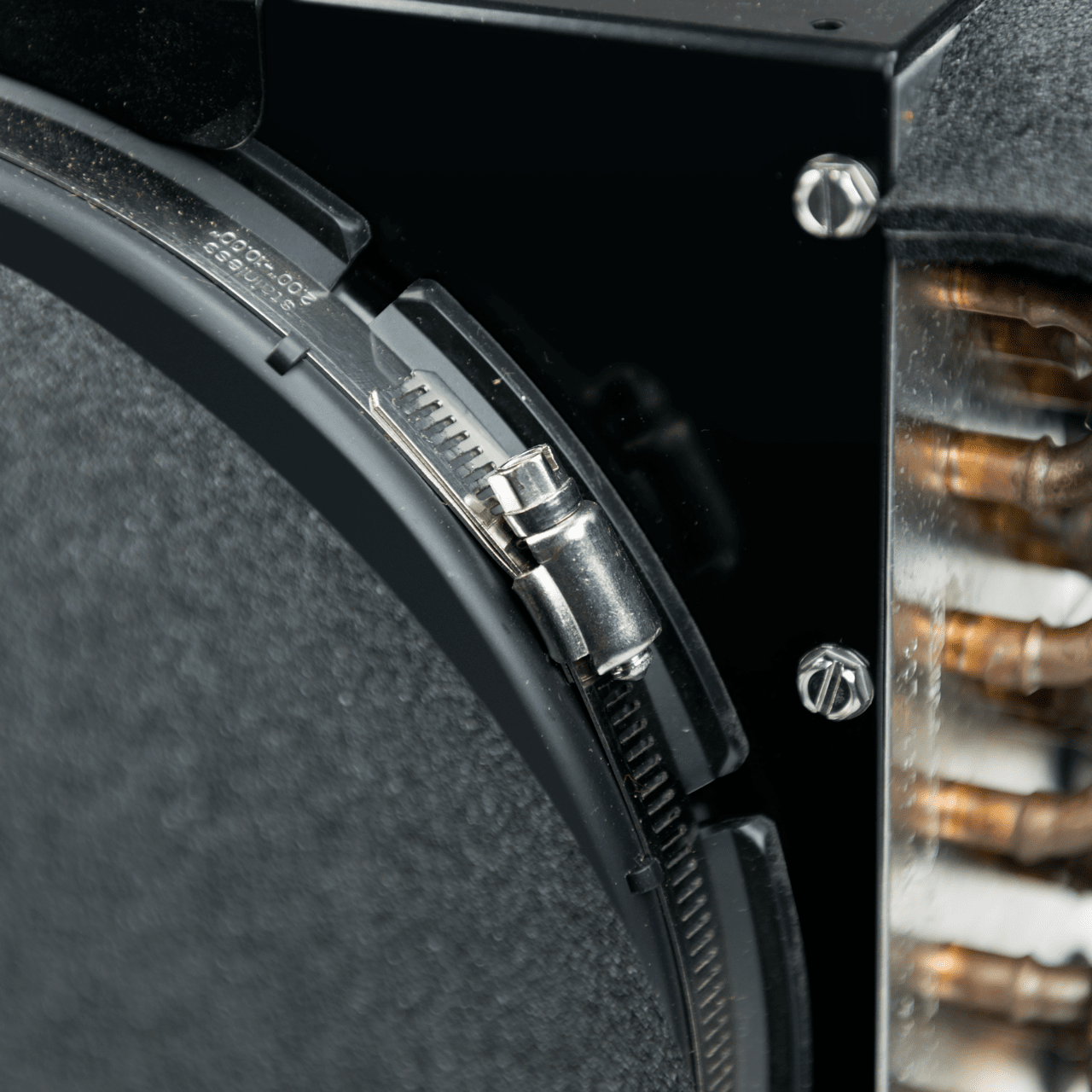

Square chassis for easy installation in tight spaces
Compact base fits in more spaces.

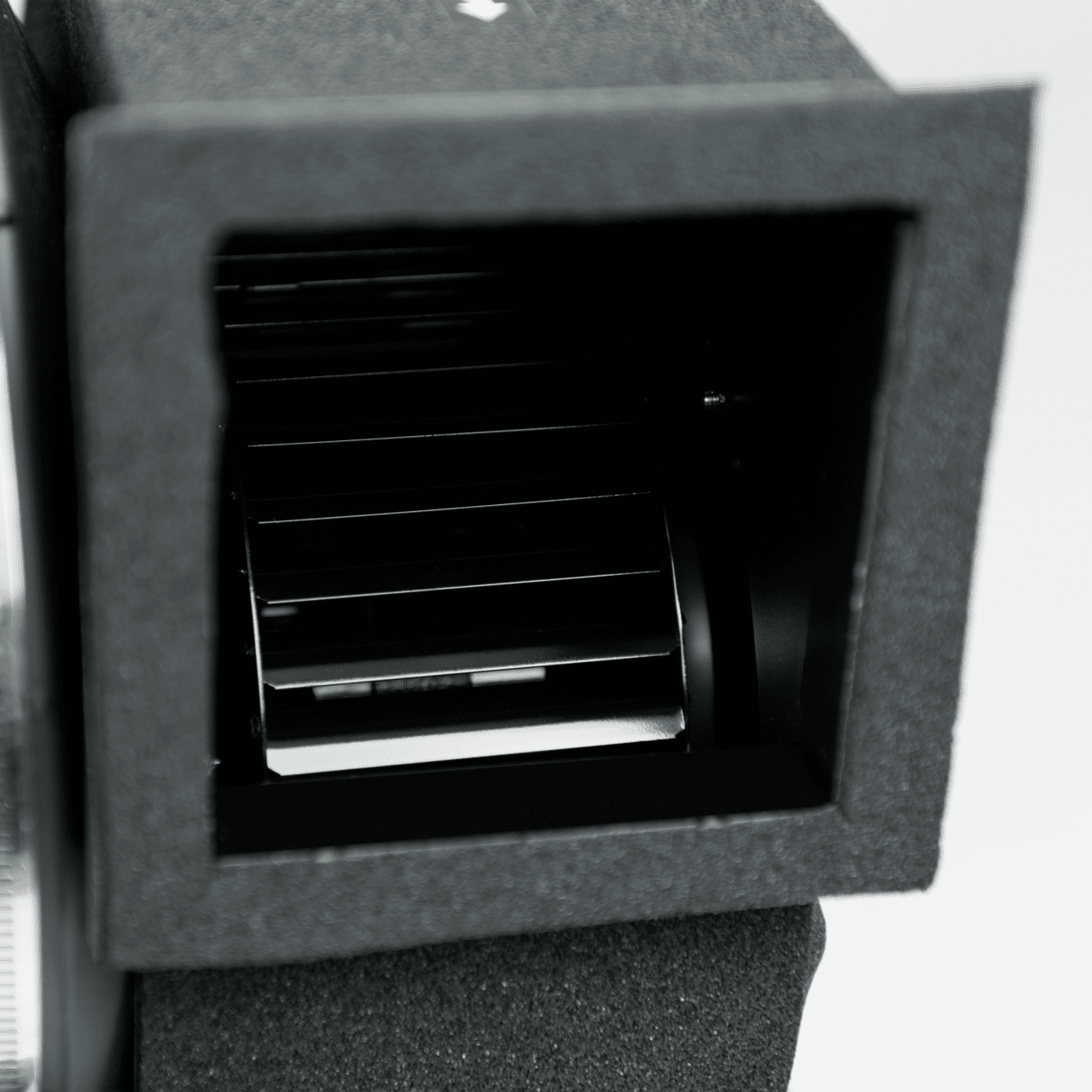

Great performance
The TurboVap evaporators offer many benefits, such as, improved installation ease and flexibility, the enclosed blower motor eliminates overhang and can also be rotated 270° with a single adjustment screw. The fully insulated, high-velocity blowers are quiet and efficient. Further noise reduction is achieved by TurboVap Series’ built-in cushioning system minimizing vibration to the deck and innovative mounting clips utilizing vibration isolators.
