Description
- 10,000 BTU gas input
- 1400 W electric input
- Aluminum tank is lightweight and corrosion resistant
- Mixing valve provides 33 % more hot water than other 6 gal. water heaters

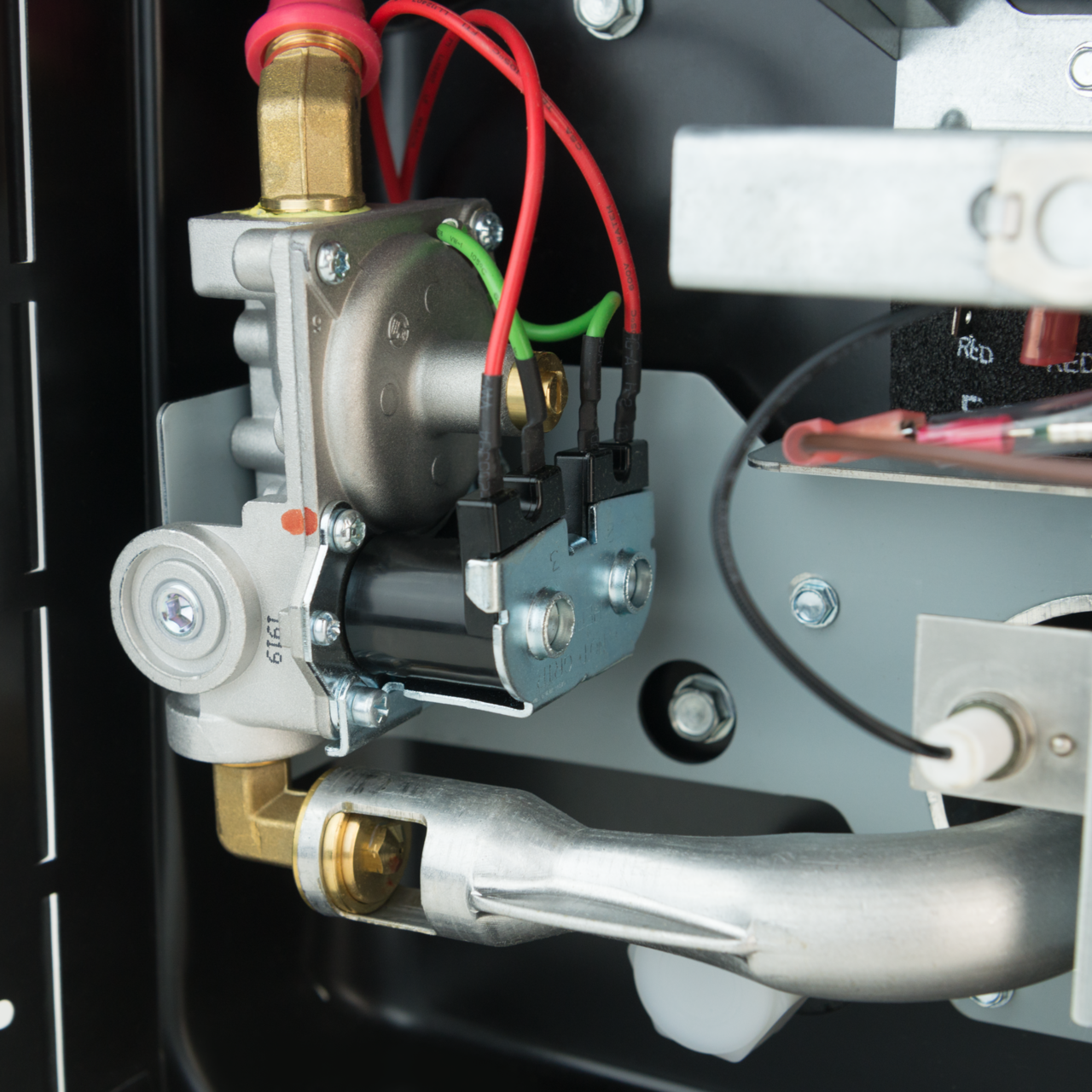

- Electronic ignition gas burner system
- Easy access low profile door
- 6 gal. cut-out: 12-3/4"H x 12-3/4"W x 20-7/8"D
The Dometic WH-9GEA is a market-leading water heater for mobile applications. Its robust burner system generates the equivalent of 9 gals of hot water in a 6 gal tank size hot water quicker and for longer to ensure a comfortable and convenient showering experience while you're away from home. Direct replacement for: 90074, 90073, 90074SU, 90072, 90071, 90072SU, 90068. Doors recommended: 94050 (Arctic White) 94010 (Black). If this installation is in place of an old water heater, and adaptor brackets are needed, we recommend 94016 (Arctic White) 94067 (black).
Specifications
SKU: 9600024380
| Model | WH-9GEA |
|---|---|
| Scope of delivery | Water Heater with Manual |
| SKUCertificates | CSA |
| Product Description | 6 Gallon XT Water Heater (Gas & Electric), Door not Included |
| Dimensions product depth, [in] | 23.5 |
|---|---|
| Dimensions product height, [in] | 12.63 |
| Dimensions product width, [in] | 12.62 |
| Net weight, [lbs] | 18 |
| Cut out depth, [in] | 24 |
| Cut out width, [in] | 12.88 |
| Input voltage (AC), [V] | 120 |
|---|---|
| Input voltage (DC), [V] | 12 |
| Rated input current (AC), [A] | 11.7 |
| Rated input current (DC), [A] | Yes |
| Rated input power (AC), [W] | 1400 |
| Input frequency, [Hz] | 50/60 |
| Fuel type | Liquid gas LPG |
|---|
| Thermostat control | Electronic Thermostat |
|---|---|
| Gas category | Propane (US/Canada) |
| Dimensions parcel depth, [in] | 24.5 |
|---|---|
| Dimensions parcel height, [in] | 13.5 |
| Dimensions parcel width, [in] | 16 |
| Parcel weight, [lbs] | 20 |
Warning: Cancer or reproductive harm www.P65Warnings.ca.gov
Highlights
Quick heating
Burner system heats water quickly and reduces wait time

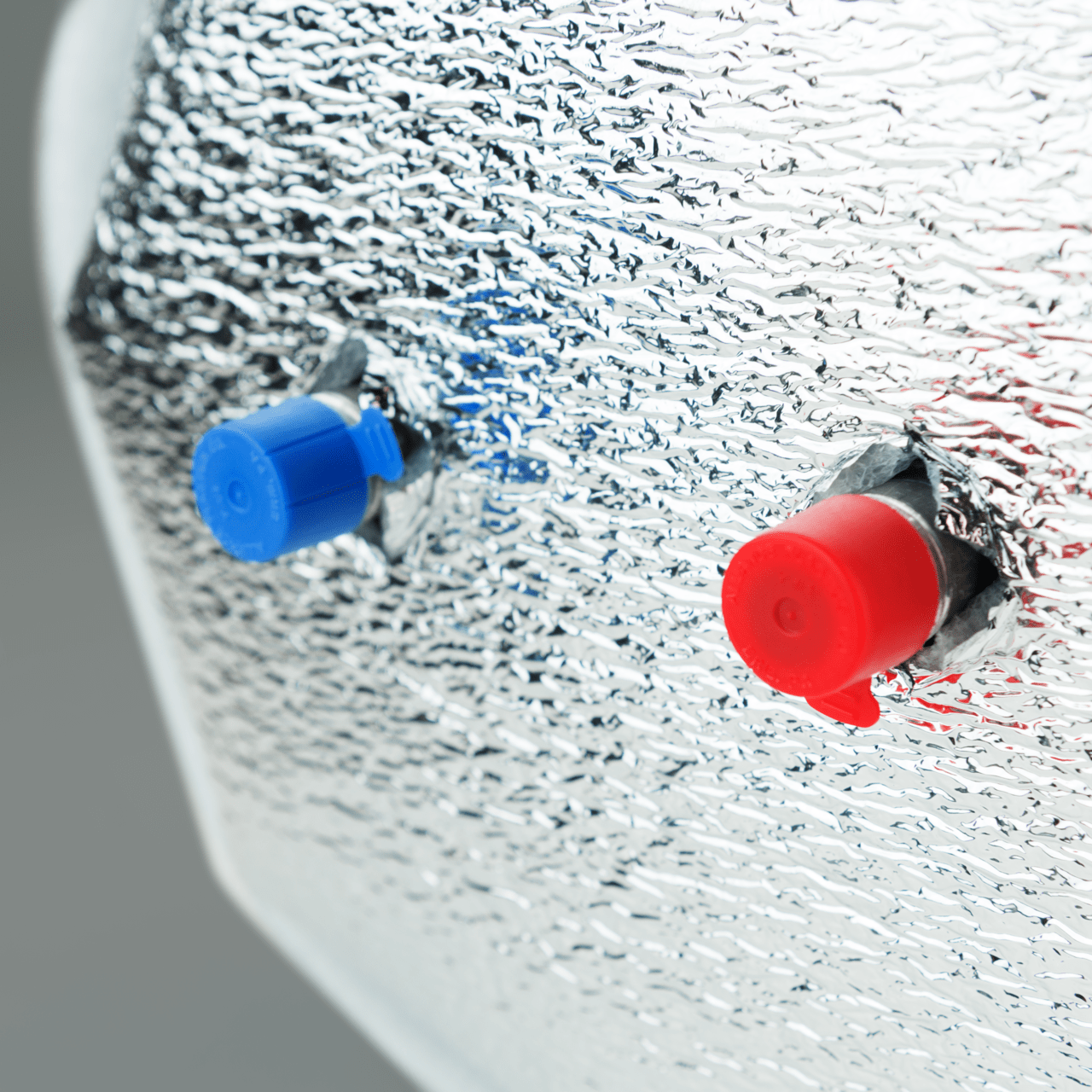

Low Maintenance
Aluminum tank requires no anode rod

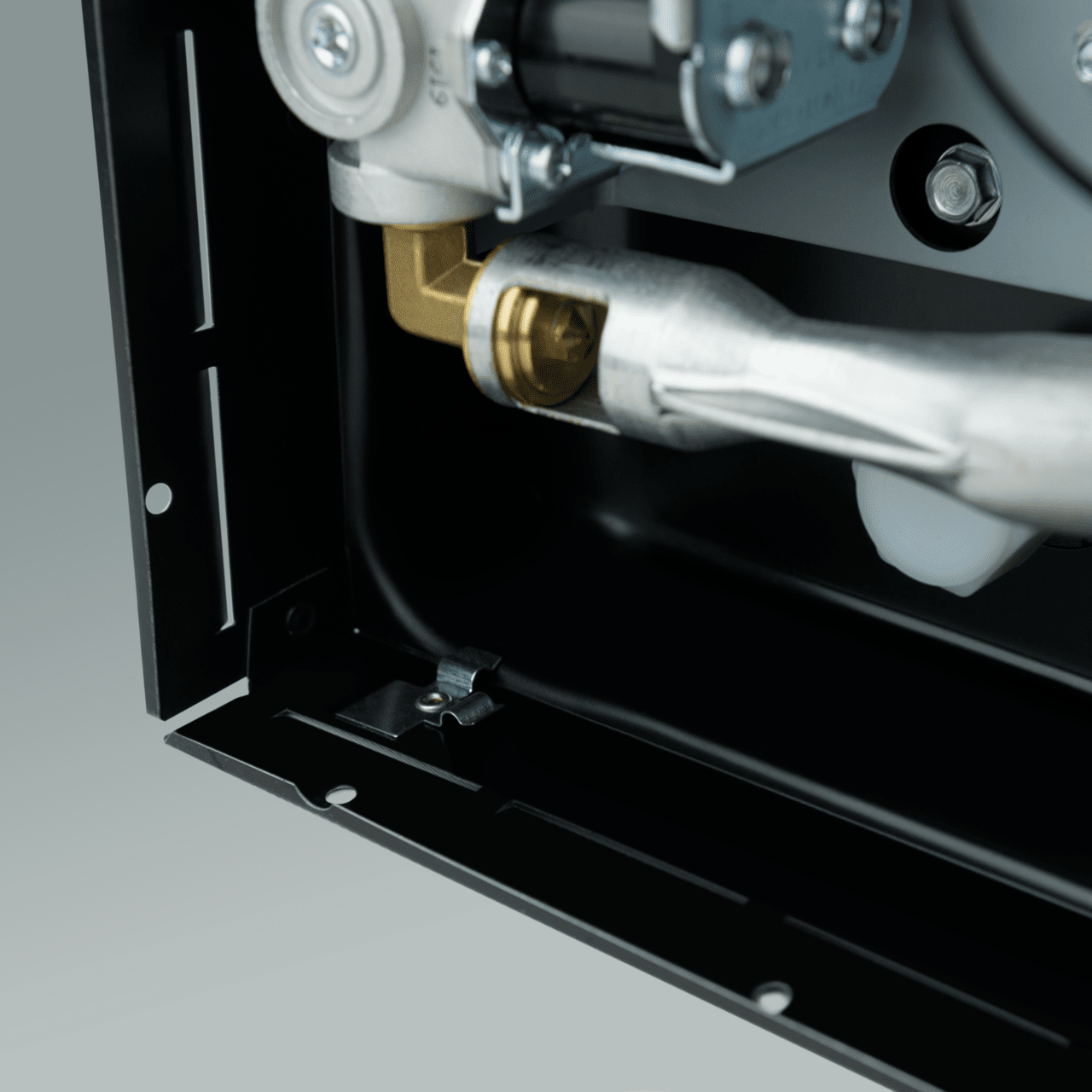

Extra Heat
Electric heating element provides additional input
Advanced Technology
Enjoy 33 % more hot water thanks to the XT mixing valve
$ 885.39
