Description
- For engines up to 400 hp
- Made from heavy duty materials for exceptional performance.
- Adjusts engine height seamlessly even at full thrust
- Smooth operation with composite bushings
- Easy wrench access to engine bolts from side
- Compatible with Power Pole and Talon
Dometic Xtreme Jack Plates utilize high strength materials to handle some of the strongest engines on the water. The heavy-duty frames are capable of handling engines up to 400 HP. Designed with speed and durability in mind, the Xtreme Jack Plates can adjust the engine height in just 8.5 seconds, even while the boat is moving at full speed.
Specifications
SKU: 9130005980
| Model | Xtreme Jackplate |
|---|---|
| Product Description | Hydraulic jack plate, 4" setback |
| Dimensions product depth, [in] | 6.5 |
|---|---|
| Dimensions product height, [in] | 17.75 |
| Dimensions product width, [in] | 16 1/8 |
| Net weight, [lbs] | 50 |
| Setback | 4” |
|---|
| Dimensions parcel depth, [in] | 7.6 |
|---|---|
| Dimensions parcel height, [in] | 20 |
| Dimensions parcel width, [in] | 18 |
| Parcel weight, [lbs] | 53 |
Dometic SeaStar Jackplate, SeaStar Jackplate Xtreme - Installation and Operating Manual AMER(en)
Installation And Operating Manual
Dometic SeaStar Jack Plate (Standard, Xtreme) - Installation and Operating Manual INT24 (marine bundle)
Installation And Operating Manual
Advanced engineering

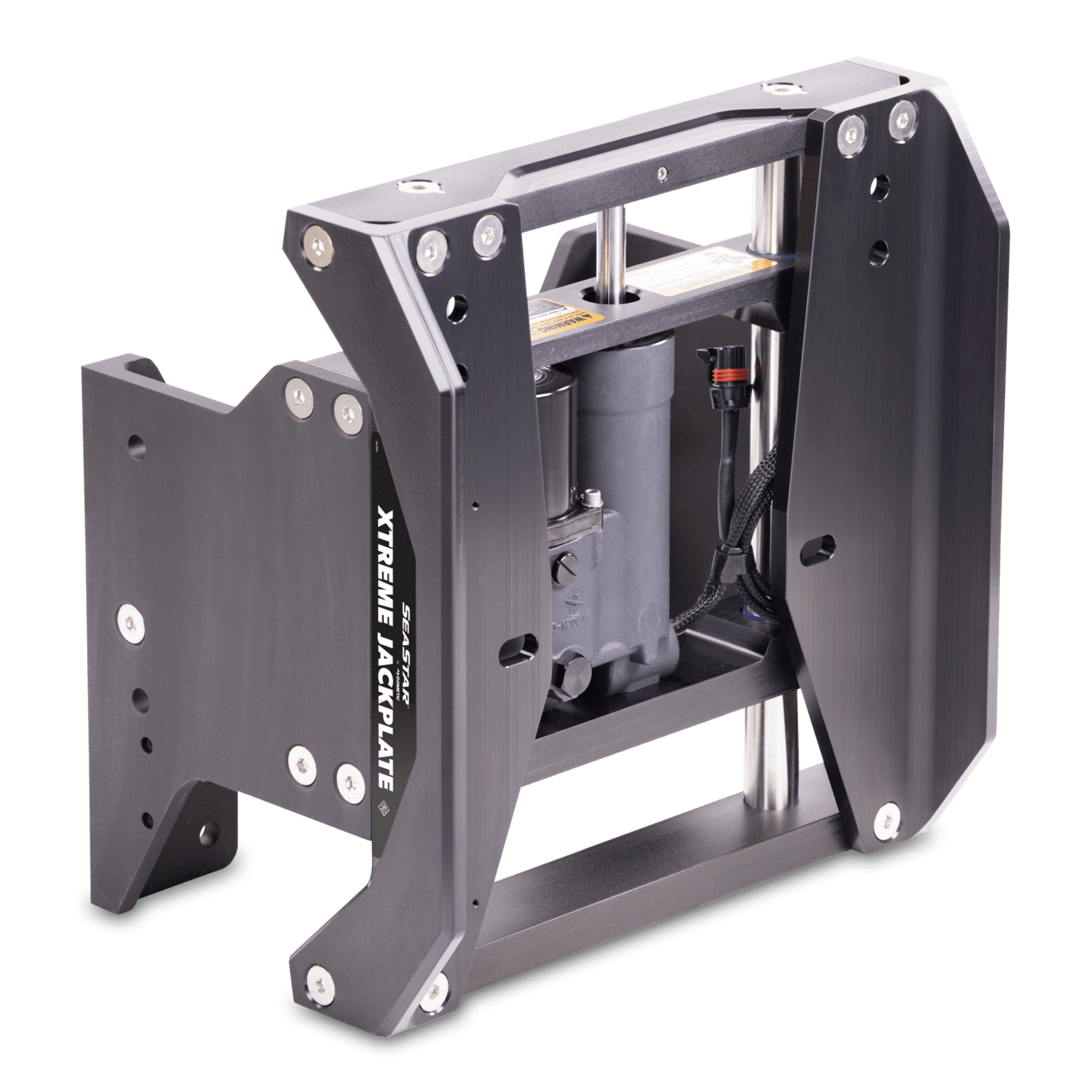

The latest in Jackplates from Dometic, the Dometic SeaStar Xtreme Jackplate. Available in 4", 6", 8", 10", and 12" setbacks, the Xtreme series of hydraulic jackplates are capable of handling up to 400 HP gasoline engines. With easier access to transom mounting bolts and easy wrench access to engine bolts from the side, installation is easier than ever.
