"I cannot recommend front runner enough. The quality is top notch with everything fitting perfect. I was nervous at first to drill through the roof. However the instructions made the process so easy and smooth."
Description

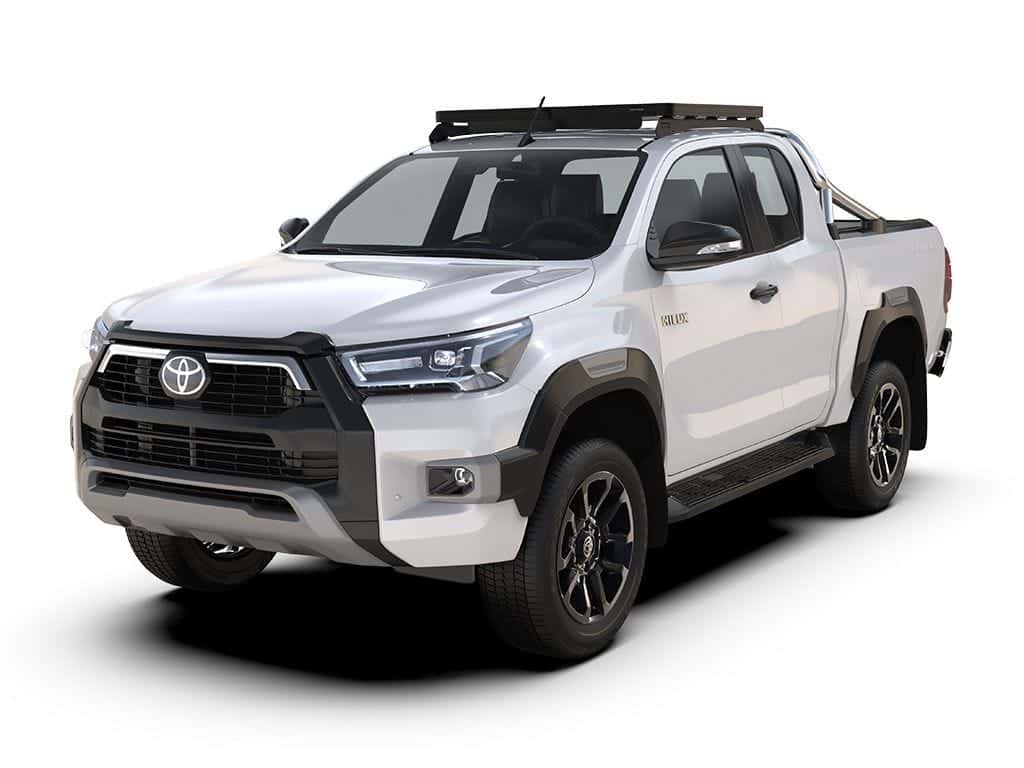

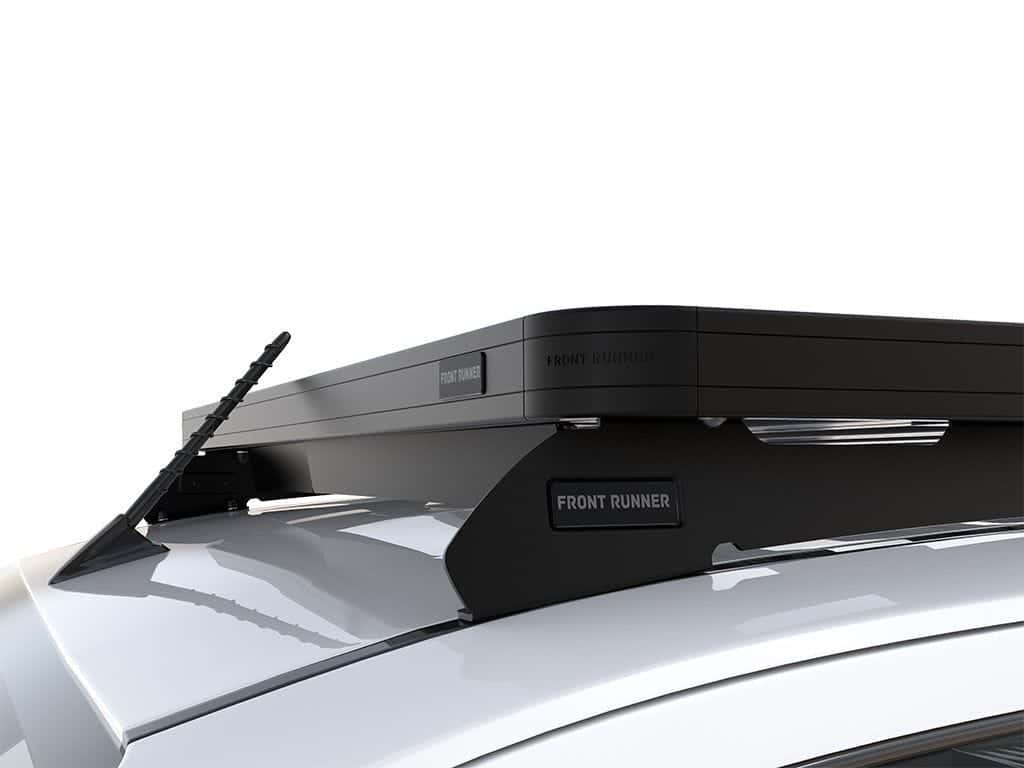

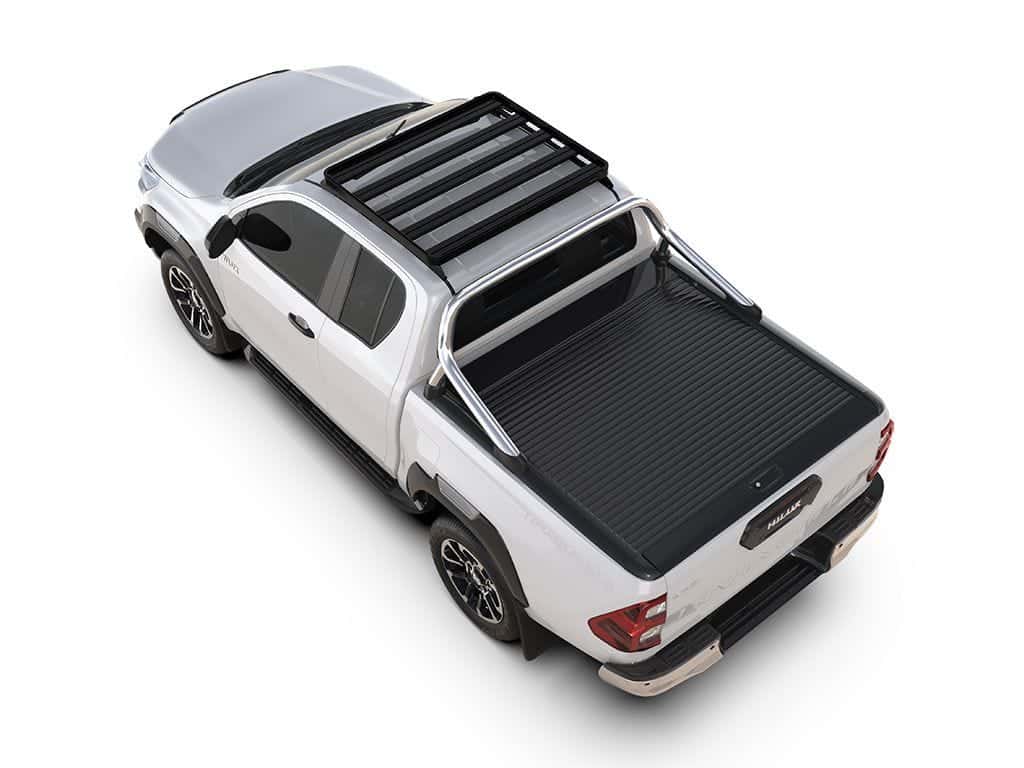

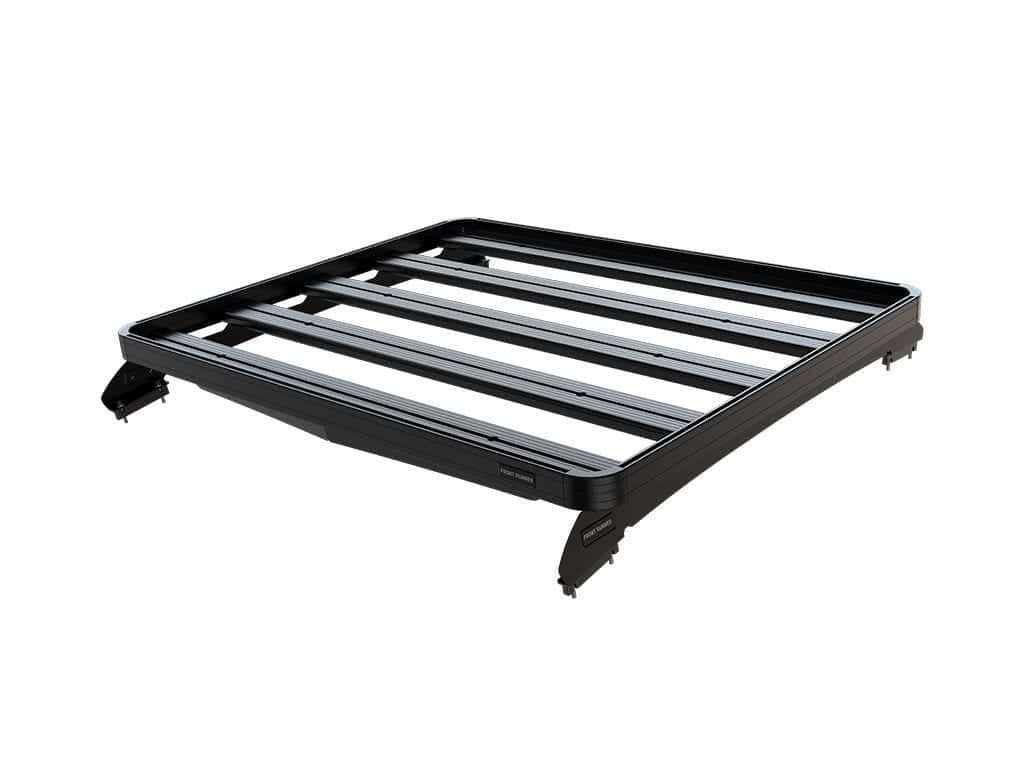

This 954mm/37.6" long, full-size, Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Low Profile Foot Rails to mount the Slimline II Tray to your Toyota Hilux Revo Extended Cab. Drilling is required for installation.
All Front Runner Rack Kits contain installation instructions, as well as all the components needed to mount the Slimline II Tray to your vehicle.
All Dometic Front Runner Series racks are backed by a 5‑year warranty*
For further information on installation, please see the fitment instructions in the INSTALL tab.
Note: Some side mount accessories are not suited for low profile foot rails such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets.
Note: This rack kit is compatible with front and rear antennas.
Specifications
SKU: KRTH022T
KRTH022T - Toyota Hilux Revo Extended Cab (2016-Current) Slimline II Roof Rack Kit / Low Profile - by Front Runner
Consisting of:
1x FATH006 - Toyota Hilux Revo ExCab(2016-Curr) Foot Rails/Low
1x RRSTA05 - SLII Tray - 1165mm(W)X954mm(L)
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel
Approximate Installed Weight: 20.78kg (45.81lbs)

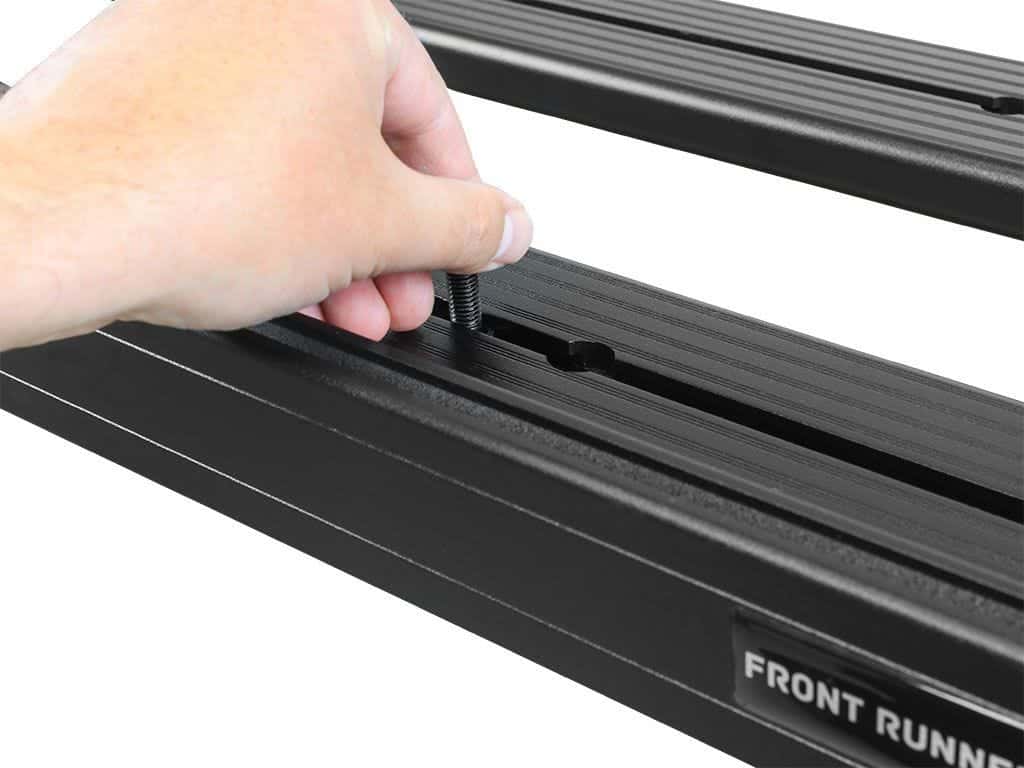

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width: 440mm (17")
Length: 1730mm (68")
Height: 275mm (11")
Shipping Weight:
Weight: 23kg (51lbs)
Consisting of:
1x FATH006 - Toyota Hilux Revo ExCab(2016-Curr) Foot Rails/Low
1x RRSTA05 - SLII Tray - 1165mm(W)X954mm(L)
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel
Approximate Installed Weight: 20.78kg (45.81lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width: 440mm (17")
Length: 1730mm (68")
Height: 275mm (11")
Shipping Weight:
Weight: 23kg (51lbs)
