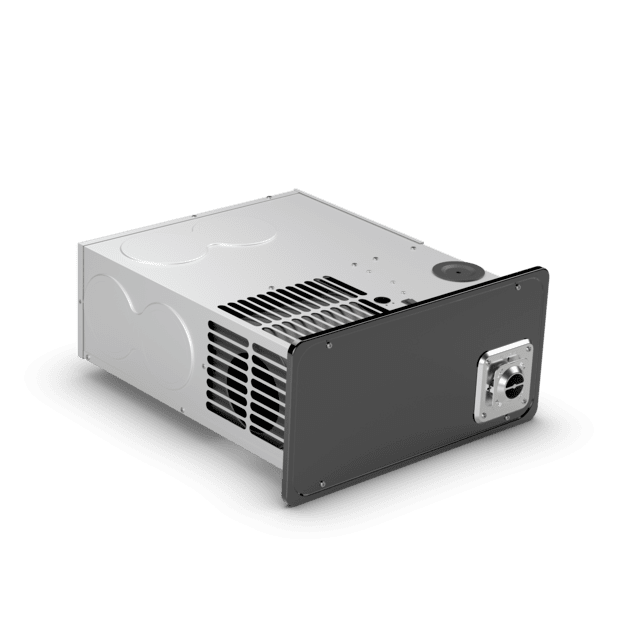

Dometic DFMD16111 Medium Furnace
Engineered for easy maintenance and superior air delivery. Its compact size offers installation convenience. The Dometic DFMD1611 Medium Furnace has a redesigned, durable stamped steel door, sold separately (select models only).
Horizontal or vertical configuration for flexible installation
Quiet operation thanks to reduced air turbulence
Low-profile, compact design: 7-3/8 in. x 16-1/2 in. x 20 in. (H x W x D)
12 V DC powered unit
16,000 BTU
Outside access door required (sold separately)
SKU number
9600000793
Model
DFM
Model on label
DFMD16111
SKU replaced by
9600001165
Scope of delivery
Furnace, Duct Adaptors and Manual
Product Description
Doored Furnace, 16,000 BTU, Uses LP Gas, 12 DC Voltage
Dimensions product depth, ["]
20
Dimensions product height, ["]
7
Dimensions product width, ["]
16 1/2
Net weight, [lbs]
33.5
Voltage Type
DC
Input voltage (DC), [V]
12
Rated input current (DC), [A]
4.3
Fuel type
Liquid gas LPG
Fuel consumption peak, [cf/h]
7
Certificates
ETL
Door Style
Door
Furnace Size
Medium
EAN-13
0713814220297
Dimensions parcel depth, ["]
21
Dimensions parcel height, ["]
9.5
Dimensions parcel width, ["]
16.25
Parcel weight, [lbs]
33.63
Dometic DFSAD12, DFSD12, DFSD16, DFSD20, DFMD16, DFMD20, DFMD25, DFMD30, DFMD35, DFLD35, DFLD40, DFLA35, DFLA40 - Installation Instructions AMER(en)
Installation Manual
DownloadDometic DFSAD12 DFSD12 DFSD16 DFSD20 DFMD16 DFMD20 DFMD25 DFMD30 DFMD35 DFLD35 DFLD40 DFLA35 DFLA40 - Operating Manual AMER(en)
Operating Manual
