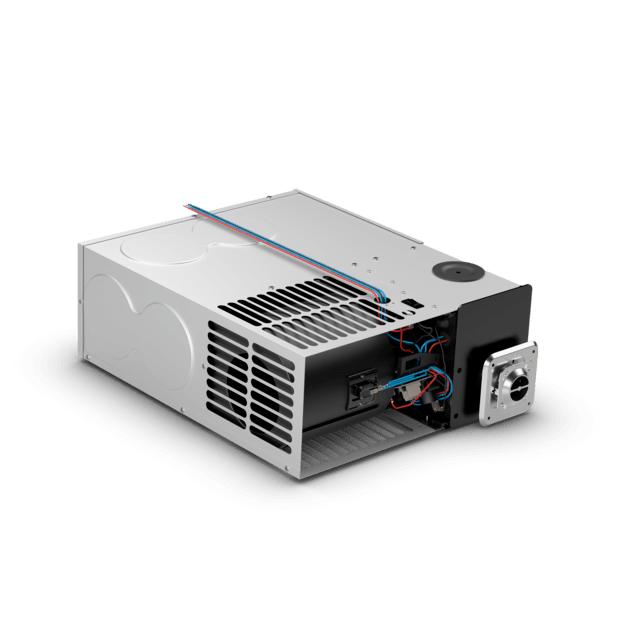

Dometic DFMD20121 Medium Furnace
Engineered for easy maintenance and superior air delivery. The Dometic DFMD20121 Medium Furnace is compact and comes with the most duct configurations on the market, allowing for flexible and convenient installation.
Horizontal or vertical configuration for flexible installation
Quiet operation thanks to reduced air turbulence
Low-profile, compact design: 7-3/8 in. x 16-1/2 in. x 20 in. (H x W x D)
12 V DC powered unit
20,000 BTU
SKU number
9600000827
Model
DFM
Model on label
DFMD20121
Scope of delivery
Furance, Duct Adaptors and Manual
Product Description
Doorless Furnace, 20,000 BTU, Uses LP Gas, 12 DC Voltage
Dimensions product depth, ["]
20
Dimensions product height, ["]
7
Dimensions product width, ["]
16 1/2
Net weight, [lbs]
33.5
Voltage Type
DC
Input voltage (DC), [V]
12
Rated input current (DC), [A]
4.3
Fuel type
Liquid gas LPG
Fuel consumption peak, [cf/h]
7.8
Certificates
ETL
Door Style
LD (Less Door)
Furnace Size
Medium
EAN-13
0713814220365
Dimensions parcel depth, ["]
21
Dimensions parcel height, ["]
9.5
Dimensions parcel width, ["]
16.25
Parcel weight, [lbs]
33.63
Dometic DFSAD12, DFSD12, DFSD16, DFSD20, DFMD16, DFMD20, DFMD25, DFMD30, DFMD35, DFLD35, DFLD40, DFLA35, DFLA40 - Installation Instructions AMER(en)
Installation Manual
DownloadDometic DFSAD12 DFSD12 DFSD16 DFSD20 DFMD16 DFMD20 DFMD25 DFMD30 DFMD35 DFLD35 DFLD40 DFLA35 DFLA40 - Operating Manual AMER(en)
Operating Manual
DownloadDometic 4-E & 10-E - Installation and Operating Manual INT(en-fr)
Installation and Operating Manual
DownloadWARNINGCancer or Reproductive Harm www.P65Warnings.ca.gov
