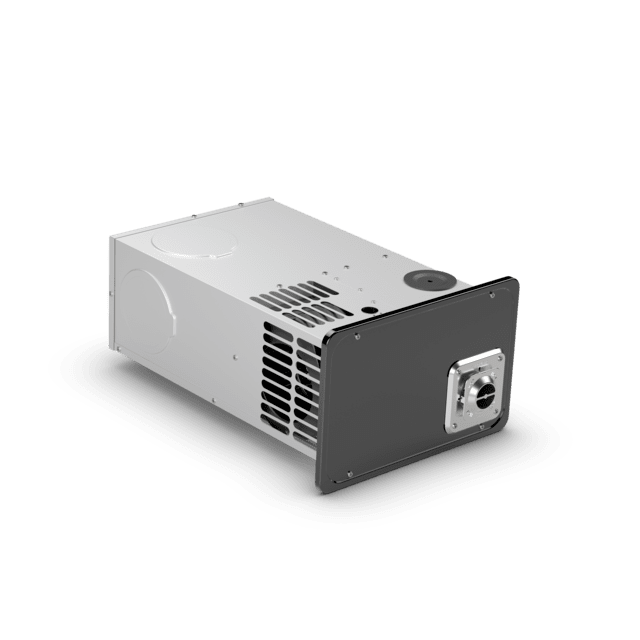

Dometic DFSD20111 Small Furnace
Engineered for easy maintenance and superior air delivery. Its compact size offers installation convenience. The Dometic DFSD20111 Small Furnace has a redesigned, durable stamped steel door, sold separately (select models only).
Horizontal or vertical configuration for flexible installation
Quiet operation thanks to reduced air turbulence
Low-profile, compact design: 7 in. x 12 in. x 20 in. (H x W x D)
12 V DC powered unit
18,000 BTU
Outside access door required (sold separately)
SKU number
9600001165
Model
DFS
Model on label
DFSD20111
Scope of delivery
Furance, Duct Adaptors and Manual
Product Description
Doored Furnace, 18,000 BTU, Uses LP Gas, 12 DC Voltage
Dimensions product depth, ["]
20
Dimensions product height, ["]
7
Dimensions product width, ["]
12
Net weight, [lbs]
20.8
Voltage Type
DC
Input voltage (DC), [V]
12
Rated input current (DC), [A]
4.8
Fuel type
Liquid gas LPG
Fuel consumption peak, [cf/h]
6.80
Certificates
ETL
Door Style
Door
Furnace Size
Small
EAN-13
0713814220792
Dimensions parcel depth, ["]
21
Dimensions parcel height, ["]
9 1/2
Dimensions parcel width, ["]
16 1/4
Parcel weight, [lbs]
33.64
Dometic DFSAD12, DFSD12, DFSD16, DFSD20, DFMD16, DFMD20, DFMD25, DFMD30, DFMD35, DFLD35, DFLD40, DFLA35, DFLA40 - Installation Instructions AMER(en)
Installation Manual
DownloadDometic DFSAD12 DFSD12 DFSD16 DFSD20 DFMD16 DFMD20 DFMD25 DFMD30 DFMD35 DFLD35 DFLD40 DFLA35 DFLA40 - Operating Manual AMER(en)
Operating Manual
DownloadDometic 4-E & 10-E - Installation and Operating Manual INT(en-fr)
Installation and Operating Manual
