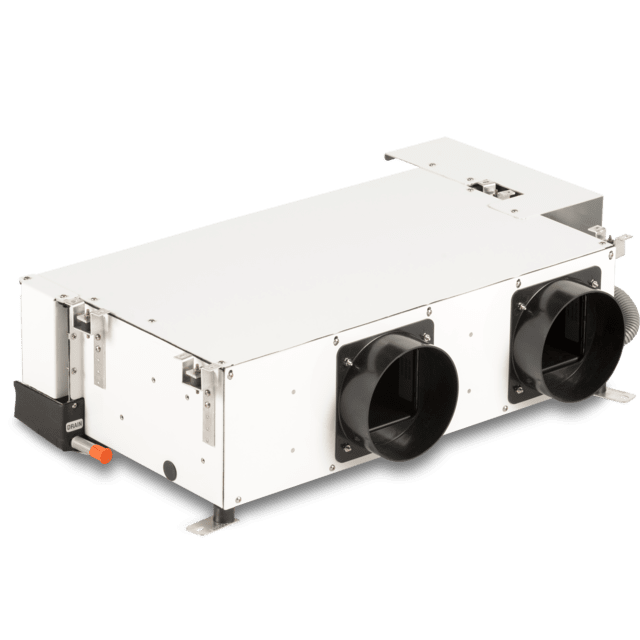

Dometic ATL

Ceiling Mountable Air Handler Series
Sold in our dealer networkArt nr: 9108783239
Your Configurations
Cooling Capacity, [Btu/h]

12000

Input voltage (AC), [V]

230

Input frequency, [Hz]

50/60

Item Description

ATL12HVZ-FC 6"MR 230V

Suspend from above or support from beneath (hardware included)

Optional DC "Whispercool" blowers are extremely quiet yet powerful

Bypass valve has removable power head for simple servicing

Electrical box can be remotely mounted up to 6' away (1.8 m)

Remote air bleeder on 6 ' (1.8 m) of flexible tubing with ball valve

SKU number

9108783239

Model

Chillers Air Handlers ATL

Model on label

ATL12HVZ-FC 6"M

Product Description

Chilled water air handler, 12,000 BTU/h, 230 V

Dimensions product depth, ["]

17.9

Dimensions product height, ["]

8.1

Dimensions product width, ["]

31.6

Net weight, [lbs]

51

Input voltage (AC), [V]

230

Input frequency, [Hz]

50/60

Required AC circuit protection min, [A]

3

Required AC circuit protection max, [A]

5

Cooling capacity (ISO 5151), [W]

3516.85

Current consumption min cooling, [A]

1.8

Current consumption max cooling, [A]

1.8

EAN-13

7315091236553

Dimensions parcel depth, ["]

35

Dimensions parcel height, ["]

12

Dimensions parcel width, ["]

22

Parcel weight, [lbs]

61.15

Dometic Fan Coils and Controls - Declaration of Conformity EMEA24

Declarations of Conformity

Download

Dometic Airhandler - Installation and Operating Manual APAC/AMER/EMEA(en)

Installation and Operating Manual

Download
WARNING

WARNINGCancer or Reproductive Harm www.P65Warnings.ca.gov

The Dometic ATL chilled water air handler represents an improved design approach to low-profile draw-through air handlers. This "open top" unit allows easier maintenance access and reduced dimensions overall.
